Engine overheat warning indicator
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the
“WARNING” indicator light and the overheat
warning indicator blink, and then come on.
The buzzer also begins to sound intermit-
tently, and then it sounds continuously. After
the light and indicator start to blink and the
buzzer sounds, the engine speed is limited
to help prevent damage.
If this occurs, immediately reduce the
engine speed, return to shore, and then
check for water discharge at the port (left)
cooling water pilot outlet. If there is no dis-
charge of water, check the intake grate and
impeller for clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
@
NOTE:@ Press any button on the multifunction meter
to stop the buzzer.
@
E_F1Y-70.book Page 24 Friday, August 26, 2005 9:47 AM

E
3
EJU01040
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
Engine oil ................................................ 3-3
Filling the fuel tank ................................. 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-17
Engine break-in .................................... 3-17
Launching the watercraft ..................... 3-18
Starting the engine ............................... 3-19
Stopping the engine ............................. 3-21
Leaving the watercraft ......................... 3-21
Operating your watercraft .................... 3-22
Getting to know your watercraft ........... 3-22
Learning to operate your watercraft .... 3-22
Riding watercraft with passengers ...... 3-23
Starting the watercraft .......................... 3-24
Boarding and starting in deep water ... 3-26
Capsized watercraft ............................. 3-29
Turning the watercraft .......................... 3-31
Stopping the watercraft ........................ 3-33
Beaching the watercraft ....................... 3-34
Docking the watercraft ......................... 3-34
Reverse on waterways ........................ 3-35
Rough water operation ........................ 3-35
Post-operation checks ......................... 3-36
Transporting .......................................... 3-38
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

3-1
E
EJU01798
Fuel and oil
This watercraft is equipped with a
4-stroke engine. Conventional 2-stroke
engine oil cannot be used.
The engine utilizes an electronic fuel
injection system to deliver the optimal air-
fuel mixture ratio required by the engine.
With optimal combustion conditions, this
system is able to increase startability and
improve fuel economy.
EJU19112
Gasoline
WARNING@ GASOLINE AND ITS VAPORS ARE
HIGHLY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and
keep away from sparks, flames, or
other sources of ignition.

Stop engine before refueling.

Refuel in a well-ventilated area with
the watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level reaches approx-
imately 50 mm (2 in) from the top of the
fuel tank. Fuel expands as it warms up
and could overflow if the fuel tank has
been overfilled. If temporarily leaving
the watercraft with a full fuel tank, do
not leave it in direct sunlight. Leave it
in a well-ventilated area with the water-
craft in a horizontal position.
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

3-5
E
EJU01346
Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove all seats to ventilate the engine compartment.
Check for fuel vapors and loose electrical connections.3-6
Bilge Check for water and fuel and remove if necessary. 3-9
Stern drain plugs Check for proper installation. 3-10
Throttle lever Check that the throttle lever springs back smoothly. 3-12
Steering system Check for proper operation.
Check that the handlebars are securely locked.3-12
Shift lever and reverse gate Check for proper operation. 3-13
QSTS Check for proper operation. 3-14
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-6, 3-7
Water separator Check for water and drain if necessary. 3-8
Battery Check electrolyte level and battery condition. 3-10
Hood Check that the hood is properly secured. 2-7
Front and rear seats Check that the seats are properly secured. 2-5, 2-6
Hull and deck Check the hull and deck for cracks or other damage. 3-6
Jet unit Check for debris and remove if necessary. 3-15
Fire extinguisher Check condition and replace if necessary. 3-11
Engine shut-off cord Check condition and replace if frayed or broken. 3-15
Switches Check the start switch, engine stop switch, and engine
shut-off switch for proper operation.3-16
Cooling water pilot outlet Check that water is discharged while the engine is run-
ning and the watercraft is in the water.3-16
Multifunction meter Check for warning indications and proper operation. 3-16
E_F1Y-70.book Page 5 Friday, August 26, 2005 9:47 AM

3-7
E
EJU20831

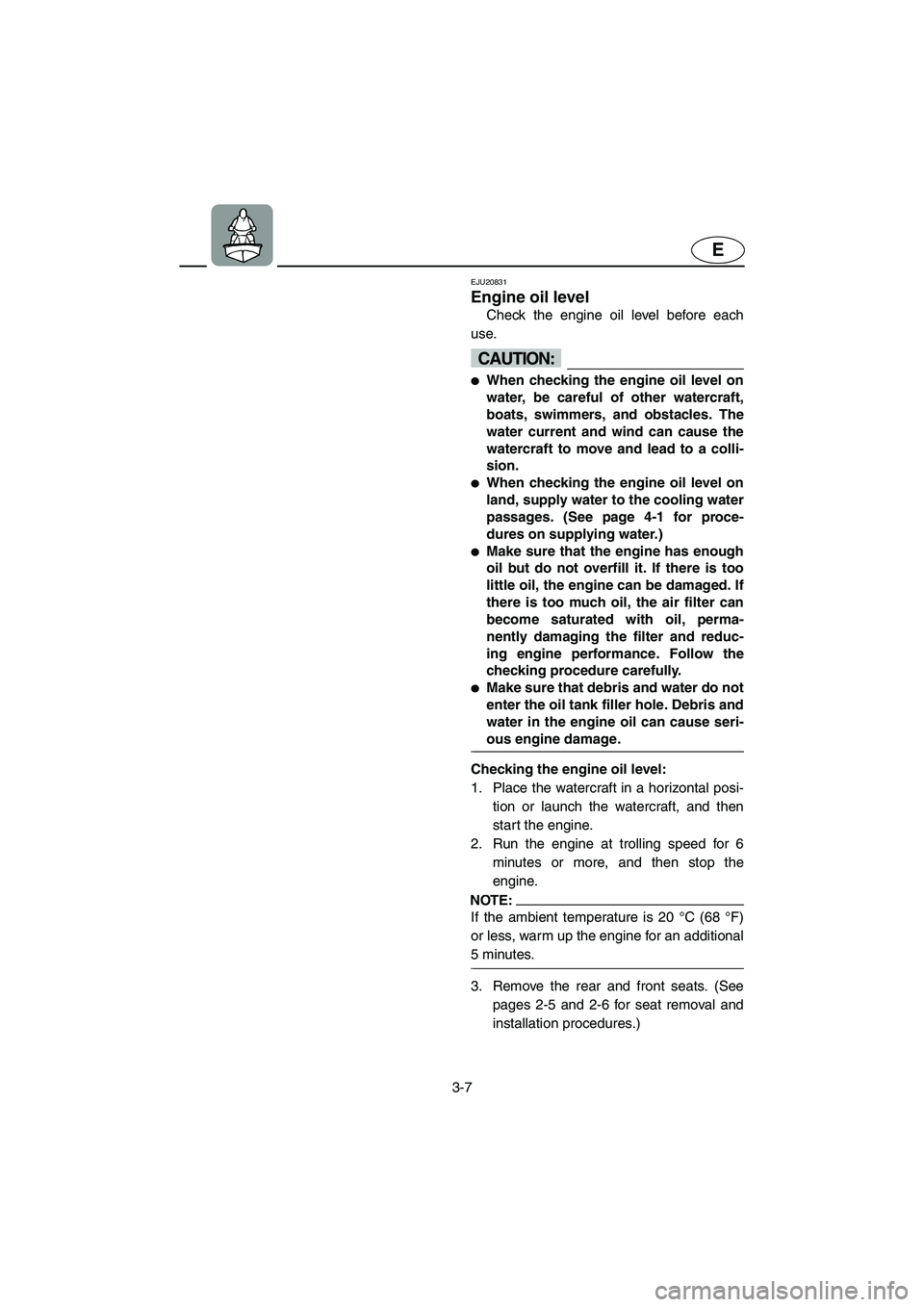

Engine oil level
Check the engine oil level before each
use.
CAUTION:@
When checking the engine oil level on
water, be careful of other watercraft,
boats, swimmers, and obstacles. The
water current and wind can cause the
watercraft to move and lead to a colli-
sion.

When checking the engine oil level on
land, supply water to the cooling water
passages. (See page 4-1 for proce-
dures on supplying water.)

Make sure that the engine has enough
oil but do not overfill it. If there is too
little oil, the engine can be damaged. If
there is too much oil, the air filter can
become saturated with oil, perma-
nently damaging the filter and reduc-
ing engine performance. Follow the
checking procedure carefully.

Make sure that debris and water do not
enter the oil tank filler hole. Debris and
water in the engine oil can cause seri-
ous engine damage.
@
Checking the engine oil level:
1. Place the watercraft in a horizontal posi-
tion or launch the watercraft, and then
start the engine.
2. Run the engine at trolling speed for 6
minutes or more, and then stop the
engine.
NOTE:@ If the ambient temperature is 20 °C (68 °F)
or less, warm up the engine for an additional
5 minutes.
@
3. Remove the rear and front seats. (See
pages 2-5 and 2-6 for seat removal and
installation procedures.)
E_F1Y-70.book Page 7 Friday, August 26, 2005 9:47 AM

3-16
E
EJU18352
Switches
CAUTION:@ Do not run the engine of the watercraft
for more than 15 seconds on land with-
out supplying water, otherwise the
engine may overheat.
@
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch 1 to start the
engine. As soon as the engine starts run-
ning, push the engine stop switch 2 to ver-
ify that the engine stops immediately.
Restart the engine, and then pull the engine
shut-off cord 5 to remove the clip 4 from
the engine shut-off switch 3 to verify that
the engine stops immediately. (See pages
2-7 to 2-9 for information on proper opera-
tion of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU01806
Cooling water pilot outlet
Check that water comes out from the port
(left) pilot water outlet while the engine is
running and the watercraft is in the water.
(See page 2-9 for further instructions.)
EJU01246
Multifunction meter
Check the operation of the multifunction
meter. (See pages 2-16 to 2-24 for operation
of the meter.)
E_F1Y-70.book Page 16 Friday, August 26, 2005 9:47 AM

3-20
E
2. Attach the clip 1 to the engine shut-off
switch 2. Also, attach the engine shut-
off cord 3 to your left wrist.
WARNING@ Check that the engine shut-off cord is not
frayed or broken, and keep it free from
the handlebars so the engine stops if the
operator falls off. The engine shut-off
cord may not pull free if wrapped around
the handlebars when the operator falls
off, allowing the watercraft to continue to
run and cause an accident.
NOTE:@ It is not possible to start the engine with the
clip removed from the engine shut-off
switch.
3. Push the start switch (green button).
NOTE:@ The engine will not start if the throttle lever is
squeezed.
4. Release the start switch as soon as the
engine starts to run.
CAUTION:@
Never push the start switch while the
engine is running.

Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
then try again.
E_F1Y-70.book Page 20 Friday, August 26, 2005 9:47 AM

3-21
E
EJU01066
Stopping the engine
To stop the engine, release the throttle
lever, and then push the engine stop switch
(red button).
WARNING@ You need throttle to steer. Shutting off
the engine can cause you to hit an obsta-
cle you are attempting to avoid. A colli-
sion could result in severe injury or
death.
EJU01067
Leaving the watercraft
If leaving the watercraft, remove the
engine shut-off cord to reduce the chance of
accidental starting or unauthorized use by
children or others.
E_F1Y-70.book Page 21 Friday, August 26, 2005 9:47 AM
