2006 YAMAHA FJR1300AS turn signal bulb

TABLE OF CONTENTS
Checking and lubricating the
centerstand and sidestand ........ 6-22
Lubricating the swingarm pivots ... 6-23
Lubricating the rear suspension ... 6-23
Checking the front fork ................. 6-23
Checking the steering ................... 6-24
Checking the wheel bearings ....... 6-25
Battery .......................................... 6-25
Replacing the fuses ...................... 6-26
Headlight bulb .............................. 6-28
Front turn signal light .................... 6-28
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-28
Replacing the license plate light
bulb ........................................... 6-29
Auxiliary light bulb ........................ 6-30
Troubleshooting ............................ 6-30
Troubleshooting charts ................. 6-31
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U2D2EAE0.book Page 2 Monday, June 26, 2006 2:55 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU40360
Headlight bulb If a headlight does not come on, have a
Yamaha dealer check its electrical cir-
cuit or replace the bulb.
EAU39880
Front turn signal light If a front turn signal light does not come
on, have a Yamaha dealer check its
electrical circuit or replace the bulb.
EAU27001
Replacing a rear turn signal
light bulb or a tail/brake light
bulb 1. Remove the passenger seat. (See
page 3-21.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.1. Turn signal light bulb socket
2. Tail/brake light bulb socket
U2D2EAE0.book Page 28 Monday, June 26, 2006 2:55 PM

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U2D2EAE0.book Page 3 Monday, June 26, 2006 2:55 PM

INDEX
AABS ...................................................... 3-18
ABS warning light ................................... 3-6
Accessory box ...................................... 3-25
Air filter element.................................... 6-13
Anti-theft alarm (optional) ..................... 3-14
Auxiliary DC jack .................................. 3-34
Auxiliary light bulb................................. 6-30BBattery .................................................. 6-25
Brake and shift pedals, checking
and lubricating .................................... 6-21
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-19
Brake and YCC-S clutch fluids,
changing ............................................. 6-20
Brake lever ........................................... 3-18
Brake lever, checking and lubricating ... 6-22
Brake pedal .......................................... 3-18CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter ................................ 3-21
Centerstand and sidestand,
checking and lubricating ..................... 6-22
Coolant ................................................. 6-12
Cowlings, opening and closing ............. 3-27DDimmer switch ...................................... 3-15EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-14
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-16Engine trouble/YCC-S indicators
and warning light ................................... 3-5
FFinal gear oil.......................................... 6-10
Front and rear brake pads, checking .... 6-18
Front fork, adjusting .............................. 3-28
Front fork, checking...............................6-23
Front turn signal light............................. 6-28
Fuel ....................................................... 3-20
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-21
Fuel tank cap......................................... 3-19
Fuses, replacing .................................... 6-26GGrip warmer adjusting knob ..................3-31HHandlebar position, adjusting ................ 3-26
Handlebar switches ............................... 3-15
Hand shift control switch ....................... 3-16
Hand shift lever ..................................... 3-17
Hazard switch........................................ 3-16
Headlight beams, adjusting ................... 3-26
Headlight bulb ....................................... 6-28
High beam indicator light......................... 3-4
Horn switch ........................................... 3-16IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-32
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-6
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1
LLicense plate light bulb, replacing......... 6-29MMain switch/steering lock ........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-7NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-18
Rear suspension, lubricating ................ 6-23
Rear view mirrors.................................. 3-28
Rider seat height, adjusting .................. 3-23SSafety information ................................... 1-1
Seats..................................................... 3-21
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-32
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Speedometer .......................................... 3-7
Starting the engine.................................. 5-1
U2D2EAE0.book Page 1 Monday, June 26, 2006 2:55 PM

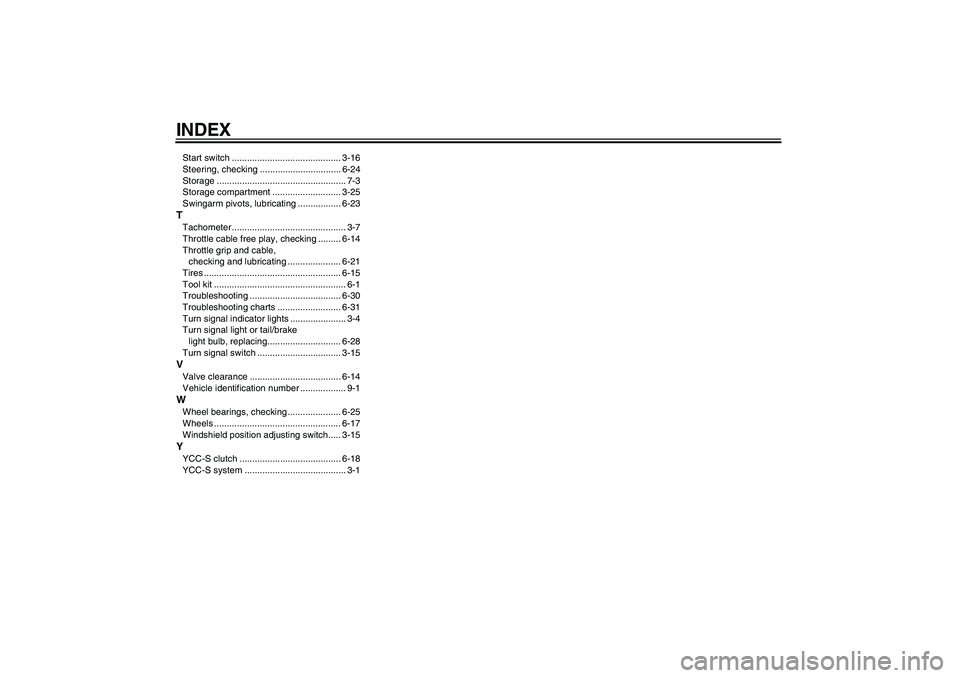

INDEXStart switch ........................................... 3-16
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Storage compartment ........................... 3-25
Swingarm pivots, lubricating ................. 6-23TTachometer ............................................. 3-7
Throttle cable free play, checking ......... 6-14
Throttle grip and cable,
checking and lubricating ..................... 6-21
Tires ...................................................... 6-15
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-30
Troubleshooting charts ......................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake
light bulb, replacing............................. 6-28
Turn signal switch ................................. 3-15VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-25
Wheels .................................................. 6-17
Windshield position adjusting switch..... 3-15YYCC-S clutch ........................................ 6-18
YCC-S system ........................................ 3-1
U2D2EAE0.book Page 2 Monday, June 26, 2006 2:55 PM
