8-107 1. Headlight bulb holder cover
1. Cache de la fixation de l’ampoule de phare
1. Cubierta del portabombillas de la bombilla del faro
1. Headlight coupler
1. Coupleur de phare
1. Acoplador del faro
EBU15941
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the bulb holder cover at the rear of
the headlight by pulling it off.
2. Disconnect the headlight coupler by lifting the
tab as shown and pulling out the coupler.
U5UH62.book Page 107 Tuesday, April 5, 2005 6:57 PM

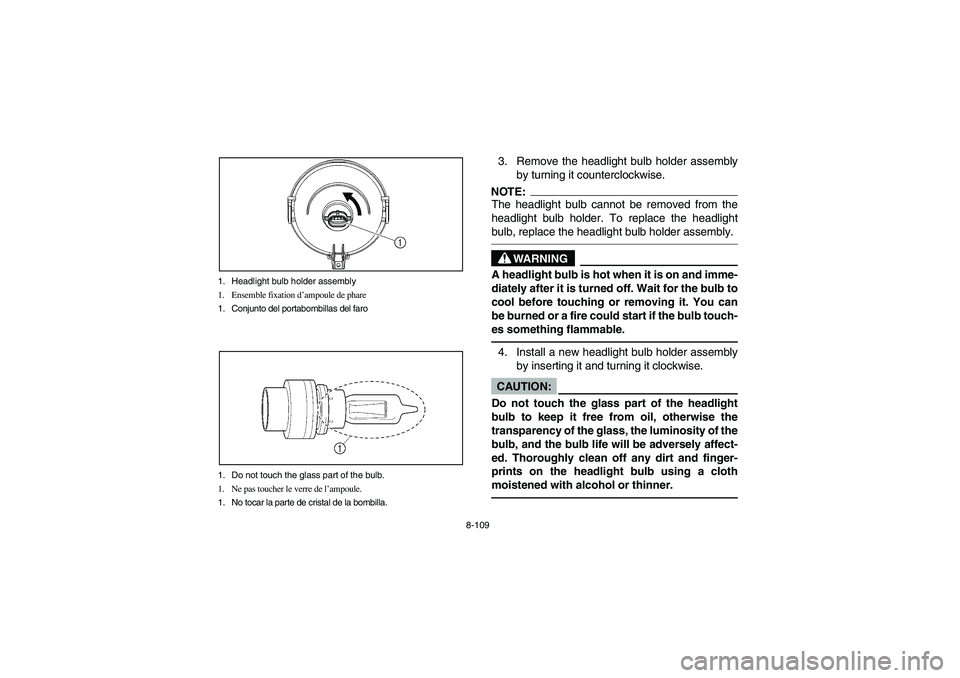

8-109 1. Headlight bulb holder assembly
1. Ensemble fixation d’ampoule de phare
1. Conjunto del portabombillas del faro
1. Do not touch the glass part of the bulb.
1. Ne pas toucher le verre de l’ampoule.
1. No tocar la parte de cristal de la bombilla.
3. Remove the headlight bulb holder assembly
by turning it counterclockwise.NOTE:_ The headlight bulb cannot be removed from the
headlight bulb holder. To replace the headlight
bulb, replace the headlight bulb holder assembly. _
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Install a new headlight bulb holder assembly
by inserting it and turning it clockwise.CAUTION:_ Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner. _
U5UH62.book Page 109 Tuesday, April 5, 2005 6:57 PM

8-111
5. Connect the headlight coupler.
6. Install the headlight bulb holder cover at the
rear of the headlight.
U5UH62.book Page 111 Tuesday, April 5, 2005 6:57 PM

8-113 1. Headlight beam adjusting screw
1. Vis de réglage du faisceau de phare
1. Tornillo de ajuste de la luz del faro
EBU01089
Headlight beam adjustmentCAUTION:_ It is advisable to have a Yamaha dealer make
this adjustment. _To raise the beam, turn the adjusting screw in di-
rection
a.
To lower the beam, turn the adjusting screw in di-
rection
b.
EBU01105
Tail/brake light bulb replacement
If the tail/brake light bulb burns out, have a
Yamaha dealer replace it.
U5UH62.book Page 113 Tuesday, April 5, 2005 6:57 PM

10-5
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring / oil damper
Rear shock absorber Coil spring / oil damper
Wheel travel:
Front wheel travel 160 mm
Rear wheel travel 180 mm
Electrical:
Ignition system DC-C.D.I.
Generator system A.C. magneto
Battery type YTX14AH
Battery voltage, capacity 12 V, 12 Ah
Headlight type: Krypton bulbModel YFM35FA
U5UH62.book Page 5 Tuesday, April 5, 2005 6:57 PM

10-6
Bulb voltage, wattage
× quantity:
Headlight 12 V, 30/30 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Meter lighting 14 V, 3 W
× 1
Neutral indicator light 12 V, 1.7 W
× 1
Reverse indicator light 12 V, 1.7 W
× 1
Oil temperature warning light 12 V, 1.7 W
× 1
Four-wheel-drive indicator light 12 V, 1.7 W
× 1
Fuse:
Main fuse 30 A
Headlight fuse 15 A
Ignition fuse 15 A
Terminal fuse 10 A
Four-wheel-drive fuse 3 A
Signaling system fuse 10 AModel YFM35FA
