2006 YAMAHA BRUIN 350 4WD engine oil

6-7 a. Starter (choke)
1. Fully open
2. Half open
3. Closed
a. Starter (enrichisseur)
1. Complètement ouvert
2. Mi-ouvert
3. Fermé
a. Arrancador (estrangulador)
1. Abre completamente
2. Semiabierto
3. Cerrado
NOTE:_

If the engine fails to start, release the start
switch, and then push the start switch again.
Pause a few seconds before the next at-
tempt. Each cranking should be as short as
possible to preserve battery energy. Do not
crank the engine more than 10 seconds on
each attempt.


If the battery is discharged, pull the recoil
starter to start the engine.
_7. If the engine is started with the starter (choke)
in position
1, the starter (choke) should be
returned to position
2 to warm up the en-
gine. If the engine is started with the starter
(choke) in position
2, keep the starter
(choke) in this position to warm up the en-
gine.
8. Continue warming up the engine until it idles
smoothly and return the starter (choke) to po-
sition
3 before riding.CAUTION:_ See the “Engine break-in” section prior to op-
erating the engine for the first time. _
U5UH62.book Page 7 Tuesday, April 5, 2005 6:57 PM

8-7
EBU02622
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check and adjust idle speed/starter operation.
Adjust if necessary.Cylinder head cover
breather system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace. (Warm engine before draining.)U5UH62.book Page 7 Tuesday, April 5, 2005 6:57 PM

8-8
Engine oil filter cartridge
Replace.Final gear oil
Check oil level/oil leakage.
Replace every 12 months.Differential gear oil
Front brake*Check operation/fluid leakage. (See NOTE page 8-9.)
Correct if necessary.Rear brakeCheck operation.
Adjust if necessary.Select lever safety system
cable*Check operation.
Adjust if necessary.V-belt*Check operation.
Check for cracks or damage.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation./Replace if damaged.
Check toe-in./Adjust if necessary.Drive shaft universal
joint*Lubricate with lithium-soap-based grease.Axle boots*Check operation.
Replace if damaged.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U5UH62.book Page 8 Tuesday, April 5, 2005 6:57 PM

8-21 1. Engine oil filler cap
1. Bouchon de remplissage d’huile de moteur
1. Tapa de relleno de aceite de motor
1. Maximum level mark 2. Minimum level mark
1. Repère de niveau maximum 2. Repère de niveau minimum
1. Marca de nivel máximo 2. Marca de nivel mínimo
EBU14540
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles.
4. Remove the engine oil filler cap and wipe off
the dipstick with a clean rag.
5. Insert the dipstick in the oil filler hole (without
screwing it in), and then remove it again to
check the oil level.NOTE:_ The engine oil should be between the minimum
and maximum level marks. _
U5UH62.book Page 21 Tuesday, April 5, 2005 6:57 PM

8-23 1. Engine oil drain bolt
1. Boulon de vidange de l’huile de moteur
1. Perno de drenaje del aceite de motor
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place an oil pan under the engine to collect
the used oil, and then remove the engine oil
filler cap.
3. Remove the engine oil drain bolt to drain the
oil from the crankcase.
U5UH62.book Page 23 Tuesday, April 5, 2005 6:57 PM

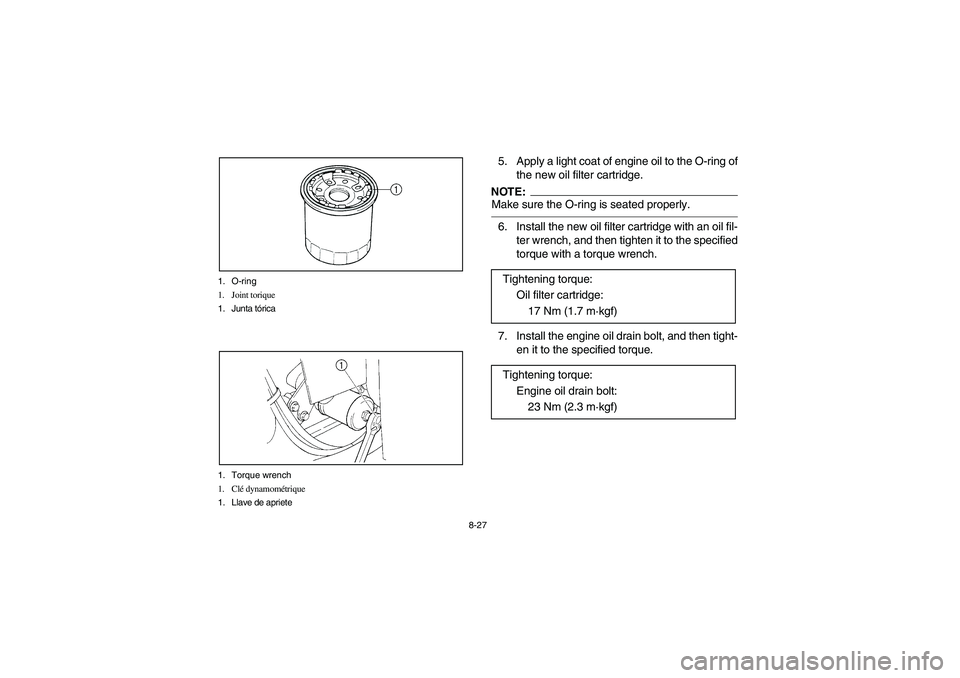

8-27 1. O-ring
1. Joint torique
1. Junta tórica
1. Torque wrench
1. Clé dynamométrique
1. Llave de apriete
5. Apply a light coat of engine oil to the O-ring of
the new oil filter cartridge.NOTE:_ Make sure the O-ring is seated properly. _6. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
7. Install the engine oil drain bolt, and then tight-
en it to the specified torque. Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf)
U5UH62.book Page 27 Tuesday, April 5, 2005 6:57 PM

8-29
8. Add the specified amount of recommended
engine oil, and then install the engine oil filler
cap and tighten it.CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
Recommended engine oil:
See page 10-2.
Oil quantity:
Without oil filter cartridge replacement:
2.2 L
With oil filter cartridge replacement:
2.3 L
U5UH62.book Page 29 Tuesday, April 5, 2005 6:57 PM

8-31
‘1. Final gear oil
2. Final gear oil filler bolt
3. Correct oil level
1. Huile de transmission finale
2. Boulon de l’orifice remplissage du carter de transmission finale
3. Niveau d’huile correct
1. Aceite de la transmisión final
2. Perno del orificio de llenado de aceite de la transmisión final
3. Nivel de aceite correcto
9. Start the engine and warm it up for several
minutes. While warming up, check for oil
leakage. If oil leakage is found, turn the en-
gine off immediately and check for the cause.
10. Turn the engine off, and then check the oil
level and correct it if necessary.
EBU11453
Final gear oil
Checking the final gear oil
1. Place the ATV on a level surface.
2. Remove the oil filler bolt, and then check the
oil level in the final gear case.NOTE:_ The oil level should be at the brim of the filler hole. _3. If the oil is below the brim of the filler hole,
add sufficient oil of the recommended type to
raise it to the correct level.CAUTION:_ Be sure no foreign material enters the final
gear case. _
