the vehicle shows a tendency to skid or slide laterally. A pulsating sound will be audible when the function is active,
which is quite normal. If you apply the brakes while this function is active, the brake pedal will feel stiffer than usual.
This function cannot be disabled.
pg. 114 Starting and driving
Stability system
DSTC-related symbols in the instrument panel
The symbol in the instrument panel lights up and goes out again after approx. 2 seconds
The symbol lights up for a system check when the car is started.
Flashing symbol
Spin Control is actively functioning to help avoid loss of traction during acceleration.
Traction Control is actively functioning to help avoid drive-wheel spin.
Active Yaw Control is actively functioning to help avoid skids or lateral slides.
The information symbol lights up and remains on
STC/DSTC SPIN CONTROL
OFF is shown in the information display.
The Spin Control function has been disabled with the STC/DSTC button.
The information symbol lights up and remains on
TRACTION CONTROL TEMPORARILY
OFF is shown in the information display with the symbol.
The Traction Control function has been temporarily reduced due to high brake temperature. The function is reactivated
automatically when the brake temperature returns to normal levels.
The information symbol lights up and remains on
ANTI-SKID SERVICE REQUIRED
is shown in the information display with the symbol.
The STC or DSTC system has been switched off because of faults.
Stop the car in a safe place and switch off the engine.
Restart the engine.
If the warning symbol remains lit, drive to a trained and qualified Volvo service technician to have the system
checked.
pg. 115 Starting and driving
Park assist (accessory)
ProCarManuals.com

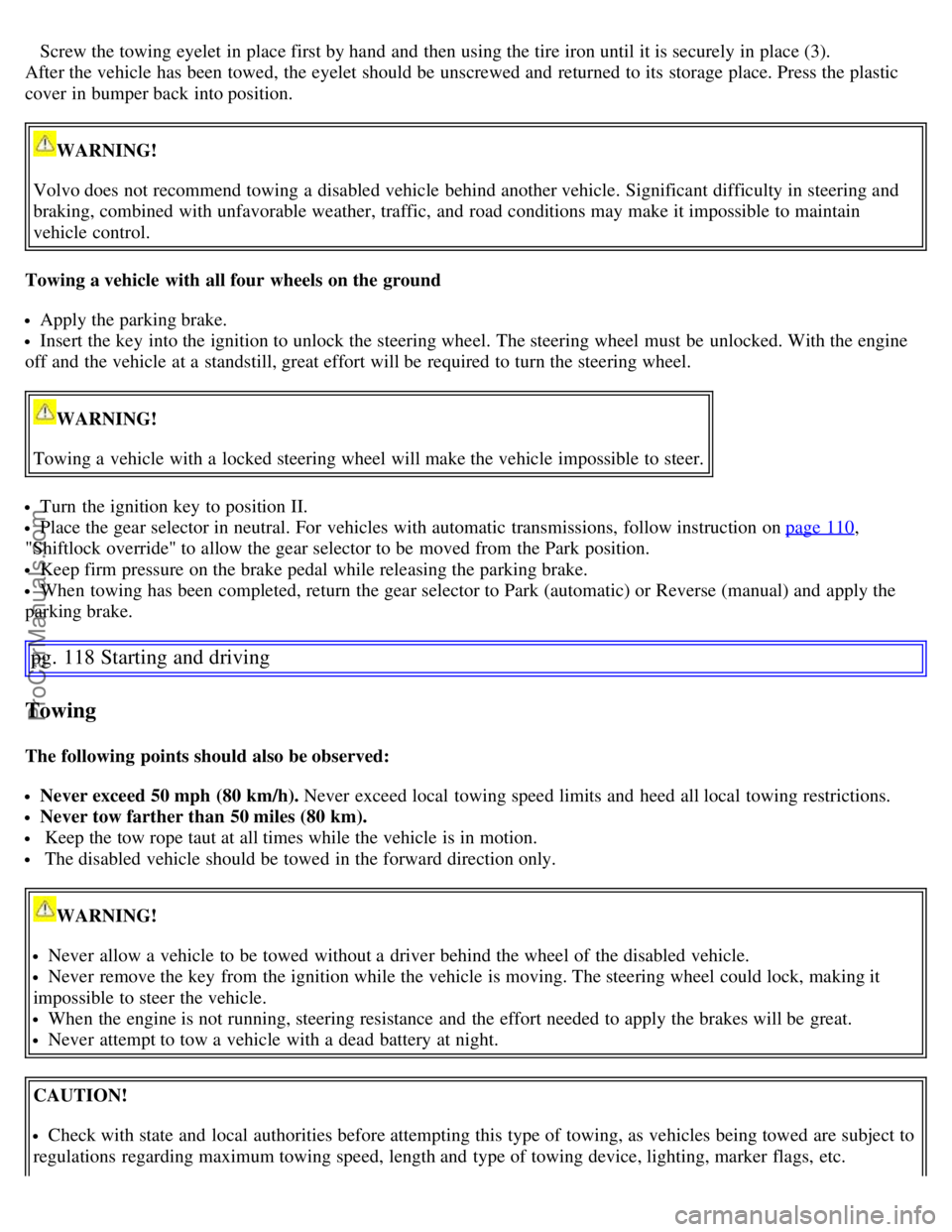

Screw the towing eyelet in place first by hand and then using the tire iron until it is securely in place (3).
After the vehicle has been towed, the eyelet should be unscrewed and returned to its storage place. Press the plastic
cover in bumper back into position.
WARNING!
Volvo does not recommend towing a disabled vehicle behind another vehicle. Significant difficulty in steering and
braking, combined with unfavorable weather, traffic, and road conditions may make it impossible to maintain
vehicle control.
Towing a vehicle with all four wheels on the ground
Apply the parking brake.
Insert the key into the ignition to unlock the steering wheel. The steering wheel must be unlocked. With the engine
off and the vehicle at a standstill, great effort will be required to turn the steering wheel.
WARNING!
Towing a vehicle with a locked steering wheel will make the vehicle impossible to steer.
Turn the ignition key to position II.
Place the gear selector in neutral. For vehicles with automatic transmissions, follow instruction on page 110,
"Shiftlock override" to allow the gear selector to be moved from the Park position.
Keep firm pressure on the brake pedal while releasing the parking brake.
When towing has been completed, return the gear selector to Park (automatic) or Reverse (manual) and apply the
parking brake.
pg. 118 Starting and driving
Towing
The following points should also be observed:
Never exceed 50 mph (80 km/h). Never exceed local towing speed limits and heed all local towing restrictions.
Never tow farther than 50 miles (80 km).
Keep the tow rope taut at all times while the vehicle is in motion.
The disabled vehicle should be towed in the forward direction only.
WARNING!
Never allow a vehicle to be towed without a driver behind the wheel of the disabled vehicle.
Never remove the key from the ignition while the vehicle is moving. The steering wheel could lock, making it
impossible to steer the vehicle.
When the engine is not running, steering resistance and the effort needed to apply the brakes will be great.
Never attempt to tow a vehicle with a dead battery at night.
CAUTION!
Check with state and local authorities before attempting this type of towing, as vehicles being towed are subject to
regulations regarding maximum towing speed, length and type of towing device, lighting, marker flags, etc.
ProCarManuals.com

Never attempt to push- or tow-start a vehicle with a dead battery. This would inject unburned fuel into the three-
way catalytic converter(s), causing overheating, backfiring, and damage. See page 119 for instructions on jump
starting the vehicle.
Having the car towed
Volvo recommends the use of flat bed equipment for towing vehicles with front wheel drive. If wheel lift equipment
must be used, please use extreme caution to help avoid damage to the vehicle.
In this case, the vehicle should be towed with the rear wheels on the ground if at all possible.
If it is absolutely necessary to tow the vehicle with the front wheels on the ground, please refer to the towing
information on the previous page.
Sling-type equipment applied at the front will damage radiator and air conditioning lines.
It is equally important not to use slingtype equipment at the rear or apply lifting equipment inside the rear wheels;
serious damage to the rear axle may result.
If the vehicle is being towed on a flat bed truck, the towing eyelets must not be used to secure the vehicle on the flat
bed. Consult the tow truck operator.
WARNING!
The towing eyelets must not be used for pulling the vehicle out of a ditch or for any similar purpose involving
severe strain.
Do not use the towing eyelets to pull the vehicle up onto a flat bed tow truck.
pg. 119 Starting and driving
Jump starting
Follow these instructions to jump start your vehicle's dead battery or to jump start another vehicle's dead battery using
your vehicle. If the 12-volt auxiliary battery to be used is in another vehicle, check that the vehicles are not touching to
prevent premature completion of a circuit. Be sure to follow jump starting instructions provided for the other vehicle.
To jump start your vehicle:
Switch off the ignition.
First connect the auxiliary battery positive (+) terminal (1) to the positive (+) terminal in your vehicle's battery (2),
marked with a "+" sign.
Connect the auxiliary battery's negative (-) terminal (3) to the ground point in your vehicle's engine compartment
near the driver's side spring strut (4).
Start the engine in the assisting vehicle, then start the engine in the vehicle with dead battery.
ProCarManuals.com

After the engine has started, first remove the negative (-) terminal jumper cable. Then remove the positive (+)
terminal jumper cable.
WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of
California to cause cancer and reproductive harm. Wash hands after handling.
WARNING!
Do not connect the jumper cable to any part of the fuel system or to any moving parts. Avoid touching hot
manifolds.
Batteries generate hydrogen gas, which is flammable and explosive.
Battery fluid contains sulfuric acid. Do not allow battery fluid to contact eyes, skin, fabrics or painted surfaces. If
contact occurs, flush the affected area immediately with water. Obtain medical help immediately if eyes are affected.
Never expose the battery to open flame or electric spark.
Do not smoke near the battery.
Failure to follow the instructions for jump starting can lead to personal injury.
pg. 120 Starting and driving
Towing a trailer
General information
Volvo recommends the use of Volvo trailer hitches that are specially designed for the vehicle.
Maximum trailer weights recommended by Volvo are:
Trailers without brakes : 1,540 lbs (700 kg).
Trailers with brakes: 2,000 lbs (900 kg) Observe the legal requirements of the state/province in which the vehicles
are registered.
The maximum recommended hitch tongue load is 165 lbs (75 kg).
All Volvo models are equipped with energy-absorbing shock-mounted bumpers. Trailer hitch installation should not
interfere with the proper operation of this bumper system.
Trailer towing does not normally present any particular problems, but take into consideration:
Increase tire pressure to recommended full. See the chapter "Wheels and tires."
When your vehicle is new, avoid towing heavy trailers during the first 620 miles (1,000 km).
Maximum speed when towing a trailer: 50 m.p.h. (80 km/h).
Engine and transmission are subject to increased loads. Therefore, engine coolant temperature should be closely
watched when driving in hot climates or hilly terrain. Use a lower gear and turn off the air conditioner if the
temperature gauge needle enters the red range.
If the automatic transmission begins to overheat, a message will be displayed in the information display.
Avoid overload and other abusive operation.
Hauling a trailer affects handling, durability, and economy.
It is necessary to balance trailer brakes with the towing vehicle brakes to provide a safe stop (check and observe
state/local regulations).
Do not connect the trailer's brake system directly to the vehicle's brake system.
More frequent vehicle maintenance is required.
Remove the ball and drawbar assembly when the hitch is not being used.
ProCarManuals.com

Temporarily repairing a flat tire
Before using the tire sealing system, observe the following:
WARNING!
Never leave the tire sealing system unattended when it is operating.
Keep the tire sealing system kit away from children.
The vehicle's engine should be running when the tire sealing system is used to avoid battery drain. Therefore, be
sure the vehicle is parked in a well ventilated place before using the system.
Be sure the vehicle is parked safely off the road and away from moving traffic.
Apply the parking brake.
Do not remove any foreign objects (nails, etc.) from the tire.
Temporarily repairing a flat tire is done in two stages.
In the first stage, the hole is sealed by pumping sealing compound into the tire. The car is then driven a short
distance to distribute the sealing compound in the tire.
In the second stage, the tire's inflation pressure is checked and adjusted if necessary.
Stage 1: Sealing the hole
Peel off the speed limit sticker (1) and affix it to the steering wheel hub where it will be clearly visible to the driver.
Ensure that the orange switch (2) is in position 0 (the 0 side of the switch should be pressed down).
Pull out the electrical wire (5) and hose (4) from the side compartment (3).
Remove the valve cap from the tire's inflation valve and screw the hose connector onto the valve as tightly as
possible by hand.
Connect the electrical wire to the nearest 12-volt socket in the vehicle.
Release the safety catch (6) and turn the orange colored section of the sealing kit (7), which holds the sealing
compound container, 90 degrees until it clicks into the vertical position.
Start the vehicle's engine.
Start the tire sealing system's compressor by pressing the switch (2) to position I.
NOTE: The air pressure gauge (9) will temporarily show an increase in pressure to approximately 88 psi (6 bar) while
the sealing compound is being pumped into the tire. The pressure should return to a normal level after approximately
one minute.
pg. 143 Wheels and tires
Tire sealing system
WARNING!
ProCarManuals.com

Contact with the sealing compound may cause skin irritation. If contact occurs, wash the affected area immediately
with soap and water.
Never stand next to the tire being inflated when the compressor is in operation. If cracks, bubbles, etc. form on the
tire, switch off the compressor immediately. If there is visible damage to the sidewall or the rim, the tire cannot be
repaired. The vehicle should not be driven if this occurs. Contact a towing service or Volvo On Call Roadside
Assistance if applicable.
Within seven minutes, inflate the tire to between 22 - 50 psi (1.8 - 3.5 bar). Switch off the compressor briefly to get a
clear reading from the pressure gauge (9).
CAUTION!
If the pressure remains below 22 psi (1.8 bar) after approximately seven minutes, turn off the compressor. In this
case, the hole is too large to be sealed and the vehicle should not be driven.
Disconnect the electrical wire from the 12-volt socket.
Unscrew the hose from the tire's inflation valve and reinstall the valve cap.
Fold down the orange section of the tire sealing system to its original (horizontal) position and press the safety catch
into place.
Safely stow the tire sealing system kit in a convenient place as it will soon be used again to check the tire's inflation
pressure.
Immediately drive the vehicle for approximately 2 miles (3 km) to distribute the sealing compound in the tire.
WARNING!
If heavy vibrations, unsteady steering behavior, or noises should occur while driving, reduce speed and park the car
in a safe place. Recheck the tire for bumps, cracks, or other visible damage, and recheck its inflation pressure. If the
pressure is below 16 psi (1.3 bar), do not continue driving. Have the vehicle towed to a workshop or Volvo retailer.
Stage 2: Checking inflation pressure
Park the car in a safe place.
Ensure that the orange switch (2) is in position 0 (the 0 side of the switch should be pressed down).
Remove the valve cap from the tire's inflation valve and screw the hose connector onto the valve as tightly as
possible by hand.
Connect the electrical wire to the nearest 12-volt socket in the vehicle.
Start the vehicle's engine.
Check the tire's inflation pressure on the gauge (9).
NOTE: In dark conditions, switching on the tire sealing system's compressor will illuminate the pressure gauge.
Inflate the tire to the correct pressure as indicated in the tire inflation tables on page 116. If the tire needs to be
inflated, start the tire sealing system's compressor. If necessary, release air from the tire by pressing the vent button (8).
Turn off the compressor (press switch 2 to the 0 position) when the correct inflation pressure has been reached.
pg. 144 Wheels and tires
Tire sealing system
CAUTION!
The compressor should not be used for more than ten minutes at a time to avoid overheating.
ProCarManuals.com

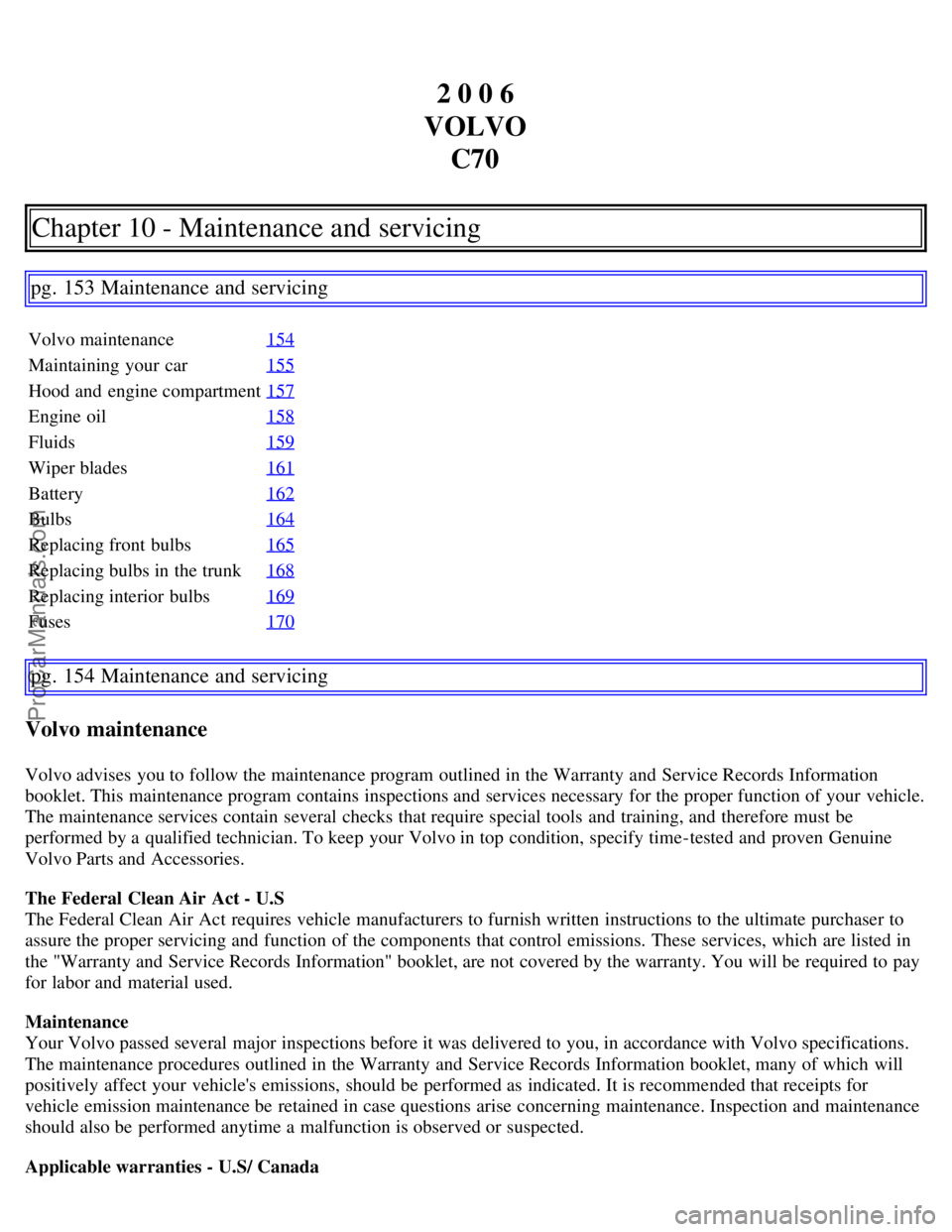

2 0 0 6
VOLVO C70
Chapter 10 - Maintenance and servicing
pg. 153 Maintenance and servicing
Volvo maintenance 154
Maintaining your car155
Hood and engine compartment157
Engine oil158
Fluids159
Wiper blades161
Battery162
Bulbs164
Replacing front bulbs165
Replacing bulbs in the trunk168
Replacing interior bulbs169
Fuses170
pg. 154 Maintenance and servicing
Volvo maintenance
Volvo advises you to follow the maintenance program outlined in the Warranty and Service Records Information
booklet. This maintenance program contains inspections and services necessary for the proper function of your vehicle.
The maintenance services contain several checks that require special tools and training, and therefore must be
performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine
Volvo Parts and Accessories.
The Federal Clean Air Act - U.S
The Federal Clean Air Act requires vehicle manufacturers to furnish written instructions to the ultimate purchaser to
assure the proper servicing and function of the components that control emissions. These services, which are listed in
the "Warranty and Service Records Information" booklet, are not covered by the warranty. You will be required to pay
for labor and material used.
Maintenance
Your Volvo passed several major inspections before it was delivered to you, in accordance with Volvo specifications.
The maintenance procedures outlined in the Warranty and Service Records Information booklet, many of which will
positively affect your vehicle's emissions, should be performed as indicated. It is recommended that receipts for
vehicle emission maintenance be retained in case questions arise concerning maintenance. Inspection and maintenance
should also be performed anytime a malfunction is observed or suspected.
Applicable warranties - U.S/ Canada
ProCarManuals.com

In accordance with applicable U.S. and Canadian regulations, the following list of warranties is provided.
New Vehicle Limited Warranty
Parts and Accessories Limited Warranty
Corrosion Protection Limited Warranty
Seat Belt and Supplemental Restraint Systems Limited Warranty
Emission Design and Defect Warranty
Emission Performance Warranty
These are the federal warranties; other warranties are provided as required by state/ provincial law. Refer to your
separate Warranty and Service Records Information booklet for detailed information concerning each of the warranties.
Periodic maintenance helps minimize emissions
Periodic maintenance will help keep your vehicle running well. Your Warranty and Service Records Information
booklet provides a comprehensive periodic maintenance schedule up to 150,000 miles (240,000 km) of vehicle
maintenance. The schedule includes components that affect vehicle emissions. This page describes some of the
emission-related components.
Vehicle Event Data (Black Box)
Your vehicle's driving and safety systems employ computers that monitor, and share with each other, information
about your vehicle's operation. One or more of these computers may store what they monitor, either during normal
vehicle operation or in a crash or near-crash event. Stored information may be read and used by:
Volvo Car Corporation
service and repair facilities
law enforcement or government agencies
others who may assert a legal right to know, or who obtain your consent to know such information.
pg. 155 Maintenance and servicing
Maintaining your car
Owner maintenance
Periodic maintenance requirements and intervals are described in your vehicle's Warranty and Service Records
Information booklet.
The following points can be carried out between the normally scheduled maintenance services.
Each time the car is refueled:
Check the engine oil level
Clean the windshield, windshield wipers, headlights, and tail lights
Monthly:
Check cold tire pressure in all tires. Inspect the tires for wear.
Check that engine coolant and other fluid levels are between the indicated "min" and "max" markings.
Clean interior glass surfaces with a glass cleaner and soft paper towels.
Wipe driver information displays with a soft cloth.
Visually inspect battery terminals for corrosion. Corrosion may indicate a loose terminal connector, or a battery near
the end of its useful service life. Consult your Volvo retailer for additional information.
As needed:
Wash the car, including the undercarriage, to reduce wear that can be caused by a buildup of dirt, and corrosion that
can be caused by salt residues.
ProCarManuals.com
