REMOTE CONTROL INFORMATION
THE REMOTE CONTROLS PROVIDED WITH YOUR SYSTEMThe 3 button remotes included with your system have separate LOCK and UNLOCK buttons on the
front and a P
ANIC
button on the back .
The xA Security with RKE may be controlled by as many as 4 remote controls, so you may add two
additional remote controls to the two included with your system. Contact your Scion dealer for more
details.
NOTE: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
PROGRAMMINGIGNITION-CONTROLLED AUTOMATIC DOOR LOCK/UNLOCKThe xA Security with RKE is factory-set to automatically lock your vehicle’s doors when you turn the
ignition key to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or
“LOCK”. To change the programming of this feature, follow the procedure shown below.
1. Before you begin:
Open the driver’s door.
Remove the key from the ignition switch.
2. Start the Programming Procedure.(Complete these steps within 30 seconds.)
Note: If the system does not activate the lights and buzzer, start over.
3. Select the Operating Mode and Complete the Programming Procedure.Page 18
SCION
SCION
Page 3
Front Button
Back Button
HOLD TO ACTIVATE
PANIC MODE
OPERATION
SCIONSECURITY
a.Insert the key into the
ignition switch and turn it
from LOCK to ON 5 times
(ending at ON).c.The S
TATUS
MONITOR
’SLED
turns on for 30 seconds.
b. Turnthe ignition
key back to lock.
a. Closethe door =
IG. Controlled Door LocksON
Close,then open and close
the door again= IG. Controlled
Door LocksOFFc.The tail and marker lights
flash once and the buzzer
chirps oncewhen the
system is set for IG door
lock control ON, twicefor
IG door lock control OFF.
If this does not happen,
start over. Programming is
now complete.
b.The tail and marker lights
flash once, and the buzzer
chirpsonce.
1
2
1
2
FLASHES WHEN
BUTTONS
PRESSED
PUSH TO LOCK
DOORS AND ARM
SYSTEM
PUSH TO UNLOCK
DOORS AND DIS
-
ARM SYSTEM
INTRODUCTIONCongratulations on your choice of the xA remote keyless security system to protect your vehicle! To
get the most from the system, we strongly recommend that you read this Owner’s Guide completely
to learn all of its features and functions.
The xA Security with RKE provides the convenience of remote keyless operation, enabling you to
ARM
and D
ISARM
at the same time you remotely lock and unlock the doors. The system provides
comprehensive security protection through point-of-entry monitoring, intrusion detection and ignition
switch monitoring. While A
RMED
, the system will be T
RIGGERED
and sound an A
LARM
when a door is
forcibly unlocked or opened*, or when movement occurs inside the vehicle. During the A
LARM
, the
vehicle’s horn sounds and the headlights, tail lights and front marker lights flash.Also, the vehicle’s
starter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the S
TATUS
MONITOR
for this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) .
About the ignition-controlled automatic door locking/unlocking function.
The xA Security with RKE is programmed to automatically lock your vehicle’s doors when you turn
the key in the ignition switch to the “ON” or “START” position, and unlock them when you turn the
key back to the “ACC” or “LOCK” position. You may disable this feature by reprogramming the sys-
tem; refer to page 18 for programming information.
*When the system is P
ASSIVELY
(AUTOMATICALLY
) A
RMED
, there is an E
NTRY
DELAY
that will
elapse when a door is opened before an A
LARM
is T
RIGGERED
.
LIGHTS FOR30 SECONDS(PRE-ARMING
)
THEN STARTS
FLASHING(SYSTEM IS
ARMED
)
Page 2
SCION
SCION
Page 19
SCIONSECURITY

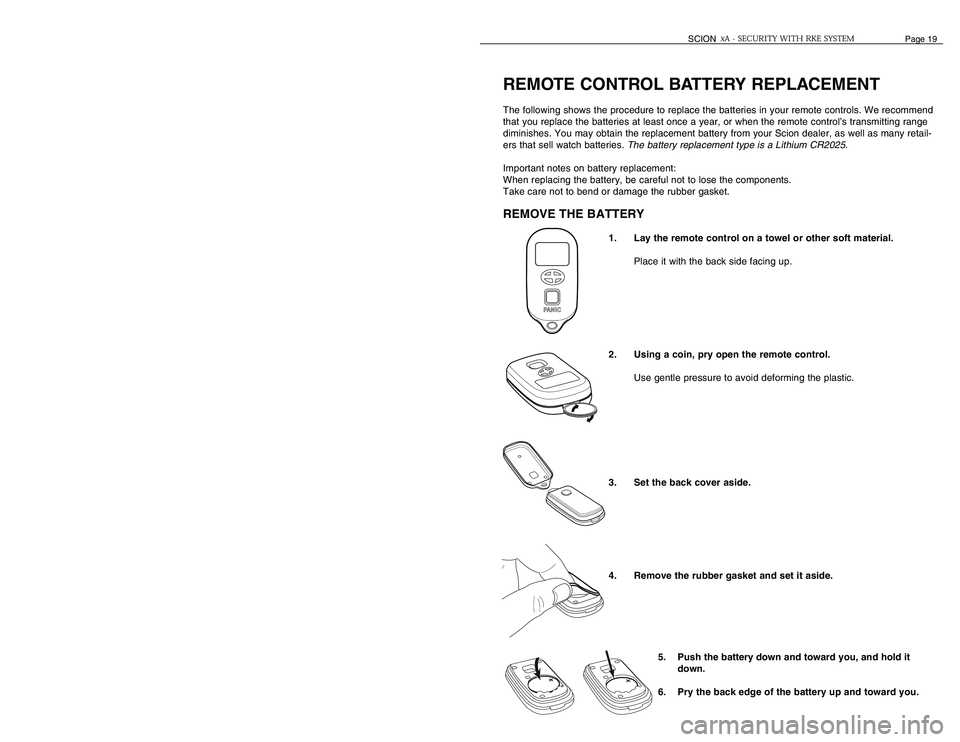

REMOTE CONTROL BATTERY REPLACEMENTThe following shows the procedure to replace the batteries in your remote controls. We recommend
that you replace the batteries at least once a year, or when the remote control’s transmitting range
diminishes. You may obtain the replacement battery from your Scion dealer, as well as many retail-
ers that sell watch batteries. The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material.
Place it with the back side facing up.
2. Using a coin, pry open the remote control.
Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5.Push the battery down and toward you, and hold it
down.
6. Pry the back edge of the battery up and toward you.
SCION
SECURITY
1
2
1
2
