2006 TOYOTA SIENNA display

60

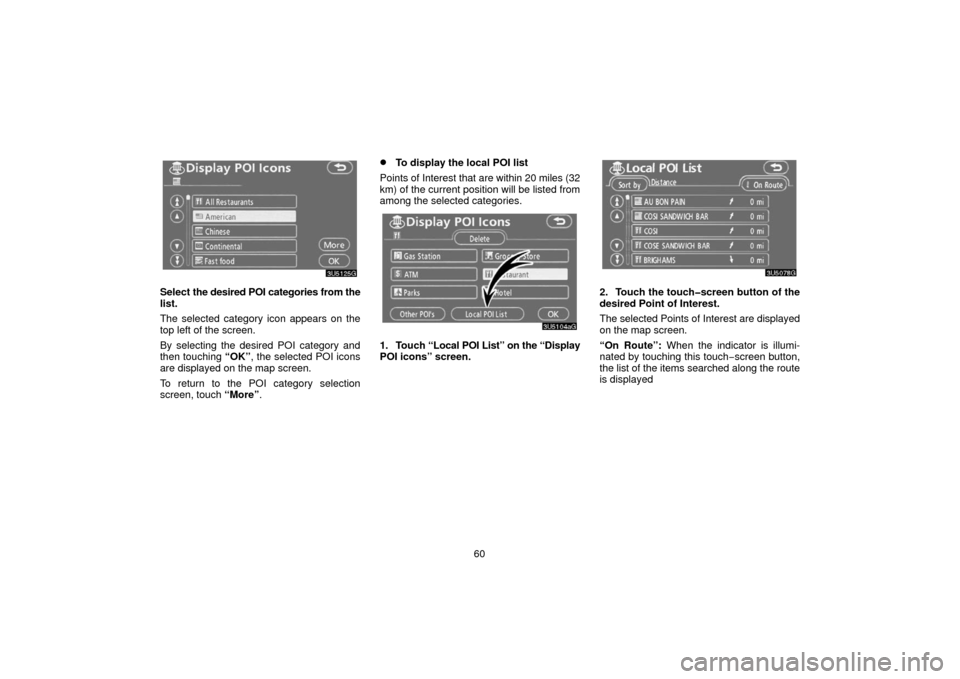

Select the desired POI categories from the
list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.
To display the local POI list
Points of Interest that are within 20 miles (32
km) of the current position will be listed from
among the selected categories.
1. Touch “Local POI List” on the “Display
POI icons” screen.
2. Touch the touchscreen button of the
desired Point of Interest.
The selected Points of Interest are displayed
on the map screen.
“On Route”: When the indicator is illumi-
nated by touching this touch −screen button,
the list of the items searched along the route
is displayed

61
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it for route guidance.
1. Directly touch the Point of Interest icon
that you want to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from the current
position is displayed on the screen. The dis-
tance shown is measured as a straight line
from the current vehicle position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and route
preference. (See
“Starting route guidance”
on page 43.)
— Route overview
1. Touch “Map View”.
2. Touch “Route Overview”.
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See pages
53 and 55.)
“Turn List”: The following screen displays
the list of the roads up to the destination.

62
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with the
mileage to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “Turn List” screen.
The point which you choose is displayed on
the map screen.— Route preview
1. Touch “Map View”.
2. Touch “Route Preview”.

63
:To indicate the next destination.
:To preview the route to the next des-
tination.
: To preview the route to the next des-
tination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
Touch “Map View”.
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

68
1. Push the “MENU” button.
2. Touch “Select User”.
To register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register, touch “Yes”. To return to
the previous screen, touch
“No” or
.When a touch−screen button that is already
registered is touched, the following screen
appears.
To replace, touch
“Yes”. To cancel the re-
placement, touch “No” or
.

69
To change user
Touch “User number”.
The above message appears, then the map
screen will be displayed.
To delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to the
previous screen, touch “No” or
.
My places —
Points or areas on the map can be registered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 26 and “ — Des-
tination search by Quick access” on page 27.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.

70
On this screen, the following operations can
be performed.
1Registers memory points. (See “ —
Registering memory points” on page
70.)
2Edits memory points. (See “ — Editing
memory points” on page 71.)
3Deletes memory points. (See “ — De-
leting memory points” on page 75.)
4Registers or deletes home. (See “ —
Registering home” or “ — Deleting
home” on pages 75 or 76.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page 76.)
6Edits areas to avoid. (See “ — Editing
area to avoid” on page 77.)
7Deletes areas to avoid. (See “ — Delet-
ing area to avoid” on page 79.)
8Deletes previous points. (See “ — De-
leting previous points” on page 80.)
9Number of remaining memory points
10Number of remaining areas to avoid
— Registering memory points
1. Touch “Register”.
2. Enter the location in the same way as
for a destination search. (See “Destination
search” on page 24.)
After memory point registration is completed,
the “Memory Point” screen will be displayed.

71
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.
INFORMATION
Up to 106 memory points can be regis-
tered.
— Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Touch “Edit”.
2. Touch the desired memory point but-
ton.
3. Touch the touchscreen button to be
edited.
“Icon”: To select icons to be displayed on the
map. (See page 72.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” button.
(See page 73.)
“Name”: To edit memory point names. The
names can be displayed on the map. (See
page 74.)
“Location”: To edit location information.
(See page 74.)
“Phone #”: To edit telephone numbers. (See
page 75.)
4. Touch “OK”.
