CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
Front—To remove the ashtray, press down
on the lock spring plate and pull out.
Rear—To remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets (12 VDC)

’06_SEQUOIA_U (L/O 0508)
419
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview420
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 421
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 422
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 423
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

’06_SEQUOIA_U (L/O 0508)
420

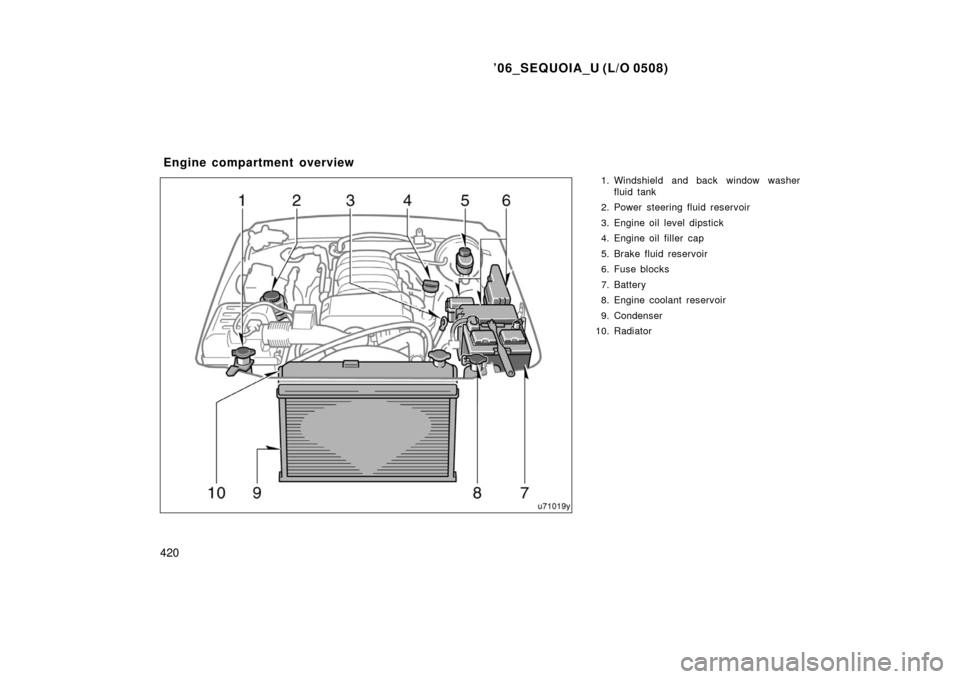

1. Windshield and back window washerfluid tank
2. Power steering fluid reservoir
3. Engine oil level dipstick
4. Engine oil filler cap
5. Brake fluid reservoir
6. Fuse blocks
7. Battery
8. Engine coolant reservoir
9. Condenser
10. Radiator
Engine compartment overview

’06_SEQUOIA_U (L/O 0508)
421
Spare fuses
Fuse locations

’06_SEQUOIA_U (L/O 0508)
424
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as origi-
nal
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 446 in
Section 7 −3.)
Tools:
Screwdriver

’06_SEQUOIA_U (L/O 0508)
441
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition442
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 443
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 444
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 446
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 446
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’06_SEQUOIA_U (L/O 0508)
444
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Checking and replacing fuses

’06_SEQUOIA_U (L/O 0508)
445
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 421 in Sec-
tion 7−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 461 in Section 8 for the functions
controlled by each circuit. Type C fuses—When any of the fuses are
blown, contact your Toyota dealer.
Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”
or “RAD NO.1” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If a new fuse immediately blows out, there
is a problem with the electrical system.
Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
