2006 TOYOTA HIGHLANDER light

’06 HIGHLANDER_U (L/O 0508)
94
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

’06 HIGHLANDER_U (L/O 0508)
96
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the “ON” posi- tion.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer. The “AIRBAG OFF” indicator light should
be illuminated when the ignition key is
“ON” and the child is in the child restraint
system after following these proc
edures.
The “AIRBAG OFF” indicator light indi-
cates the SRS front passenger airbag and
side airbag on the passenger side will not
deploy. If the “AIRBAG ON” indicator light
is illuminated, remove the child restraint
system and reinstall it with the ignition
key in the “ACC” or “LOCK” position. If
the “AIRBAG ON” indicator light is illumi-
nated when the ignition key is turned to
the “ON” position, then the SRS front pas-
senger airbag and side airbag on the pas-
senger side may deploy in an accident.
Do not drive the vehicle in this condition.
Remove the child restraint system and
contact your Toyota dealer.

’06 HIGHLANDER_U (L/O 0508)
97
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.

’06 HIGHLANDER_U (L/O 0508)
99
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

’06 HIGHLANDER_U (L/O 0508)
101

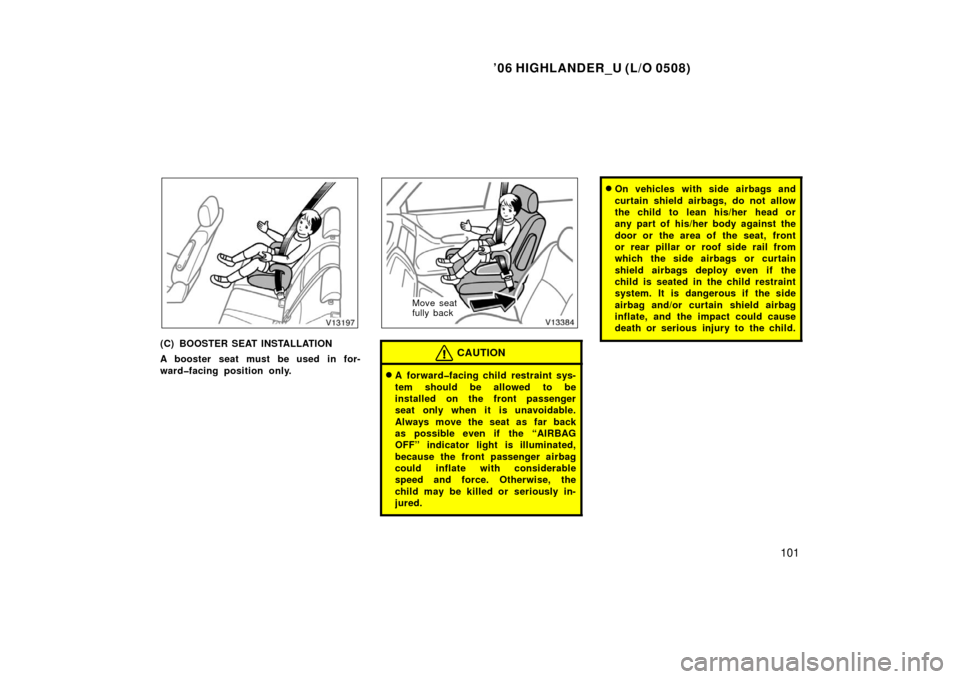

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and/or curtain shield airbag
inflate, and the impact could cause
death or serious injury to the child.

’06 HIGHLANDER_U (L/O 0508)
107
2. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 103 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

’06 HIGHLANDER_U (L/O 0508)
11 2
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrors Antiglare inside rear view
mirror

’06 HIGHLANDER_U (L/O 0508)
11 3
Ty p e A
Ty p e B
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function:
Type A—Push the “OFF” switch.
Type B—Push the “MIRROR” switch.
To turn on the automatic function again:
Type A—Push the “AUTO” switch.
Type B—Push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition. When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Auto antiglare inside rear
view mirror
