2006 TOYOTA HIGHLANDER lock

’06 HIGHLANDER_U (L/O 0508)
51
RETURNING THIRD SEAT
Pull the seatback adjusting lever to un-
lock the seatback and fold up the seat-
back to its upright lock position.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.To flatten the seatbacks, do the follow-
ing:
1. Hold the center of the lever and pull it up, sliding the second seat to the
rearmost position. Then pull the
seat forward slightly until it locks.
Flattening seatbacks
(manual seat)

’06 HIGHLANDER_U (L/O 0508)
52

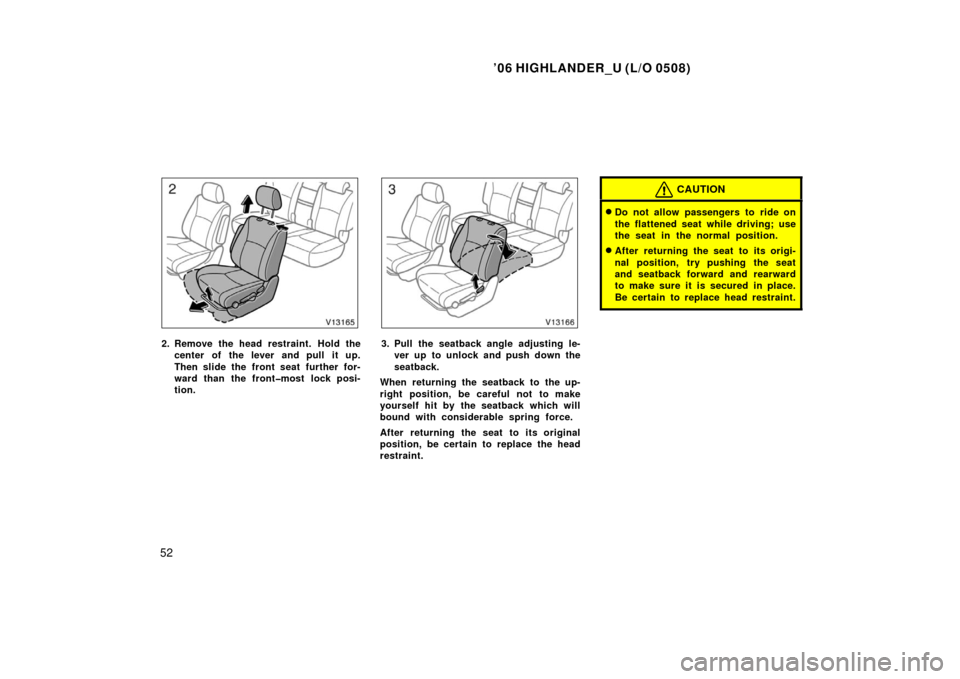

2. Remove the head restraint. Hold the
center of the lever and pull it up.
Then slide the front seat further for-
ward than the frontmost lock posi-
tion.3. Pull the seatback angle adjusting le-ver up to unlock and push down the
seatback.
When returning the seatback to the up-
right position, be careful not to make
yourself hit by the seatback which will
bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After returning the seat to its origi-
nal position, try pushing the seat
and seatback forward and rearward
to make sure it is secured in place.
Be certain to replace head restraint.

’06 HIGHLANDER_U (L/O 0508)
53
To flatten the seatbacks, do the follow-
ing:
1. Hold the center of the lever and pull it up, sliding the second seat to the
rearmost position. Then pull the
seat forward slightly until it locks.2. Remove the head restraint. Push theseat position adjusting switch for-
ward to slide the front seat to the
frontmost position.3. Move the seatback angle adjustingswitch backward to flatten the seat-
back.
After returning the seat to its original
position, be certain to replace the head
restraint.
Flattening seatbacks
(power seat)

’06 HIGHLANDER_U (L/O 0508)
55
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Front seats
Second seats
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints only—On some mod-
els, you can also move the front head
restraint forward or backward. If such ad-
justment is desired, pull or push the base
of the head restraint.
Head restraints

’06 HIGHLANDER_U (L/O 0508)
56
Second and third seat head restraints—
When an occupant sits in the second or
third seat, always raise the head restraint
to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Front seats
Second seat
To use the armrest, pull it down as
shown in the illustrations.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Armrests

’06 HIGHLANDER_U (L/O 0508)
58
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 361
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 89 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
—Fastening front and rear
seat belts

’06 HIGHLANDER_U (L/O 0508)
59
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible

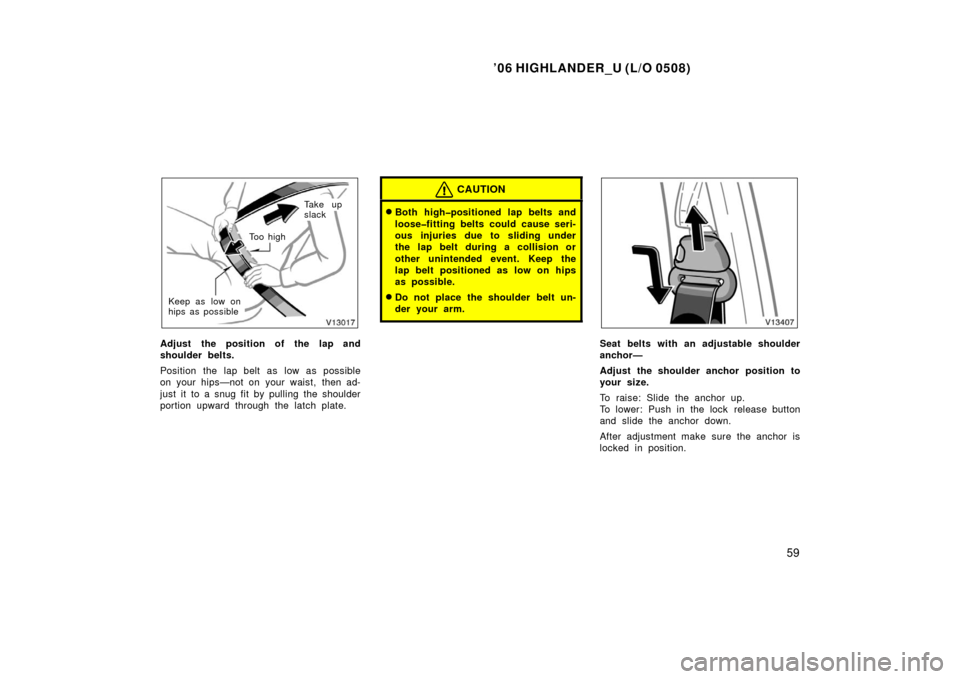

Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.

’06 HIGHLANDER_U (L/O 0508)
63
The second and third seat seat belt
buckles can be stowed when not in
use.
Seat belt buckles must be stowed before
you fold the seatback. (See “—Folding
down second seats” on page 45 and
“—Folding down third seat” on page 49 in
this Section.)
To stow the third seat seat belt, insert
the tabs into the slot as shown above.
Make sure the tabs are securely locked
in the slot.
Seat belt must be stowed before you fold
the seatback. (See “—Folding down third
seat” on page 49 in this Section.)
NOTICE
Stow the third seat seat belt when
not in use.
If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
—Stowing the third seat seat
belt
—Seat belt extender
