2006 TOYOTA HIGHLANDER rear entertainment

’06 HIGHLANDER_U (L/O 0508)
187
The rear seat entertainment system con-
sists of the following components.
1. Headphone volume control dials
2. Headphone jacks
3. DVD player
4. Rear seat entertainment system display
5. Rear seat entertainment system controller
6. A/V input adapter
7. Power outlet
8. Power outlet main switch
9. Front audio system
Rear seat entertainment system—

’06 HIGHLANDER_U (L/O 0508)
188
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the “ACC” or “ON” position.
The rear passengers can enjoy all modes
(AM and FM radio, cassette tape player,
compact disc player with changer and
DVD player) on the rear seat entertain-
ment system only if a cassette tape and
a compact disc are loaded in the front
audio system.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts−CD or DVD audio only when a
disc is loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter on the rear
console box. For details, refer to the
manufacturer ’s instructions. You can enjoy the rear seat entertainment
system with commercial hea
dphone. See
“—Headphone ja cks” on page 237 in this
Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer’s
instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone
at a Toyota dealer.CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
death or serious injury.
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

’06 HIGHLANDER_U (L/O 0508)
190
NOTICE
Benzene or alkaline solutions may
damage the coated surface of the
screen .
 To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller and buttons on the
DVD player unit. The system cannot be
operated by touching the switches on the
screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet according
to the following procedure.
—Rear seat entertainment
system controller

’06 HIGHLANDER_U (L/O 0508)
192
USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seatback
pocket when it is not in use.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

’06 HIGHLANDER_U (L/O 0508)
197
7. “ENT” button
This button inputs the selected switch
or the selected menu for the disc.
8. “DISC” indicator light This light indicates that the disc is
loaded.

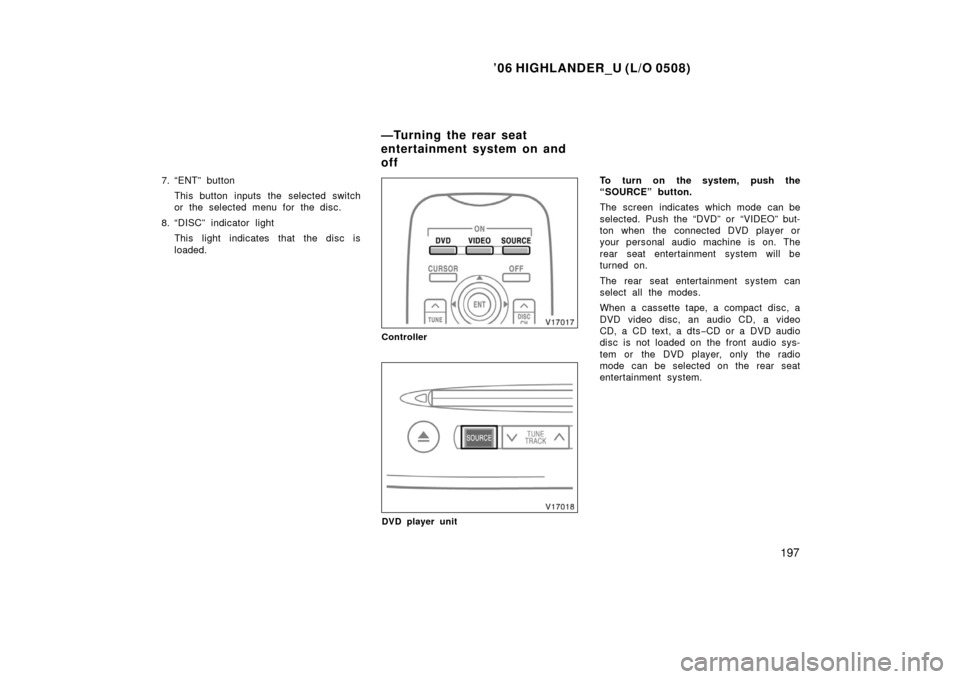

Controller
DVD player unit
To turn on the system, push the
“SOURCE” button.
The screen indicates which mode can be
selected. Push the “DVD” or “VIDEO” but-
ton when the connected DVD player or
your personal audio machine is on. The
rear seat entertainment system will be
turned on.
The rear seat entertainment system can
select all the modes.
When a cassette tape, a compact disc, a
DVD video disc, an audio CD, a video
CD, a CD text, a dts −CD or a DVD audio
disc is not loaded on the front audio sys-
tem or the DVD player, only the radio
mode can be selected on the rear seat
entertainment system.
—Turning the rear seat
entertainment system on and
off

’06 HIGHLANDER_U (L/O 0508)
235
Level 8: All types of DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you can-
not play the disc on the DVD player. For
region codes, see page 234.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“dts” is a trademark of Digital Theater
Systems, Inc. The rear entertainment system plays vid-
eos and sound when an audio
−video
equipment is connected to the A/V input
adapter. For details, refer to the manufac-
turer’s instructions.
—A/V input adapter

’06 HIGHLANDER_U (L/O 0508)
409
Engine compartment
Instrument panel
Fuses (type A)
1. A/F 25 A: Air fuel ratio sensor
2. CRT 7.5 A: Rear seat entertainment
system, navigation system
3. STARTER 7.5 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
4. EFI NO.2 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
5. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
Engine compartment
(with daytime running light system)
6. RR HTR 15 A: Rear air conditioning
system
7. HLP RH LWR 15 A: Right−hand head-
light (low beam)
8. HLP LH LWR 15 A: Left−hand head-
light (low beam)
9. ALTS 7.5 A: Charging system
10. POWER OUTLET2 20 A: Power outlets
11. TOWING 20 A: Trailer lights
12. HORN 10 A: Horns
13. SECURITY 15 A: Theft deterrent sys-
tem
Fuses

’06 HIGHLANDER_U (L/O 0508)
410
14. HLP RH UPR 10 A: Right−hand head-
light (high beam)
15. ECU·B 7.5 A: Theft deterrent system,
air conditioning system, gauges and
meters, multiplex communication sys-
tem, electronic moon roof, front pas-
senger occupant classification system
16. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump
17. DOOR LOCK 25 A: Power door lock
system, theft deterrent system
18. HLP LH UPR 10 A: Left−hand head-
light (high beam)
19. RAD NO.1 25 A: Audio system
20. DOME 10 A: Personal lights, interior
lights, vanity lights, ignition switch light,
wireless remote control system, gauges
and meters, navigation system
21. HAZARD 15 A: Emergency flashers,
instrument panel light, trailer lights
22. SPARE 7.5 A: Spare fuse
23. SPARE 15 A: Spare fuse
24. SPARE 25 A: Spare fuse 25. IGN 10 A:
Gauges and meters, SRS
airbag system, multiport fuel injection
system/se quential multiport fuel injec-
tion system, front passenger occupant
classification system
26. RAD NO.2 7.5 A: Audio system, shift
lock system, navigation system, rear
seat entertainment system, air condi-
tioning system, multiplex communica-
tion system
27. CIG 15 A: Cigarette lighter
28. P RR DOOR 20 A: Power windows
29. PWR OUTLET1 15 A: Power outlets
30. FR FOG 20 A: Front fog lights
31. ECUIG 10 A: Electric moon roof,
anti −lock brake system, vehicle stability
control system, shift lock system,
charging system, starting system
32. WIPER 25 A: Windshield wipers and
washer
33. D RR DOOR 20 A: Power windows
34. D FR DOOR 25 A: Power windows,
door courtesy lights, power door lock
system
35. S/ROOF 20 A: Electric moon roof 36. HEATER 10 A:
Air conditioning system,
electric cooling fan, rear window defog-
ger, outside rear view mirror defogger,
gauges and meters
37. IG1 7.5 A: Back−up lights, vehicle sta-
bility control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, outside rear view mir-
ror heaters, power door lock system,
wireless remote control system, naviga-
tion system, multiplex communication
system
38. RR WIP 15 A: Rear window wiper
39. STOP 20 A: Stop lights, high mounted
stoplight, anti −lock brake system, ve-
hicle stability control system, shift lock
system, trailer lights, multiplex commu-
nication system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
40. OBD 7.5 A: On−boar
d diagnosis sys-
tem
41. SEAT HTR 15 A: Seat heaters
42. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, starter sys-
tem
43. WASHER 20 A: Low windshield washer
fluid level warning light
