’06 HIGHLANDER_U (L/O 0508)
58
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 361
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 89 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
—Fastening front and rear
seat belts

’06 HIGHLANDER_U (L/O 0508)
158
The vehicle stability control system
helps provide comprehensive control of
the systems such as antilock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode, but does
not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the system is operating, it cannot
completely eliminate the possibility
of an accident. Always keep safe
driving in mind, as reckless driving
increases the risk of an accident. If
the slip indicator light blinks, spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 387 in Section 72.)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Vehicle stability control
system

’06 HIGHLANDER_U (L/O 0508)
159
“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
Tw o −wheel drive models only—The “TRAC
OFF” indicator light will come on when the
“VSC” warning light comes on even if the
“TRAC OFF” switch is not pushed. The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure is critically low while
the vehicle is moving. The low tire
pressure warning light comes on to in-
form you that such low tire pressure
may hamper driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire inflation pressure regularly.
The recommended cold tire inflation pres-
sure, tire size and the vehicle capacity
weight are on the tire and loading informa-
tion label. (For instructions, see “Checking
tire inflation pressure” on page 385 in
Section 7
−2.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
Tire pressure warning system

’06 HIGHLANDER_U (L/O 0508)
160
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks while driving, do
the following. If the warning light comes on:
1. Adjust the tire inflation pressure to the specified level as soon as pos-
sible. (See “Tires” on page 408 in
Section 8.)
2. Push the tire pressure warning sys- tem reset switch for a few seconds
and make sure the warning light
goes off.
If the light remains on after the reset
switch has been pushed, have the tire
pressure warning system checked at your
Toyota dealer.
If you have a flat tire, replace it with the
spare tire. For details, see “If you have
a flat tire” on page 337 in Section 4.
If the warning light blinks once every
second:
The low tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
If the warning light blinks twice every
second:
The low tire pressure warning system
needs to be initialized. Reset the system
with the tire pressure warning system re-
set switch. (To reset the system, see
“TIRE PRESSURE WARNING SYSTEM
RESET SWITCH”.) The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
A compact spare tire, snow tires, or
tire chains are used.
The tire inflation pressure is excessive-
ly higher than specified, or tire inflation
pressure suddenly drops due to burst-
ing or other causes.
The vehicle is driven on a slippery
road surface such as rough or frozen
roads.
The vehicle speed is less than 30 km/h
(19 mph) or more than 100 km/h (62
mph), and the driving duration is less
than 5 minutes.
The tires differ in tread pattern or
manufacturer.
The tires are not the specified size.
The tread wear is very different among
the installed tires.
Rapid acceleration/deceleration or
sharp turns is continued.
Towing a trailer.

’06 HIGHLANDER_U (L/O 0508)
299
CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at the moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
Ty p e A
Ty p e B

’06 HIGHLANDER_U (L/O 0508)

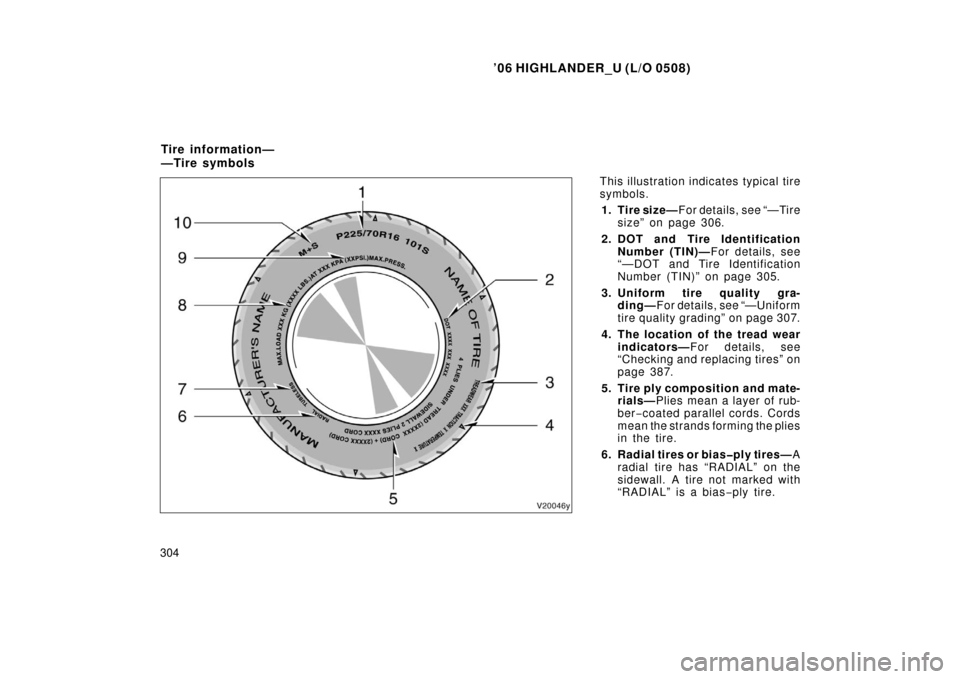

304 This illustration indicates typical tire
symbols.
1. Tire size— F or det ails, see “— Ti re
size” on page 306.
2. DOT and Tire Identification Number (TIN)— For details, see
“—DOT and Tire Identification
Number (TIN)” on page 305.
3. Uniform tire quality gra- ding— For details, see “—Uniform
tire quality grading” on page 307.
4. The location of the tread wear indicators— For details, see
“Checking and replacing tires” on
page 387.
5. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
6. Radial tires or biasply tires— A
radial tire has “RADIAL” on the
sidewall. A tire not marked with
“RADIAL” is a bias −ply tir e.
Tire information—
—Tire symbols

’06 HIGHLANDER_U (L/O 0508)
305
7. “TUBELESS” or “TUBE
TYPE”— A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
8. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 387.
9. Maximum cold tire inflation pressure— This means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see “Tires” on page 408.
10.Summer tire or all season tire— An all season tire has “M+S”
on the sidewall. The tire not
marked with “M+S” is a summer
tire. For details, see “Types of
tires” on page 315.
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. “DOT” symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
—DOT and Tire Identification
Number (TIN)

’06 HIGHLANDER_U (L/O 0508)
306
This illustration indicates typical tire
size.
1. Tire use (P=Passenger car, T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section width)
4. Tire construction code (R=Radial, D=Diagonal)
5. Wheel diameter (in inches)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one letter)1. Section width
2. Tire height
3. Wheel diameter1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11. Chafer
—Tire size —Name of each section of tire
