2006 TOYOTA COROLLA fuse

’06 Corolla_U (L/O 0508)
271
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
For vehicles sold in the U.S.A.—If any
washer does not work, the washer tank
may be empty. Check the washer fluid
level on the level gauge. If the washer
fluid level is at “LOW”, add washer
fluid.
For vehicles sold in Canada—If any
washer does not work or the low wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Add washer fluid.You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’06 Corolla_U (L/O 0508)
279
SPECIFICATIONS
Specifications
Dimensions and weights280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’06 Corolla_U (L/O 0508)
284

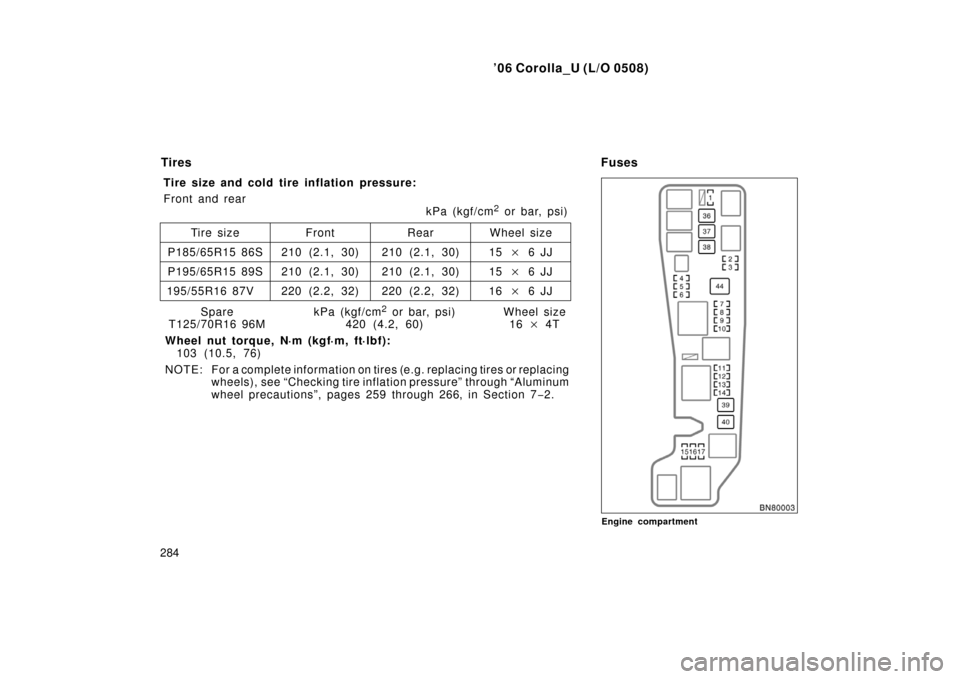

Engine compartment
Tires
Ti r e siz e
P185/65R15 86S Front
P195/65R15 89S210 (2.1, 30)
210 (2.1, 30) Rear
210 (2.1, 30)
210 (2.1, 30) Wheel size
15 6 JJ
15 6 JJ
Spare kPa (kgf/cm
2 or bar, psi) Wheel size
T125/70R16 96M 420 (4.2, 60) 16  4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) : 103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 259 through 266, in Section 7 −2.
Tire size and cold tire inflation pressure:
Front and rear
kPa (kgf/cm
2 or bar, psi)
195/55R16 87V 220 (2.2, 32) 220 (2.2, 32) 16 6 JJ
Fuses

’06 Corolla_U (L/O 0508)
285
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), high beam indi-
cator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A (1.8 L 4cylinder [1ZZ FE] engine): Electronic throttle control
system 8. AMP 30 A:
Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, clock, per-
sonal lights, interior light, trunk light,
open door warning light, wireless re-
mote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers ,
turn signal lights
13. EFI 20 A (1.8 L 4cylinder [1ZZFE] engine) or EFI 15 A (1.8 L 4cylinder
[2ZZGE] engine): Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, emission control sys-
tem, “EFI2” fuse
14. ALTS 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A (1.8 L 4cylinder [1ZZFE] engine): Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, emission control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights 19. OBD 7.5 A:
On−board diagnosis sys-
tem
20. P/W 30 A: No circuit
21. WIPER 25 A: Windshield wipers
22. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
23. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
24. DOOR 25 A: Power door lock system
25. AM1 25 A: “CIG” fuse
26. ECUIG 10 A: Electric cooling fan,
anti −lock brake system, vehicle stability
control system, traction control system,
brake assist system, shift lock control
system, cruise control system
27. RR WIPER 15 A: No circuit
2

8. A/C 10 A: Air conditioning system
29. INV 15 A: No circuit
30. P/POINT 15 A: Power outlet (in the
rear console box)
31. ECUB 10 A: Daytime running light
system

’06 Corolla_U (L/O 0508)
286
32. CIG 15 A: Power outlet (on the instru-
ment panel) or cigarette lighter, audio
system, clock, power rear view mirror
control, shift lock control system
33. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
anti −glare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, back −up lights, front
passenger ’s seat belt reminder light
34. WASHER 15 A: Windshield washer
35. MHTR/DEF IUP 10 A: Engine control
system
Fuses (type B)
36. ABS NO.1 30 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
37. RDI FAN 30 A: Electric cooling fan
38. ABS NO.2 40 A (without vehicle sta- bility control system): Anti−lock brake
system
ABS NO.2 50 A (with vehicle stability
control system): Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system 39. HEAD MAIN 40 A:
“HEAD LH UPR”,
“HEAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
40. AIR PUMP 50 A (1.8 L 4cylinder [2ZZGE] engine): Emission control
system
41. HTR 40 A: Air conditioning system
42. DEF 40 A: Rear window defogger,
“M −HTR/DEF I −UP” fuse
43. POWER 30 A: Power windows, electric
moon roof
Fuse (type C)
44. ALT 100 A: Charging system, “ABS
NO.1”, “ABS NO.2”, “RDI FAN”, “FOG”,
“HTR”, “AM1”, “POWER”, “DOOR”,
“ECU −B”, “TAIL”, “STOP”, “P/POINT”,
“INV” and “OBD” fuses
