2006 TOYOTA COROLLA light

’06 Corolla_U (L/O 0508)
273
Light bulbsBulbNo.WTy p e
Personal light
(on the switch
panel of the electric
moon roof)
—10F
Personal lights
(on the inside rear
view mirror without
compass)
1924.3D
Trunk light Ty p e A∗1
Ty p e B∗2168
—4.9
3.8D
D
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
F: Single end bulbs
∗ 1: Except for ZZE130L −AEPDKA and
− AEPNKA models
∗
2: For ZZE130L− AEPDKA and −AEPNKA
models
The model code appears on the Certifica-
tion Label with the heading “MODEL”. See
“Your Toyota’s identification” on page 182
in Section 2 for the Certification Label
location.
1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and move the air cleaner duct
as shown in the illustration.
Remove and install the clip as shown in
the following illustrations.Removing clip
Installing clip
—Headlights

’06 Corolla_U (L/O 0508)
275

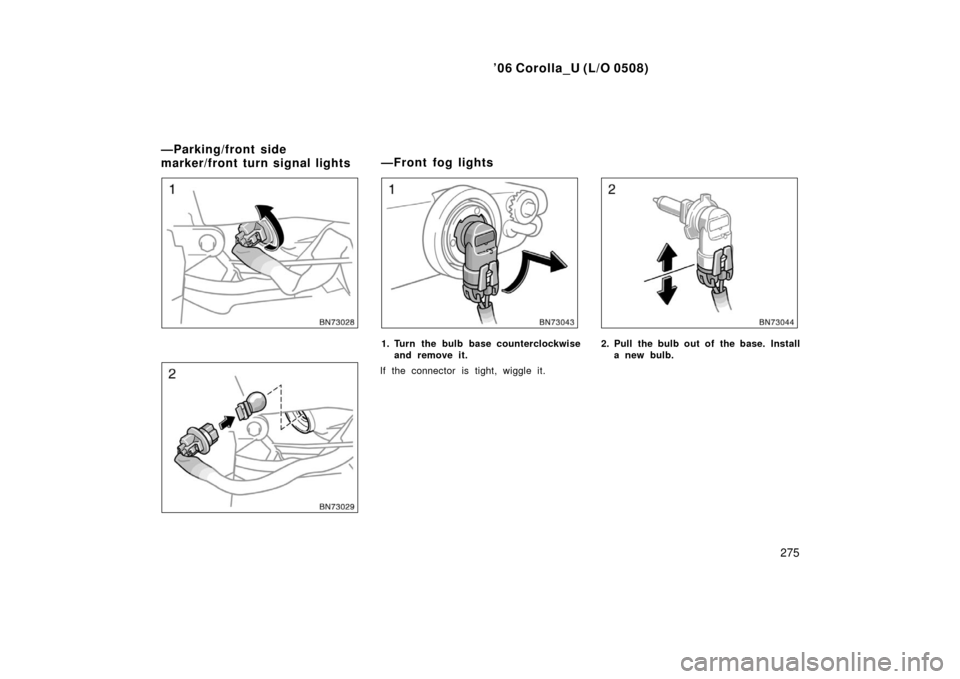

1. Turn the bulb base counterclockwiseand remove it.
If the connector is tight, wiggle it.2. Pull the bulb out of the base. Install a new bulb.
—Parking/front side
marker/front turn signal lights —Front fog lights

’06 Corolla_U (L/O 0508)
276

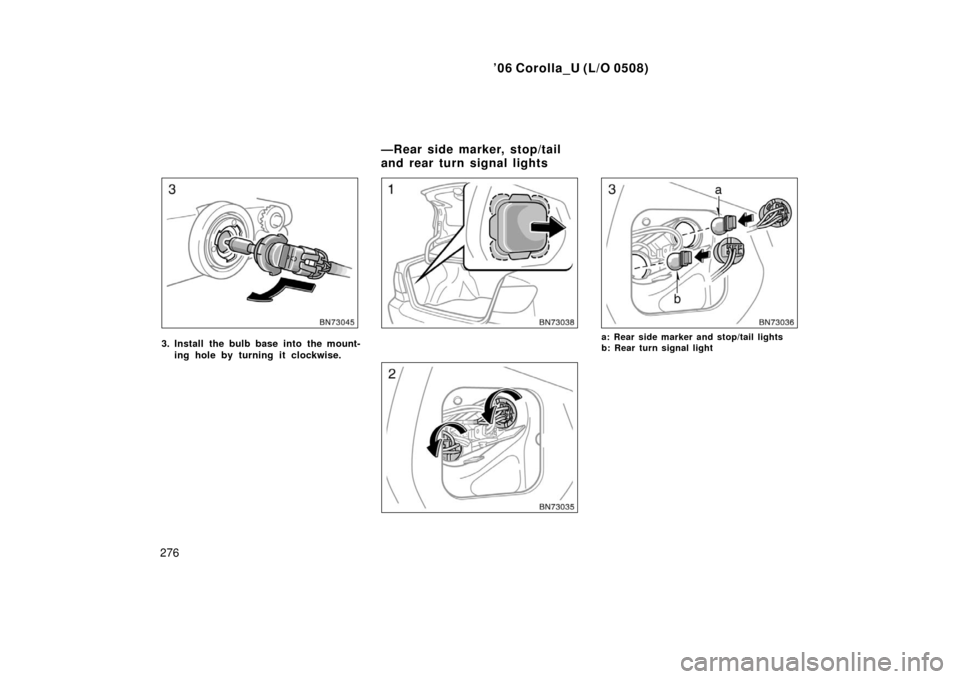

3. Install the bulb base into the mount-ing hole by turning it clockwise.a: Rear side marker and stop/tail lights
b: Rear turn signal light
—Rear side marker, stop/tail
and rear turn signal lights

’06 Corolla_U (L/O 0508)
277

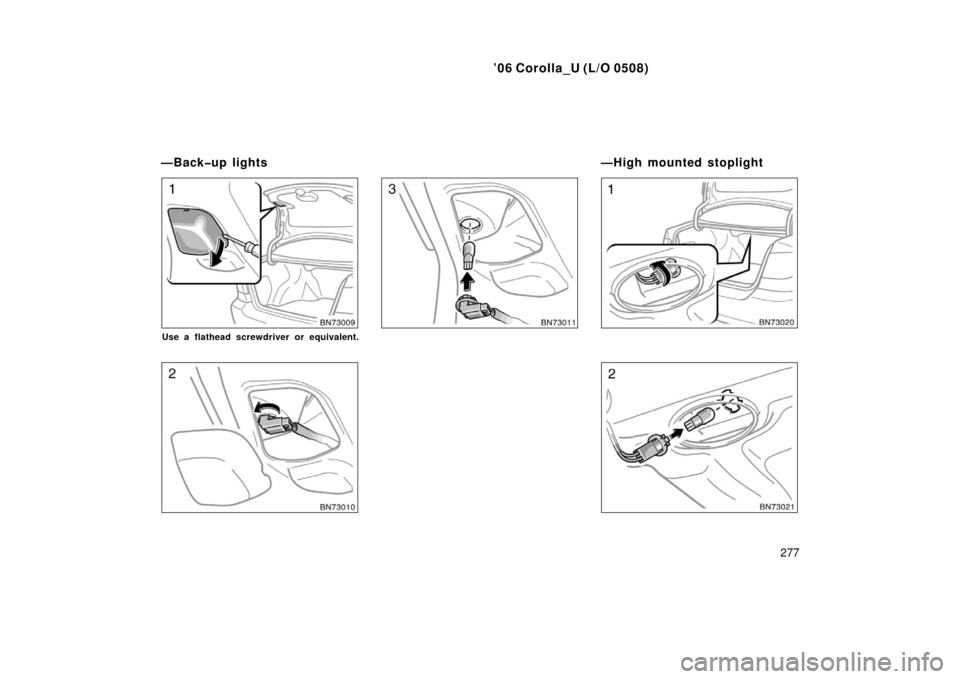

Use a flathead screwdriver or equivalent.
—Backup lights—High mounted stoplight

’06 Corolla_U (L/O 0508)
278
If either of the license plate lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the license plate
light bulbs by yourself. You may dam-
age the vehicle.
—License plate lights

’06 Corolla_U (L/O 0508)
282
Recommended oil viscosity: SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
1.8 L 4 −cylinder (1ZZ −FE) engine
6.5 (6.9, 5.7)
1.8 L 4 −cylinder (2ZZ −GE) engine
6.7 (7.0, 5.9)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off.
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 5−speed 1.9 (2.0, 1.7)
6 −speed 2.3 (2.4, 2.0)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90

’06 Corolla_U (L/O 0508)
285
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), high beam indi-
cator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A (1.8 L 4cylinder [1ZZ FE] engine): Electronic throttle control
system 8. AMP 30 A:
Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, clock, per-
sonal lights, interior light, trunk light,
open door warning light, wireless re-
mote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers ,
turn signal lights
13. EFI 20 A (1.8 L 4cylinder [1ZZFE] engine) or EFI 15 A (1.8 L 4cylinder
[2ZZGE] engine): Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, emission control sys-
tem, “EFI2” fuse
14. ALTS 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A (1.8 L 4cylinder [1ZZFE] engine): Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, emission control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights 19. OBD 7.5 A:
On−board diagnosis sys-
tem
20. P/W 30 A: No circuit
21. WIPER 25 A: Windshield wipers
22. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
23. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
24. DOOR 25 A: Power door lock system
25. AM1 25 A: “CIG” fuse
26. ECUIG 10 A: Electric cooling fan,
anti −lock brake system, vehicle stability
control system, traction control system,
brake assist system, shift lock control
system, cruise control system
27. RR WIPER 15 A: No circuit
2

8. A/C 10 A: Air conditioning system
29. INV 15 A: No circuit
30. P/POINT 15 A: Power outlet (in the
rear console box)
31. ECUB 10 A: Daytime running light
system

’06 Corolla_U (L/O 0508)
286
32. CIG 15 A: Power outlet (on the instru-
ment panel) or cigarette lighter, audio
system, clock, power rear view mirror
control, shift lock control system
33. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
anti −glare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, back −up lights, front
passenger ’s seat belt reminder light
34. WASHER 15 A: Windshield washer
35. MHTR/DEF IUP 10 A: Engine control
system
Fuses (type B)
36. ABS NO.1 30 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
37. RDI FAN 30 A: Electric cooling fan
38. ABS NO.2 40 A (without vehicle sta- bility control system): Anti−lock brake
system
ABS NO.2 50 A (with vehicle stability
control system): Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system 39. HEAD MAIN 40 A:
“HEAD LH UPR”,
“HEAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
40. AIR PUMP 50 A (1.8 L 4cylinder [2ZZGE] engine): Emission control
system
41. HTR 40 A: Air conditioning system
42. DEF 40 A: Rear window defogger,
“M −HTR/DEF I −UP” fuse
43. POWER 30 A: Power windows, electric
moon roof
Fuse (type C)
44. ALT 100 A: Charging system, “ABS
NO.1”, “ABS NO.2”, “RDI FAN”, “FOG”,
“HTR”, “AM1”, “POWER”, “DOOR”,
“ECU −B”, “TAIL”, “STOP”, “P/POINT”,
“INV” and “OBD” fuses
