2006 TOYOTA CAMRY warning

’06Camry_U (L/O 0507)
ii
2006 CAMRY from July ‘05 Prod. (OM33708U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

’06Camry_U (L/O 0507)
vi
2006 CAMRY from July ‘05 Prod. (OM33708U)
New vehicle warranty
Your new vehicle is covered by the following Toyota limited
warranties: New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s War-
ranty Information Booklet” or “Owner ’s Manual Supple-
ment”.
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the speci-
fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in-
formation, please refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.
Important health and safety
information about your Toyota
CAUTION
WARNING: Engine exhaust, some of its constitu- ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as
well as waste produced by component wear con-
tain or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm.
Battery posts, terminals and related accessories contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.

’06Camry_U (L/O 0507)
8
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Engine coolant temperature gauge
2. Service reminder indicators andindicator lights
3. Tachometer 4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Odometer and two trip meters
8. Trip meter reset knob
Instrument cluster overview

’06Camry_U (L/O 0507)
9
2006 CAMRY from July ‘05 Prod. (OM33708U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
or
Front passenger ’s seat belt reminder light∗1Vehicle stability control system and traction
control system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
or
“AIRBAG OFF” indicator light
Headlight low beam indicator light
Tail light indicator light
Indicator symbols on the instrument panel

’06Camry_U (L/O 0507)
10
2006 CAMRY from July ‘05 Prod. (OM33708U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 119 in Section 1− 6.
∗
2: If this light flashes, see “Cruise control” on page 140 in Sec-
tion 1 −7.
Cruise control indicator light∗
2
Overdrive −off indicator light
Automatic transmission indicator lights
Traction control system off indicator light
Headlight high beam indicator light
Turn signal indicator lights

’06Camry_U (L/O 0507)
25
2006 CAMRY from July ‘05 Prod. (OM33708U)
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all the doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Shift the selector lever into the “P” position and close all doors.
2. Push the power door lock switch on the rear side to unlock the doors.
3. Turn the ignition switch to the “ON” position.
4. Within 5 seconds after the ignition switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds.
5. Open door warning light will flash to indicate that the mode has been
changed. The flashing of the open door warning
light indicates the mode which has been
selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.

’06Camry_U (L/O 0507)
55
2006 CAMRY from July ‘05 Prod. (OM33708U)
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the sensor detects a severe frontal
impact, the front seat belts are quickly
drawn back by the retractors so that the
belts snugly restrain the occupants.The front passenger ’s seat belt pretension-
er will not activate if no passenger is
detected in the front passenger seat by
the front passenger occupant classification
system. However, the front passenger’s
seat belt pretensioner may activate if lug-
gage is put on the seat, or the seat belt
is buckled up regardless of the presence
of an occupant in the seat. (As for the
front passenger occupant classification
system, see “—Front pass
enger occupant
classification system” on page 72 in this
Section.)

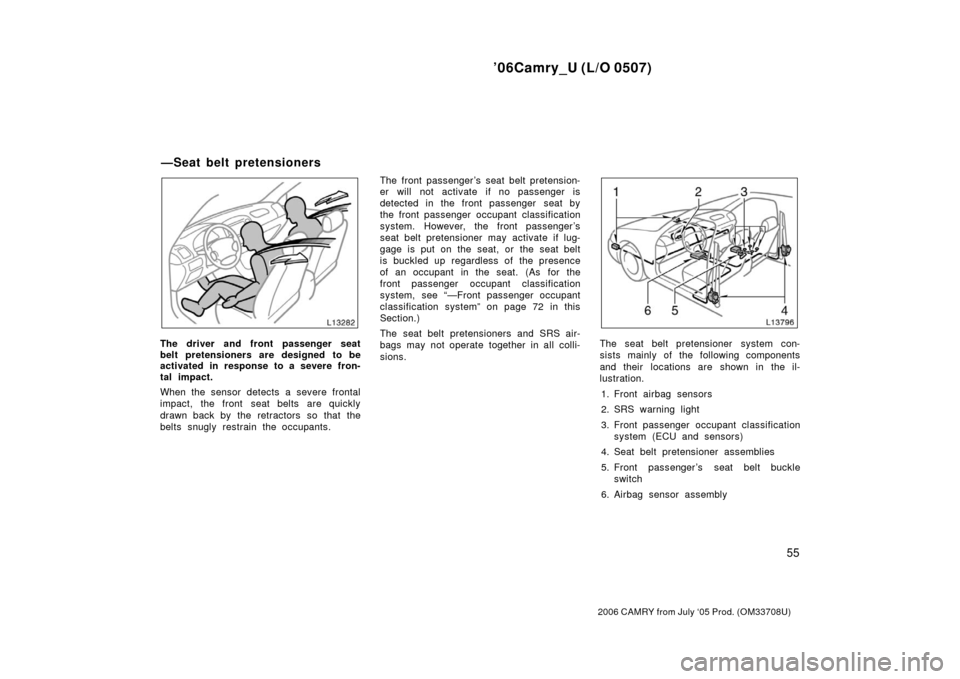

The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
lustration.
1. Front airbag sensors
2. SRS warning light
3. Front passenger occupant classification system (ECU and sensors)
4. Seat belt pretensioner assemblies
5. Front passenger ’s seat belt buckle switch
6. Airbag sensor assembly
—Seat belt pretensioners

’06Camry_U (L/O 0507)
57
2006 CAMRY from July ‘05 Prod. (OM33708U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 119 in Section 1−6.)If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds.
The light comes on while driving.
If any seat belt does not retract or
cannot be pulled out due to a malfunc-
tion or activation of the relevant seat
belt pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
