2006 TOYOTA CAMRY key

’06Camry_U (L/O 0507)
33
2006 CAMRY from July ‘05 Prod. (OM33708U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key or wireless
remote control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

’06Camry_U (L/O 0507)
36
2006 CAMRY from July ‘05 Prod. (OM33708U)
To operate the moon roof, use the
switch between the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push and hold the switch for 1
second on the “SLIDE OPEN” side.
The roof will fully open automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.
The sun shade will be opened together
with the roof.
To close: Push and hold the switch for 1
second on the “TILT UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.Tilting operation—
To tilt up: Push and hold the switch for
1 second on the “TILT UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.
To tilt down: Push and hold the switch for
1 second on the “SLIDE OPEN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side briefly.
Key off operation:
If both front doors are
closed, the moon roof works for 43 sec-
onds even after the ignition switch is
turned off. It stops working when either
door is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens half way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught. If the moon roof does not operate auto-
matically or the jam protection function
does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and
hold the moon roof switch on the “TILT
UP” side until the moon roof tilts all the
way up and then tilts down a little auto-
matically.
Make sure that the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked
by your Toyota dealer.

’06Camry_U (L/O 0507)
37
2006 CAMRY from July ‘05 Prod. (OM33708U)

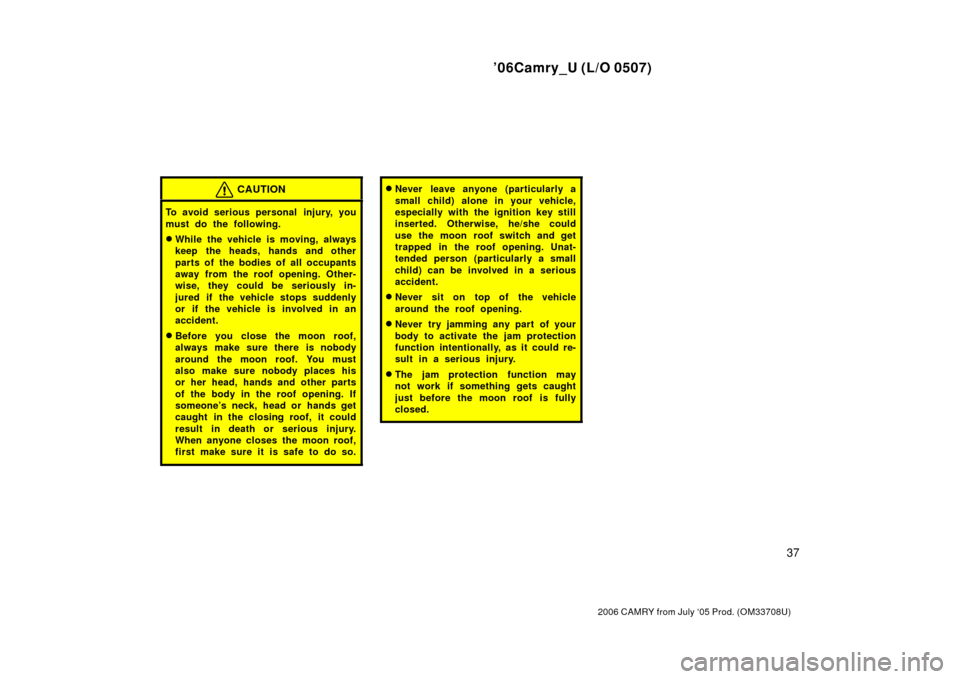

CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.

’06Camry_U (L/O 0507)
45
2006 CAMRY from July ‘05 Prod. (OM33708U)

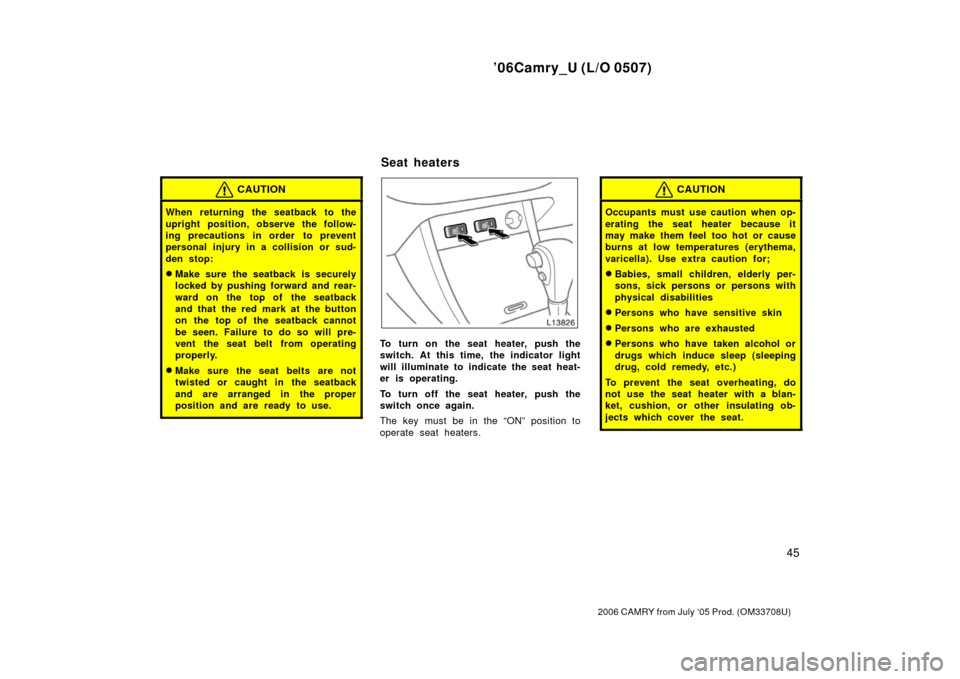

CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback
and that the red mark at the button
on the top of the seatback cannot
be seen. Failure to do so will pre-
vent the seat belt from operating
properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.
To turn on the seat heater, push the
switch. At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The key must be in the “ON” position to
operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’06Camry_U (L/O 0507)
56
2006 CAMRY from July ‘05 Prod. (OM33708U)
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.

’06Camry_U (L/O 0507)
57
2006 CAMRY from July ‘05 Prod. (OM33708U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 119 in Section 1−6.)If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds.
The light comes on while driving.
If any seat belt does not retract or
cannot be pulled out due to a malfunc-
tion or activation of the relevant seat
belt pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.

’06Camry_U (L/O 0507)
63
2006 CAMRY from July ‘05 Prod. (OM33708U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
The indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 119 in Section 1−
6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds.
The light comes on while driving.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.

’06Camry_U (L/O 0507)
71
2006 CAMRY from July ‘05 Prod. (OM33708U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 119 in Section 1−
6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds.
The light comes on while driving.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.
