’06Camry_U (L/O 0507)
330
2006 CAMRY from July ‘05 Prod. (OM33708U)
Low beam (outside)High beam (inside)

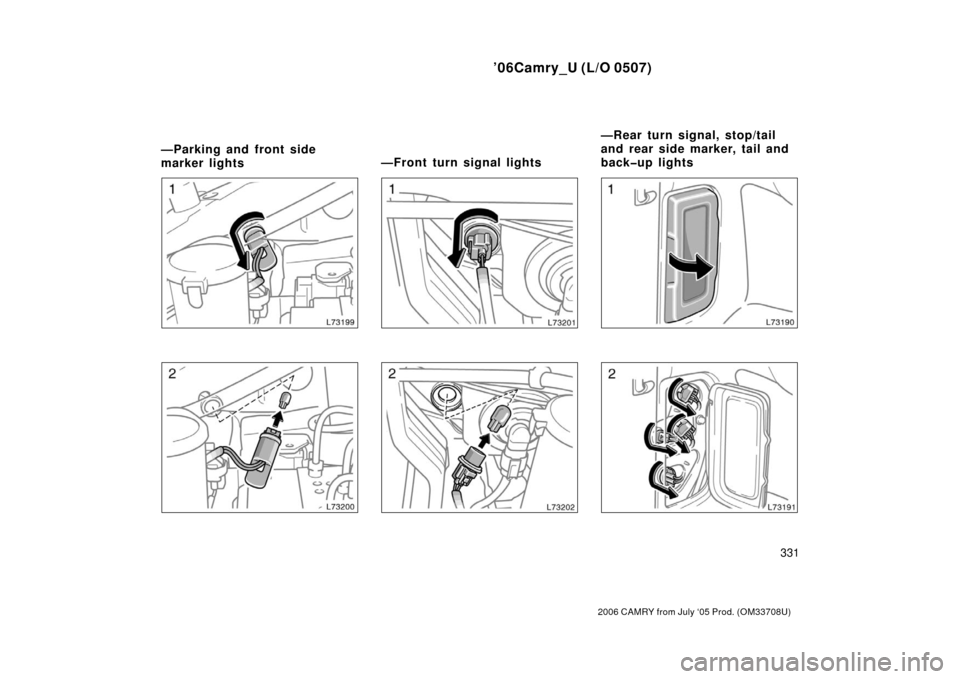

1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration shows the left −hand
headlight.2. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights
’06Camry_U (L/O 0507)
338
2006 CAMRY from July ‘05 Prod. (OM33708U)
Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2.4 L 4 −cylinder (2AZ −FE) engine
6.2 (6.6, 5.4)
3.0 L V6 (1MZ −FE) and 3.3 L V6 (3MZ −
FE) engines
9.2 (9.8, 8.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Note: If replacement is necessary, make
sure to do so with a battery that meets
the same standard as the original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
’06Camry_U (L/O 0507)
342
2006 CAMRY from July ‘05 Prod. (OM33708U)
Engine compartment
Instrument panel
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. SPARE 10 A: Spare fuse
6. SPARE 15 A: Spare fuse
7. SPARE 5 A: Spare fuse
8. AM2 30 A: Starting system, “IGN” and
“IG2” fuses 9. HEAD LH UPR 10 A:
Left−hand head-
light (high beam)
10. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
11. ST 5 A: Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
12. TEL 5 A: No circuit
13. ALT S 5 A: Charging system
14. IGN 15 A: Starting system
15. IG2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, front seat
belt pretensioners, cruise control sys-
tem
16. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
17. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
18. HORN 10 A: Horns
19. D.C.C 30 A: “ECU−B”, “RAD NO.1”
and “DOME” fuses
20. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
Fuses
’06Camry_U (L/O 0507)
343
2006 CAMRY from July ‘05 Prod. (OM33708U)
21. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
22. HAZ 15 A: Emergency flashers
23. ECU B 10 A: Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system
24. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, garage door opener,
clock, outside temperature display, mul-
ti −information display
25. CIG 15 A: Cigarette lighter
26. ECU ACC 5 A: Power rear view mir-
rors, clock, multi −information display
27. RAD NO.2 10 A: Audio system, navi-
gation system
28. POWER POINT 15 A: Power outlets
29. RAD NO.1 20 A: Audio system, navi-
gation system 30. GAUGE1 10 A:
Gauges and meters,
clock, outside temperature display, mul-
ti −information display, shift lock system,
seat belt reminder lights
31. ECU IG 10 A: SRS airbag system,
power windows, anti −lock brake system
32. WIPER 25 A: Windshield wipers
33. HTR 10 A: Air conditioning system
34. MIR HTR 10 A: Outside rear view mir-
ror heaters
35. AM1 5 A: Starting system
36. FOG 15 A: Front fog lights
37. SUN SHADE 15 A: No circuit
38. GAUGE2 10 A: Auto anti−glare inside
rear view mirror, compass, electric
moon roof, back −up lights, automatic
transmission indicator lights, automatic
light control system, cruise control sys-
tem
39. PANEL 10 A: Glove box light, clock,
outside temperature display, multi −infor-
mation display, instrument cluster
lights, instrument panel lights, over-
drive− off indicator light
40. TAIL 10 A: Tail lights, parking lights,
license plate lights 41. PWR NO.4 20 A:
Rear passenger’s
power window (left side)
42. PWR NO.2 20 A: Front passenger ’s
door lock system, front passenger ’s
power window
43. OBD 7.5 A: On−board diagnosis sys-
tem
44. SEAT HTR 20 A: Seat heaters
45.
WASHER 15 A: Windshield washer
46. FAN RLY 10 A: Electric cooling fans
47. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system,
cruise control system
48. FUEL OPEN 5 A: No circuit
49. DOOR NO.2 25 A: Multiplex commu-
nication system (power door lock sys-
tem, auto −door locking system, wire-
less remote control system)
50. AMP 25 A: No circuit
51. PWR NO.3 20 A: Rear passenger’s
power window (right side)
