3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth. Bluetooth is
a wireless data system by which you can call
without your cellular phone being connected
with a cable or placed on a cradle.
If your cellular phone does not support Blue-
tooth, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.

101
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth.
“Yellow” indicates a bad connection to Blue-
tooth, resulting in possible deterioration of
voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
 HFP (Hands Free Profile) Ver. 1.0
 OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not function when you
use the Bluetooth phone in the following
conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Bluetooth
SIG. Inc.

102
When you release your car:
A lot of personal data is registered when
you use the Handsfree system. When
you release your car, initialize your data.
If you initialize it, the former state will never
come back again. Pay much attention when
initializing
the data.
You can initialize the following data in the sys-
tem.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference received, including interfer-
ence that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a residen-
tial installation. This equipment gener-
ates, uses and can radiate radio frequen-
cy energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio com-
munications. However, there is no guar-
antee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the eq uipment into an outlet on
a circuit different from that to which the re-
ceiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.

103
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC ra-
dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low levels of RF energy
that it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least 20 cm
and more between the radiator and per-
son’s body (excluding extremities:
hands, wrists, feet and legs).
Colocation: This transmitter must not
be co− located or operated in conjunction
with any other antenna or transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the steer-
ing wheel to display this screen when the ve-
hicle is stopped.
3. Touch “Settings” to display “Settings”
screen.
4. Touch “Bluetooth” to display the
“Bluetooth Settings” screen.

104

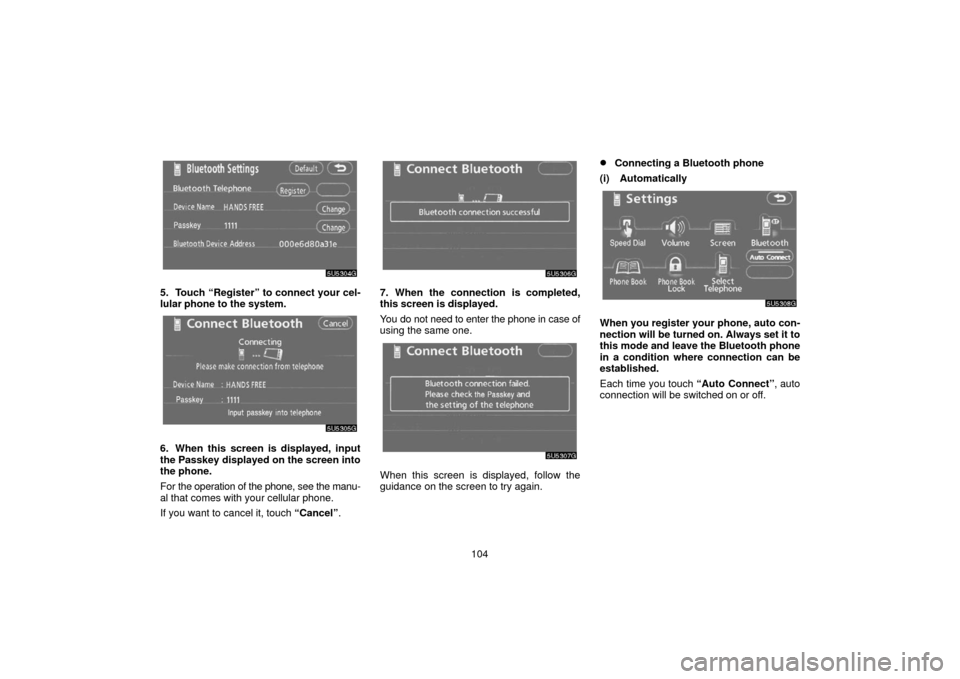

5. Touch “Register” to connect your cel-
lular phone to the system.
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

105

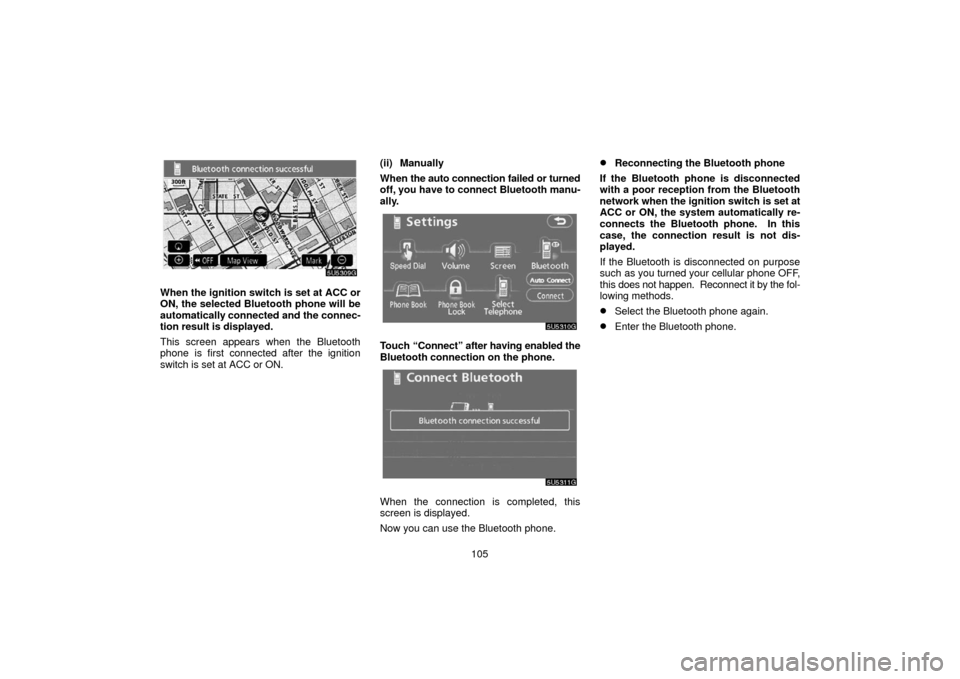

When the ignition switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth
phone is first connected after the ignition
switch is set at ACC or ON. (ii) Manually
When
the auto connection failed or turned
off, you have to connect Bluetooth manu-
ally.
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the i gnition switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

106
(b) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch  , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
Touch
or push the switch of the steer-
ing wheel. (ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select
the desired number from the list.
Touch or push the switch of the steer-
ing wheel.

11 2
(c) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call: Touch
and hold it.
To adjust the volume of received call: Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
(d) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone: Touch
or push the switch of the
steering wheel.
To mute your voice: Touch “Mute”.
To input a Key: Touch “09”.
To transfer the call Touch “Transfer Call” . You cannot change from Hands
−free call to
cellular phone call while driving.
When you change from cellular phone call to
Hands −free call, the Hands −free screen will
be displayed and you can operate it on the
screen.
Transferring method and behavior are differ-
ent depending on the cellular phone which
you have.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
