2006 SUBARU TRIBECA set clock

3
Instruments and controls
Ignition switch .................................................... 3-3 LOCK ....................................................................... 3-3
ACC .......................................................................... 3-3
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-4
Ignition switch light ................................................ 3-4
Hazard warning flasher ...................................... 3-5
Meters and gauges ............................................. 3-5 Combination meter illumination ............................ 3-5
Canceling the function for meter needle/gauge movement and combination meter sequential
illumination upon turning on the ignition
switch .................................................................... 3-5
Speedometer ........................................................... 3-6
Odometer ................................................................. 3-6
Double trip meter .................................................... 3-7
Tachometer ............................................................. 3-7
Fuel gauge ............................................................... 3-8
Temperature gauge ................................................ 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-10
SRS airbag system warning light .......................... 3-11
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-12
CHECK ENGINE warning light/Malfunction
indicator lamp ....................................................... 3-12
Charge warning light ............................................... 3-13
Oil pressure warning light ..................................... 3-13
AT OIL TEMPerature warning light ....................... 3-13 Rear differential oil temperature warning light .... 3-14
Low tire pressure warning light ............................ 3-14
ABS warning light ................................................... 3-15
Brake system warning light ................................... 3-16
Low fuel warning light ..................................... 3-17
Door open warning light ........................................ 3-17
Windshield washer fluid warning light ................. 3-17
All-Wheel Drive warning light ................................ 3-17
Vehicle Dynamics Control operation indicator
light ........................................................................ 3-18
Vehicle Dynamics Control warning light/Traction Control system OFF indicator light .................... 3-18
Security indicator light ........................................... 3-19
SPORT mode indicator light .................................. 3-19
Selector lever/Gear position indicator .................. 3-20
Turn signal indicator lights .................................... 3-20
High beam indicator light ....................................... 3-20
Cruise control indicator light ................................. 3-20
Cruise control set indicator light .......................... 3-20
Headlight indicator light ......................................... 3-20
Front fog light indicator light ................................. 3-20
Clock .................................................................... 3-21
Outside temperature indication ........................ 3-21
Multi function display (Vehicle without Navigation System) ......................................... 3-23Current fuel consumption ...................................... 3-23
Average fuel consumption ..................................... 3-23
Driving range on remaining fuel ............................ 3-24
Journey time ........................................................... 3-25

Instruments and controls 3-21
– CONTINUED –
Clock
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for Monitor
System”.
The clock shows the time while the igni-
tion switch is in the “ACC” or “ON” posi-tion. To adjust the time shown by the clock,
press the “+” button or the “–” button. The
indicated time will change in one-minute
increments. If you keep the button
pressed, the rate at which the indicated
time changes will speed up.
When you keep either the “+” or “– “ button
pressed, time change will pause for 1 sec-
ond at the end of each 30-minute change.
The clock will start going forward or back-
ward again quickly after this 1-second
pause.
Outside temperature indica-
tion
NOTE
If your vehicle is equipped with a navi-
gation system, refer to the separate
“Operating Instructions for Monitor System”.
U.S.-spec. vehicles
CLOCK
300603
To ensure safety, do not attempt to
set the time during driving, as an ac-
cident could result.
300602
300550

4-6 Climate control
To change the system back to the AUTO
mode, press the “AUTO” button. TOFF button
The Automatic Climate Control system
turns off (the air conditioner compressor
and fan turn off) when the “OFF” button is
pressed.
When the “OFF” button is pressed, the
outside air introduction mode (air inlet se-
lection OFF) is automatically selected. T
Temperature control dial
Driver’s side
Passenger’s side
It is possible to make separate tempera- ture settings for the driver’s side and pas-
senger’s side. Each temperature setting is
shown on the display. With the dial set at
your desired temperature, the system au-
tomatically adjusts the temperature of air
supplied from the outlets such that the de-
sired temperature is achieved and main-
tained.
Turning the dial counterclockwise and re-
leasing it reduces the temperature by 1
°F
(0.5 °C). Turning the dial clockwise and re-
leasing it increases the temperature by1 °F (0.5 °C). Holding the dial in either
turned position causes the temperature to
change continuously.
With the minimum temperature set, the
system gives maximum cooling perfor-
mance. With the maximum temperature
set, the system gives maximum heating
performance.
400508
400509
400510

Maintenance and service 11 - 4 1
– CONTINUED –
T

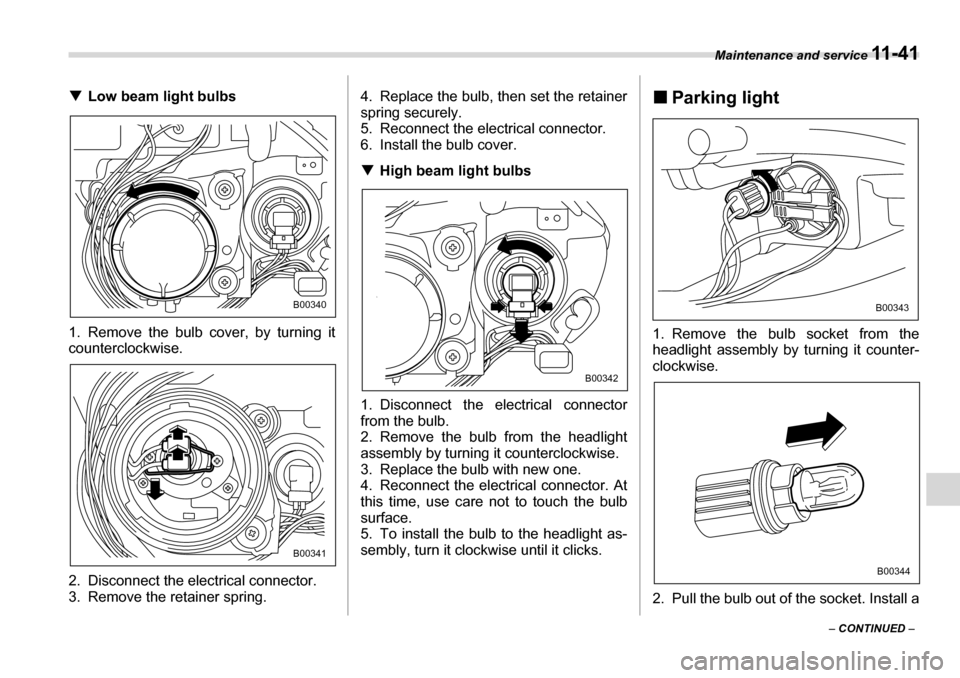

Low beam light bulbs
1. Remove the bulb cover, by turning it
counterclockwise.
2. Disconnect the electrical connector.
3. Remove the retainer spring. 4. Replace the bulb, then set the retainer spring securely.
5. Reconnect the electrical connector.
6. Install the bulb cover. T
High beam light bulbs
1. Disconnect the electrical connector
from the bulb.
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At
this time, use care not to touch the bulb surface.
5. To install the bulb to the headlight as-
sembly, turn it clockwise until it clicks. „
Parking light
1. Remove the bulb socket from the
headlight assembly by turning it counter-
clockwise.
2. Pull the bulb out of the socket. Install a
B00340
B00341
B00342
B00343
B00344

11 - 4 2 Maintenance and service
new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until it
locks.
4. Install the headlight assembly and the

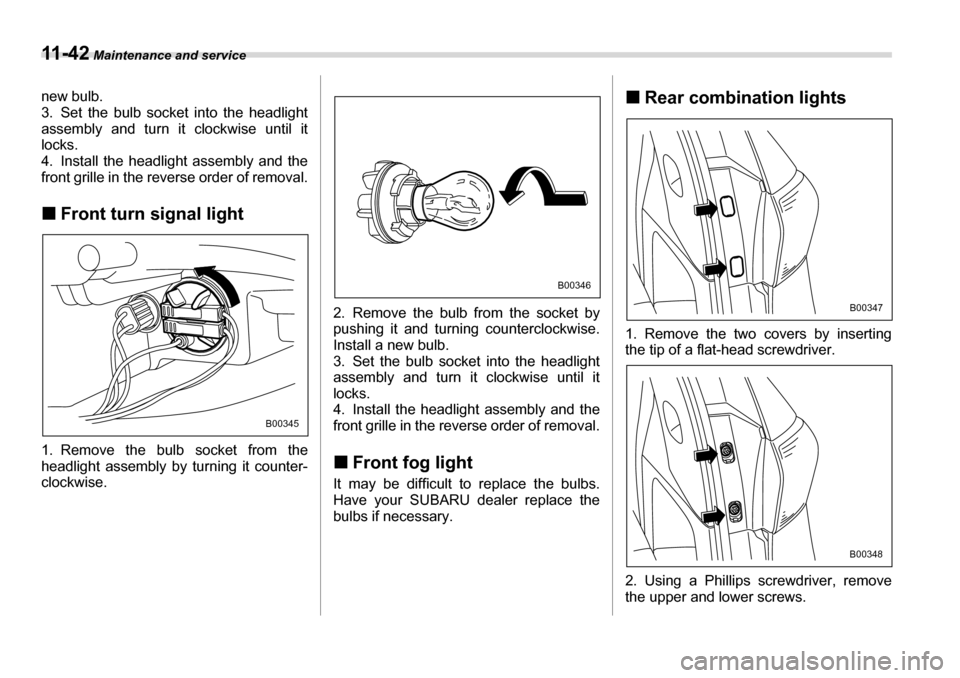

front grille in the reverse order of removal. „Front turn signal light
1. Remove the bulb socket from the
headlight assembly by turning it counter- clockwise. 2. Remove the bulb from the socket by
pushing it and turning counterclockwise.
Install a new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until itlocks.
4. Install the headlight assembly and the
front grille in the reverse order of removal. „
Front fog light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. „
Rear combination lights
1. Remove the two covers by inserting
the tip of a flat-head screwdriver.
2. Using a Phillips screwdriver, remove
the upper and lower screws.
B00345
B00346
B00347
B00348

Maintenance and service 11 - 4 3
– CONTINUED –

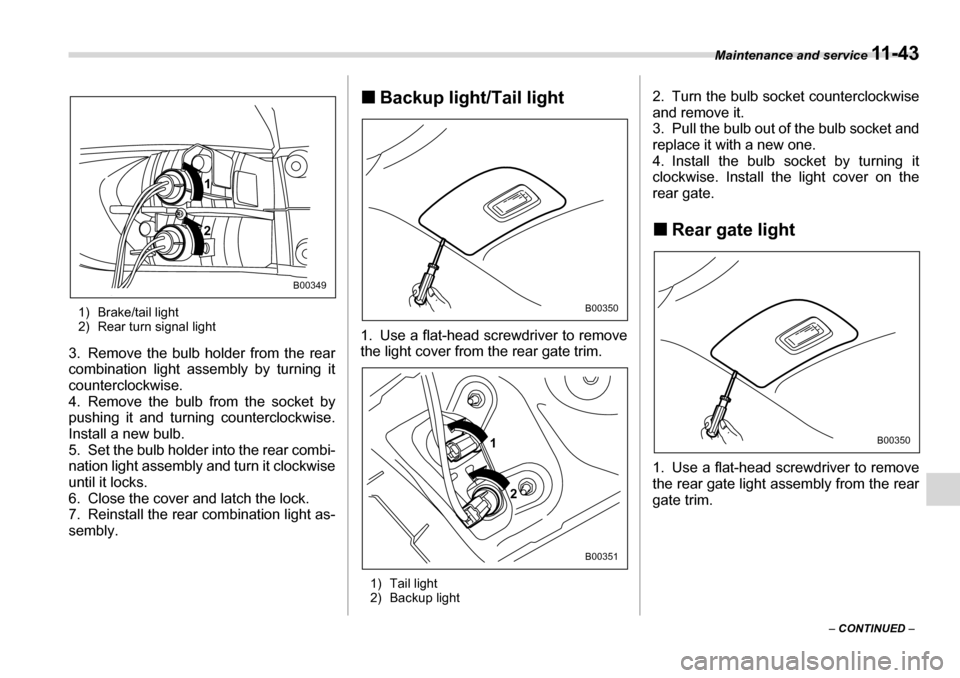

1) Brake/tail light
2) Rear turn signal light
3. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
4. Remove the bulb from the socket by
pushing it and turning counterclockwise.
Install a new bulb.
5. Set the bulb holder into the rear combi-
nation light assembly and turn it clockwise
until it locks.
6. Close the cover and latch the lock.
7. Reinstall the rear combination light as-
sembly. „
Backup light/Tail light
1. Use a flat-head screwdriver to remove
the light cover from the rear gate trim. 1) Tail light
2) Backup light 2. Turn the bulb socket counterclockwise
and remove it.
3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it
clockwise. Install the light cover on the
rear gate. „
Rear gate light
1. Use a flat-head screwdriver to remove
the rear gate light assembly from the rear
gate trim.
1
2
B00349
B00350
1
2
B00351
B00350

Index 14-3
CHECK ENGINE warning light/Malfunction indicator
lamp .............................................................................. 3-12
Checking Brake pedal free play ................................................. 11-21
Brake pedal reserve distance .................................... 11-21
Engine oil level ............................................................ 11-7
Fluid level ............................................ 11-15, 11-19, 11-20
Gear oil level .............................................................. 11-17
Child restraint systems ..................................................... 1-30
Installation with seatbelt .............................................. 1-33
Lower and tether anchorages ...................................... 1-38
Child safety ............................................................................ 5
Locks ........................................................................... 2-19
Chime
Key ................................................................................ 3-4
Seatbelt ....................................................................... 1-17
Cleaning
Aluminum wheels ........................................................ 10-3
Interior ......................................................................... 10-4
Ventilator grille ............................................................. 4-10
Climate control system ....................................................... 4-5
Clock ................................................................................ 3-21
Coat hook ......................................................................... 6-10
Cooling system ............................................................... 11-10
Corrosion protection ................................................ 8-10, 10-3
Cruise control ................................................................... 7-27
Set indicator light ......................................................... 3-20
Cup holder .......................................................................... 6-6 D
Daytime running light system ........................................... 3-27
Differential gear oil Front ........................................................................... 11-16
Rear ........................................................................... 11-17
Dimensions ....................................................................... 12-2
Disarming the system ....................................................... 2-16
Disc brake pad wear warning indicators ........................... 7-16
Dome light ................................................................ 6-2, 11-44
Door locks ........................................................................... 2-4
Door open warning light .................................................... 3-17
Drive belts ....................................................................... 11-15
Driving All-Wheel Drive vehicle ................................................ 3-17
Car phone/cell phone ........................................................ 7
Drinking ............................................................................. 6
Drugs ................................................................................ 6
Foreign countries ........................................................... 8-4
Pets ................................................................................... 7
Snowy and icy roads ...................................................... 8-9
Tips ....................................................................... 7-13, 8-4
Tired or sleepy .................................................................. 7
E
Electrical system ............................................................... 12-3
Electronic Brake Force Distribution (EBD) system ........... 7-18
Emergency Locking Retractor (ELR) ................................ 1-16
Engine Compartment overview ................................................ 11-6
Coolant ....................................................................... 11-11
Exhaust gas (Carbon monoxide) ................................... 8-2
Hood ............................................................................ 11-4
Oil ................................................................................. 11-7
Overheating ................................................................. 9-14
Starting ........................................................................... 7-7
