2006 SUBARU TRIBECA gas type

1-46 Seat, seatbelt and SRS airbags
yPut children aged 12 and under in
a rear seat properly restrained at
all times. The SRS airbag deploys
with considerable speed and
force and can injure or even kill
children, especially if they are 12
years of age and under and are
not restrained or improperly re-
strained. Because children are
lighter and weaker than adults,
their risk of being injured from de-
ployment is greater.
100350
Consequently, we strongly rec-
ommend that ALL children (in-
cluding those in child seats andthose that have outgrown child re-
straint devices) sit in a REAR seat
properly restrained at all times in
a child restraint device or in a
seatbelt, whichever is appropriate
for the child’s age, height and
weight.
Always secure ALL types of child
restraint devices (including for-
ward facing child seats) in one of
the rear seating positions recom-
mended in this owner’s manual.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating po-
sitions.
For instructions and precautions
concerning the child restraint sys-
tem, see the “Child restraint sys-
tems” section in this chapter.
yNEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
yNever allow a child to stand up, or
to kneel on the front passenger’s
seat, or never hold a child on your
lap or in your arms. The SRS air-
bag deploys with considerable
force and can injure or even kill
the child.
y When the SRS airbag deploys,
some smoke will be released. This
smoke could cause breathing
problems for people with a history
of asthma or other breathing trou-
ble. If you or your passengers
have breathing problems after
SRS airbag deploys, get fresh air
promptly.
y A deploying SRS airbag releases
hot gas. Occupants could get
burned if they come into direct
contact with the hot gas.

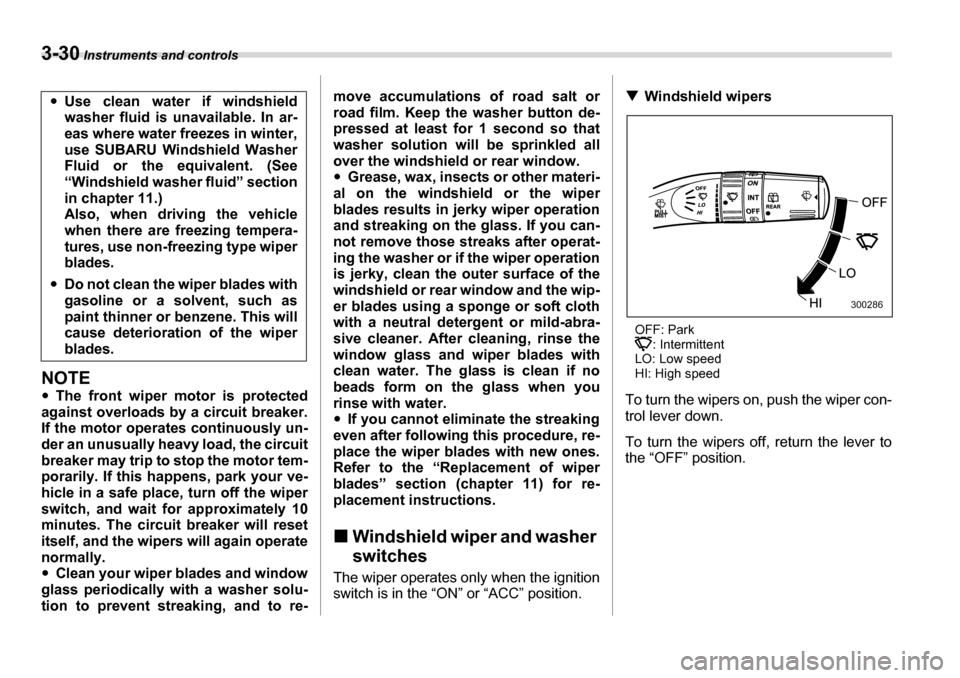

3-30 Instruments and controls
NOTE yThe front wiper motor is protected
against overloads by a circuit breaker.
If the motor operates continuously un-
der an unusually heavy load, the circuit
breaker may trip to stop the motor tem-
porarily. If this happens, park your ve-
hicle in a safe place, turn off the wiper
switch, and wait for approximately 10
minutes. The circuit breaker will reset
itself, and the wipers will again operate
normally. y Clean your wiper blades and window
glass periodically with a washer solu-
tion to prevent streaking, and to re- move accumulations of road salt or
road film. Keep the washer button de-
pressed at least for 1 second so that
washer solution will be sprinkled all
over the windshield or rear window. y
Grease, wax, insects or other materi-
al on the windshield or the wiper
blades results in jerky wiper operation
and streaking on the glass. If you can-
not remove those streaks after operat-
ing the washer or if the wiper operation
is jerky, clean the outer surface of the
windshield or rear window and the wip-
er blades using a sponge or soft cloth
with a neutral detergent or mild-abra-
sive cleaner. After cleaning, rinse the
window glass and wiper blades with
clean water. The glass is clean if no
beads form on the glass when you
rinse with water. y If you cannot eliminate the streaking
even after following this procedure, re-
place the wiper blades with new ones.
Refer to the “Replacement of wiper
blades” section (chapter 11) for re-
placement instructions. „ Windshield wiper and washer
switches
The wiper operates only when the ignition
switch is in the “ON” or “ACC” position. T
Windshield wipers
OFF: Park : Intermittent
LO: Low speed HI: High speed
To turn the wipers on, push the wiper con-
trol lever down.
To turn the wipers off, return the lever to
the “OFF” position.
y
Use clean water if windshield
washer fluid is unavailable. In ar-
eas where water freezes in winter,
use SUBARU Windshield Washer
Fluid or the equivalent. (See
“Windshield washer fluid” section
in chapter 11.)
Also, when driving the vehicle
when there are freezing tempera-
tures, use non-freezing type wiper
blades.
y Do not clean the wiper blades with
gasoline or a solvent, such as
paint thinner or benzene. This will
cause deterioration of the wiper
blades.
300286

7-2 Starting and operating
Starting and operatingFuel
„Fuel requirements
The engine is designed to operate using
premium unleaded gasoline with an oc-
tane rating of 91 AKI or higher. If premium
unleaded gasoline is not available, regular
unleaded gasoline with an octane rating of
87 AKI or higher may be temporarily used.
For optimum engine performance and
driveability, it is recommended that you
use premium grade unleaded gasoline. T Fuel octane rating
This octane rating is the average of the
Research Octane and Motor Octane num-
bers and is commonly referred to as the
Anti Knock Index (AKI).
Using a gasoline with a lower octane rat-
ing can cause persistent and heavy
knocking, which can damage the engine.
Do not be concerned if your vehicle some-
times knocks lightly when you drive up a
hill or when you accelerate. See your
dealer or a qualified service technician if you use a fuel with the specified octane
rating and your vehicle knocks heavily or persistently. T
Unleaded gasoline
The neck of the fuel filler pipe is designed
to accept only an unleaded gasoline filler
nozzle. Under no circumstances should
leaded gasoline be used because it will damage the emission control system and
may impair driveability and fuel economy. T California fuel
If your vehicle was certified to California
Emission Standards as indicated on the
underhood tune-up label, it is designed to
optimize engine and emission control sys-
tem performance with gasoline that meets
the clean burning low-sulfur California
gasoline specifications. If you live in any
other state than California, your vehicle
will operate on gasoline meeting Federal
specifications. Gasoline sold outside Cali-
fornia is permitted to have higher sulfur
levels, which may affect the performance
of your vehicle’s catalytic converter and
may produce a sulfur exhaust odor or smell. SUBARU recommends that you try
a different brand of unleaded gasoline
having lower sulfur to determine if the
problem is fuel related before returning
your vehicle to an authorized dealer for
service. The CHECK ENGINE warning light/Malfunction indicator lamp may also
turn on. If this occurs, return to your autho-
rized SUBARU dealer for diagnosis. If it is
determined that the condition is caused by
the type of fuel used, repairs may not be
covered by your warranty. T
MMT
Some gasoline contains an octane-en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl). If
you use such fuels, your emission control
system performance may deteriorate and
the CHECK ENGINE warning light/Mal-
function indicator lamp may turn on. If this
happens, return to your authorized
SUBARU Dealer for service. If it is deter-
mined that the condition is caused by the
type of fuel used, repairs may not be cov-
ered by your warranty. T Gasoline for cleaner air
Your use of gasoline with detergent addi-
tives will help prevent deposits from form-
Use of a fuel which is low in quality
or use of an inappropriate fuel addi-
tive may cause engine damage.
Do not let fuel spill on the exterior
surfaces of the vehicle. Fuels con-
taining alcohol may cause paint
damage, which is not covered under
the SUBARU Limited Warranty.

Appearance care 10-5
quality natural product which will retain its
distinctive appearance and feel for many
years with proper care.
Allowing dust or road dirt to build up on the
surface can cause the material to become
brittle and to wear prematurely. Regular
cleaning with a soft, moist, natural fiber
cloth should be performed monthly, taking
care not to soak the leather or allow water
to penetrate the stitched seams.
A mild detergent suitable for cleaning
woolen fabrics may be used to remove dif-
ficult dirt spots, rubbing with a soft, dry
cloth afterwards to restore the luster. If
your SUBARU is to be parked for a long
time in bright sunlight, it is recommended
that the seats and headrests be covered,
or the windows shaded, to prevent fading
or shrinkage.
Minor surface blemishes or bald patches
may be treated with a commercial leather
spray lacquer. You will discover that each
leather seat section will develop soft folds
or wrinkles, which is characteristic of gen-
uine leather. „Synthetic leather upholstery
The synthetic leather material used on the
SUBARU may be cleaned using mild soap
or detergent and water, after first vacuum-
ing or brushing away loose dirt. Allow the
soap to soak in for a few minutes and wipe off with a clean, damp cloth. Commercial
foam-type cleaners suitable for synthetic
leather materials may be used when nec-
essary.
NOTE
Strong cleaning agents such as sol-
vents, paint thinners, window cleaner
or gasoline must never be used on
leather or synthetic interior materials. „
Climate control panel, audio
panel, instrument panel, con-
sole panel, switches, combi-
nation meter, and other plas-
tic surfaces
Use a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches.
NOTE
Do not use organic solvents such as
paint thinners or gasoline, or strong
cleaning agents that contain those sol-
vents.

Maintenance and service 11 - 1 3
– CONTINUED –
6. Pour the coolant and fill to the reservoir
tank’s “FULL” level mark.
7. Put the radiator cap back on and tight-
en firmly. At this time, make sure that the
rubber gasket in the radiator cap is cor- rectly in place.
8. Start and run the engine for more than
five minutes at 2,000 to 3,000 rpm.
9. Stop the engine and wait until the cool-
ant cools down (122 to 140
°F [50 to
60 °C]). If there is any loss of coolant, add
coolant to the radiator’s filler neck and to
the reserve tank’s “FULL” level.
10.Put the radiator cap and reservoir cap
back on and tighten firmly.
Air cleaner element
The air cleaner element functions as a fil-
ter screen. When the element is perforat-
ed or removed, engine wear will be exces-
sive and engine life shortened.
The air cleaner element is a dry type. It is
unnecessary to clean or wash the ele- ment. „ Replacing the air cleaner ele- ment
Replace the air cleaner element according
to the maintenance schedule in the “War-
ranty and Maintenance Booklet”. Under
extremely dusty conditions, replace it
more frequently. It is recommended that
you always use genuine SUBARU parts.B00309
B00018
Do not operate the engine with the
air cleaner element removed. The air
cleaner element not only filters in-
take air but also stops flames if the
engine backfires. If the air cleaner
element is not installed when the en-
gine backfires, you could be burned.

12-2 Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. „Dimensions
in (mm)
„ Engine
Overall length189.8 (4,822)
Overall width73.9 (1,878)
Overall height66.4 (1,686)
Wheel base108.2 (2,749)
TreadFront62.2 (1,580)
Rear62.1 (1,578)
Ground clearance8.4 (213)
Engine modelEZ30D
(3.0-liter, DOHC, non-turbo)
Engine typeHorizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)3,000 (183)
Bore × Stroke in (mm)3.51 × 3.15 (89.2 × 80.0)
Compression ratio10.7 : 1
Firing order1 – 6 – 3 – 2 – 5 – 4
