2006 SUBARU TRIBECA ECO mode

Audio 5-9
– CONTINUED –
will appear on the display and the play-
er will revert to the previously selected
mode.y
The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain
ones. y Single CDs (i.e., 8 cm/3 inch CDs) are
not supported, and if inserted, they will
be immediately ejected. V When CD is in the player
When the “CD” button (1) is pressed, the
player will start playback.
NOTE
After the last song finishes, the player
will automatically return to track 1 (the
first song on the disc). T To stop playback of a CD
When the “POWER-VOL” button is
pressed during playback of a CD, the CD
stops playing temporarily. To let the CD
resume playing, press the button again. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the TUNE
TRACK button (2) to skip to the beginning
of the next track/file (track). Each time this
side of the button is pressed, the indicated
track/file (track) number will increase.
NOTE
In an MP3 folder, skipping past the last
track/file (track) will take you back to
the first track/file (track) in the folder. V Backward direction
Briefly press the “ ” side of the TUNE
TRACK button (2) to skip to the beginning
of the current track/file (track). Each time
this side of the button is pressed, the indi-
cated track/file (track) number will de- crease.
NOTE
In an MP3 folder, skipping past the last
track/file (track) will take you back to
the first track/file (track) in the folder. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the TUNE TRACK
button (2) continuously to fast-forward the track/file.
Release the button to stop fast-forward-
ing.
NOTE
If you fast-forward past the last track/
file (track) on the disc, the player will select the first track/file (track) on the
disc and start playing it. V
Fast-reversing
Press the “ ” side of the TUNE TRACK
button (2) continuously to fast-reverse the
track/file (track).
Release the button to stop fast-reversing.
NOTE
If you fast-reverse to the beginning of
the first track/file (track) on the disc,
the fast-reversing will stop and the
player will start playing the first track/
file (track) on the disc. T Folder selection (MP3 disc)
Press the “ ” side of the SEEK FLDR
button (2) briefly to select the next folder.
Pressing the “ ” side of the same button
the first time makes the player go back to
the beginning of the currently selected file;
pressing it a second time makes it go back
to the previously selected file.
NOTE
Only MP3 folders are recognized when
an attempt to select the next or previ-
ous folder is made. If no appropriate
folder exists on the disc, pressing the
“ ” or “ ” side of the SEEK FLDR
button has no effect.

Audio 5-11
– CONTINUED –
you perform any of the following steps: y
Press the “RPT” button
y Press the “SCAN” button
y Press the “ ” button
y Select the radio mode
y Press the “RSE AUX” button
y Press the “ ” or “ ” side of the
SEEK FLDR button y Turn off the power of the audio
equipment. y Turn the ignition switch to the “OFF”
position. V MP3 disc
Press the “RDM” button (5) during disc
playback to play all of the tracks in the
folder currently being played in random or-
der. Press the “RDM” button again to play
all of the tracks on the disc in random or-
der. The display will show “RDM” during
the random mode.
To cancel the random mode, press the
“RDM” button during “in-disc” random
playback. The “RDM” indication will go off,
and the normal playback mode will be re-
sumed.
NOTE y Each time you briefly press the but-
ton, the mode will change to the next
one in the following sequence. If you accidentally press the button
and cancel the random mode, press it
again to reselect the random mode. y
Random playback will be cancelled if
you perform any of the following steps: yPress the “RPT” button
y Press the “SCAN” button
y Press the “ ” button
y Select the radio mode
y Press the “RSE AUX” button
y Press the “ ” or “ ” side of
the SEEK FLDR button y Turn off the power of the audio
equipment. y Turn the ignition switch to the
“OFF” position.
T Scan
The scan mode lets you listen to the first
10 seconds of each track/file (track) on the
disc/folder in succession. Press the
“SCAN” button (7) to start scanning
through all tracks upward beginning with
the track/file (track) following the currently
selected one. After all tracks/files (tracks)
on the disc/folder has been scanned, nor-
mal playback mode is restored. To cancel a scan, press the button again.
NOTE
The scan mode will be cancelled if you
perform any of the following opera- tions: y
Press the “RPT” button
y Press the “RDM” button
y Press the “ ” button
y Press the “ ” or “ ” side of the
TUNE TRACK button y Press the “ ” or “ ” side of the
SEEK FLDR button (MP3 disc) y Select the radio mode
y Press the “RSE AUX” button
y Turn off the power of the audio
equipment. y Turn the ignition switch to the “OFF”
position. T To eject a disc from the player
When a disc is being played back or when
a disc is in the player, press the eject but-
ton “ ” (8). The disc will be ejected.
NOTE y Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out. y If the disc is left ejected for more
than approximately 15 seconds after
the ignition switch is turned to the
“OFF” position, a disc protection func-
CANCEL

5-16 Audio
matically search for a receivable station
and stop at the first one it finds. This func-
tion may not be available, however, when
radio signals are weak. In such a situation,
perform manual tuning to select the de- sired station. VScan tuning (SCAN)
Press the “SCAN” button (7) to change the
radio to the SCAN mode. In this mode, the
radio scans through the radio band until a
station is found. The radio will stop at the
station for five seconds while displaying
the frequency, after which scanning will
continue until the entire band has been
scanned from the low end to the high end.
Press the “SCAN” button again to cancel
the SCAN mode and to stop on any dis-
played frequency.
Press the “ ” or “ ” side of the SEEK
FLDR button (6) again to cancel the scan
mode and to stop on any displayed fre-
quency.
When the “SCAN” button is pressed for
automatic tuning, stations are scanned in
the direction of low frequencies to high fre-
quencies only.
Automatic tuning may not function proper-
ly if the station reception is weakened by
distance from the station or proximity to
tall buildings and hills. T
Selecting preset stations
Presetting a station with a preset button
allows you to select that station in a single
operation. Up to six AM, FM1 and FM2
stations each may be preset. T How to preset stations
1. Press the “FM” (2) or “AM” (1) button to
select FM1, FM2 or AM reception.
2. Press the “SCAN” button (7) or tune
the radio manually until the desired station
frequency is displayed.
3. Press one of the preset buttons for
more than 1.5 seconds to store the fre-
quency. If the button is pressed for less
than 1.5 seconds, the preceding selection
will remain in memory.
NOTE y If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleared. If this occurs,
it is necessary to reset the preset but- tons.y If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault. T Rear seat entertainment
If your vehicle is equipped with a Rear Seat Entertainment System, you can en-
joy audio outputs from the system through
the vehicle’s speakers by pressing the
“RSE AUX” button. Press the button again
to return to the audio set sound.

5-18 Audio
THow to insert a CD(s)
V Inserting a CD
1. Briefly press the “LOAD” button (10). If
the magazine in the player has an idle po-
sition where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
If no indicator blinks, it means that there is
no idle position in the magazine.
2. After the disc number indicator has
started to flash, insert the disc when
“LOAD” flashes on the display. The disc
will then be automatically drawn in, and
the player will begin to play back the first
track of the disc. y To insert more discs in succession, re-
peat Steps 1 and 2. The magazine will be
loaded with discs in the ascending order
of position number.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert-
ed. y The disc indicator steadily lights up if a
disc is already inserted in the correspond-
ing position of the magazine. y While the player is in the loading mode,
if you press “FM” or “AM” button, the play-
er will enter the standby mode. Press the
“CD” button to start playback. V
Inserting a disc in a desired position
1. Briefly press the “LOAD” button (10). If
the magazine in the player has an idle po-
sition where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
The positions in the magazine the indica-
tor of which steadily lights up are already
loaded with discs.
2. Press the disc select button (9) at the
position where you want to insert a disc.
3. Insert the disc when “LOAD” flashes on
the display. The disc will then be automat-
ically drawn in, and the player will begin to
play the first track on the disc. y If you wish to insert another disc, repeat
the procedure beginning with step 1.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert- ed. y While the player is in the loading mode,
if you press “FM” or “AM” button, the play-
er will enter standby mode. Press the “CD”
button to start playback. V Loading all the magazine (Full disc
loading mode)
1. If you continue to press the “LOAD”
button (10) for more than 1.5 seconds, the
player will produce beep sound and will enter the full disc loading mode.
2. A “disc number” indicator will blink, and
“ALL LOAD” will be on display for a period
of 15 seconds. If a disc is successfully
loaded during this period, the disc number
indicator will stop blinking and will steadily
light.
3. When the loading of a disc is complete,
the next disc number indicator will blink.
Then repeat Step 2.
4. When the magazine is filled with discs
by repeating Steps 2 and 3, the player will
start playback of the discs, beginning with
the one inserted first.
If you fail to insert any disc during each 15
seconds interval, the full disc loading
mode will be canceled, and the player will
start playback of the disc inserted first. T
How to play back a CD or make a
pause
V When there is no CD inserted:
Insert a CD by referring to “How to insert aCD(s)”.
When a CD is loaded, the player will start
playback of the CD, beginning with the
first track. V When there are CDs loaded:
Press a desired one of the disc select but-
tons (9) the disc number indicator of which

Audio 5-21
– CONTINUED –
again to reselect the random mode. y
Random playback will be cancelled if
you perform any of the following steps: yPress the “RPT” button
y Press the “SCAN” button
y Press the “ ” button
y Select the radio mode
y Press the “RSE AUX” button
y Press the “ ” or “ ” side of
the SEEK FLDR buttony Turn off the power of the audio
equipment. y Turn the ignition switch to the
“OFF” position.
T SCAN
The scan mode lets you listen to the first
10 seconds of each track/file (track) in
succession. Press the “SCAN” button (7)
to start scanning upward beginning with
the track/file (track) following the currently
selected one. When all tracks/files (tracks)
in the disc/folder have been scanned, nor-
mal playback will be resumed. To cancel
the scan mode, press the button again.
NOTE
The scan mode will be cancelled if you
perform any of the following steps: y Press the “RPT” button
y Press the “RDM” button
y Press the “ ” or “ ” side of the
TUNE TRACK button y
Press the “ ” or “ ” side of the
SEEK FLDR button (MP3 disc)y Press the “ ” button
y Press the disc select button
y Select the radio mode
y Press the “RSE AUX” button
y Turn off the power of the audio
equipment.y Turn the ignition switch to the “OFF”
position. T Display selection (MP3 disc)
If you press the “AUDIO” button (3) for 0.5
second or longer during playback, the in-
dication will change to the next one in the
following sequence. T Page (track/folder title) scroll (MP3
disc)
If, having pressed the “AUDIO” button (3) to select track title or folder title display,
you press the “AUDIO” button again for
less than 0.5 second, the title will be
scrolled so you can see all of it. You will
see eight characters at a time.
NOTE
The display is designed to show titles for up to three pages (64 characters in
total). T
Folder selection (MP3 disc)
Press the “ ” side of the SEEK FLDR
button (4) briefly to select the next folder.
Pressing the “ ” side of the same button
the first time makes the player go back to
the beginning of the currently selected file;
pressing it a second time makes it go back
to the previously selected file.
NOTE
Only MP3 folders are recognized when
an attempt to select the next or previ-
ous folder is made. If no appropriate
folder exists on the disc, pressing the
“ ” or “ ” side of the SEEK FLDR
button has no effect. T How to unload CDs from the player
V Ejecting a CD from the player
Of the discs loaded, you can select and re-
move only one disc.
1. Use the disc select button (9) to select
the disc to be ejected.
2. Briefly press the “ ” button (8). The
selected disc will be ejected. The disc
number indicator will flash at this time.
When you remove the ejected disc, the
disc number indicator will go off.
To remove more discs in succession, re-
File title Time
Folder title

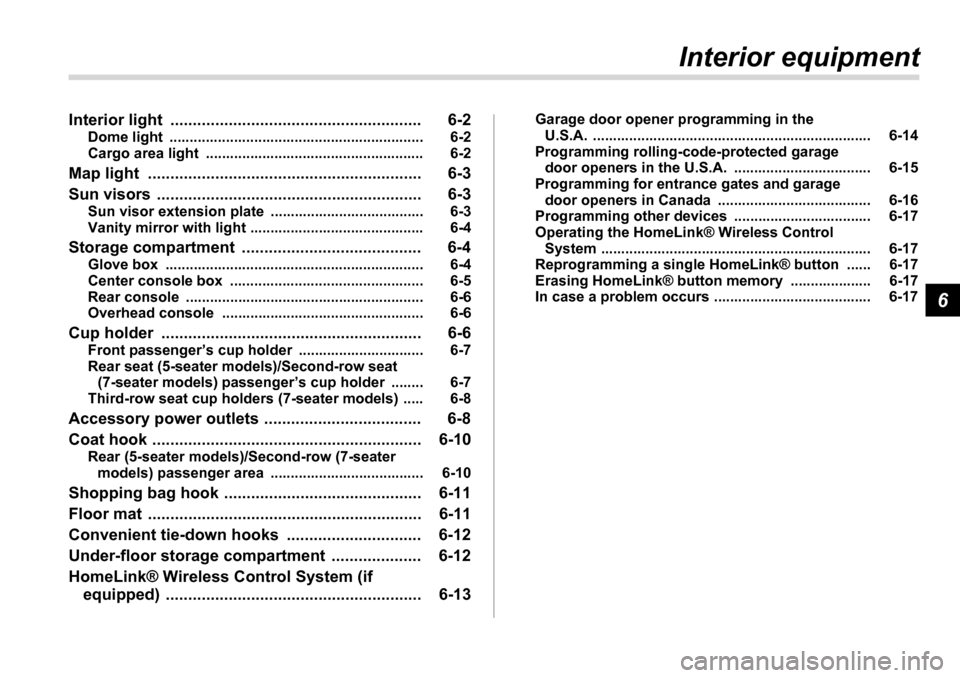

6
Interior equipment
Interior light ........................................................ 6-2 Dome light ............................................................... 6-2
Cargo area light ...................................................... 6-2
Map light ............................................................. 6-3
Sun visors ........................................................... 6-3 Sun visor extension plate ...................................... 6-3
Vanity mirror with light ........................................... 6-4
Storage compartment ........................................ 6-4 Glove box ................................................................ 6-4
Center console box ................................................ 6-5
Rear console ........................................................... 6-6
Overhead console .................................................. 6-6
Cup holder .......................................................... 6-6 Front passenger’s cup holder ............................... 6-7
Rear seat (5-seater models)/Second-row seat (7-seater models) passenger’s cup holder ........ 6-7
Third-row seat cup holders (7-seater models) ..... 6-8
Accessory power outlets ................................... 6-8
Coat hook ............................................................ 6-10 Rear (5-seater models)/Second-row (7-seater models) passenger area ...................................... 6-10
Shopping bag hook ............................................ 6-11
Floor mat ............................................................. 6-11
Convenient tie-down hooks .............................. 6-12
Under-floor storage compartment .................... 6-12
HomeLink® Wireless Control System (if equipped) ......................................................... 6-13 Garage door opener programming in the
U.S.A. ..................................................................... 6-14
Programming rolling-code-protected garage
door openers in the U.S.A. .................................. 6-15
Programming for entrance gates and garage door openers in Canada ...................................... 6-16
Programming other devices .................................. 6-17
Operating the HomeLink® Wireless Control System ................................................................... 6-17
Reprogramming a single HomeLink® button ...... 6-17
Erasing HomeLink® button memory .................... 6-17
In case a problem occurs ....................................... 6-17

Interior equipment 6-7
– CONTINUED –
„
Front passenger’s cup holder
T Center console
The dual cup holder is built into the center
console near the parking brake lever.
To access the cup holder, push the re- lease button. T
Door pocket
The door pockets can be used to hold
beverage bottles and other items.
„ Rear seat (5-seater models)/
Second-row seat (7-seater
models) passenger’s cup holder
T Armrest
A dual cup holder is built in the armrest.
600416
600417
When placing a beverage in a door
pocket, make sure it is capped. Oth-
erwise, the beverage could spill
when opening/closing the door or
while driving and, if the beverage is
hot, it could scald you.
600418
When a cup containing a beverage
is in the cup holder, do not slide or
recline any seat. Otherwise, the bev-
erage could spill while driving and,
if the beverage is hot, it could scald
you.
600419

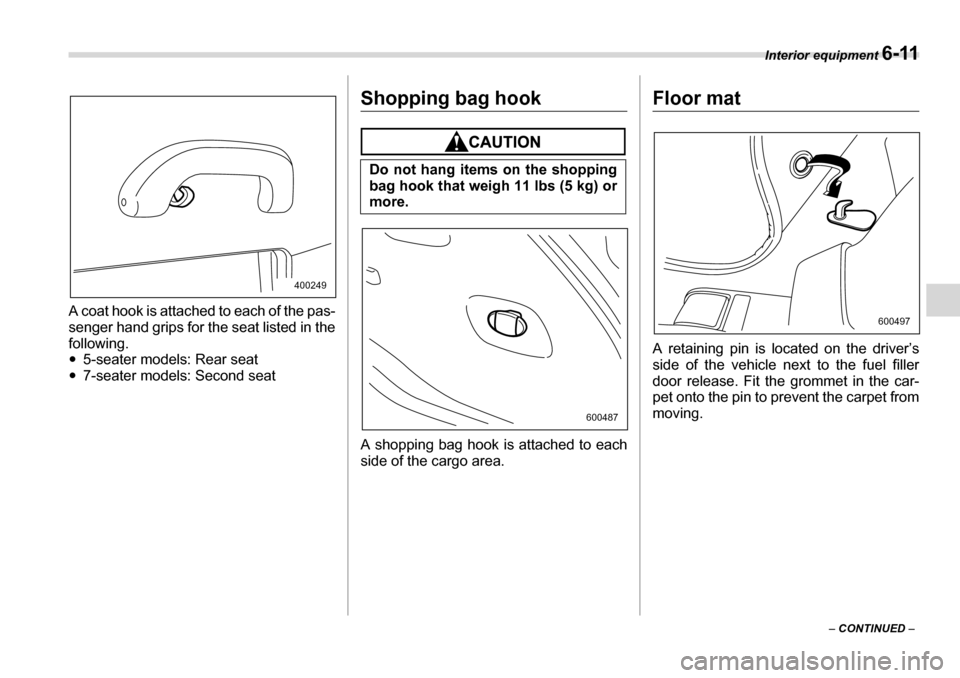

Interior equipment 6-11
– CONTINUED –
A coat hook is attached to each of the pas-
senger hand grips for the seat listed in the
following.y
5-seater models: Rear seat
y 7-seater models: Second seat
Shopping bag hook
A shopping bag hook is attached to each
side of the cargo area.
Floor mat
A retaining pin is located on the driver’s
side of the vehicle next to the fuel filler
door release. Fit the grommet in the car-
pet onto the pin to prevent the carpet from moving.
400249
Do not hang items on the shopping
bag hook that weigh 11 lbs (5 kg) ormore.
600487
600497
