Low beam light bulbs
1. Remove the bulb cover, by turning it
counterclockwise.
2. Disconnect the electrical connector.
3. Remove the retainer spring. 4. Replace the bulb, then set the retainer spring securely.
5. Reconnect the electrical connector.
6. Install the bulb cover. T
High beam light bulbs
1. Disconnect the electrical connector
from the bulb.
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At
this time, use care not to touch the bulb surface.
5. To install the bulb to the headlight as-
sembly, turn it clockwise until it clicks. „
Parking light
1. Remove the bulb socket from the
headlight assembly by turning it counter-
clockwise.
2. Pull the bulb out of the socket. Install a
B00340
B00341
B00342
B00343
B00344

11 - 4 2 Maintenance and service
new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until it
locks.
4. Install the headlight assembly and the
front grille in the reverse order of removal. „Front turn signal light
1. Remove the bulb socket from the
headlight assembly by turning it counter- clockwise. 2. Remove the bulb from the socket by
pushing it and turning counterclockwise.
Install a new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until itlocks.
4. Install the headlight assembly and the
front grille in the reverse order of removal. „
Front fog light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. „
Rear combination lights
1. Remove the two covers by inserting
the tip of a flat-head screwdriver.
2. Using a Phillips screwdriver, remove
the upper and lower screws.
B00345
B00346
B00347
B00348

Maintenance and service 11 - 4 3
– CONTINUED –
1) Brake/tail light
2) Rear turn signal light
3. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
4. Remove the bulb from the socket by
pushing it and turning counterclockwise.
Install a new bulb.
5. Set the bulb holder into the rear combi-
nation light assembly and turn it clockwise
until it locks.
6. Close the cover and latch the lock.
7. Reinstall the rear combination light as-
sembly. „
Backup light/Tail light
1. Use a flat-head screwdriver to remove
the light cover from the rear gate trim. 1) Tail light
2) Backup light 2. Turn the bulb socket counterclockwise
and remove it.
3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it
clockwise. Install the light cover on the
rear gate. „
Rear gate light
1. Use a flat-head screwdriver to remove
the rear gate light assembly from the rear
gate trim.
1
2
B00349
B00350
1
2
B00351
B00350

11 - 4 4 Maintenance and service
2. Pull the bulb out of the bulb socket and
replace it with a new one.
3. Install the rear gate light assembly on the rear gate. „
License plate light
0
1. Remove the mounting screws using a
Phillips screwdriver.
2. Remove the lens.
3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the lens and cover.
5. Tighten the mounting screws. „
Dome light
Vehicles with Rear Seat Entertainment
B00352
B00353
B00354
B00355

Maintenance and service 11 - 4 5
– CONTINUED –

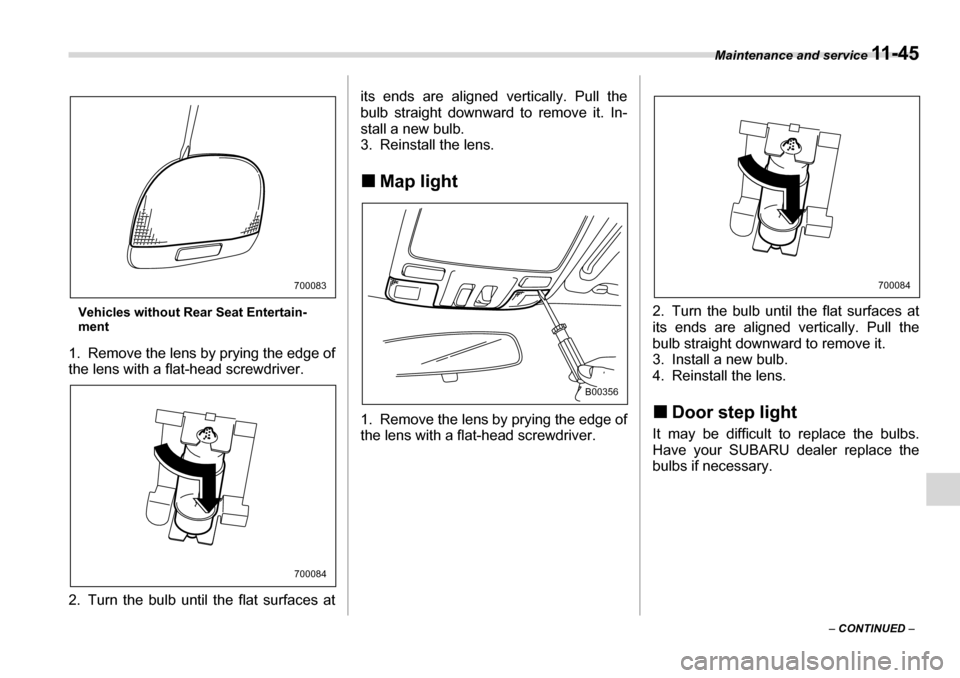

Vehicles without Rear Seat Entertain-
ment
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces at its ends are aligned vertically. Pull the bulb straight downward to remove it. In-
stall a new bulb.
3. Reinstall the lens. „
Map light
0
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver. 2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the
bulb straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens. „
Door step light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.
700083
700084
B00356
700084

11 - 4 6 Maintenance and service
„Cargo area light
1. Remove the cargo area light assembly
by prying the edge of the light with a flat-
head screwdriver.
2. Remove the lens from the cargo area
light assembly. 3. Pull the bulb out of the socket. Install a
new bulb.
4. Reinstall the lens.
700078
700079
