2006 SUBARU TRIBECA engine
[x] Cancel search: enginePage 333 of 377
11 - 3 6 Maintenance and service
Fuses
The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes. One
is located under the instrument panel be-
hind the fuse box cover on the driver’sseat side. Open the lid that is located above the
hood release knob and pull it toward you
to remove it.
The other one is housed in the engine compartment. The spare fuses are stored in the main
fuse box cover in the engine compart-
ment.
The fuse puller is stored in the main fuse
box in the engine compartment.
Never replace a fuse with one hav-
ing a higher rating or with material
other than a fuse because serious
damage or a fire could result.
B00334
B00335
B00336
B00198
B00337
Page 344 of 377

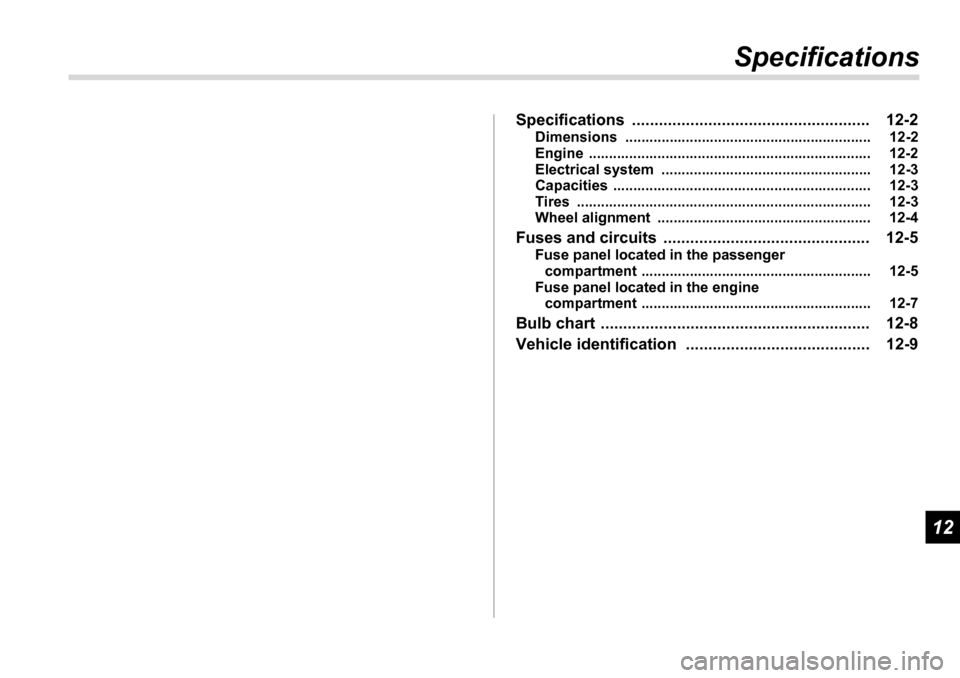

12
Specifications
Specifications ..................................................... 12-2 Dimensions ............................................................. 12-2
Engine ...................................................................... 12-2
Electrical system .................................................... 12-3
Capacities ................................................................ 12-3
Tires ......................................................................... 12-3
Wheel alignment ..................................................... 12-4
Fuses and circuits .............................................. 12-5 Fuse panel located in the passenger compartment ......................................................... 12-5
Fuse panel located in the engine
compartment ......................................................... 12-7
Bulb chart ............................................................ 12-8
Vehicle identification ......................................... 12-9
Page 345 of 377
12-2 Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. „Dimensions
in (mm)
„ Engine
Overall length189.8 (4,822)
Overall width73.9 (1,878)
Overall height66.4 (1,686)
Wheel base108.2 (2,749)
TreadFront62.2 (1,580)
Rear62.1 (1,578)
Ground clearance8.4 (213)
Engine modelEZ30D
(3.0-liter, DOHC, non-turbo)
Engine typeHorizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)3,000 (183)
Bore × Stroke in (mm)3.51 × 3.15 (89.2 × 80.0)
Compression ratio10.7 : 1
Firing order1 – 6 – 3 – 2 – 5 – 4
Page 346 of 377

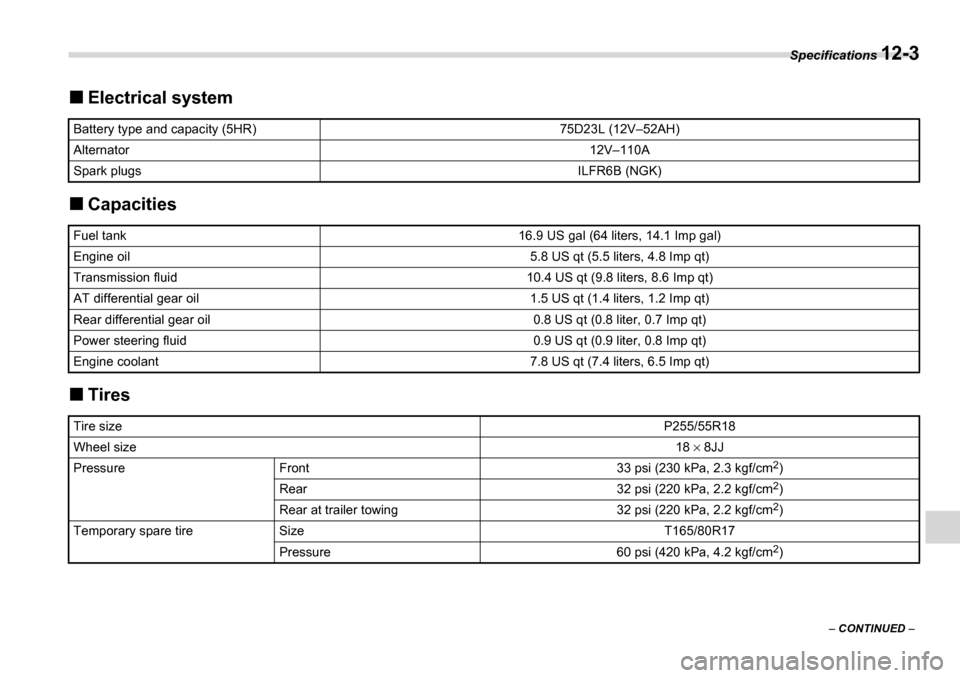

Specifications 12-3
– CONTINUED –
„Electrical system
„ Capacities
„ Tires
Battery type and capacity (5HR)75D23L (12V–52AH)
Alternator12V–110A
Spark plugsILFR6B (NGK)
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil5.8 US qt (5.5 liters, 4.8 Imp qt)
Transmission fluid10.4 US qt (9.8 liters, 8.6 Imp qt)
AT differential gear oil1.5 US qt (1.4 liters, 1.2 Imp qt)
Rear differential gear oil0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering fluid0.9 US qt (0.9 liter, 0.8 Imp qt)
Engine coolant7.8 US qt (7.4 liters, 6.5 Imp qt)
Tire sizeP255/55R18
Wheel size18 × 8JJ
PressureFront33 psi (230 kPa, 2.3 kgf/cm 2
)
Rear32 psi (220 kPa, 2.2 kgf/cm 2
)
Rear at trailer towing32 psi (220 kPa, 2.2 kgf/cm 2
)
Temporary spare tireSizeT165/80R17
Pressure60 psi (420 kPa, 4.2 kgf/cm 2
)
Page 348 of 377
Specifications 12-5
– CONTINUED –
Fuses and circuits „Fuse panel located in the passenger compart- ment
27 28 29 30 31 32 33
20 21 22 23 24 25 26
13 14 15 16 17 18 19
6789101112 12345
C00004
Fuse panelFuse ratingCircuit
120A y
Trailer hitch connector
2Empty
315A yDoor locking
47.5A yFront wiper deicer relay
y Moonroof
57.5A yCombination meter
67.5A yRemote control rear view mirrors
y Seat heater relay
715A yCombination meter
y Integrated unit
820A yStop light
920A yMirror heater
y Front wiper deicer
107.5A yPower supply (Battery)
117.5A yTurn signal unit
1215A yAutomatic transmission unit
y SRS airbag system (Sub)
y Engine control unit
y Integrated unit
1320A yCargo socket
Page 350 of 377
Specifications 12-7

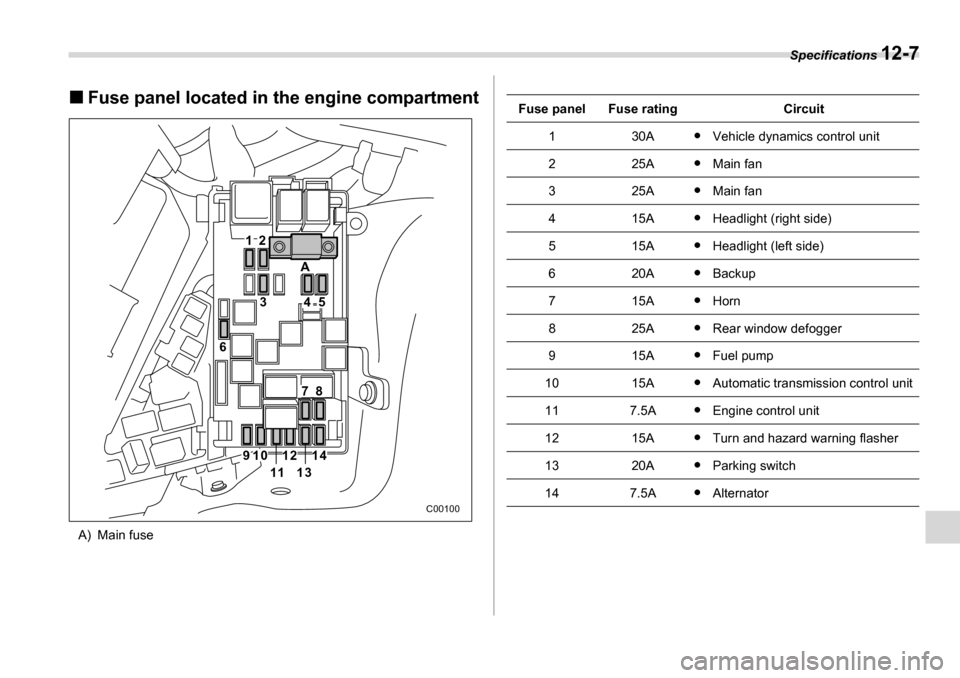

„Fuse panel located in the engine compartment
A) Main fuse
21
3
A
6
78
910
1113
1214
45
C00100
Fuse panelFuse ratingCircuit
130A y Vehicle dynamics control unit
225A yMain fan
325A yMain fan
415A yHeadlight (right side)
515A yHeadlight (left side)
620A yBackup
715A yHorn
825A yRear window defogger
915A yFuel pump
1015A yAutomatic transmission control unit
117.5A yEngine control unit
1215A yTurn and hazard warning flasher
1320A yParking switch
147.5A yAlternator
Page 370 of 377

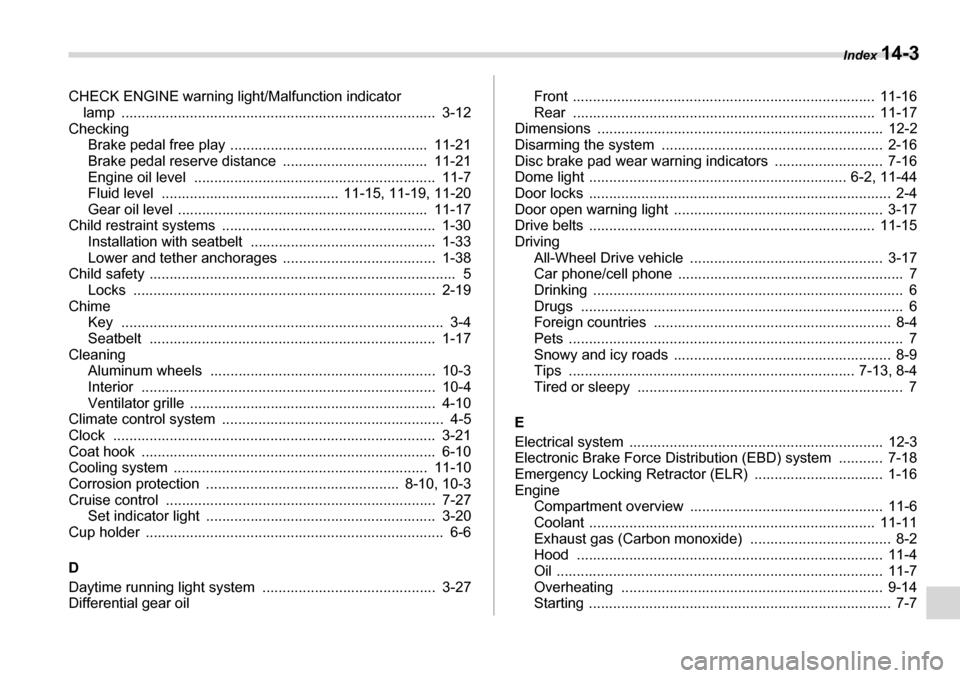

Index 14-3
CHECK ENGINE warning light/Malfunction indicator
lamp .............................................................................. 3-12
Checking Brake pedal free play ................................................. 11-21
Brake pedal reserve distance .................................... 11-21
Engine oil level ............................................................ 11-7
Fluid level ............................................ 11-15, 11-19, 11-20
Gear oil level .............................................................. 11-17
Child restraint systems ..................................................... 1-30
Installation with seatbelt .............................................. 1-33
Lower and tether anchorages ...................................... 1-38
Child safety ............................................................................ 5
Locks ........................................................................... 2-19
Chime
Key ................................................................................ 3-4
Seatbelt ....................................................................... 1-17
Cleaning
Aluminum wheels ........................................................ 10-3
Interior ......................................................................... 10-4
Ventilator grille ............................................................. 4-10
Climate control system ....................................................... 4-5
Clock ................................................................................ 3-21
Coat hook ......................................................................... 6-10
Cooling system ............................................................... 11-10
Corrosion protection ................................................ 8-10, 10-3
Cruise control ................................................................... 7-27
Set indicator light ......................................................... 3-20
Cup holder .......................................................................... 6-6 D
Daytime running light system ........................................... 3-27
Differential gear oil Front ........................................................................... 11-16
Rear ........................................................................... 11-17
Dimensions ....................................................................... 12-2
Disarming the system ....................................................... 2-16
Disc brake pad wear warning indicators ........................... 7-16
Dome light ................................................................ 6-2, 11-44
Door locks ........................................................................... 2-4
Door open warning light .................................................... 3-17
Drive belts ....................................................................... 11-15
Driving All-Wheel Drive vehicle ................................................ 3-17
Car phone/cell phone ........................................................ 7
Drinking ............................................................................. 6
Drugs ................................................................................ 6
Foreign countries ........................................................... 8-4
Pets ................................................................................... 7
Snowy and icy roads ...................................................... 8-9
Tips ....................................................................... 7-13, 8-4
Tired or sleepy .................................................................. 7
E
Electrical system ............................................................... 12-3
Electronic Brake Force Distribution (EBD) system ........... 7-18
Emergency Locking Retractor (ELR) ................................ 1-16
Engine Compartment overview ................................................ 11-6
Coolant ....................................................................... 11-11
Exhaust gas (Carbon monoxide) ................................... 8-2
Hood ............................................................................ 11-4
Oil ................................................................................. 11-7
Overheating ................................................................. 9-14
Starting ........................................................................... 7-7
Page 372 of 377

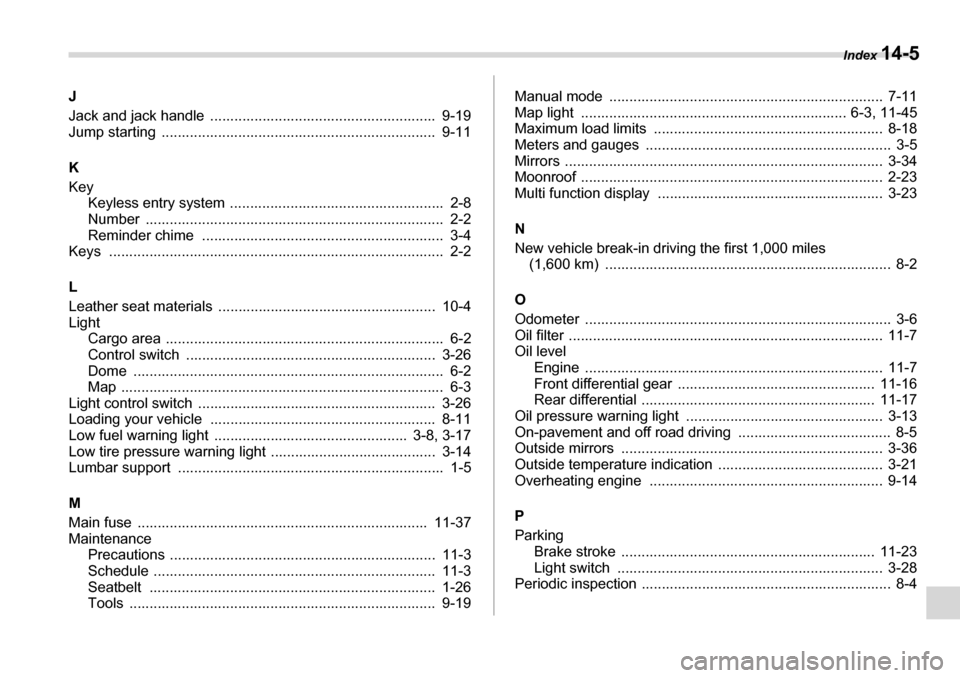

Index 14-5
J
Jack and jack handle ........................................................ 9-19
Jump starting .................................................................... 9-11 K Key
Keyless entry system ..................................................... 2-8
Number .......................................................................... 2-2
Reminder chime ............................................................ 3-4
Keys ................................................................................... 2-2 L
Leather seat materials ...................................................... 10-4
Light Cargo area ..................................................................... 6-2
Control switch .............................................................. 3-26
Dome ............................................................................. 6-2
Map ................................................................................ 6-3
Light control switch ........................................................... 3-26
Loading your vehicle ........................................................ 8-11
Low fuel warning light ................................................ 3-8, 3-17
Low tire pressure warning light ......................................... 3-14
Lumbar support .................................................................. 1-5 M
Main fuse ........................................................................ 11-37
Maintenance Precautions .................................................................. 11-3
Schedule ...................................................................... 11-3
Seatbelt ....................................................................... 1-26
Tools ............................................................................ 9-19 Manual mode .................................................................... 7-11
Map light .................................................................. 6-3, 11-45
Maximum load limits ......................................................... 8-18
Meters and gauges ............................................................. 3-5
Mirrors ............................................................................... 3-34
Moonroof ........................................................................... 2-23
Multi function display ........................................................ 3-23 N
New vehicle break-in driving the first 1,000 miles
(1,600 km) ....................................................................... 8-2
O
Odometer ............................................................................ 3-6
Oil filter .............................................................................. 11-7
Oil level Engine .......................................................................... 11-7
Front differential gear ................................................. 11-16
Rear differential .......................................................... 11-17
Oil pressure warning light ................................................. 3-13
On-pavement and off road driving ...................................... 8-5
Outside mirrors ................................................................. 3-36
Outside temperature indication ......................................... 3-21
Overheating engine .......................................................... 9-14 P Parking Brake stroke ............................................................... 11-23
Light switch .................................................................. 3-28
Periodic inspection .............................................................. 8-4
