2006 SUBARU LEGACY wheel size

Appearance care 10-3
NOTE
Be careful not to damage brake hoses,
sensor harnesses, and other parts
when washing suspension compo-
nents. TUsing a warm water washer
y Keep a good distance of 12 in (30 cm)
or more between the washer nozzle and
the vehicle. y Do not wash the same area continuous-
ly. y If a stain will not come out easily, wash
by hand. Some warm water washers are
of the high temperature, high pressure
type, and they can damage or deform the
resin parts such as mouldings, or cause
water to leak in to the vehicle.
„ Waxing and polishing
Always wash and dry the vehicle before
waxing and polishing.
Use a good quality polish and wax and ap-
ply them according to the manufacturer’s
instructions. Wax or polish when the paint-
ed surface is cool.
Be sure to polish and wax the chrome trim,
as well as the painted surfaces. Loss of
wax on a painted surface leads to loss of
the original luster and also quickens the
deterioration of the su rface. It is recom-mended that a coat of wax be applied at
least once a month, or whenever the sur-
face no longer repels water.
If the appearance of the paint has dimin-
ished to the point where the luster or tone
cannot be restored, lightly polish the sur-
face with a fine-grained compound. Never
polish just the affected area, but include
the surrounding area as well. Always pol-
ish in only one direction. A No. 2000 grain
compound is recommended. Never use a
coarse-grained compound. Coarser
grained compounds have a smaller grain-
size number and could damage the paint.
After polishing with a compound, coat with
wax to restore the original luster. Frequent
polishing with a compound or an incorrect
polishing technique will result in removing
the paint layer and exposing the under-
coat. When in doubt, it is always best to
contact your SUBARU dealer or an auto
paint specialist.
NOTE
Be careful not to
block the windshield
washer nozzles with wax when waxing
the vehicle. „ Cleaning aluminum wheels
y Promptly wipe the aluminum wheels
clean of any kind of gr ime or agent. If dirt is left on too long, it may be difficult to
clean off. y
Do not use soap containing grit to clean
the wheels. Be sure to use a neutral clean-
ing agent, and later rinse thoroughly with
water. Do not clean the wheels with a stiff
brush or expose them to a high-speed washing device. y Clean the vehicle (including the alumi-
num wheels) with water as soon as possi-
ble when it has been splashed with sea
water, exposed to sea breezes, or driven
on roads treated with salt or other agents.

11 - 3 8 Maintenance and service
Tire wear varies from wheel to wheel. To
maximize the life of each tire and ensure
that the tires wear uniformly, it is best to
rotate the tires every 7,500 miles (12,500
km). Rotating the tires involves switching
the front and rear ti res on the right-hand
side of the vehicle and similarly switching
the front and rear tires on the left-hand
side of the vehicle. (Each tire must be kept
on its original side of the vehicle.)
Replace any damaged or unevenly worn
tire at the time of rotation. After tire rota-
tion, adjust the tire pressures and make
sure the wheel nuts are correctly tight-
ened.
After driving approximately 600 miles
(1,000 km), check the wheel nuts again
and retighten any nut that has become
loose. „ Tire replacement
The wheels and tires are important and in-
tegral parts of your vehicle’s design; they
cannot be changed arbitrarily. The tires fit-
ted as standard equipment are optimally
matched to the characteristics of the vehi-
cle and were selected to give the best pos-
sible combination of running performance,
ride comfort, and service life. It is essential
for every tire to have a size and construc-
tion matching those shown on the tire placard and to have a speed symbol and
load index matching those shown on the
tire placard.
Using tires of a non-specified size detracts
from controllability, ride comfort, braking
performance, speedometer accuracy and
odometer accuracy. It
also creates incor-
rect body-to-tire clearances and inappro-
priately changes the vehicle’s ground
clearance.
All four tires must be the same in terms of
manufacturer, brand (tread pattern), con-
struction, and size. You are advised to re-
place the tires with new ones that are
identical to those fitted as standard equip-ment.
For safe vehicle operation, SUBARU rec-
ommends replacing all four tires at the
same time.
„ Wheel replacement
When replacing wheels due, for example,
to damage, make sure the replacement
wheels match the specifications of the
wheels that are fitted as standard equip-
ment. Replacement wheels are available
from SUBARU dealers.
y All four tires must be the same in
terms of manufacturer, brand
(tread pattern), construction, de-
gree of wear, speed symbol, load
index and size. Mixing tires of dif-
ferent types, sizes or degrees of
wear can result in damage to the
vehicle’s power train. Use of dif-
ferent types or si zes of tires can
also dangerously reduce control-
lability and braking performance
and can lead to an accident.
y Use only radial tires. Do not use
radial tires together with belted
bias tires and/or bias-ply tires. Do-
ing so can dangerously reduce
controllability, resulting in an ac-
cident.

Specifications 12-5
„Tires
„ Wheel alignment
Tire sizeP205/50R17 88V215/45ZR17P225/55R17 95V
Wheel size17

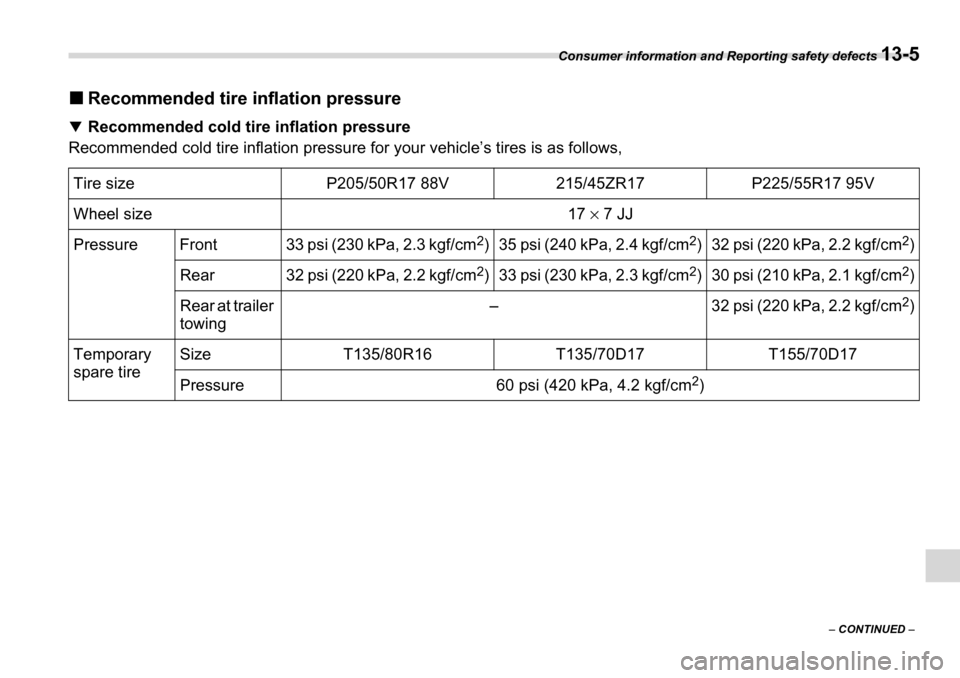

Consumer information and Reporting safety defects 13-5
– CONTINUED –
„Recommended tire inflation pressure
T Recommended cold tire inflation pressure
Recommended cold tire inflation pressure for your vehicle’s tires is as follows,
Tire size P205/50R17 88V 215/45ZR17 P225/55R17 95V
Wheel size 17

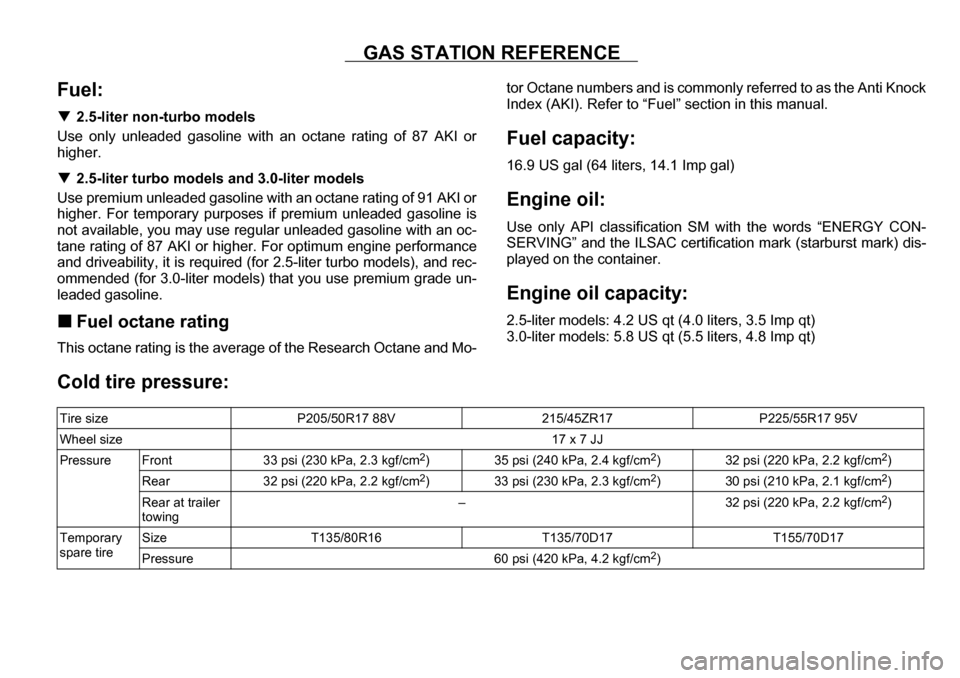

GAS STATION REFERENCE
Fuel: T2.5-liter non-turbo models
Use only unleaded gasoline with an octane rating of 87 AKI or
higher. T 2.5-liter turbo models and 3.0-liter models
Use premium unleaded gasoline with an octane rating of 91 AKI or
higher. For temporary purposes if premium unleaded gasoline is
not available, you may use regular unleaded gasoline with an oc-
tane rating of 87 AKI or higher. For optimum engine performance
and driveability, it is required (for 2.5-liter turbo models), and rec-
ommended (for 3.0-liter models) that you use premium grade un-
leaded gasoline. „ Fuel octane rating
This octane rating is the average of the Research Octane and Mo- tor Octane numbers and is commonly referred to as the Anti Knock
Index (AKI). Refer to “Fuel
” section in this manual.
Fuel capacity:
16.9 US gal (64 liters, 14.1 Imp gal) Engine oil:
Use only API classification SM with the words “ENERGY CON-
SERVING” and the ILSAC certification mark (starburst mark) dis-
played on the container.
Engine oil capacity:
2.5-liter models: 4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0-liter models: 5.8 US qt (5.5 liters, 4.8 Imp qt)
Cold tire pressure: Tire size P205/50R17 88V 215/45ZR17 P225/55R17 95V Wheel size 17 x 7 JJ
Pressure Front 33 psi (230 kPa, 2.3 kgf/cm 2
) 35 psi (240 kPa, 2.4 kgf/cm 2
) 32 psi (220 kPa, 2.2 kgf/cm 2
)
Rear 32 psi (220 kPa, 2.2 kgf/cm 2
) 33 psi (230 kPa, 2.3 kgf/cm 2
) 30 psi (210 kPa, 2.1 kgf/cm 2
)
Rear at trailer towing –
32 psi (220 kPa, 2.2 kgf/cm2
)
Temporary
spare tire Size T135/80R16 T135/70D17 T155/70D17
Pressure
60 psi (420 kPa, 4.2 kgf/cm2
)
