2006 SUBARU LEGACY buttons

Audio 5-39
– CONTINUED –
the mode will be cancelled following
ejection of the disc that is currently be-
ing ejected.y
If you press the “CD” button while
the player is in all disc ejection mode,
the player will draw in the discs that
have been ejected and play them. Audio control buttons (if
equipped)
These buttons are lo
cated on the spokes
of the steering wheel. They allow the driv-
er to control audio functions without taking
his/her hands off the steering wheel. T MODE button
This button is used to select the desired
audio mode. Each time it is pressed, the
mode changes to the next one in the fol-
lowing sequence:
*: The frequency last received in the selected
waveband will be displayed. T
“ ” and “ ” buttons
V With radio mode selected
Press the “ ” button or “ ” button.
The radio will seek the next receivable
station and stop on it.
That station’s frequency will be shown on
the audio display. V With CD mode selected
Press the “ ” button to skip forward in
the track/file (track) order. Press the “ ”
button to skip backward in the track/file (track) order.
The track/file (track) number will be shown
on the audio display.
400216
FM* AM* CD
400217

5-40 Audio
TVolume control buttons
Press the “+” button to increase the vol-
ume. Press the “–” button to reduce the
volume.
A number indicating the volume will be
shown on the audio display. T
MUTE button
Press this button if you wish to immediate-
ly cut the volume to zero.
The audio display will show “MUTE”.
If you press the button again, the original
sound volume will return and “MUTE”
goes off. Precautions to observe when
handling a compact disc
Use only compact discs (CDs, CD-Rs and
CD-RWs) that have the mark shown in the
following. Also, some compact discs can-
not be played.
400218400219

Interior equipment 6-17
– CONTINUED –
HomeLink® Wireless Control
System (if equipped)
1) HomeLink® buttons
2) Indicator light
3) Hand-held transmitter* * Not part of your vehicle’s keyless entry
system but of a HomeLink®-compatible
device.
The HomeLink® Wireless Control Sys-
tem, located on the driver’s sun visor, is a
handy way to operate, from inside of your
vehicle, up to three remote-controlled in-
door and outdoor devices, such as garage
door openers, entran ce gates, door locks,
home lighting, and security systems.
There are three HomeLink® buttons on
the sun visor, each of which you can pro- gram for operation of one desired device.
For details on the device types which can
be operated by this system, consult the
HomeLink website at www.homelink.com
or call 1-800-355-3515.
Note the following about this system:
If your vehicle is equipped with the
HomeLink® Wireless Control System, it
complies with Part 15 of the Federal Com-
munication Commission Rules in the U.S.
and the RSS-210 of Industry Canada in
Canada. Its operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful in-
terference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired op-
eration. Changes and modifica
tions to this system
by anyone other than an authorized ser-
vice facility could void authorization to use
this equipment.
HomeLink and the HomeLink house are
registered trademarks of Johnson Con- trols, Inc.
1
2
3
600429
y When programming the
HomeLink® Wireless Control Sys-
tem, you may be operating a ga-
rage door opener or other device.
Make sure that people and objects
are out of the way of the garage
door opener or other device to
prevent potential harm or dam-
age.
yDo not use the HomeLink® Wire-
less Control System with any ga-
rage door opener that lacks the
safety stop and reverse feature as
required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and re-
verse, does not meet these safety
standards. Using a garage door
opener without these features in-
creases risk of serious injury or
death. For more information, con-
sult the HomeLink website at
www.homelink.com or call 1-800-
355-3515.

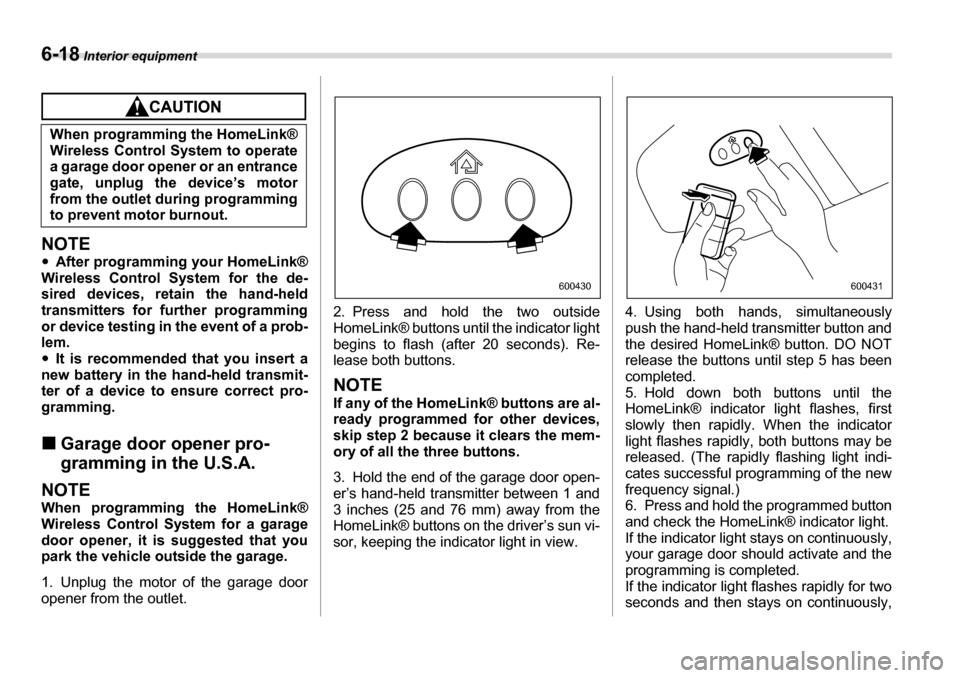

6-18 Interior equipment
NOTE yAfter programming your HomeLink®
Wireless Control System for the de-
sired devices, retain the hand-held
transmitters for further programming
or device testing in the event of a prob-lem. y It is recommended that you insert a
new battery in the hand-held transmit-
ter of a device to ensure correct pro-
gramming. „ Garage door opener pro-
gramming in the U.S.A.
NOTE
When programming the HomeLink®
Wireless Control System for a garage
door opener, it is suggested that you
park the vehicle outside the garage.
1. Unplug the motor of the garage door
opener from the outlet. 2. Press and hold the two outside
HomeLink® buttons until the indicator light
begins to flash (after 20 seconds). Re-
lease both buttons.
NOTE
If any of the HomeLink® buttons are al-
ready programmed for other devices,
skip step 2 because it clears the mem-
ory of all the three buttons.
3. Hold the end of the garage door open-
er’s hand-held transmitter between 1 and
3 inches (25 and 76 mm) away from the
HomeLink® buttons on the driver’s sun vi-
sor, keeping the indicator light in view.
4. Using both hands, simultaneously
push the hand-held transmitter button and
the desired HomeLink® button. DO NOT
release the buttons until step 5 has been completed.
5. Hold down both buttons until the
HomeLink® indicator light flashes, first
slowly then rapidly. When the indicator
light flashes rapidly, both buttons may be
released. (The rapidly flashing light indi-
cates successful programming of the new
frequency signal.)
6. Press and hold the programmed button
and check the HomeLink® indicator light.
If the indicator light
stays on continuously,
your garage door should activate and the
programming is completed.
If the indicator light flashes rapidly for two
seconds and then stays on continuously,
When programming the HomeLink®
Wireless Control System to operate
a garage door opener or an entrance
gate, unplug the device’s motor
from the outlet during programming
to prevent motor burnout.
600430600431

6-20 Interior equipment
trol System and your garage door opener
should activate when the HomeLink® but- ton is pressed. „Programming for entrance
gates and garage door open-
ers in Canada
1. Unplug the motor of the entrance gate
or garage door opener from the outlet.
2. Press and hold the two outside buttons
until the HomeLink® indicator light begins
to flash (after 20 seconds). Release both
buttons.
NOTE
If any of the HomeLink® buttons are al-
ready programmed for other devices,
skip step 2 because it clears the mem- ory of all three buttons.
3. Hold the end of the entrance gate’s/ga-
rage door opener’s hand-held transmitter
between 1 and 3 inches (25 and 76 mm)
away from the HomeLink® buttons on the
driver’s sun visor, keeping the indicator
light in view.
4. Press and hold the desired
HomeLink® button.
5. Press and release (“cycle”) the hand-
held transmitter button every two seconds
until step 6 is complete.
6. When the indicator light flashes slowly
and then rapidly after several seconds, re-
lease both buttons.
7. Plug the motor of the entrance gate/ga-
rage door opener to the outlet.
8. Test your entrance gate/garage door
opener by pressing the programmed
HomeLink® button.
„ Programming other devices
To program other devices such as door
locks, home lighting an d security systems,
contact HomeLink at www.homelink.com
or call 1-800-355-3515. „ Operating the HomeLink®
Wireless Control System
Once programmed, the HomeLink® Wire-
less Control System can be used to re-
mote-control the devices to which its but-
tons are programmed. To activate a de-
vice, simply press the appropriate button.
The indicator light illuminates, indicating
that the signal is being transmitted. „ Reprogramming a single
HomeLink® button
1. Press and hold the HomeLink® button
you wish to reprogram. DO NOT release
the button until step 4 has been complet-ed.
2. When the HomeLink® indicator light
begins to flash slowly (after 20 seconds),
position the hand-held transmitter of the
device for which you wish to program the
button at 1 to 3 inches (25 to 76 mm) away
600430
600434

Interior equipment 6-21
from the HomeLink® button surface.
3. Press and hold the hand-held transmit-
ter button. The HomeLink® indicator light
will flash, first slowly and then rapidly.
4. When the indicator light begins to flash
rapidly, release both buttons.
The programming for the previous device
is now erased and the new device can be
operated by pushing the HomeLink® but-ton. „Erasing HomeLink® button memory
NOTE yPerforming this procedure erases
the memory of all the preprogrammed
buttons simultaneously. The memory
of individual buttons cannot be erased.y It is recommended that upon the sale
of the vehicle, the memory of all pro-
grammed HomeLink® buttons be
erased for security purposes.
1. Press and hold the two outside buttons
until the indicator light begins to flash (af-ter 20 seconds).
2. Release both buttons. „ In case a problem occurs
If you cannot activate a device using the corresponding HomeLink® button after
programming, contact HomeLink at
www.homelink.com or call 1-800-355-
3515 for assistance.
