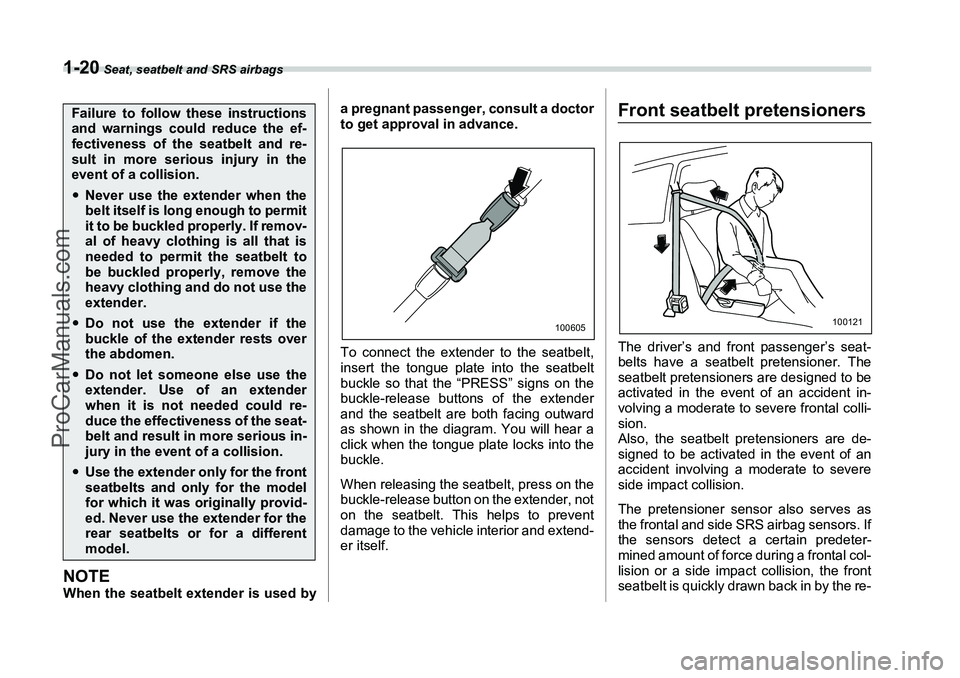

1-20
Seat, seatbelt and SRS airbags
NOTEWhen the seatbelt extender is used bya pregnant passenger, consult a doctor
to get approval in advance.
To connect the extender to the seatbelt,
insert the tongue plate into the seatbelt
buckle so that the “PRESS” signs on the
buckle-release buttons of the extender
and the seatbelt are both facing outward
as shown in the diagram. You will hear a
click when the tongue plate locks into the
buckle.
When releasing the seatbelt, press on the
buckle-release button on the extender, not
on the seatbelt. This helps to prevent
damage to the vehicle interior and extend-
er itself.
Front seatbelt pretensionersThe driver’s and front passenger’s seat-
belts have a seatbelt pretensioner. The
seatbelt pretensioners are designed to be
activated in the event of an accident in-
volving a moderate to severe frontal colli-
sion.
Also, the seatbelt pretensioners are de-
signed to be activated in the event of an
accident involving a moderate to severe
side impact collision.
The pretensioner sensor also serves as
the frontal and side SRS airbag sensors. If
the sensors detect a certain predeter-
mined amount of force during a frontal col-
lision or a side impact collision, the front
seatbelt is quickly drawn back in by the re-
Failure to follow these instructions
and warnings could reduce the ef-
fectiveness of the seatbelt and re-
sult in more serious injury in the
event of a collision. y
Never use the extender when the
belt itself is long enough to permit
it to be buckled properly. If remov-
al of heavy clothing is all that is
needed to permit the seatbelt to
be buckled properly, remove the
heavy clothing and do not use the
extender. yDo not use the extender if the
buckle of the extender rests over
the abdomen. yDo not let someone else use the
extender. Use of an extender
when it is not needed could re-
duce the effectiveness of the seat-
belt and result in more serious in-
jury in the event of a collision. yUse the extender only for the front
seatbelts and only for the model
for which it was originally provid-
ed. Never use the extender for the
rear seatbelts or for a different
model.
100605
100121
