General notes on the technical data 269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Snow chains
Snow chains may be fitted only to the
front wheels.
Consult the chapter “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel bolts
should be checked as soon as possible with a torque wrench ⇒. The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
•
Check the tyre pressure at least once per month. Correct tyre pressure
is very important. If the tyre pressure is too high or too low, there is an
increased danger of accidents, particularly at high speeds.
•
If the torque of the wheel bolts is too low, they could loosen whilst the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads could be damaged.Note
We recommend that you ask your Authorised Service Centre for information
about appropriate wheel, tyre and snow chain size.
toledo_angles_0706 Seite 269 Dienstag, 5. September 2006 10:32 10

Technical Data
270Te c h n i c a l D a t aChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fi ll with incorrect fluids, to do
so may cause serious damage to the engine.
Radiator expansion tank
Windscreen washer fluid reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and replenishment of the service fluids are carried out on the
components mentioned above. These operations are described in the
⇒ page 208. Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒page 265.
Fig. 205 Diagram for the
location of the various
elements
A1A2A3A4A5A6
toledo_angles_0706 Seite 270 Dienstag, 5. September 2006 10:32 10

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.4 litre 63 kW (86 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 ± 0,3
Fuel 95 Octane petrol
Maximum speed in km/h 169
Acceleration from 0-80 km/h in sec. 9,9
Acceleration from 0-100 km/h in sec. 15
Gross vehicle weight in kg 1915
Weight in working order (with driver) in kg 1390
Gross axle weight, front in kg 940
Gross axle weight, rear in kg 1020
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1200
toledo_angles_0706 Seite 271 Dienstag, 5. September 2006 10:32 10

Technical Data
272Engine oil capacityPetrol engine 1.6 litre 75 kW (102 bhp)General engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
3.2 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression 10,5 ± 0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 181
Acceleration from 0-80 km/h in sec. 8,6
Acceleration from 0-100 km/h in sec. 12,9
Gross vehicle weight in kg 1944
Weight in working order (with driver) in kg 1419
Gross axle weight, front in kg 965
Gross axle weight, rear in kg 1010
Permitted roof load in kg 75
toledo_angles_0706 Seite 272 Dienstag, 5. September 2006 10:32 10

Technical Data273
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Petrol engine 2.0 litre 110 kW (150 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
700
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.8 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5-0,5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power lossMaximum speedin km/h 206
Acceleration from 0-80 km/h in sec. 6,6
Acceleration from 0-100 km/h in sec. 9,7
toledo_angles_0706 Seite 273 Dienstag, 5. September 2006 10:32 10

Technical Data
274Weights
Trailer weights
Engine oil capacityPetrol engine 2.0 litre 110 kW (150 hp). AutomaticGeneral engine data Gross vehicle weight
in kg 1999
Weight in working order (with driver) in kg 1474
Gross axle weight, front in kg 1016
Gross axle weight, rear in kg 1015
Permitted roof load in kg 75
With no brakes, gradients up to 12% 730
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5-0,5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power loss
toledo_angles_0706 Seite 274 Dienstag, 5. September 2006 10:32 10

Technical Data275
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

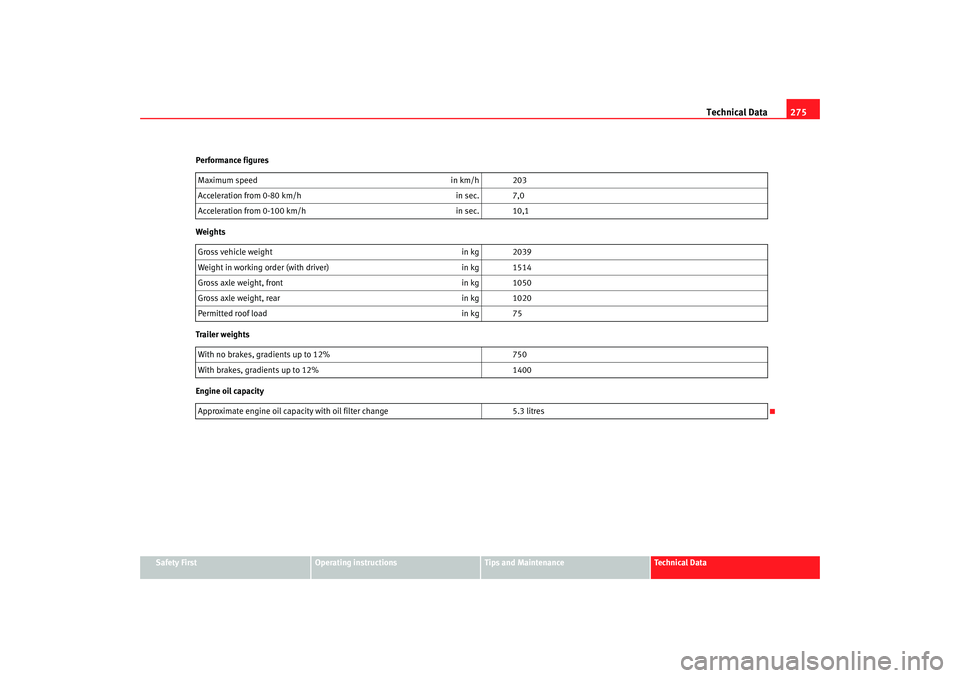

Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 203
Acceleration from 0-80 km/h in sec. 7,0
Acceleration from 0-100 km/h in sec. 10,1
Gross vehicle weight in kg 2039
Weight in working order (with driver) in kg 1514
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 1020
Permitted roof load in kg 75
With no brakes, gradients up to 12% 750
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
toledo_angles_0706 Seite 275 Dienstag, 5. September 2006 10:32 10

Technical Data
276Petrol engine 2.0 litre 147 kW (200 hp). ManualGeneral engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 147 (200)/5100- 6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3-0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 220
Acceleration from 0-80 km/h in sec. 5,4
Acceleration from 0-100 km/h in sec. 7,7
Gross vehicle weight in kg 1960
Weight in working order (with driver) in kg 1492
Gross axle weight, front in kg 1079
Gross axle weight, rear in kg 1001
Permitted roof load in kg 75
With no brakes, gradients up to 12% 740
With brakes, gradients up to 12% 1400
