Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 208.
Closing the bonnet– Raise the bonnet slightly.
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not pr ess downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•
After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•
If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.

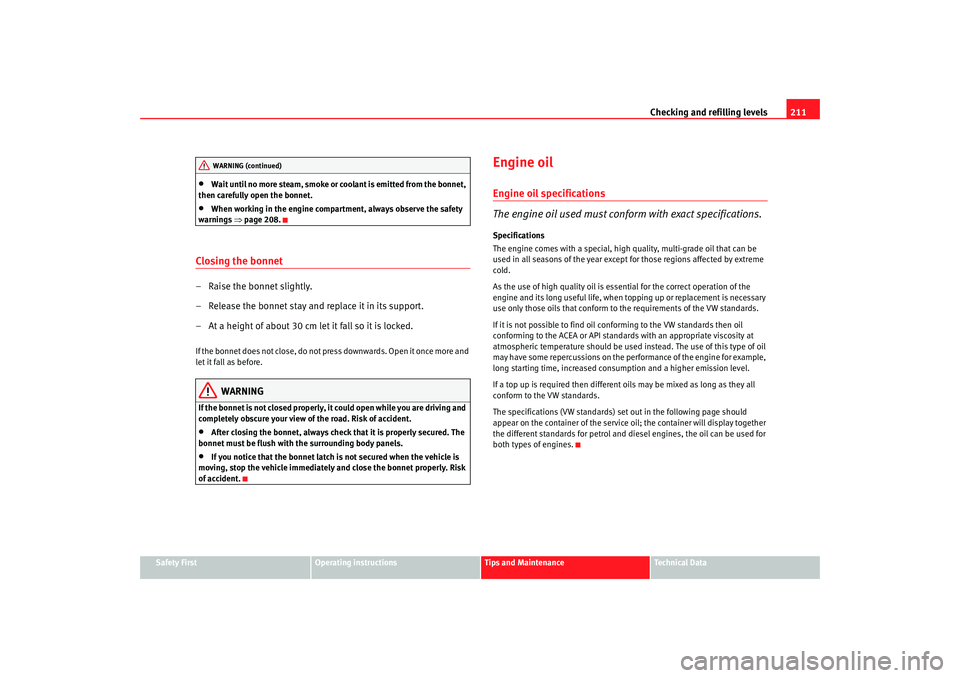

Engine oilEngine oil specifications
The engine oil used must conform with exact specifications.Specifications
The engine comes with a special, high quality, multi-grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of high quality oil is essential for the correct operation of the
engine and its long useful life, when topping up or replacement is necessary
use only those oils that conform to the requirements of the VW standards.
If it is not possible to find oil co nforming to the VW standards then oil
conforming to the ACEA or API standa rds with an appropriate viscosity at
atmospheric temperature should be used instead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
toledo_angles_0706 Seite 211 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels
218Washer fluid and windscreen wiper bladesTopping up washer fluid

The water for cleaning the windscreen should always be
mixed with washer fluid.The windscreen washer and the headlight washing system are supplied with
fluid from the windscreen washer fluid container in the engine compartment.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean th e windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, thes e may be added all-year-round. Please
follow the dilution instructions on the packaging.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•
When working in the engine compartment, always observe the safety
warnings ⇒page 208.Caution
•
Never put radiator anti-freeze or other additives into the windscreen
washer fluid.
•
Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fluids or soap solutions, the tiny holes
in the fan-shaped nozzles could become blocked.
Fig. 164 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
toledo_angles_0706 Seite 218 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels221
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
If this is not sufficient, refer to a qualified workshop.
WARNING
Do not drive unless you have good visibility through all windows!•
Clean the windscreen wiper blades and all windows regularly.
•
The wiper blades should be changed once or twice a year.Caution
•
A damaged or dirty window wiper could scratch the rear window.
•
Never use fuel, nail varnish remover, paint thinner or similar products to
clean the window.
•
Never move the windscreen wiper by hand. This could cause damage.
Brake fluidChecking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.– Read the fluid level at the transparent brake fluid reservoir. It should always be between the “MIN” and “MAX” marks.The position of the brake fluid reservoir is shown in the corresponding engine
compartment diagram ⇒page 270. The brake fluid reservoir has a black and
yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
Fig. 168 In the engine
compartment: Brake fluid
reservoir cover
toledo_angles_0706 Seite 221 Dienstag, 5. September 2006 10:32 10

Checking and refilling levels223
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
BatteryWarnings on handling the battery
WARNING
Always be aware of the danger of injury and chemical burns as well as the
risk of accident or fire when working on the battery and the electrical
system:•
Wear eye protection. Protect your eyes , skin and clothing from acid and
particles containing lead.
•
Battery acid is very corrosive and caustic. Wear protective gloves and
eye protection. Do not tilt the batteries. This could spill acid through the
vents. Rinse battery acid from eyes immediately for several minutes with
clear water. Then seek medical care immediately. Neutralize any acid
splashes on the skin or clothing with a soapy solution, and rinse off with
plenty of water. If acid is swallowed by mistake, consult a doctor immedi-
ately.
•
Fires, sparks, naked lights and smoking are prohibited. When handling
cables and electrical equipment, avoid causing sparks and electrostatic charge. Never short the battery terminals. High-energy sparks can cause
injury.
•
A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
•
Keep children away from acid and batteries.
•
Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only switch
off the light.
•
Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alar m will otherwise be triggered.
•
When disconnecting the battery from the vehicle electrical system,
disconnect first the negative ca ble and then the positive cable.
•
Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.
•
Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery that has
frozen. A flat battery can freeze at temperatures around 0°C.
•
Ensure that the vent hose is always connected to the battery.
•
Never use a defective battery. This may be fatally explosive. Replace a
damaged battery immediately.Caution
•
Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
•
Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.

Wear eye protection

Battery acid is very corrosive and caustic. Wear protec-
tive gloves and eye protection!

Fires, sparks, naked lights and smoking are prohibited!

A highly explosive mixture of gases is released when the
battery is under charge.

Keep children away from acid and batteries!
WARNING (continued)
toledo_angles_0706 Seite 223 Dienstag, 5. September 2006 10:32 10

If and when243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
– Take the plastic clip from inside the fuse cover (at left-hand end
of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter the fuse box.The individual electrical circuits are pr otected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment.
The electric windows are protected by circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Colour coding of fuses
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could re sult in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualified workshop as soon as possible.
•
If you replace a fuse with a stronger fuse, you could cause damage to
another location in the electrical system.
•
Always keep some spare fuses in the vehicle. These are available from
SEAT dealers.
Colour
Amperes
light brown 5
red 10
blue 15
yellow 20
natural (white) 25
green 30
orange 40
red 50
white 80
blue100
grey 150
violet 200
Colour
Amperes
toledo_angles_0706 Seite 243 Dienstag, 5. September 2006 10:32 10

Index
288Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 183
Bulb changes
general notes . . . . . . . . . . . . . . . . . . . . . . . 249
Bulb defect warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 161CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Car care products . . . . . . . . . . . . . . . . . . . . . . . 192
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 184
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 95
Emergency unlocking system . . . . . . . . . . . . 95
Locking system for invo luntary unlocking . . 95
Selective unlocking system* . . . . . . . . . . . . 94
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 97
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Central locking system Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 95
Centre arm rest . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 207 Changing gear
See Manual gearbox . . . . . . . . . . . . . . . . . . 165
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 250
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Changing the main headlight lamps dipped beam lights . . . . . . . . . . . . . . . . . . . 251
main beam lights . . . . . . . . . . . . . . . . . . . . 252
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 253
turn signal lamps . . . . . . . . . . . . . . . . . . . . 251
Changing the rear lights indicator lights . . . . . . . . . . . . . . . . . . . . . . 255
luggage compartment lights . . . . . . . . . . . 257
rear fog light . . . . . . . . . . . . . . . . . . . . . . . . 256
reverse light . . . . . . . . . . . . . . . . . . . . . . . . . 256
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Changing windscreen wiper blades . . . . . . . . . 219
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 266
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Checking battery electrolyte level . . . . . . . . . . 224
Checking engine oil level . . . . . . . . . . . . . . . . . 213
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Child seats
ISOFIX and Toptether system . . . . . . . . . . . . 52
on the front passenger seat . . . . . . . . . . . . . 31
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . 142
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 197
Cleaning and caring for your vehicle . . . . . . . . 192
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 196
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 199
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 198
Cleaning engine compartment . . . . . . . . . . . . . 198
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . 199
Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 199
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 198
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 200
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 196
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 195
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 199
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Climatronic General notes . . . . . . . . . . . . . . . . . . . . . . . 158
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . 111
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 106
toledo_angles_0706 Seite 288 Dienstag, 5. September 2006 10:32 10

Index
290Engine compartment
Working in the engine compartment . . . . . 208
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 215
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Checking level . . . . . . . . . . . . . . . . . . . . . . . 213
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 212
Specifications . . . . . . . . . . . . . . . . . . . . . . . 211
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 213
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . 64, 78
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 206
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81, 181
Example of menu use Open the configuration menu . . . . . . . . . . . 67
Program a speed limit warning . . . . . . . . . . 67
To activate and deactivate the speed limit warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Examples of menu use Open the main menu . . . . . . . . . . . . . . . . . . 67
Open the winter tyres menu . . . . . . . . . . . . . 67
To close the winter tyres menu . . . . . . . . . . . 68
Ex haust gases purification system . . . . . . . . 184
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 195
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 202
FFastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 145
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Folding table* . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Folding the seat backrests down . . . . . . . . . . . 132
Foot brake Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 82
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front interior light type 1 Switching light off . . . . . . . . . . . . . . . . . . . . 117
Switching light on . . . . . . . . . . . . . . . . . . . . 117
Front interior light type 2 Switching light off . . . . . . . . . . . . . . . . . . . . 117
Switching light on . . . . . . . . . . . . . . . . . . . . 117
Front passenger airbag deactivation . . . . . . . . . 44
Front reading lights . . . . . . . . . . . . . . . . . . . . . . 118
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 130
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 205
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 75
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 165
General overview of the engine compartment 270
Glove compartment . . . . . . . . . . . . . . . . . . . . . 133
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 164 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171Warning lamp . . . . . . . . . . . . . . . . . . . . 77, 171
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 114
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 128, 129
adjustment of the head restraint angle . . . 129
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
head restraints, correct adjustment . . . . . . . . . 13 In-use and non-use positions . . . . . . . . . . . 14
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . 116
Headlight range control . . . . . . . . . . . . . . . . . . 113
toledo_angles_0706 Seite 290 Dienstag, 5. September 2006 10:32 10

Index
294Trailer turn signals
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 76
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 116
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Warning lamp . . . . . . . . . . . . . . . . . . . . 76, 116
Turning on the hazard lights . . . . . . . . . . . . . . 115
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Tyre Mobility-System (Tyre repair kit) . . . 233, 240
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 80
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 233, 240
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 227
Tyres with directional tread pattern . . . . . . . . . 225UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 197
USB* connection . . . . . . . . . . . . . . . . . . . . . . . . 144
Using the Tiptronic gear system . . . . . . . . . . . . 170VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 223
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266 Vehicle identification data . . . . . . . . . . . . . . . . 266
Vehicle identification number . . . . . . . . . . . . . 266
Vehicle paint
Car care products . . . . . . . . . . . . . . . . . . . . 192
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 133
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . 103
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Warning reportsRed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning texts in the display . . . . . . . . . . . . . . . . 63
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 145
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 193
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 193
Washing with high pressure cleaners . . . . . . . 194
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Water in the windscreen washer tank . . . . . . . 218
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 227 Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 236, 269
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225, 268
Why assume the correct sitting position? . . . . . 30
Why should head restraints be correctly adjusted? . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 21
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 30
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Windscreen washer fluid Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 120 Changing blades . . . . . . . . . . . . . . . . . . . . . 219
Changing the rear blade . . . . . . . . . . . . . . . 220
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 208
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Wiper/wash automatic function . . . . . . . . . . . 120
Working in the engine compartment . . . . . . . . 208
toledo_angles_0706 Seite 294 Dienstag, 5. September 2006 10:32 10
