.Vehicle identification number
2
2.
.Identification numbers
Type/Model/Engine
Gearbox/Finishes
3 3.
.Identification letters
Engine/Gearbox/Paintwork
Equipment
4 4.
.Identification codes of variable equipment

Inspection Service general programme11
There may be different specific “additional work” dependin g on the vehicle
use or the time since the first delivery date. For example:•
Distribution belt change (depending on the mileage).
•
Brake fluid change (every 2 years).
Inspection Service every 15,000 km or once a yearOperations to be completed on your vehicle•
Label “Next Service”: Note the date, mileage and atta ch it to the door
frame.
•
Engine oil and oil filter: Replacement.
•
Front and rear brake pads: Inspection.
•
Service interval indicator on the instrument panel: Re set.
•
Tyres, including the spare wheel: Check the profile, tread wear indicator
and pressure.
•
Interior and glove compartment lighti ng, lighter/socket, warning lights
and horn: Check operation.
•
Front/rear boot lights, indicators and hazard lights: Check operation.
•
Windscreen and headlights washer system: Check oper ation and for
possible damage, top up.
•
Exhaust gases installation: Verify attachments and ch eck for leaks and
damage.
Inspection Service every 30,000 km or every 2 yearsOperations to be completed on your vehicle:•
Label “Next Service”: Note the date, mileage and atta ch it to the door
frame.
•
Engine oil and oil filter: Replacement.
•
Front and rear brake pads: Inspection.
•
Service interval indicator on the instrument panel: Res et.
•
Tyres, including the spare wheel: Check the profile, tread wear indicator
and pressure.
•
Interior and glove compartment lighti ng, lighter/socket, warning lights
and horn: Check operation.
•
Front/rear boot lights, indicators and hazard lights: Che ck operation.
•
Windscreen and headlights washer system: Check operation and for
possible damage, top up.
•
Exhaust gases installation: Verify attachments and ch eck for leaks and
damage.
•
Battery: Inspection.
•
Self-diagnosis: Check fault memory in all systems.
•
Poly-V belt: Check condition.
PM_ALTOLE_ingles Seite 11 Donnerstag, 4. Mai 20 06 4:59 16

Inspection Service general programme
12Inspection Service every 60,000 km or every 4 yearsOperations to be completed on your vehicle:•
Exhaust gases installation: Verify attachments and ch eck for leaks and
damage.
•
Steering ball joints: Verify attachments and check for le aks and damage.
Check for play.
•
Label “Next Service”: Note the date, mileage and atta ch it to the door
frame.
•
Automatic gearbox (differential): Chec k the oil level, top-up if necessary.
•
Automatic gearbox (Gearbox): Check the ATF level.
•
Manual gearbox: Check the oil level (for cases of permeability issues).
•
Battery: Inspection.
•
Brake system: Check for leaks and damage.
•
Front and rear brake pads: Inspection.
•
Brake fluid level, according to brake pad wear: Inspecti on.
•
Self-diagnosis: Check fault memory in all systems.
•
Front/rear boot lights, indicators and hazard lights: Chec k operation.
•
Poly-V belt: Check condition.
•
Poly-V belt: Check tension (only engines without automatic tension
device).
•
Cooling system: Check the coolant level and the anti-fr eeze protection.
•
Engine and engine compartment components: Check for leaks and
damage (from above).
•
Engine and engine compartment comp onents, gearbox and steering ball
joints: Check for leaks and damage (from bellow) .
•
Engine oil and oil filter: Replacement.
•
Test drive: Check brake operation, handbrake, gearbo x operation,
steering system operation, kick-down (for automatic gearbox), air condi-
tioning and sliding roof.
•
Interior and glove compartment ligh ting, lighter/socket, warning lights
and horn: Check operation.
•
Tyres, including the spare wheel: Check the profile, tre ad wear indicator
and pressure.
•
Headlights: Check adjustment.
•
Windscreen and headlights washer system: Check op eration and for
possible damage, top up.
•
Sun roof: Check operation, clean drains and grease gu ides.
•
Service interval indicator on the instrument panel: Reset.
•
Door and tailgate hinges: Lubricate.
•
Undercarriage protection: Visual damage inspection.
Additional workIn addition to the Inspection Service, additional main tenance jobs may have
to be carried out, depending on the conditions in which y our vehicle is used
and depending on the equipment level of your vehicle. T his additional work
should be carried out in accordance with time/dista nce travelled to ensure
your vehicle remains reliable. Your Service Centre will pro vide detailed infor-
mation about the additional work that may be necessary. These can be done
independently of the obligatory services, taking in to account the notes in the
PM_ALTOLE_ingles Seite 12 Donnerstag, 4. Mai 20 06 4:59 16

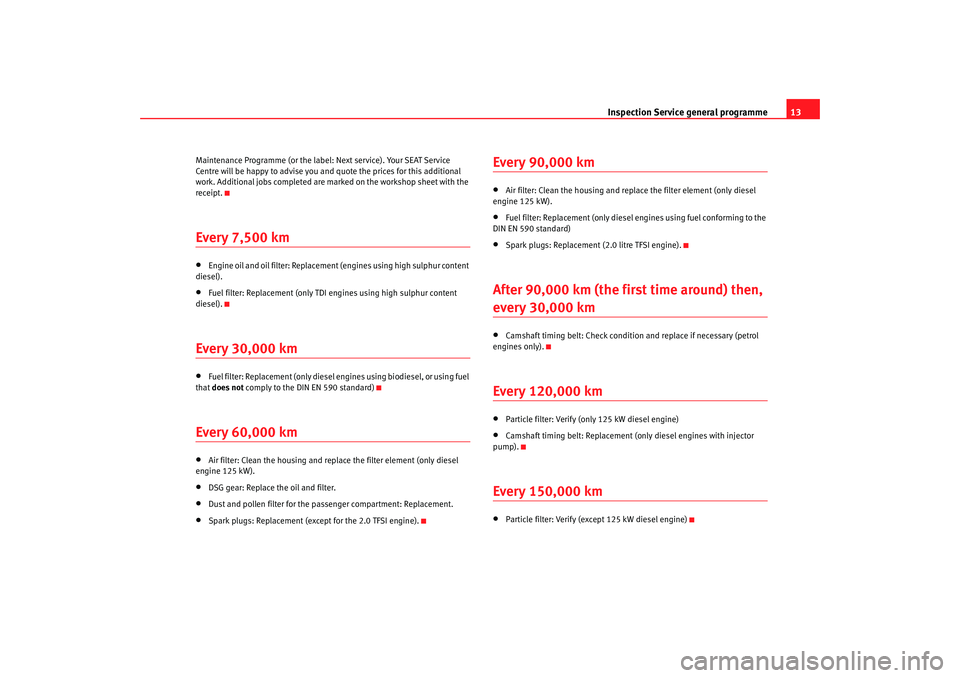

Inspection Service general programme13
Maintenance Programme (or the label: Next service). Your SEAT Service
Centre will be happy to advise you and quote the prices f or this additional
work. Additional jobs completed are marked on the wo rkshop sheet with the
receipt.Every 7,500 km•
Engine oil and oil filter: Replacemen t (engines using high sulphur content
diesel).
•
Fuel filter: Replacement (only TDI engines using high sulphur content
diesel).
Every 30,000 km•
Fuel filter: Replacement (only diesel engines using biodie sel, or using fuel
that does not comply to the DIN EN 590 standard)
Every 60,000 km•
Air filter: Clean the housing and replace the filter element (only diesel
engine 125 kW).
•
DSG gear: Replace the oil and filter.
•
Dust and pollen filter for the passenger compartment: Replacement.
•
Spark plugs: Replacement (except for the 2.0 TFSI engine).
Every 90,000 km•
Air filter: Clean the housing and replace the filter element (only di esel
engine 125 kW).
•
Fuel filter: Replacement (only diesel engines using fuel c onforming to the
DIN EN 590 standard)
•
Spark plugs: Replacement (2.0 litre TFSI engine).
After 90,000 km (the fi rst time around) then, every 30,000 km•
Camshaft timing belt: Check condition and replace if nec essary (petrol
engines only).
Every 120,000 km•
Particle filter: Verify (only 125 kW diesel engine)
•
Camshaft timing belt: Replacement (only diesel engine s with injector
pump).
Every 150,000 km•
Particle filter: Verify (except 125 kW diesel engine)
PM_ALTOLE_ingles Seite 13 Donnerstag, 4. Mai 20 06 4:59 16

Inspection Service general programme
14Every 180,000 km•
Camshaft timing belt: Replacement (2.0 litre FSI or TFSI engine).
Every 240,000 km•
Tension roller for the camshaft timing belt: Replacem ent (only diesel
engines with injector pump).
Every 2 years•
Brake fluid: Replacement
•
Dust and pollen filter for the passenger compartment : Replacement.
Every 4 years•
Puncture repair kit: Check the expiry date on the seali ng compound and
replace if necessary.
•
Spark plugs: Replacement (except for the TFSI engine).
Every 6 years•
Air filter: Clean the housing and replace the filter elem ent.
•
Spark plugs: Replace (only for vehicles with less than 90,000 km).
PM_ALTOLE_ingles Seite 14 Donnerstag, 4. Mai 2006 4:59 16

Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owner s to have their vehicle
tested at specified intervals with regards to securit y and operation as well as
the exhaust gas composition. These revisions must be o verseen by officially
authorised centres.
Your Authorised Service Centre can inform you about the o bligatory legally
required inspections and can revise your vehicle within t he framework of an
Interval Inspection Service. This will save both time and money.
The Authorised Service Centre can also carry out the oblig atory inspections at
the request of the client.
Even if you do not wish to take advantage of this service and dec ide to take
your car to an officially authorised centre for revision, we recommend
speaking to the person in charge of your Authori sed Service Centre first.
This person will be able to tell you if any points need att ention so that your
car does not fail the test and have to be re-tested.Approved spare partsAll parts of your vehicle have been approved by SEAT , especially those parts
relating directly to security. For this reason, the part s used in the Programmed
Inspection Services or in any vehicle repair must corresp ond exactly to the
manufacturer-defined requirements. Approved SEA T spare parts have been designed especially for your vehicle.
Thus we recommend the use of
approved SEAT spares always.
In the SEAT Authorised Service Centres you will find the most frequently used
SEAT approved spare parts. If, exceptionally, the necessar y parts are not in
stock, in general, they can be obtained rapidly.
The SEAT Service Centres in the EU provide a 24 month guar antee
1) with Orig-
inal Spare parts from the date they are fitted or sold. T hus, it will be conven-
ient to conserve the original invoice from the Auth orised Service Centre as
proof of the existing warranty.
More information about this may be obtained form yo ur Authorised Service
Centre.
Approved SEAT spare partsThe approved spare parts, according to the manufact urer specifications,
represent an additional available service and facili tating the replacement of
entire assemblies, in general: lighte r engine, gearbox, cylinder heads,
control units, electric elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they avail of the same SEAT ap proved spare parts
warranty.
However, these parts are considerably cheaper as they are f actory-recondi-
tioned used parts. Conserve the invoice for SEAT exchange parts as proof of
the start of the existing warranty.1)The warranty is not available for all export mar kets. For information, please ask for in-
formation at the SEAT Authorised Service Centre.
PM_ALTOLE_ingles Seite 15 Donnerstag, 4. Mai 20 06 4:59 16

Warranty17
WarrantyFault-free operation warrantyAccording to the clauses of the guarantee applied to S EAT vehicles in the
sales contract, A fault-free operation guarantee of 2 years in accordanc e with
legal requirements is provided from the date of delivery.
2) 3)
We must insist that it is understood that natural wear a s well as damage
caused by the abuse of the vehicle benefits by inap propriate use or by unac-
ceptable modifications are excluded fr om the warranty. The warranty is no
longer valid, also when the vehicle is damaged by th e use of parts and acces-
sories that are not SEAT approved or damage du e to ignoring the mainte-
nance and repair requirements.Paintwork and body warrantyAuthorised Service Centres provide a warranty on bodywork
and paintwork for vehicles sold in the EU.In addition to the warranty conditions for brand new S EAT vehicles (as
detailed in the purchase contract), a defined period warranty i s also provided
covering paintwork and body through-rusting:•
3 year paintwork warranty following delivery date (ex cept the Alhambra
model).
•
12 years from the date of delivery against bodywork through-rusting (6
years for the Alhambra).
If, however, this type of damage should occur, it w ill be repaired free of charge
including parts and labour by any SEAT Authorised Servi ce Centre in Europe.
Warranty claims will not be accepted in the follow ing circumstances:
•
if damage is caused by external influence or carelessness , or
•
damage to the body or paintwork is not repaired promptly and appropri-
ately in accordance with the manufacturer's instructio ns using genuine,
approved spare parts and materials, or
•
if perforation rusting is caused by the use of non-genuine p arts and mate-
rials for body repairs and if these repairs were not c arried out in accordance
with the manufacturer's instructions.
If the bodywork is repaired or painted, your Authorised Service Centre will
confirm your warranty against throug h-rusting for the repaired sections.
Approved SEAT spare partsThe approved spare parts, according to the manufact urer specifications,
represent an additional available service and facilitating t he replacement of
entire assemblies, in general: lighte r engine, gearbox, cylinder heads,
control units, electric elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they avail of the same SEAT appro ved spare parts
warranty.
2)The warranty is not available for all export mark ets. For information, please ask for in-
formation at the SEAT Authorised Service Centre.3)As well as the legally required guarantee, SEA T offers an extended guarantee to their
clients in some European countries. The spec ific conditions of this extended guaran-
tee are detailed in the vehicle sales contract .
PM_ALTOLE_ingles Seite 17 Donnerstag, 4. Mai 20 06 4:59 16

SEAT S.A. is permanently concerned about continuous development of its types and models. For this reason we ask you to understand,
that at any given time, changes regarding shape, equipment and technique may take place on the car delivered. For this reason no
right at all may derive based on the data, drawings and descriptionsin this current handbook.
All texts, illustrations and standards in this handbook are based on the status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid as of the date of closing print.
Re-printing, copying or translating, whether total or partial is not allowed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the "Copyright" Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.04.06
V Ve
eh
hi
ic
cl
le
e dda
at
ta
a
1
1.
.
2 2.
.
3 3.
.
4 4.
.
1
1.
.Vehicle identification number
2
2.
.Identification numbers
Type/Model/Engine
Gearbox/Finishes
3 3.
.Identification letters
Engine/Gearbox/Paintwork
Equipment
4 4.
.Identification codes of variable equipment
