2006 SATURN ION headlamp

Driving at Night
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to be
impaired — by alcohol or drugs, with night vision
problems, or by fatigue.
Here are some tips on night driving.
Drive defensively.
Do not drink and drive.
Adjust the inside rearview mirror to reduce the
glare from headlamps behind you.
Since you cannot see as well, you may need to
slow down and keep more space between you
and other vehicles.
Slow down, especially on higher speed roads.
Your vehicle’s headlamps can light up only so
much road ahead.
In remote areas, watch for animals.
If you are tired, pull off the road in a safe place
and rest.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as much
light to see the same thing at night as a 20-year-old.What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes
will have less trouble adjusting to night. But if you
are driving, do not wear sunglasses at night. They may
cut down on glare from headlamps, but they also
make a lot of things invisible.
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even
several seconds, for your eyes to re-adjust to the dark.
When you are faced with severe glare, as from a
driver who does not lower the high beams, or a vehicle
with misaimed headlamps, slow down a little. Avoid
staring directly into the approaching headlamps.
Keep the windshield and all the glass on your vehicle
clean — inside and out. Glare at night is made
much worse by dirt on the glass. Even the inside of the
glass can build up a lm caused by dust. Dirty glass
makes lights dazzle and ash more than clean
glass would, making the pupils of your eyes contract
repeatedly.
Remember that the headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it is easier to pick out dimly lighted
objects. Just as the headlamps should be checked
regularly for proper aim, so should your eyes be
examined regularly. Some drivers suffer from night
blindness — the inability to see in dim light — and are
not even aware of it.
4-17
ProCarManuals.com

You can run the engine to keep warm, but be careful.
{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot see it
or smell it, so you might not know it is in your
vehicle. Clear away snow from around the
base of your vehicle, especially any that is
blocking your exhaust pipe. And check around
again from time to time to be sure snow does
not collect there.
Open a window just a little on the side of the
vehicle that is away from the wind. This will
help keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little
faster than just idle. That is, push the accelerator
slightly. This uses less fuel for the heat that you get and
it keeps the battery charged. You will need a
well-charged battery to restart the vehicle, and possibly
for signaling later on with your headlamps. Let the
heater run for a while.
4-29
ProCarManuals.com

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-4
Fuel................................................................5-4
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-5
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-6
Filling the Tank..............................................5-7
Filling a Portable Fuel Container.......................5-9
Checking Things Under the Hood....................5-10
Hood Release..............................................5-10
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-15
Engine Oil Life System..................................5-20
Engine Air Cleaner/Filter................................5-22
Automatic Transaxle Fluid..............................5-24
Manual Transaxle Fluid..................................5-24
Hydraulic Clutch...........................................5-25
Engine Coolant.............................................5-25
Coolant Surge Tank Pressure Cap..................5-29
Engine Overheating.......................................5-29Cooling System............................................5-31
Windshield Washer Fluid................................5-38
Brakes........................................................5-39
Battery........................................................5-42
Jump Starting...............................................5-43
Headlamp Aiming...........................................5-48
Bulb Replacement..........................................5-48
Halogen Bulbs..............................................5-48
Headlamps (Coupe)......................................5-49
Headlamps (Sedan)......................................5-50
Front Turn Signal, Parking and Daytime
Running Lamps (DRL) (Coupe)...................5-52
Front Turn Signal, Parking and Daytime
Running Lamps (DRL) (Sedan)....................5-53
Center High-Mounted Stoplamp (CHMSL).........5-54
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-54
Replacement Bulbs.......................................5-55
Windshield Wiper Blade Replacement..............5-56
Tires..............................................................5-57
Tire Sidewall Labeling...................................5-59
Tire Terminology and Denitions.....................5-62
Ination - Tire Pressure.................................5-64
Tire Inspection and Rotation...........................5-66
When It Is Time for New Tires.......................5-68
Buying New Tires.........................................5-68
Section 5 Service and Appearance Care
5-1
ProCarManuals.com

Headlamp Aiming
Headlamp aim has been preset at the factory and
should need no further adjustment.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low-beam
headlamps may be necessary if it is difficult to see
the lane markers (for horizontal aim), or if oncoming
drivers ash their high-beam headlamps at you
(for vertical aim). If you believe your headlamps need
to be re-aimed, we recommend that you take your
vehicle to your retailer for service.
Bulb Replacement
For the type of bulb to use, seeReplacement Bulbs
on page 5-55.
For any bulb changing procedure not listed in this
section, contact your retailer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to
read and follow the instructions on the bulb
package.
5-48
ProCarManuals.com

Headlamps (Coupe)
To change a headlamp bulb on a coupe model, do the
following:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. Pull up on the headlamp retaining pins to remove
them from the headlamp assembly.
3. Pull the headlamp assembly away from the vehicle
and remove the electrical connector.4. Raise the lock tab and pull the connector from the
base of the bulb to remove the electrical connector
from the headlamp bulb.
5. Remove the retaining nut by turning it
counterclockwise.
6. Remove the bulb and replace it with the
appropriate bulb.
7. Reverse the steps to reinstall the headlamp
assembly.
5-49
ProCarManuals.com

Headlamps (Sedan)
To change a headlamp bulb on a sedan model, do the
following:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. Pull up on the headlamp retaining pins to remove
them from the headlamp assembly.
3. Pull the headlamp assembly away from the vehicle
and remove the electrical connector.4. Access the bulb by turning the dust cap
counterclockwise to remove it.
5-50
ProCarManuals.com

Front Turn Signal, Parking and
Daytime Running Lamps (DRL)
(Coupe)
To change this bulb on a coupe model, do the following:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. Reach behind the headlamp from inside the hood.
3. Rotate the bulb socket counterclockwise to
remove it from the housing.
4. Pull the bulb from the socket and replace it with the
appropriate bulb.
5. Reinstall the bulb socket by turning it clockwise.
5-52
ProCarManuals.com

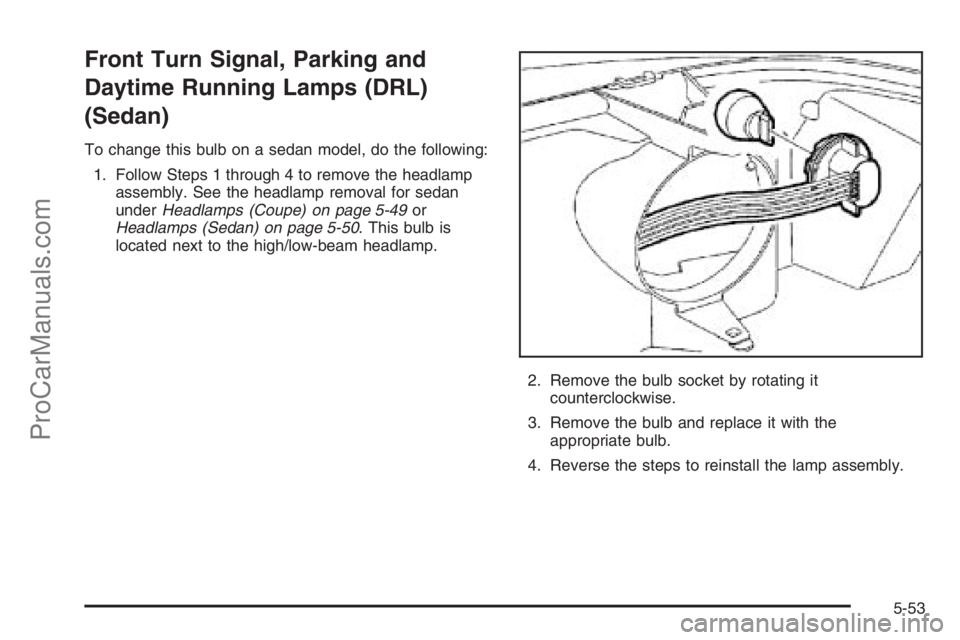

Front Turn Signal, Parking and
Daytime Running Lamps (DRL)
(Sedan)
To change this bulb on a sedan model, do the following:
1. Follow Steps 1 through 4 to remove the headlamp
assembly. See the headlamp removal for sedan
underHeadlamps (Coupe) on page 5-49or
Headlamps (Sedan) on page 5-50. This bulb is
located next to the high/low-beam headlamp.
2. Remove the bulb socket by rotating it
counterclockwise.
3. Remove the bulb and replace it with the
appropriate bulb.
4. Reverse the steps to reinstall the lamp assembly.
5-53
