Audio
5-17
5
– CONTINUED –
during the period. The disc will be then au-
tomatically drawn in, and the player will
begin to play back the first track of the
disc.
To insert more discs in succession, re-
peat Steps 1 and 2. The magazine will be
loaded with discs in the ascending order
of position number.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert-
ed.
The disc indicator steadily lights up if a
disc is already inserted in the correspond-
ing position of the magazine.
While the player is in the loading mode,
if you press any of the other mode buttons
“FM” (1), “AM” (2), the player will enter the
standby mode. Press the “CD” button (14)
to start playback.
Inserting a disc in a desired position
1. Press the “LOAD” button (9). If the
magazine in the player has an open posi-
tion where you can insert a disc, the
“DISC” indicator associated with the open
position will blink.
The positions in the magazine the indica-
tor of which steadily lights up are already
loaded with discs.
2. Press the “Disc select” button (17) atthe position where you want to insert a
disc. The associated “DISC” indicator will
blink, and the “LOAD” will be displayed.
3. If you insert a disc during the 15-sec-
ond period while the “LOAD” is on display,
the disc will be automatically drawn in,
and the player will start playback of the
disc, beginning with the first track.
To insert more discs in succession, re-
peat Steps 1 and 2.
While the player is in the loading mode,
if you press any of the other mode buttons
“FM” (1), “AM” (2), the player will enter
standby mode. Press the “CD” button (14)
to start playback.
Loading the magazine (Full disc
loading mode)
1. If you continue to press the “LOAD”
button (9) for more than 1.5 seconds, the
player will produce a beeping sound and
will enter the full disc loading mode.
2. A “DISC” indicator will blink, and the
“ALL LOAD” will be on display for a period
of 15 seconds. If a disc is successfully
loaded during this period, the “DISC” indi-
cator will stop blinking and will steadily
light.
3. When the loading of a disc is complete,
the next “DISC” indicator will blink. Then
repeat Step 2.
4. When the magazine is filled with discsby repeating Steps 2 and 3, the player will
start playback of the discs, beginning with
the one inserted first.
If you fail to insert any disc during each 15
seconds interval, the full disc loading
mode will be canceled, and the player will
start playback of the disc inserted first.
How to play back a CD or make a
pause
When there is no CD inserted:
Insert a CD by referring to “How to Insert
a CD(s)”.
When a CD is loaded, the player will start
playback of the CD, beginning with the
first track.
When there are CDs loaded:
Press a desired one of the “Disc select”
buttons (17) the “DISC” indicator of which
steadily lights up. The player will then start
playback of the selected CD, beginning
with the first track.
A1910BE-A-GSAAB.book Page 17 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

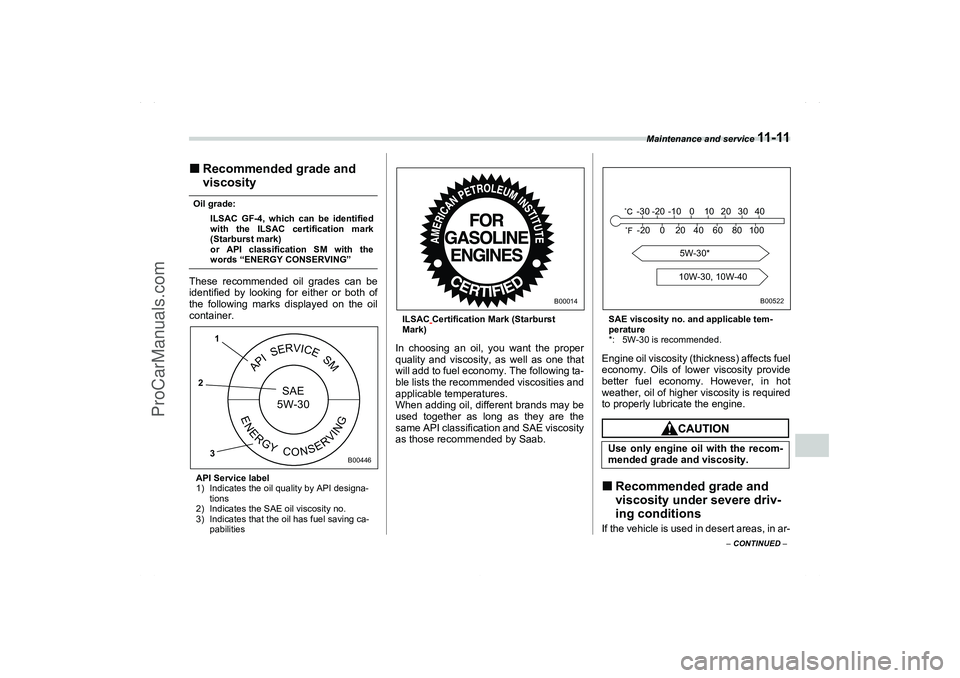

Maintenance and service
11 - 11
11
– CONTINUED –
Recommended grade and
viscosityOil grade:
ILSAC GF-4, which can be identified
with the ILSAC certification mark
(Starburst mark)
or API classification SM with the
words “ENERGY CONSERVING”
These recommended oil grades can be
identified by looking for either or both of
the following marks displayed on the oil
container.API Service label
1) Indicates the oil quality by API designa-
tions
2) Indicates the SAE oil viscosity no.
3) Indicates that the oil has fuel saving ca-
pabilitiesILSAC
Certification Mark (Starburst
Mark)
In choosing an oil, you want the proper
quality and viscosity, as well as one that
will add to fuel economy. The following ta-
ble lists the recommended viscosities and
applicable temperatures.
When adding oil, different brands may be
used together as long as they are the
same API classification and SAE viscosity
as those recommended by Saab.
SAE viscosity no. and applicable tem-
perature
*: 5W-30 is recommended.Engine oil viscosity (thickness) affects fuel
economy. Oils of lower viscosity provide
better fuel economy. However, in hot
weather, oil of higher viscosity is required
to properly lubricate the engine.Recommended grade and
viscosity under severe driv-
ing conditionsIf the vehicle is used in desert areas, in ar-
APISERVICE
SM
ENERGY
CONSERVING
SAE
5W-30
1
2
3
B00446
B00014
Use only engine oil with the recom-
mended grade and viscosity.
B00522
5W-30*
10W-30, 10W-40 -30 -20 -10 0 10 20 30 40
-20 0 6020 80 10040
