2006 RENAULT SCENIC sensor

MULTIMEDIA
Fault finding - Functions
86C
86C-12
NAV 4R
Program no.: 0000
Vdiag No.: 24
Fault finding - Functions
General operation
The NAV 4R system includes the following functions:
●CD multi-changer (according to options).
●Satellite guidance navigation.
●Display (according to options).
●External thermometer.
●Clock.
●Audio.
●Seat belt warning light (Laguna II only).
1 - CD multi-changer
The CD multi-changer located on the dashboard can hold up to 6 CDs. Audio CDs and CDs recorded by the
customer may be played.
The CD changer does not play MP3 CDs.
2 - Navigation
This function guides the driver by displaying maps and issuing voice messages. The addresses for guidance are
entered using the keypad.
3 - Display
The display is used to show information such as navigation maps, radio, CD title (MP3 CDs optional), time,
temperature, etc.
4 - Thermometer
The 4R central communication unit may display the exterior temperature via:
–the UCH (only on Mégane and Scénic II phase 2),
–the sensor located on the right-hand door mirror (other vehicles).
The temperature is also transmitted to the climate control computer. This parameter can be viewed using parameter
PR006 External temperature.
5 - Clock
This function allows the time to be displayed on the video screen.
6 - Audio
Two audio systems are available:
–Standard 4X15 W,
–Cabasse 4X40 W.
These systems enable the user to listen to AM/FM radio, CDs (MP3 CDs optional with the Cabasse system) and
satellite navigation voice messages.
7 - Seat belt warning light (Only on Laguna II phase 2).
Seat belt warning light lit on the display.

MULTIMEDIA
Fault finding - Conformity check
86C
86C-29
NAV 4R
Program no.: 0000
Vdiag No.: 24
Fault finding - Conformity check
MAIN COMPUTER STATUSES AND PARAMETERS
NOTESOnly perform this conformity check after a thorough check with the diagnostic tool.
The values shown in this conformity check are given as examples.
Application conditions: Engine stopped, ignition on.
Order FunctionParameter / Status
checked or ActionDisplay and Notes Fault finding
1
Power supplyET001:+ 12 V after
ignition feedPRESENTIn the event of a fault, refer to
the interpretation of status
ET001 + 12 V after ignition
feed.
2ET002:+ 12 V
accessories
feedPRESENTIn the event of a fault, refer to
the interpretation of status
ET002 + 12 V accessories
feed.
3ET003:+ 12 V side
lights feedPRESENT
ABSENTIn the event of a fault, consult
the interpretation of status
ET003 + 12 V side lights
feed.
4PR001:Battery
voltage11 V < PR001 < 14 VIn the event of a fault, refer to
the interpretation of
parameter PR001 Battery
voltage.
5Vehicle
speedPR002:Vehicle
speedUnit: km/hIn the event of a fault, consult
the interpretation of
parameter PR002 Vehicle
speed.
6External
temperature
sensorPR006:External
temperaturePR006 = External
temperature sensor ±± ± ±
5 °° ° °
CIn the event of a fault, refer to
the interpretation of
parameter PR006 External
temperature.
7Angular
position
sensorPR009:Angular
positionUnit: *d/s
This parameter determines
The angular speed when
cornering.In the event of a fault, consult
the interpretation of
parameter PR009 Angular
position.
8Satellite
receptionPR008:Satellite
number
receivedIn an open area, the
number of satellites
received should be greater
than 3 for the system to
operate correctly.In the event of a fault, consult
the interpretation of
parameter PR008 Number of
satellites received.
9OffET004:RADIO ON
signalSTILL PRESENTIf the fault is still present,
contact Techline.
NAV4R_V24_CCONF

MULTIMEDIA
Fault finding - Interpretation of parameters86C
86C-50
NAV 4R
Program no.: 0000
Vdiag No.: 24
PR006
EXTERNAL TEMPERATURE
NOTESOnly apply the checks if the parameter is inconsistent.
There must be no present or stored faults.
Special notes:
On the Laguna, Trafic, Master and Master propulsion, the exterior temperature
information is supplied by the exterior temperature sensor.
On Mégane and Scénic, this information comes from the UCH.
Use the Wiring Diagram Technical Note for the vehicle concerned.
Only for Laguna, Trafic, Master and Master propulsion
Check the condition and connection of the connector of component 240 (component 239 for right-hand drive
vehicles) and the black 24-track connector of component 261 (Trafic: 662).
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Using the universal bornier, check the insulation, continuity and the absence of interference resistance on
the following connections:
Left-hand drive:
●47C connection code,
●47D connection code,
between components 261 (Trafic: 662) and 240.
Right-hand drive:
●47C connection code,
●connection code 47D,
between components 261 (Trafic: 662) and 239.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRRepeat the conformity check from the start.
NAV4R_V24_PR006

MULTIMEDIA
Fault finding - Interpretation of parameters86C
86C-51
NAV 4R
Program no.: 0000
Vdiag No.: 24
PR006
CONTINUED

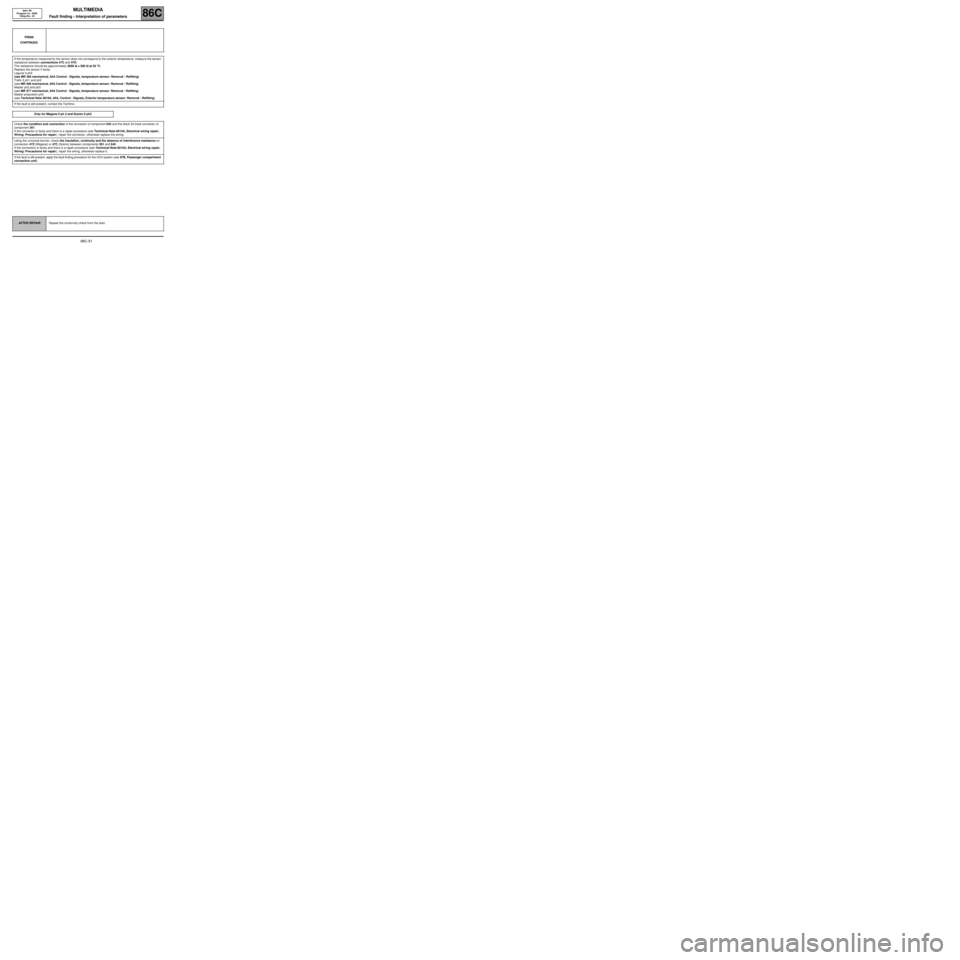

If the temperature measured by the sensor does not correspond to the exterior temperature, measure the sensor
resistance between connections 47C and 47D.
The resistance should be approximately 3000 ΩΩ Ω Ω
±± ± ±
300 ΩΩ Ω Ω
at 20 °° ° °
C.
Replace the sensor if faulty.
Laguna II ph2
(see MR 395 mechanical, 84A Control - Signals, temperature sensor: Removal - Refitting)
Trafic II ph1 and ph2
(see MR 408 mechanical, 84A Control - Signals, temperature sensor: Removal - Refitting)
Master ph2 and ph3
(see MR 377 mechanical, 84A Control - Signals, temperature sensor: Removal - Refitting)
Master propulsion ph2
(see Technical Note 3818A, 84A, Control - Signals, Exterior temperature sensor: Removal - Refitting)
If the fault is still present, contact the Techline.
Only for Mégane II ph 2 and Scénic II ph2
Check the condition and connection of the connector of component 645 and the black 24-track connector of
component 261.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Using the universal bornier, check the insulation, continuity and the absence of interference resistance on
connection 47Z (Mégane) or 47C (Scénic) between components 261 and 645.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, apply the fault finding procedure for the UCH system (see 87B, Passenger compartment
connection unit).
AFTER REPAIRRepeat the conformity check from the start.
