2006 PORSCHE BOXSTER buttons

36
Controls, Instruments
M - Memory button
1 - Key button
2, 3 - Person buttonsSeat MemoryIndividual seat and door mirror settings can be
stored and recalled for the driver’s position.
Further individual setting options are available in
vehicles with the Sport Chrono package Plus.
Please observe the chapter “Individual Memory” in
the separate PCM operating instructions.
Warning!
Risk of crushing due to uncontrolled recall of
a seat setting.
fCancel automatic adjustment by pressing any
of the seat adjustment buttons.
fDo not leave children in the vehicle unattended.Operation with person buttons 2, 3Storing seat position
1. Switch on ignition.
Reverse gear must not be engaged.
2. Set the desired seat and door-mirror positions.
3. Keep memory button M depressed and
additionally press person button 2 or 3.
The individual setting is now stored under the
desired person button.Recalling seat position
The seat position can only be called up when the
vehicle is stationary.
1. Switch on the ignition or
open the driver’s door.
2. Press person button until the seat has reached
its final position.
The door mirror and the lumbar support
setting will be completed even if the person
button is not kept depressed.
Note
Automatic seat adjustment can be interrupted
immediately by releasing the button.

72
Controls, Instruments
Operation, Instruments 1 Light switch
2 Turn signals/
headlight dimmer/flasher lever
3 Ignition Lock/locking the steering column
4 Hands-free microphone for telephone
5Horn
6 Windshield wiper/washer lever
7 Porsche Communication Management/Radio
8 Interior temperature sensor, GPS antenna
9 Emergency flasher switch10 Central locking button,
Readiness display for alarm system
11 Cupholder
12 Operating lever for on-board computer
13 Locking lever for steering-wheel adjustment
14 Operating lever for cruise control
15 Control panel for heating, ventilation and air
conditioning system
16 Buttons for rear spoiler,
Porsche Active Suspension Management
(PASM),
Sport Mode,
Porsche Stability Management (PSM)
17 Seat heating, left/right

158
Controls, Instruments
1, 2, 3 - Programmable buttons
A- Light-emitting diode for status identificationHomeLinkThe programmable HomeLink replaces up to three
original hand-held transmitters used to operate
various devices (e.g. garage door, gate to the
property, alarm system).
You can program buttons 1 to 3 with a frequency
of an original handheld transmitter.
Warning!
Risk of accident when using the HomeLink if
persons, animals or objects are within the
range of movement of the equipment that is
being operated.
fWhen using the HomeLink, ensure that no
persons, animals or objects are within the
range of movement of the equipment that is
being operated.
fObserve the safety notes for the original hand-held transmitter.
Preconditions for operating and
programming the HomeLink:
– Ignition is switched on.
– Fog lights are switched off.
To operate the respective device:
fPress the appropriate button (1, 2 or 3).
Light-emitting diode A lights up during signal
transfer.Note on operation
fAlways use the HomeLink opener in the
direction of travel.
Otherwise, range restrictions cannot be ruled
out.
fBefore selling the vehicle, delete the
programmed signals of the HomeLink.
fPlease read the instructions for the original
hand-held transmitter to find out whether the
original transmitter is equipped with fixed or
changeable code.

Controls, Instruments
159
Allocating signals to the buttonsfPlease follow the operating instructions for the
original hand-held transmitter.
Prior to programming the HomeLink for the
first time
The following process deletes the standard codes
set at the factory. Do not repeat the process if you
program further buttons.
fKeep the two outer buttons 1 and 3
depressed for approx. 20 seconds until light-
emitting diode A begins to flash quickly.
All programmed signals of buttons 1 to 3 are
deleted.HomeLink with fixed code system
1. Press the desired button until the light-emitting
diode begins to flash slowly.
You then have approx. 5 minutes to perform
steps 2 and 3.

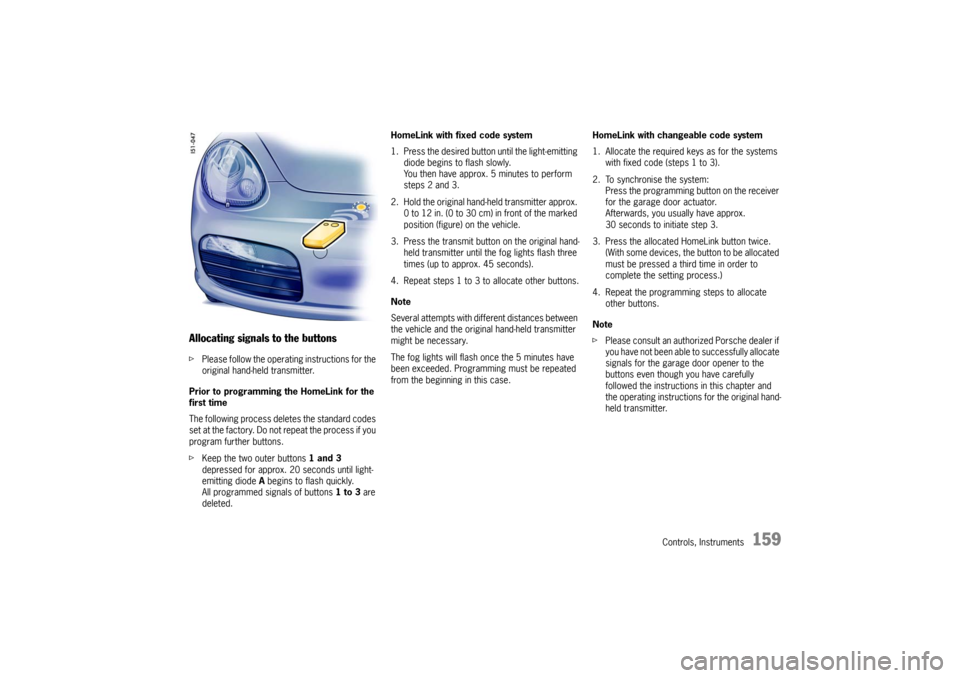

2. Hold the original hand-held transmitter approx.
0 to 12 in. (0 to 30 cm) in front of the marked
position (figure) on the vehicle.
3. Press the transmit button on the original hand-
held transmitter until the fog lights flash three
times (up to approx. 45 seconds).
4. Repeat steps 1 to 3 to allocate other buttons.
Note
Several attempts with different distances between
the vehicle and the original hand-held transmitter
might be necessary.
The fog lights will flash once the 5 minutes have
been exceeded. Programming must be repeated
from the beginning in this case.HomeLink with changeable code system
1. Allocate the required keys as for the systems
with fixed code (steps 1 to 3).
2. To synchronise the system:
Press the programming button on the receiver
for the garage door actuator.
Afterwards, you usually have approx.
30 seconds to initiate step 3.
3. Press the allocated HomeLink button twice.
(With some devices, the button to be allocated
must be pressed a third time in order to
complete the setting process.)
4. Repeat the programming steps to allocate
other buttons.
Note
fPlease consult an authorized Porsche dealer if
you have not been able to successfully allocate
signals for the garage door opener to the
buttons even though you have carefully
followed the instructions in this chapter and
the operating instructions for the original hand-
held transmitter.

160
Controls, Instruments To reprogram a single button:
1. Press the desired button until the
light-emitting diode begins to flash slowly
(approx. 20 seconds).
You then have approx. 5 minutes to perform
steps 2 and 3.
2. Hold the original hand-held transmitter approx.
0 to 30 cm in front of the marked position
(figure) on the vehicle.
3. Press the transmit button on the original
hand-held transmitter until the fog lights flash
three times (up to approx. 45 seconds).
4. Repeat steps 1 to 3 to allocate other buttons.
Note
Several attempts with different distances between
the vehicle and the hand-held transmitter might be
necessary.
The fog lights will flash once the 5 minutes have
been exceeded. Programming must be repeated
from the beginning in this case.Deleting programmed signals of the
HomeLink
(e.g., when selling the vehicle)
Keep the two outer buttons 1 and 3 depressed
for approx. 20 seconds until light-emitting diode A
begins to flash quickly.
All programmed signals of buttons 1 to 3 are de-
leted.

Mobile Roofs
177

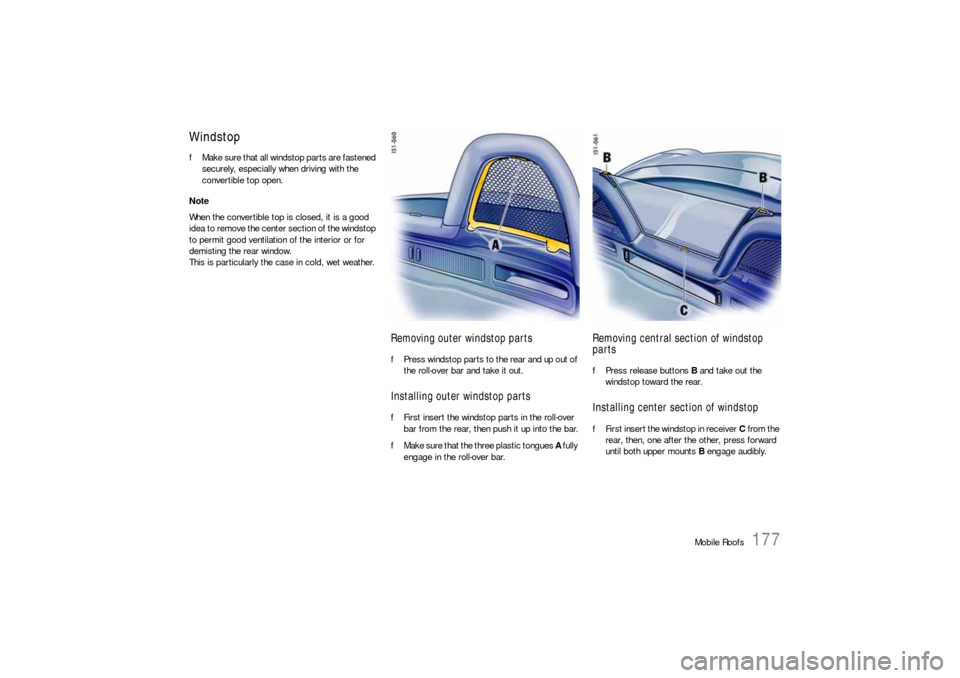

WindstopfMake sure that all windstop parts are fastened
securely, especially when driving with the
convertible top open.
Note
When the convertible top is closed, it is a good
idea to remove the center section of the windstop
to permit good ventilation of the interior or for
demisting the rear window.
This is particularly the case in cold, wet weather.
Removing outer windstop partsfPress windstop parts to the rear and up out of
the roll-over bar and take it out.Installing outer windstop partsfFirst insert the windstop parts in the roll-over
bar from the rear, then push it up into the bar.
fMake sure that the three plastic tongues A fully
engage in the roll-over bar.
Removing central section of windstop
parts fPress release buttons B and take out the
windstop toward the rear. Installing center section of windstopfFirst insert the windstop in receiver C from the
rear, then, one after the other, press forward
until both upper mounts B engage audibly.

Index
295
RRadiator fans .............................................. 187
Radio reception .......................................... 155
Rain sensor ................................................ 126
Range on remaining fuel ........................93
, 114
Rear fog light .....................................124, 269
Rear lid ...................................................... 148
Rear spoiler............................................68, 69
Rear view mirrors ......................................... 31
Rear window defogger.................................. 33
Rear wing
Retractable........................................... 68
Relays ........................................................ 246
Release button ........................................... 163
Remote control ............................................. 18
Replacement key .......................................... 17
Replacing bulbs .......................................... 259
Replacing wiper blades................................ 185
Retractable spoiler........................................ 68
Rims
Diameter ............................................ 234
Rim width ........................................... 234
Running in .................................................... 14
SSafety belts ..........................................42
, 217
Warning light ........................................ 43
Safety compliance sticker ........................... 278
Sealing set ................................................. 239
Seals, care of ............................................. 215
Seat ............................................................ 34
Adjustment ........................................... 34
Heating ................................................ 38Memory................................................36
Selector lever .............................................163
Selector lever position indicator ............ 87
, 165
Shifting gear ...............................................162
Shiftlock .....................................................163
Side lights ..................................................269
Side marker light ............................... 124, 268
Side vents ..................................................136
Snow chains .............................. 232
, 283
, 284
Snow tires ......................................... 231, 282
Sockets .....................................................140
Spacers .....................................................244
Spare key .....................................................17
Spare wheel ...............................................284
Speed code letter .......................................233
Speed control .............................. 82
, 129
, 130
Speed limit .......................................... 94, 233
Speedometer................................................84
Spoiler .........................................................68
Fixed ....................................................69
Retractable ...........................................68
Sport mode ..................................... 63
, 66, 67
Sports seat ..................................................34
Stability management system (PSM) ...............64
Starting ................................................. 74, 75
Starting and stopping the engine ....................74
Steering wheel
Adjustment ...........................................39
Buttons ................................................40
Lock ................................. 74
, 75, 76, 77
Rocker switches..................................163
Toggle switches ..................................163
Stopwatch ....................................................98
Storage options ..........................................142
Storing your Porsche..................................218Sun visors ................................................... 41
TTachometer ................................................. 85
Tail light ..................................................... 269
Tank .................................................. 196
, 197
cap ................................................... 197
Ventilation system.............................. 202
Telephone .................................................. 157
Temperature setting........................... 130, 133
Temperature, outside indicator ...................... 89
Test stand, measurements ............................ 66
Theft protection ........................................... 16
Tiptronic .................................................... 163
Indicator .............................................. 87
Tire pressure monitoring ............................. 103
Tires ................................... 14
, 221
, 282
, 283
Checking pressure............................. 241
Inscription .......................................... 233
Loading information ............................ 235
Pressure................................ 5
, 224
, 283
Pressure plate.................................... 279
Sealant .............................................. 239
Sidewall ............................................. 233
Size .................................................. 233
Tires and tire care ...................................... 221
Tools ......................................................... 152
Towing .............................................. 274, 275
Track ........................................................ 282
Transmission ............................. 161
, 162
, 281
Fluid .......................................... 208, 286
Trunk entrapment ....................................... 148
Turn signals ......................................... 85, 125
