2006 PONTIAC VIBE engine coolant

4. Then ll the coolant recovery tank to the
FULL mark.
5. Put the cap back on the coolant recovery tank, but
leave the radiator pressure cap off.6. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine cooling fan.
7. By this time, the coolant level inside the radiator ller
neck may be lower. If the level is lower, add more of
the proper coolant mixture through the ller neck until
the level reaches the base of the ller neck.
8. Then replace the pressure cap. At any time during
this procedure if coolant begins to ow out of the
ller neck, reinstall the pressure cap. Be sure
the ears on the pressure cap are in line with the
vent tube.
5-34

Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a uid that has
sufficient protection against freezing.
Adding Washer Fluid
If your vehicle has the low windshield washer uid level
warning light, it will come on when the uid level is
too low. SeeLow Washer Fluid Warning Light on
page 3-40.
Open the cap with the
washer symbol on it. Add
washer uid until the
tank is full. SeeEngine
Compartment Overview on
page 5-12for reservoir
location.Notice:
When using concentrated washer uid, follow the
manufacturer’s instructions for adding water.
Do not mix water with ready-to-use washer uid.
Water can cause the solution to freeze and
damage your washer uid tank and other parts of
the washer system. Also, water does not clean as
well as washer uid.
Fill your washer uid tank only three-quarters full
when it is very cold. This allows for expansion if
freezing occurs, which could damage the tank if
it is completely full.
Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
5-36

90,000 Miles (144 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
❑Rotate tires. SeeTire Inspection and Rotation
on page 5-62for proper rotation pattern and
additional information.(See footnote +.)
❑Replace engine air cleaner lter (or every 24 months,
whichever occurs rst). SeeEngine Air Cleaner/Filter
on page 5-20for more information.
❑Replace passenger compartment air lter.
❑Inspect engine accessory drive belts (or 12 months
since last inspection).An Emission Control Service.
❑Inspect fuel tank, cap, cap gasket and lines for
damage or leaks (or every 24 months, whichever
occurs rst). Replace parts as needed.An Emission
Control Service. (See footnote †.)
❑Change manual transaxle uid every 30,000 miles
(48 000 km) only if your vehicle is used to tow
a trailer.
❑Change transfer case uid when doing frequent
trailer towing.
❑Change rear differential uid when doing frequent
trailer towing.
95,000 Miles (152 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
❑Rotate tires. SeeTire Inspection and Rotation
on page 5-62for proper rotation pattern and
additional information.(See footnote +.)
❑Inspect engine air cleaner lter if you are driving in
dusty conditions. Replace lter if necessary.
100,000 Miles (160 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control Service.
❑Rotate tires. SeeTire Inspection and Rotation
on page 5-62for proper rotation pattern and
additional information.(See footnote +.)
❑Inspect engine air cleaner lter if you are driving in
dusty conditions. Replace lter if necessary.
❑Drain, ush, and rell the cooling system (or every
5 years, whichever occurs rst). This service can
be complex; you should have your dealer perform this
service. SeeEngine Coolant on page 5-26for what
to use. Inspect hoses. Clean radiator, condenser,
pressure cap, and neck. Pressure test cooling system
and pressure cap.An Emission Control Service.
6-10

Part B: Owner Checks and Services
Listed in this part are owner checks and services
which should be performed at the intervals specied to
help ensure the safety, dependability and emission
control performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-16for further
details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. SeeEngine Coolant on
page 5-26for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer uid reservoir and add the proper uid if
necessary. SeeWindshield Washer Fluid on page 5-36
for further details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside the
vehicle. The secondary latch should keep the hood from
opening all the way when the primary latch is released.
Make sure the hood closes rmly. SeeHood Release
on page 5-11for further details.
At Least Once a Month
Tire Ination Check
Visually inspect your tires and make sure tires are
inated to the correct pressures. Do not forget to
check your spare tire. SeeTires on page 5-52for
further details.
6-13

Part D: Recommended Fluids
and Lubricants
Fluids and lubricants identied below by name, part
number, or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM Standard
GM6094M and displays the
American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for your
vehicle. To determine the proper
viscosity for your vehicle’s engine,
seeEngine Oil on page 5-16.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-26.
Hydraulic
Brake/Clutch
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Usage Fluid/Lubricant
Power Steering
SystemDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Manual
TransaxleGM Goodwrench
®Synthetic
Manual Transmission Fluid
(GM Part No. U.S. 12346190,
in Canada 10953477 — 1 quart) or
SAE 75W-90 GL-5 gear oil.
Automatic
TransaxleUse only T-IV Automatic
Transmission Fluid
(GM Part No. U.S. 88900925,
in Canada 22689186).
SeeAutomatic Transaxle Fluid
on page 5-21.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Manual
Transaxle
Shift LinkageChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
6-19

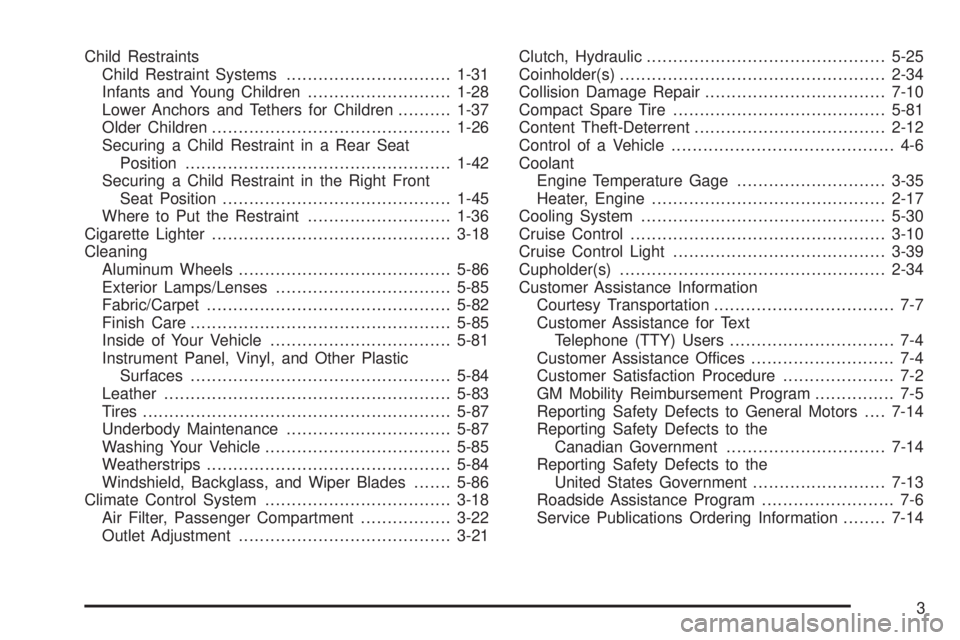

Child Restraints
Child Restraint Systems...............................1-31
Infants and Young Children...........................1-28
Lower Anchors and Tethers for Children..........1-37
Older Children.............................................1-26
Securing a Child Restraint in a Rear Seat
Position..................................................1-42
Securing a Child Restraint in the Right Front
Seat Position...........................................1-45
Where to Put the Restraint...........................1-36
Cigarette Lighter.............................................3-18
Cleaning
Aluminum Wheels........................................5-86
Exterior Lamps/Lenses.................................5-85
Fabric/Carpet..............................................5-82
Finish Care.................................................5-85
Inside of Your Vehicle..................................5-81
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-84
Leather......................................................5-83
Tires..........................................................5-87
Underbody Maintenance...............................5-87
Washing Your Vehicle...................................5-85
Weatherstrips..............................................5-84
Windshield, Backglass, and Wiper Blades.......5-86
Climate Control System...................................3-18
Air Filter, Passenger Compartment.................3-22
Outlet Adjustment........................................3-21Clutch, Hydraulic.............................................5-25
Coinholder(s)..................................................2-34
Collision Damage Repair..................................7-10
Compact Spare Tire........................................5-81
Content Theft-Deterrent....................................2-12
Control of a Vehicle.......................................... 4-6
Coolant
Engine Temperature Gage............................3-35
Heater, Engine............................................2-17
Cooling System..............................................5-30
Cruise Control................................................3-10
Cruise Control Light........................................3-39
Cupholder(s)..................................................2-34
Customer Assistance Information
Courtesy Transportation.................................. 7-7
Customer Assistance for Text
Telephone (TTY) Users............................... 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
Reporting Safety Defects to General Motors....7-14
Reporting Safety Defects to the
Canadian Government..............................7-14
Reporting Safety Defects to the
United States Government.........................7-13
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-14
3

D
Daytime Running Lamps..................................3-14
Defensive Driving............................................. 4-2
Doing Your Own Service Work........................... 5-4
Door
Ajar Light...................................................3-40
Locks.......................................................... 2-6
Power Door Locks......................................... 2-7
Rear Door Security Locks............................... 2-8
Driver
Position, Safety Belt.....................................1-14
Seat Height Adjuster...................................... 1-3
Driving
At Night.....................................................4-17
City...........................................................4-20
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-21
Hill and Mountain Roads..............................4-24
In Rain and on Wet Roads...........................4-18
Rocking Your Vehicle to Get it Out.................4-31
Winter........................................................4-26
E
Electrical System
Add-On Equipment......................................5-90
Engine Compartment Fuse Block...................5-94
Fuses and Circuit Breakers...........................5-91
Headlamp Wiring.........................................5-90
Instrument Panel Fuse Block.........................5-92
Power Windows and Other Power Options......5-91
Windshield Wiper Fuses...............................5-90
Engine
Air Cleaner/Filter.........................................5-20
Battery.......................................................5-40
Check and Service Engine Soon Light............3-35
Coolant......................................................5-26
Coolant Heater............................................2-17
Coolant Temperature Gage...........................3-35
Cooling System Inspection............................6-18
Engine Compartment Overview......................5-12
Exhaust.....................................................2-28
Oil .............................................................5-16
Overheating................................................5-28
Starting......................................................2-16
Entry Lighting.................................................3-16
Event Data Recorders (EDR)............................. 7-9
Extender, Safety Belt.......................................1-25
Exterior Lamps...............................................3-13
4

F
Filter
Engine Air Cleaner......................................5-20
Finish Damage...............................................5-87
Fixed Mast Antenna........................................3-78
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-69
Flat Tire, Changing.........................................5-70
Flat Tire, Storing.............................................5-78
Floor Mats.....................................................2-34
Fluid
Automatic Transaxle.....................................5-21
Manual Transaxle........................................5-24
Power Steering...........................................5-35
Windshield Washer......................................5-36
Fog Lamps....................................................3-15
Folding Seatback, Passenger............................. 1-6
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7Fuel (cont.)
Gage.........................................................3-41
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-6
Low Warning Light.......................................3-41
System Inspection.......................................6-18
Fuses
Engine Compartment Fuse Block...................5-94
Fuses and Circuit Breakers...........................5-91
Instrument Panel Fuse Block.........................5-92
Windshield Wiper.........................................5-90
G
Gage
Engine Coolant Temperature.........................3-35
Fuel..........................................................3-41
Speedometer..............................................3-26
Tachometer.................................................3-27
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-6
Glove Box.....................................................2-34
GM Mobility Reimbursement Program.................. 7-5
5
