LOW COOLANT
This message will display when there is a low level of
engine coolant. Have the cooling system serviced
by your GM dealer as soon as possible. SeeEngine
Coolant on page 5-19for more information.
PARKING BRAKE
This message will display if the parking brake is left
engaged. SeeParking Brake on page 2-24.
SERVICE AIR BAG
This message will display when there is a problem with
the airbag system. Have your vehicle serviced by
your GM dealer immediately.
TRUNK AJAR
This message will display when the trunk lid of your
vehicle is not closed completely. You should make sure
that the trunk lid is closed completely. SeeTrunk on
page 2-9.
DIC Vehicle Personalization
Your vehicle has personalization capabilities that allow
you to program certain features to a preferred setting.
All of the features listed may not be available on
your vehicle. Only the features available will be
displayed on your DIC.
The default settings for the features were set when your
vehicle left the factory, but may have been changed
from their default state since that time.
To change feature settings, use the following procedure:
Entering Personalization Menu
1. Turn the ignition on while the vehicle is stopped.
2. Press and hold the information and reset buttons at
the same time for several seconds, then release to
enter the personalization menu.
If the vehicle speed is greater than 2 mph (3 km/h),
only the UNITS menu will be accessible.
3. Press the information button to scroll through the
available personalization menu modes.
Press the reset button to scroll through the available
settings for each mode.
If you do not make a selection within ten seconds,
the display will go back to the previous information
displayed.
3-40

Personalization Menu Modes
UNITS
This feature allows you to select the units of
measurement in which the DIC will display the vehicle
information. When UNITS appears on the display, press
the reset button to scroll through the available settings:
ENGLISH (default in United States):All information
will be displayed in English units. For example, distance
will be shown in miles (mi) and fuel economy in miles
per gallon (mpg).
METRIC (default in Canada):All information will be
displayed in metric units. For example, distance will be
shown in kilometers (km) and fuel economy in liters
per 100 kilometers (L/100 km).
Choose one of the available settings and press the
information button to select it and move on to the
next feature.
OIL-LIFE RESET
When this feature is displayed, you can reset the engine
oil life system. To reset the system, seeEngine Oil
Life System on page 5-16. See “OIL LIFE” underDIC
Operation and Displays on page 3-36for more
information.
LOCK HORN
If your vehicle has remote keyless entry, this feature,
which allows the vehicle’s horn to chirp every time the
lock button on the remote keyless entry transmitter is
pressed, can be enabled or disabled. When LOCK HORN
appears on the display, press the reset button to scroll
through the available settings:
OFF (default):The horn will not chirp on the rst press
of the remote keyless entry transmitter lock button.
The horn will still chirp on the second press.
ON:The horn will chirp on the rst press of the lock
button on the remote keyless entry transmitter.
SeeRemote Keyless Entry System Operation on
page 2-4for more information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
3-41

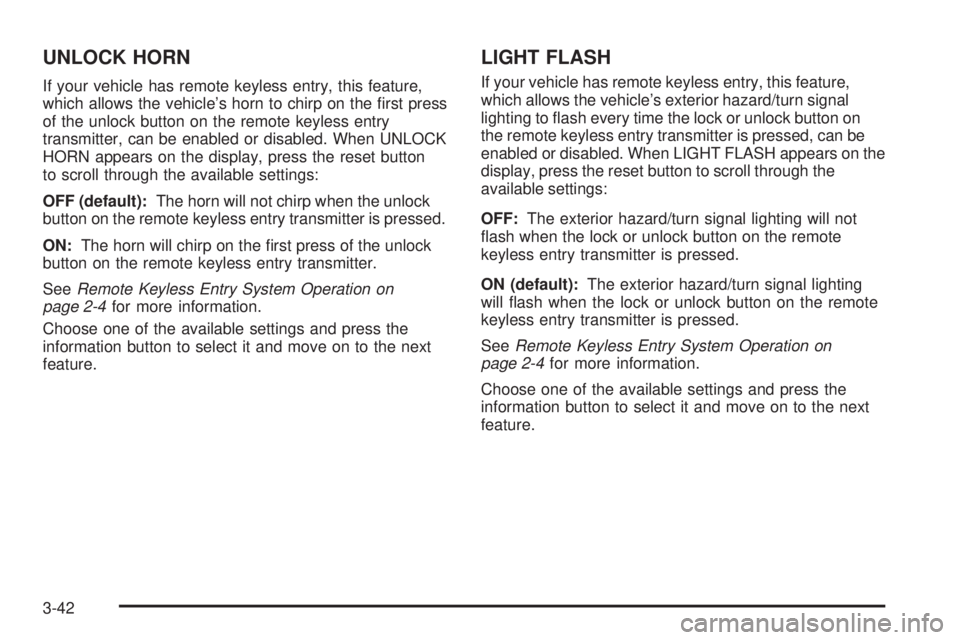

UNLOCK HORN
If your vehicle has remote keyless entry, this feature,
which allows the vehicle’s horn to chirp on the rst press
of the unlock button on the remote keyless entry
transmitter, can be enabled or disabled. When UNLOCK
HORN appears on the display, press the reset button
to scroll through the available settings:
OFF (default):The horn will not chirp when the unlock
button on the remote keyless entry transmitter is pressed.
ON:The horn will chirp on the rst press of the unlock
button on the remote keyless entry transmitter.
SeeRemote Keyless Entry System Operation on
page 2-4for more information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
LIGHT FLASH
If your vehicle has remote keyless entry, this feature,
which allows the vehicle’s exterior hazard/turn signal
lighting to ash every time the lock or unlock button on
the remote keyless entry transmitter is pressed, can be
enabled or disabled. When LIGHT FLASH appears on the
display, press the reset button to scroll through the
available settings:
OFF:The exterior hazard/turn signal lighting will not
ash when the lock or unlock button on the remote
keyless entry transmitter is pressed.
ON (default):The exterior hazard/turn signal lighting
will ash when the lock or unlock button on the remote
keyless entry transmitter is pressed.
SeeRemote Keyless Entry System Operation on
page 2-4for more information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
3-42

DELAY LOCK
This feature, which delays the actual locking of the
vehicle, can be enabled or disabled. When DELAY
LOCK appears on the display, press the reset button to
scroll through the available settings:
ON (default):The doors will not lock until ve seconds
after the last door is closed. You can temporarily
override delayed locking by pressing the lock button on
the remote keyless entry transmitter a second time.
OFF:The doors will lock immediately when pressing the
lock button on the remote keyless entry transmitter.
SeeDelayed Locking on page 2-8andRemote Keyless
Entry System Operation on page 2-4for more
information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
AUTO UNLK (Unlock)
This feature, which allows the vehicle to automatically
unlock certain doors, can be enabled or disabled. When
AUTO UNLK appears on the display, press the reset
button to scroll through the available settings:
ALL (default):All of the doors will automatically unlock.
DRIVER:The driver’s door will automatically unlock.
NONE:None of the doors will automatically unlock. You
will need to manually unlock the doors.
If you have a manual transmission vehicle, the door(s)
will automatically unlock when the key is turned off.
If you have an automatic transmission vehicle, you can
select when the automatic unlocking will occur. See
“UNLK (Automatic Transmission Only)” following.
SeeAutomatic Door Unlock on page 2-9for more
information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
3-43

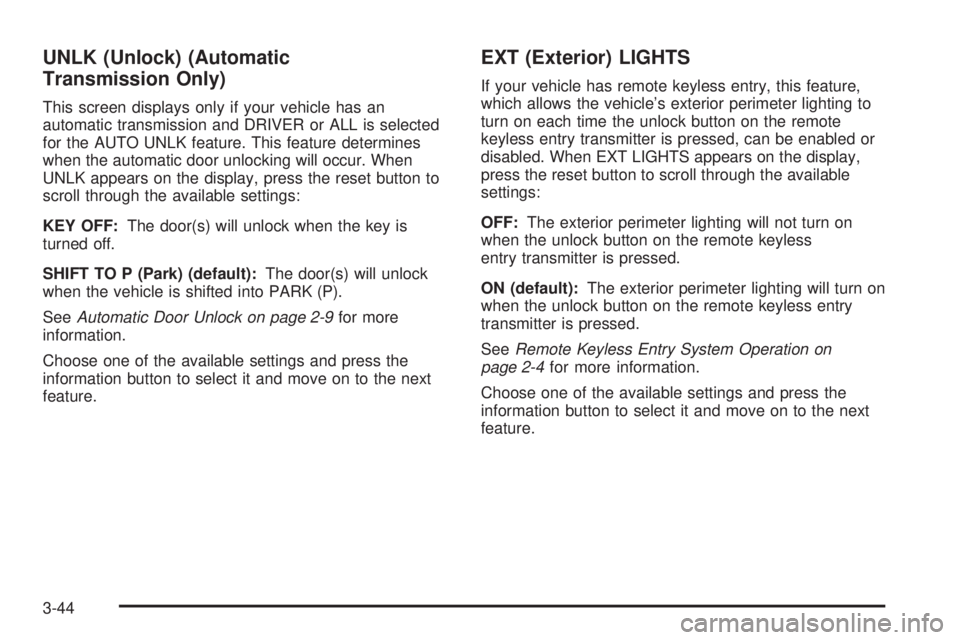

UNLK (Unlock) (Automatic
Transmission Only)
This screen displays only if your vehicle has an
automatic transmission and DRIVER or ALL is selected
for the AUTO UNLK feature. This feature determines
when the automatic door unlocking will occur. When
UNLK appears on the display, press the reset button to
scroll through the available settings:
KEY OFF:The door(s) will unlock when the key is
turned off.
SHIFT TO P (Park) (default):The door(s) will unlock
when the vehicle is shifted into PARK (P).
SeeAutomatic Door Unlock on page 2-9for more
information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
EXT (Exterior) LIGHTS
If your vehicle has remote keyless entry, this feature,
which allows the vehicle’s exterior perimeter lighting to
turn on each time the unlock button on the remote
keyless entry transmitter is pressed, can be enabled or
disabled. When EXT LIGHTS appears on the display,
press the reset button to scroll through the available
settings:
OFF:The exterior perimeter lighting will not turn on
when the unlock button on the remote keyless
entry transmitter is pressed.
ON (default):The exterior perimeter lighting will turn on
when the unlock button on the remote keyless entry
transmitter is pressed.
SeeRemote Keyless Entry System Operation on
page 2-4for more information.
Choose one of the available settings and press the
information button to select it and move on to the next
feature.
3-44

LANGUAGE
This feature allows you to select the language in which
the DIC will display. Press the reset button to scroll
through the available settings:
ENGLISH (default):The DIC will display all information
in English.
FRENCH:The DIC will display all information in
French.
SPANISH:The DIC will display all information in
Spanish.
GERMAN:The DIC will display all information in
German.
Choose one of the available settings and press the
information button to select it and exit out of the
personalization menu mode.
Exiting Personalization Menu
The personalization menu will be exited when any of the
following conditions occur:
A ten second time period has elapsed.
The ignition is turned off.
The end of the personalization menu list is reached.
Audio System(s)
Driving without distraction is a necessity for a safer
driving experience. SeeDefensive Driving on page 4-2.
By taking a few moments to read this manual and
get familiar with your vehicle’s audio system, you can
use it with less effort, as well as take advantage of
its features. While your vehicle is parked, set up your
audio system by presetting your favorite radio stations,
setting the tone and adjusting the speakers. Then,
when driving conditions permit, you can tune to your
favorite stations using the presets and steering
wheel controls (if equipped).
You also need to educate yourself about the importance
of avoiding distractions while you are driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite stations, setting the tone and adjusting the
speakers. Then, when driving conditions permit,
you can tune to your favorite stations using
the presets and steering wheel controls
(if equipped).
3-45

Setting the Time (Without Date
Display)
If your vehicle has a base AM/FM radio with a single
CD player and preset buttons numbered one through
six, the radio will have a clock button for setting the time.
You can set the time by following these steps:
1. Press the clock button until the hour numbers begin
ashing on the display. Press the clock button a
second time and the minute numbers will begin
ashing on the display.
2. While either the hour or the minute numbers are
ashing, rotate the tune knob clockwise to increase
or counterclockwise to decrease the time. Instead
of using the tune knob, you can also press the
SEEK, FWD, or REV buttons to adjust the time.
3. Press the clock button again until, the clock
display stops ashing to set the currently displayed
time; otherwise, the ashing will stop after
ve seconds and the current time displayed will be
automatically set.
Setting the Time (With Date Display)
If your vehicle has a radio with a single CD player, the
radio will have a clock button for setting the time and
date. Press the clock button and the HR, MIN, MM, DD,
YYYY will appear on the display. Press the pushbutton
located under any one of the labels that you want to
change. Everytime the pushbutton is pressed again, the
time or the date if selected, will increase by one. Another
way to increase the time or date, is to press the right
SEEK arrow or FWD button. To decrease, press the left
SEEK arrow or REV button. You can also rotate the tune
knob to adjust the selected setting.
If your vehicle has a radio with a six-disc CD player, the
radio will have a MENU button instead of the clock button
to set the time and date. Press the MENU button. Once
the clock option is displayed, press the pushbutton
located under that label. The HR, MIN, MM, DD, YYYY
will appear on the display. To change the time or date,
follow the instructions given earlier in this section.
To change the time default setting from 12 hour to
24 hour or to change the date default setting from
month/day/year to day/month/year, press the clock button
and then the pushbutton located under the forward arrow
label. Once the time 12H and 24H, and the date
MM/DD/YYYY and DD/MM/YYYY are displayed, press
the pushbutton located under the desired option. Press
the clock or MENU button again to apply the selected
default, or let the screen time out.
3-47

Radio with CD (Base)
Playing the Radio
O
(Power/Volume):Press this knob to turn the
system on and off.
Turn this knob clockwise to increase or counterclockwise
to decrease the volume.
The radio remembers the previous volume setting
whenever the radio is turned on. You can still manually
adjust the volume by using the volume knob.
Finding a Station
BAND:Press this button to switch between FM1, FM2
or AM. The display will show the selection.
f(Tune):Turn this knob to select radio stations.
©SEEK¨:Press the right or left SEEK arrow to go
to the next or to the previous station and stay there.
To scan stations, press and hold either SEEK arrow for
a few seconds until you hear a beep. The radio will
go to a station, play for a few seconds, then go on to the
next station. Press either SEEK arrow again to stop
scanning.
The radio will only seek and scan stations with a strong
signal that are in the selected band.
4(Information):Press this button to switch the display
between the radio station frequency and the time. When
the ignition is off, press this knob to display the time.
3-48
