2006 NISSAN MURANO height

Seat lifter (if so equipped for driver’s
seat)1. Pull up or push down the switch
1to adjust
the seat height.
2. Tilt up or down the switch
1
to adjust the
seat angle.
Lumbar support (if so equipped for
driver’s seat)The lumbar support feature provides lower back
support to the driver. Push each side of the
switch to adjust the seat lumbar area.
REAR SEAT ADJUSTMENT
Folding1. Secure the seat belt at the belt hooks on the
side wall. See “Seat belt hook” later in this
section.
2. Secure the center seat belt and tongues into
the retractor base. See “Stowing rear center
seat belt” later in this section.
3. Put the seat belt buckles into the seat cush-
ion.
See “Storing rear seat belt buckles” later in
this section.
SPA1275B
SSS0280
SSS0569
Safety — seats, seat belts and supplemental restraint system
1-5


05.9.22/Z50-D/V5.0


“Supplemental restraint system” later in
this section.InfantsInfants up to at least one year old should be
placed in a rear facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Small childrenChildren that are over one year old and weight
between 20 lbs (9 kg) and 40 lbs (18 kg) can be
placed in a forward facing child restraint. Refer
to the manufacturer’s instructions for minimum
and maximum weight and height recommenda-
tions. NISSAN recommends that small children
be placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or Ca-
nadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.
Larger childrenChildren who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 feet 9 inches
(142.5 cm) tall and weighs between 40 lbs (18
kg) and 80 lbs (36 kg). A booster seat should be
used to obtain proper seat belt fit.
NISSAN recommends that a child be placed in a
commercially available booster seat if the shoul-
der belt in the child’s seating position fits close
to the face or neck or if the lap portion of the seat
belt goes across the abdomen. The booster seat
should raise the child so that the shoulder belt is
properly positioned across the top, middle por-
tion of the shoulder and the lap belt is low on the
hips. A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or Ca-
nadian Motor Vehicle Safety Standards. Once
the child has grown so the shoulder belt is no
longer on or near the face and neck, use the
shoulder belt without the booster seat.

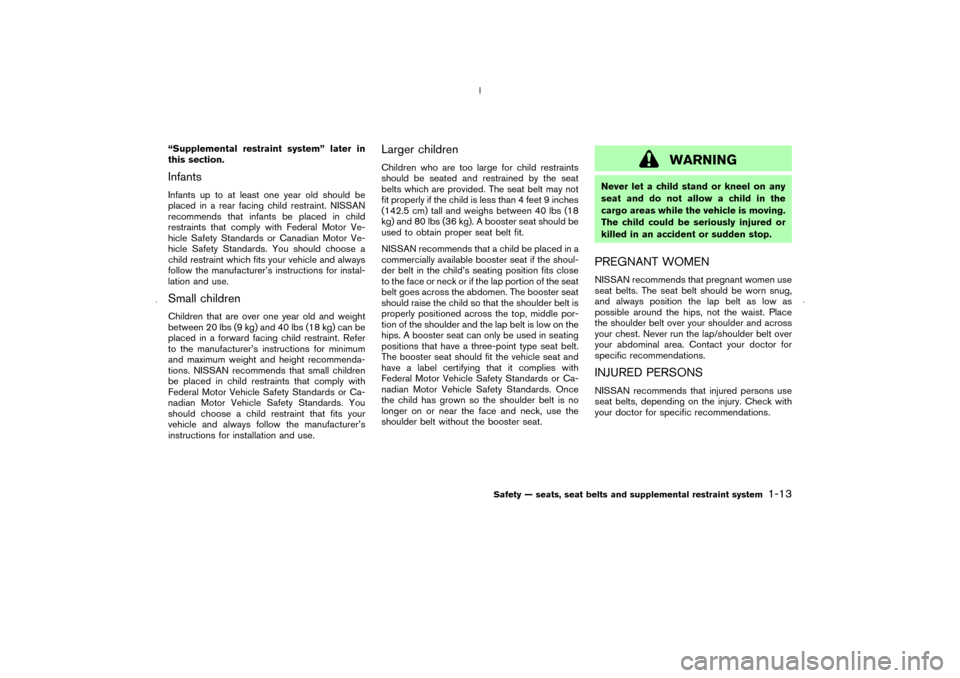

WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.PREGNANT WOMENNISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.INJURED PERSONSNISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
Safety — seats, seat belts and supplemental restraint system
1-13


05.8.26/Z50-D/V5.0


Unfastening the seat beltsTo unfasten the belt, push the button on the
buckle. The seat belt will automatically retract.Checking seat belt operationYour seat belt retractors are designed to lock
belt movement using two separate methods:

when the belt is pulled quickly from the
retractor.

when the vehicle slows down rapidly.
You can check their operation as follows:

grasp the shoulder belt and pull quickly for-ward. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check or
if you have any questions about belt operation,
see a NISSAN dealer.
Shoulder belt height adjustment
(Except for rear center seat)The shoulder belt anchor height should be ad-
justed to the position best suited for you. (See
“Precautions on seat belt usage” earlier in this
section.) To adjust, pull the release button
1,
and then move the shoulder belt anchor
2
to
the desired position, so that the belt passes over
the center of the shoulder. The belt should be
away from your face and neck, but not falling off
of your shoulder. Release the adjustment button
1to lock the shoulder belt anchor into position.
SSS0326
SSS0351A
1-16
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0

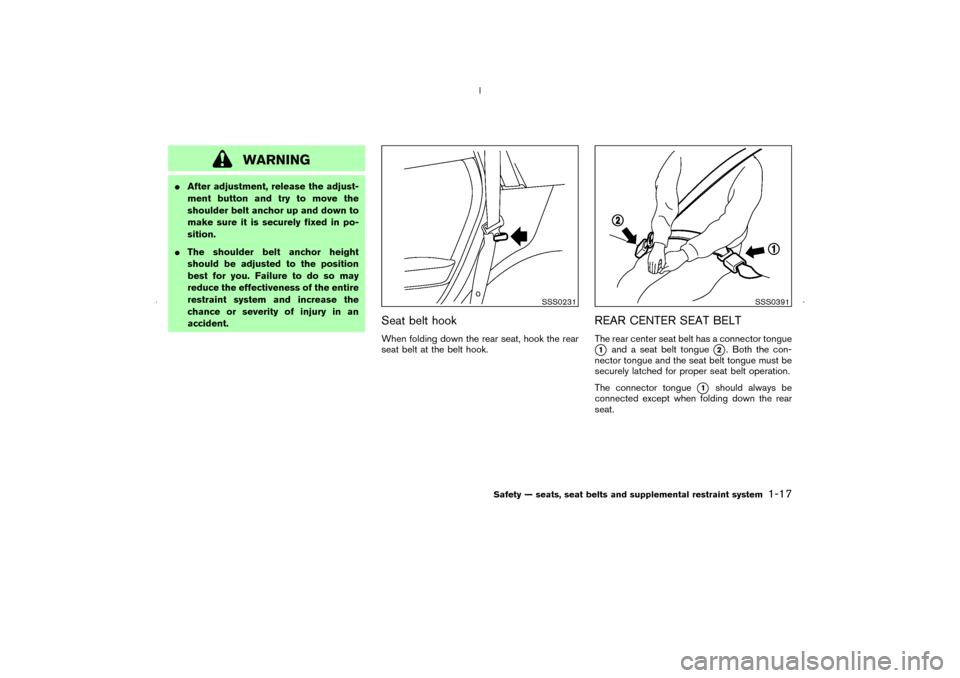

WARNING

After adjustment, release the adjust-
ment button and try to move the
shoulder belt anchor up and down to
make sure it is securely fixed in po-
sition.

The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
Seat belt hookWhen folding down the rear seat, hook the rear
seat belt at the belt hook.
REAR CENTER SEAT BELTThe rear center seat belt has a connector tongue1
and a seat belt tongue
2. Both the con-
nector tongue and the seat belt tongue must be
securely latched for proper seat belt operation.
The connector tongue
1
should always be
connected except when folding down the rear
seat.
SSS0231
SSS0391
Safety — seats, seat belts and supplemental restraint system
1-17


05.8.26/Z50-D/V5.0


Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.

If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your
child. Choose a child restraint that is de-
signed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces re-
quire that infants and small children be
restrained in approved child restraints at
all times while the vehicle is being oper-
ated.

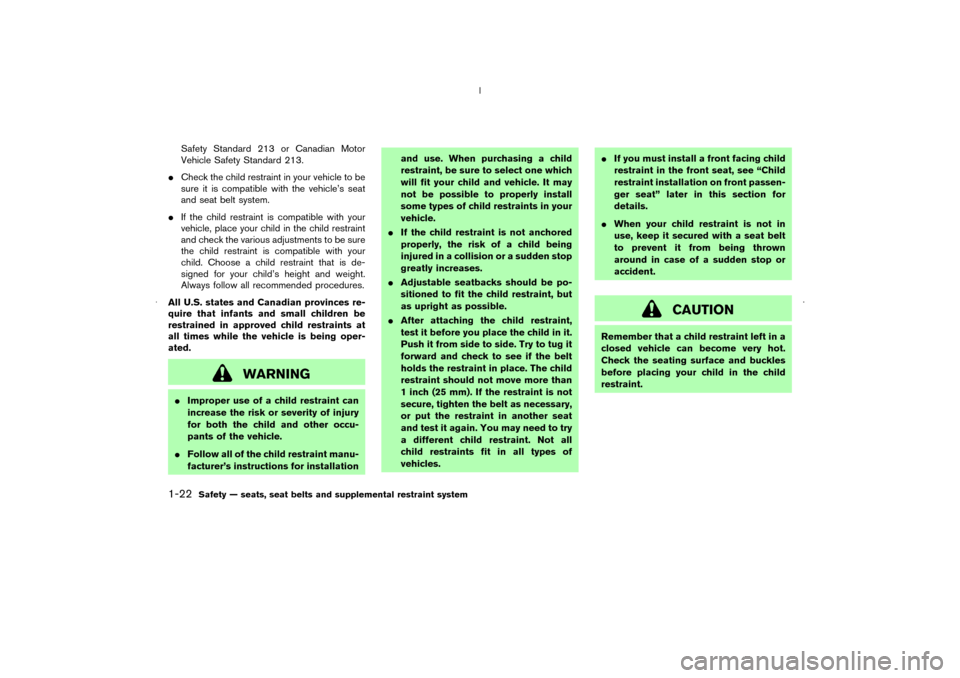

WARNING

Improper use of a child restraint can
increase the risk or severity of injury
for both the child and other occu-
pants of the vehicle.

Follow all of the child restraint manu-
facturer’s instructions for installationand use. When purchasing a child
restraint, be sure to select one which
will fit your child and vehicle. It may
not be possible to properly install
some types of child restraints in your
vehicle.

If the child restraint is not anchored
properly, the risk of a child being
injured in a collision or a sudden stop
greatly increases.

Adjustable seatbacks should be po-
sitioned to fit the child restraint, but
as upright as possible.

After attaching the child restraint,
test it before you place the child in it.
Push it from side to side. Try to tug it
forward and check to see if the belt
holds the restraint in place. The child
restraint should not move more than
1 inch (25 mm). If the restraint is not
secure, tighten the belt as necessary,
or put the restraint in another seat
and test it again. You may need to try
a different child restraint. Not all
child restraints fit in all types of
vehicles.
If you must install a front facing child
restraint in the front seat, see “Child
restraint installation on front passen-
ger seat” later in this section for
details.

When your child restraint is not in
use, keep it secured with a seat belt
to prevent it from being thrown
around in case of a sudden stop or
accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
1-22
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0

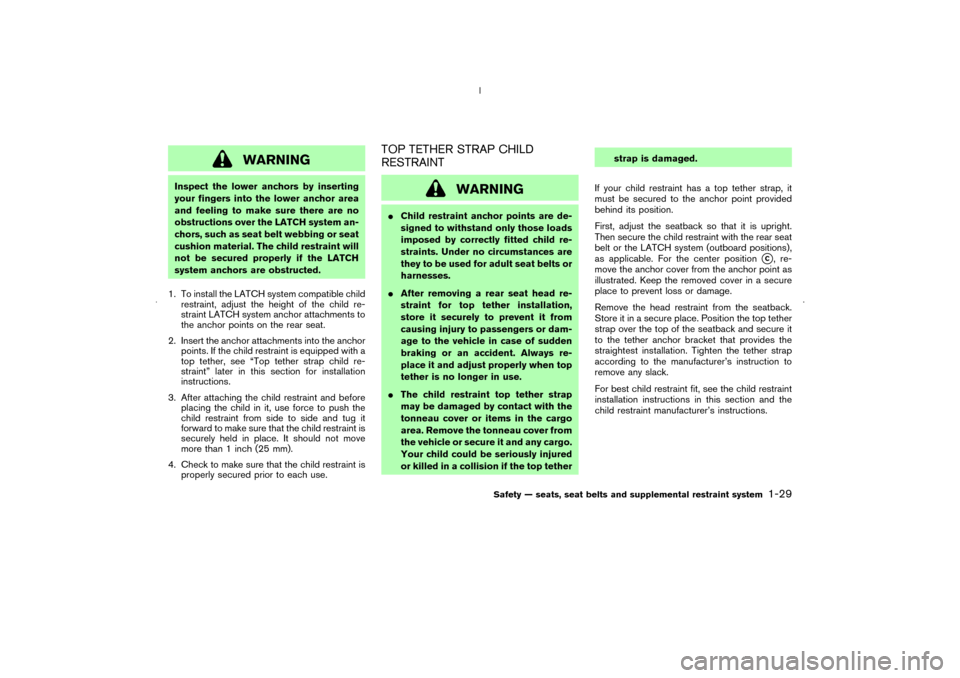

WARNING
Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH system an-
chors, such as seat belt webbing or seat
cushion material. The child restraint will
not be secured properly if the LATCH
system anchors are obstructed.
1. To install the LATCH system compatible child
restraint, adjust the height of the child re-
straint LATCH system anchor attachments to
the anchor points on the rear seat.
2. Insert the anchor attachments into the anchor
points. If the child restraint is equipped with a
top tether, see “Top tether strap child re-
straint” later in this section for installation
instructions.
3. After attaching the child restraint and before
placing the child in it, use force to push the
child restraint from side to side and tug it
forward to make sure that the child restraint is
securely held in place. It should not move
more than 1 inch (25 mm).
4. Check to make sure that the child restraint is
properly secured prior to each use.
TOP TETHER STRAP CHILD
RESTRAINT
WARNING

Child restraint anchor points are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.

After removing a rear seat head re-
straint for top tether installation,
store it securely to prevent it from
causing injury to passengers or dam-
age to the vehicle in case of sudden
braking or an accident. Always re-
place it and adjust properly when top
tether is no longer in use.

The child restraint top tether strap
may be damaged by contact with the
tonneau cover or items in the cargo
area. Remove the tonneau cover from
the vehicle or secure it and any cargo.
Your child could be seriously injured
or killed in a collision if the top tetherstrap is damaged.
If your child restraint has a top tether strap, it
must be secured to the anchor point provided
behind its position.
First, adjust the seatback so that it is upright.
Then secure the child restraint with the rear seat
belt or the LATCH system (outboard positions),
as applicable. For the center position
C, re-
move the anchor cover from the anchor point as
illustrated. Keep the removed cover in a secure
place to prevent loss or damage.
Remove the head restraint from the seatback.
Store it in a secure place. Position the top tether
strap over the top of the seatback and secure it
to the tether anchor bracket that provides the
straightest installation. Tighten the tether strap
according to the manufacturer’s instruction to
remove any slack.
For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.
Safety — seats, seat belts and supplemental restraint system
1-29


05.8.26/Z50-D/V5.0


The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer and have it
checked if the brake pedal height does
not return to normal.Brake pad wear indicatorsThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals should
be followed.For additional information, see the
separate Service and Maintenance Guide.
BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, depress and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see a
NISSAN dealer.Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
A
fuses. Other ve-
hicles are equipped with typeA
fuses in the
engine compartment fuse box and type
Bfuses
in the passenger compartment fuse box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
A
fuses can be installed in the engine
compartment and passenger compartment fuse
boxes.
SDI1751
FUSES
Maintenance and do-it-yourself
8-21


05.8.26/Z50-D/V5.0


TIRE LABELINGFederal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information iden-
tifies and describes the fundamental
characteristics of the tire and also pro-
vides the tire identification number (TIN)
for safety standard certification. The TIN
can be used to identify the tire in case of
a recall.
1
Tire size (example: P215/60R16
94H)
1. P: The “P” indicates the tire is de-
signed for passenger vehicles. (Not all
tires have this information.)
2. Three-digit number (215): This num-
ber gives the width in millimeters of the
tire from sidewall edge to sidewall
edge.
3. Two-digit number (60): This number,
known as the aspect ratio, gives thetire’s ratio of height to width.
4. R: The “R” stands for radial.
5. Two-digit number (16): This number is
the wheel or rim diameter in inches.
6. Two- or three-digit number (94): This
number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires be-
cause it is not required by law.
7. H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.
SDI1575
EXAMPLE
SDI1606
EXAMPLE
Maintenance and do-it-yourself
8-35


05.8.26/Z50-D/V5.0
