2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-5
Compass display (if so equipped) .................................... 2-6
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system (if so equipped) ................ 2-17
NISSAN Vehicle Immobilizer System ....................... 2-18
Windshield wiper and washer switch ........................... 2-20
Rear window wiper and washer switch ....................... 2-21
Rear window and outside mirror defroster switch...... 2-22
Headlight and turn signal switch ................................... 2-22
Xenon headlights (if so equipped) .......................... 2-22
Headlight switch ........................................................... 2-23
Daytime running light system (Canada only) ........ 2-25
Instrument brightness control ..................................... 2-26
Turn signal switch ........................................................ 2-27Fog light switch (if so equipped) .............................. 2-27
Hazard warning flasher switch ......................................... 2-27
Horn ........................................................................................ 2-28
Heated seats (if so equipped) ......................................... 2-28
Vehicle dynamic control (VDC) off switch (if so
equipped) .............................................................................. 2-29
Power outlet.......................................................................... 2-30
Storage .................................................................................. 2-31
Coin box........................................................................... 2-31
Cellular phone holder ................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Cargo net (if so equipped) ......................................... 2-35
Tonneau cover (if so equipped)................................. 2-36
Windows................................................................................ 2-36
Power windows.............................................................. 2-36
Sunroof (if so equipped) ................................................... 2-38
Automatic sunroof ......................................................... 2-38
Interior lights ......................................................................... 2-40
Ceiling light ..................................................................... 2-40
Map light .......................................................................... 2-41
Rear personal light ........................................................ 2-41
Luggage light .................................................................. 2-42


05.8.26/Z50-D/V5.0


1. Headlight, fog light* and turn signal switch
2. Trip odometer reset button
3. Instrument brightness control switch
4. Meters/gauges
5. Windshield/rear window wiper and washer
switch
6. Hazard warning flasher switch
7. Center ventilator
8. Audio control
9. Display/clock
10. Rear window defroster and Heated outside
mirror* switch
11. Display screen control and/or Navigation
system*1
12. Passenger supplemental air bag
13. Side ventilator
14. Headlight aiming control switch*
15. VDC (Vehicle dynamic control) off switch*
or Headlight aiming control*
16. Steering switch for audio control*
17. Fuse box cover
18. Tilting steering wheel lock lever
19. Driver supplemental air bag/Horn
20. Cruise control main/set switch
21. Ignition switch/steering lock
22. Heater/air conditioner control
23. Coin box
24. Outside mirror remote control
25. Cellular phone holder
26. AWD lock switch (AWD models)
27. Heated seat switch*
28. Power outlet cover
29. Glove box
*: if so equipped
SSI0176
INSTRUMENT PANEL2-2
Instruments and controls


05.8.26/Z50-D/V5.0


*1: Refer to the separate Navigation System
Owner’s Manual.
1. Tachometer
2. Turn signal indicator/Hazard indicator
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge6. Reset button for trip odometer
7. Warning/Indicator lights
8. Odometer (Total/Twin trip)
9. CVT shift position indicator
SIC3031
METERS AND GAUGES
Instruments and controls
2-3


05.8.26/Z50-D/V5.0


The low fuel warning light comes on when
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
gauge reaches E. There will be a small
reserve of fuel in the tank when the fuel
gauge needle reaches E.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.

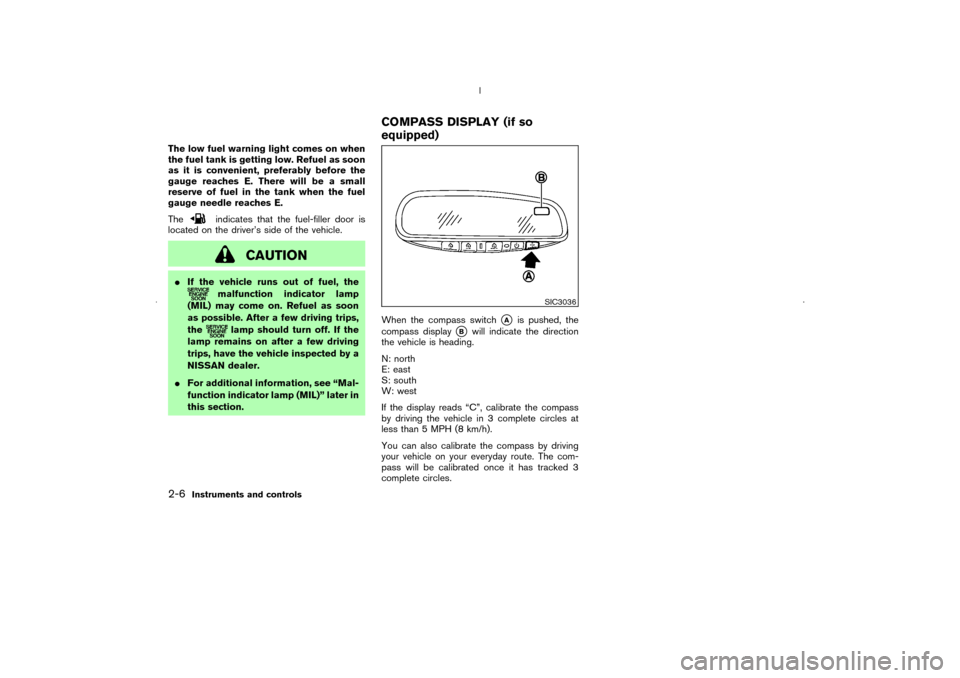

CAUTION

If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

For additional information, see “Mal-
function indicator lamp (MIL)” later in
this section.When the compass switch
A
is pushed, the
compass display
B
will indicate the direction
the vehicle is heading.
N: north
E: east
S: south
W: west
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h).
You can also calibrate the compass by driving
your vehicle on your everyday route. The com-
pass will be calibrated once it has tracked 3
complete circles.
SIC3036
COMPASS DISPLAY (if so
equipped)
2-6
Instruments and controls


05.8.26/Z50-D/V5.0


All-Wheel Drive (AWD) warning light
(AWD models)
Low tire pressure warning light (if so
equipped)
Cruise set indicator light
or
Anti-lock Brake System (ABS)
warning light
Low washer fluid warning light
Front passenger air bag status light
or
Brake warning light
P position selecting warning light (if so
equipped)
High beam indicator light (Blue)
Charge warning light
Seat belt warning light
Malfunction indicator lamp (MIL)
Door open warning light
Supplemental air bag warning light
Security indicator light
Engine oil pressure warning light
All-Wheel Drive (AWD) LOCK indicator
light (AWD models)
Slip indicator light (if so equipped)
Intelligent Key warning light (if so
equipped)
Continuously Variable Transmission (CVT)
indicator light
Turn signal/hazard indicator lights
Low fuel warning light
Cruise main switch indicator light
Vehicle Dynamic Control (VDC) off indi-
cator light (if so equipped)
CHECKING BULBSApply the parking brake and turn the ignition
switch to ON without starting the engine. The
following lights will come on:
,
or
,
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system repaired
promptly.
WARNING LIGHTS
All-wheel drive (AWD) warning
light (AWD models)
The
warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-9


05.8.26/Z50-D/V5.0


differs, the warning light will either remain illumi-
nated or blink. See “Using all-wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Anti-lock brake
system (ABS)
warning light
After turning the ignition switch to the ON
position, the light will illuminate. The light will turn
off after about 2 seconds if the system is
operational.
If the light comes on while the engine is running,
it may indicate that the anti-lock brake system is
not functioning properly. Have the system
checked by a NISSAN dealer.
If a malfunction occurs in the system, the anti-
lock function of the brake will cease operation
but the ordinary brakes will continue to operate
normally. See “Anti-lock brake system (ABS)” in
the “5. Starting and driving” section for further
details.If the light comes on while you are driving,
contact a NISSAN dealer for repair.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
2-10
Instruments and controls


05.8.26/Z50-D/V5.0


Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock brake system warning indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock brake warning
light illuminate, it may indicate the anti-lock brake
system is not functioning properly. Have the
brake system checked by a NISSAN dealer. See“Anti-lock brake warning light” earlier in this
section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the generator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
(for Intelligent Key system) (if
so equipped)
This light comes on in green when it is possible
to turn the ignition switch.
When the light comes on in red, it is not possible
to turn the ignition switch.

The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in red.
Be sure to carry the Intelligent Key with you
Instruments and controls
2-11


05.8.26/Z50-D/V5.0


while driving the vehicle.

The warning light goes off about 10 seconds
after the Intelligent Key is brought inside the
vehicle.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low tire pressure warning light
(if so equipped)
Your vehicle is equipped with a tire pressure
monitoring system (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. If you select
the tire pressure information (if so equipped) inthe display, the FLAT TIRE warning message will
be displayed. The tire pressure for each tire will
also be displayed.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label
to turn the light OFF.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section and the “6. In case of
emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section.

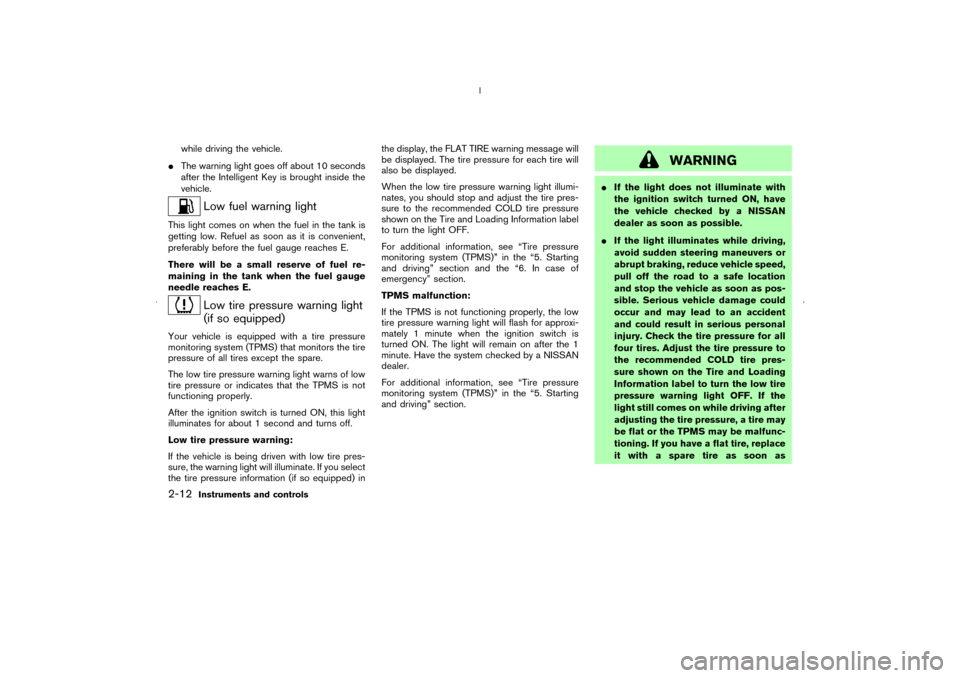

WARNING

If the light does not illuminate with
the ignition switch turned ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.

If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat or the TPMS may be malfunc-
tioning. If you have a flat tire, replace
it with a spare tire as soon as
2-12
Instruments and controls


05.8.26/Z50-D/V5.0
