2006 MINI Hardtop 2 Door jump start

CONTENTS
4
In the engine compartment:
Bonnet111
Engine compartment:
MINI COOPER and
MINI COOPER Convertible112
MINI COOPER S and
MINI COOPER S Convertible113
Engine oil114
Coolant115
Brake system117
Maintenance and care:
MINI Maintenance System118
Socket for Onboard Diagnostics
OBD119
Caring for your vehicle119
Vehicle storage122OWNER SERVICE PROCEDURES
Replacement procedures:
Onboard tool kit126
Wiper blades126
Lamps and bulbs127
Repairing a flat tire131
Space-saver spare tire131
Changing tires133
MINI Mobility System135
Vehicle battery138
Fuses139
Giving and receiving assistance:
Jump-starting140
Towing and tow-starting141
TECHNICAL DATA
Engine data146
Dimensions:
MINI147
MINI Convertible148
Weights:
MINI149
MINI Convertible150
Capacities151

58
AUTOMATIC TRANSMISSION WITH STEPTRONIC*
Switching from M/S + – Manual mode into
the selector lever positions P, R and N is
only possible via D.
Shifting with the selector lever
>Press selector lever briefly towards +:
Transmission shifts upwards
>Press selector lever briefly towards –:
Transmission shifts downwards.
M1 to M6 appear in the gear indicator.
Shifting on the steering wheel*
The shift paddles allow the gears to be
changed rapidly and, above all, safely, since
both hands can remain on the steering
wheel.
To shift up or down with one of the two
shift paddles:
>Pull the shift paddle:
Transmission shifts up
>Press the shift paddle:
Transmission shifts down.
M1 to M6 appear in the gear indicator.
The transmission will only execute upshifts
or downshifts that will result in a plausible
combination of vehicle speed and engine
rpm, e.g. downshifts that would result in
excessive engine speed are not executed.
In the MINI COOPER S, with the selec-
tor lever in position D, automatic
mode, you can shift gears using the shift
paddles on the steering wheel. The trans-
mission automatically switches to manual
mode. If you do not shift gears with the
shift paddles or accelerate for a certain
amount of time, the transmission auto-
matically returns to automatic mode.<
Malfunction
EP appears on the display. The transmission
system is malfunctioning. Avoid high loads.
All selector lever positions can still be
engaged; in the forward driving positions,
however, the vehicle can only be driven
with a limited gear selection.
Have the system checked immediately.
Jump-starting and towing, refer to
page140 ff.

113
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
1 Reservoir for windshield and rear
window washer system
*63
2 Vehicle identification number3 Coolant expansion tank115
4 Engine oil filler neck114
5 Auxiliary terminal for
jump-starting1406 Brake fluid reservoir117
7 Reservoir for headlamp cleaning
system
*63
8 Engine oil dipstick114
ENGINE COMPARTMENT: MINI COOPER S AND MINI COOPER S CONVERTIBLE

138
VEHICLE BATTERY
Storage location
MINI COOPER and MINI COOPER Convert-
ible:
The battery is located in the engine com-
partment, refer to page112.
MINI COOPER S and MINI COOPER S Con-
vertible:
The battery is located in the luggage com-
partment under the floor mat.
Battery care
The battery is absolutely maintenance-free,
that is, the original electrolyte will normally
last for the service life of the battery under
moderate climatic conditions. Your MINI
Dealer will be glad to advise you if you have
any questions regarding the battery.
Charging the battery
Only charge the battery in the vehicle via
the terminals in the engine compartment
with the engine switched off, refer to
'Jump-starting', page140.
Disposal
After replacing old batteries, return
the used batteries to your MINI
Dealer or to a recycling point. Maintain the
battery in an upright position for transport
and storage. Secure the battery to prevent
it from tilting during transport.<
Power failure
After a temporary power failure, e.g. due to
a discharged battery, some of your vehicle's
equipment will function only to a limited
extent and must be reinitialized or read-
justed. Individual settings are also lost and
must be reprogrammed:
>The clock must be reset, refer to page66
>The power windows must be reinitial-
ized, refer to page32
>Radio
*:
The stations must be reset, refer to the
Owner's Manual for Radio
>Navigation system
*:
It may take some time for its operability
to be restored, refer to the Owner's Man-
ual for Navigation System.

140
JUMP-STARTING
When your battery is discharged, you can
use two jumper cables to start your vehicle
with power from the battery in a second
vehicle. Correspondingly you can help start
another vehicle. Only use jumper cables
with fully insulated handles on the termi-
nal clamps.
Preparing for jump-starting
Do not touch live wiring and cables
on a running engine. There is a risk of
fatal injury if you do this. Carefully observe
the following instructions to avoid per-
sonal injury and/or damage to either vehi-
cle or both vehicles. Make sure that there is
no contact between the bodywork of the
two vehicles to avoid a short circuit haz-
ard.<
1. Check whether the battery of the sup-
port vehicle has 12 Volts and approxi-
mately the same capacity measured in
Ah. These data are printed on the bat-
tery
2. Switch off the engine of the support
vehicle
3. Switch off any electrical systems and
components in both vehicles.
Connect the jumper cables
Always adhere to this sequence when
connecting the jumper cables; failure
to observe this procedure can lead to spark-
ing and pose an injury hazard. starting terminal on the MINI COOPER S
and the MINI COOPER S Convertible.
In the MINI COOPER S and the MINI
COOPER S Convertible, the auxiliary jump-
starting terminal, arrow 1, acts as the posi-
tive battery terminal, refer to view of
engine compartment on page113. The
cover is marked with a +.
1. Remove the cover of the battery or open
the cover of the auxiliary jump-starting
terminal:
>MINI COOPER and MINI COOPER Con-
vertible:
Remove the battery cover.
To do so, press the two clips simulta-
neously.
>MINI COOPER S and MINI COOPER S
Convertible:

141
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
JUMP-STARTING TOWING AND TOW-STARTING
Open the cover of the auxiliary jump-
starting terminal, arrow 1
2. Connect one terminal clamp of the
plus/+ jumper cable to the positive bat-
tery terminal or to an auxiliary jump-
starting terminal of the support vehicle
3. Connect the other terminal clamp of the
plus/+ jumper cable to the positive bat-
tery terminal or to an auxiliary jump-
starting terminal of the vehicle to be
started
Engine or body ground in your MINI or MINI
Convertible: arrow 2.
4. Connect one terminal clamp of the
minus/– jumper cable to the negative
battery terminal or to an engine or body
ground of the support vehicle
5. Connect the second terminal clamp of
the minus/– jumper cable to the nega-
tive terminal of the battery or to the
engine or body ground of the vehicle to
be started.Performing the jump-start
1. Start the engine of the support vehicle
and allow it to run at increased idle
speed for several minutes
2. Start the engine of the other vehicle in
the usual manner.
If the first start attempt is not success-
ful, wait a few minutes before another
attempt in order to allow the discharged
battery to recharge
3. Allow the engines of both vehicles to run
for several minutes.
On the MINI or MINI Convertible:
Before disconnecting the jumper
cables, switch on the lighting, the rear
window defroster and the highest
blower speed to prevent a voltage surge
from the regulator to the electrical sys-
tems and components.<
4. Then disconnect the jumper cables in
the reverse order.
If necessary have the battery checked and
completely charged at a MINI Dealer.
Do not use spray starter fluids to start
the engine.<
Observe all applicable laws and regu-
lations for towing and tow-start-
ing.<
Do not transport any occupant other
than the driver in a vehicle that is
being towed.<
Using the towing eyelet
The screw-in towing eyelet is stored in the
onboard tool kit, refer to page126; be sure
that it remains with the vehicle at all times.
It can be attached at the front or rear of
your vehicle.
Use only the towing eyelet supplied
with the vehicle and screw it in firmly
until it stops. Use the towing eyelet for
towing on paved roads only. Avoid subject-
ing the towing eyelet to lateral loads, e.g.
do not lift the vehicle using the towing eye-
let. Otherwise, the towing eyelet and the
vehicle could be damaged.<

143
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX

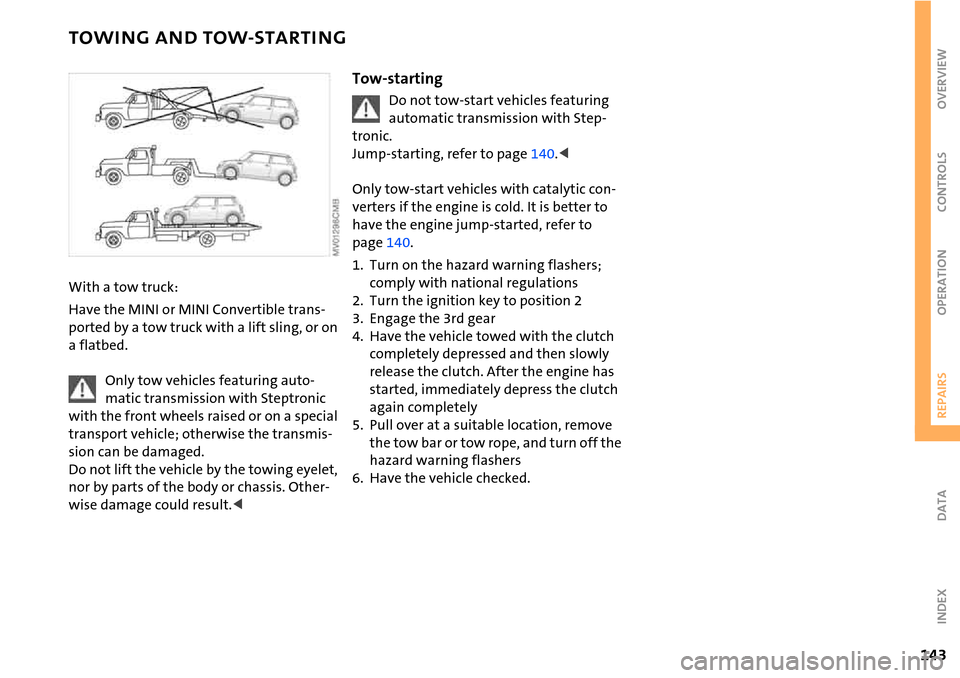

TOWING AND TOW-STARTING
With a tow truck:
Have the MINI or MINI Convertible trans-
ported by a tow truck with a lift sling, or on
a flatbed.
Only tow vehicles featuring auto-
matic transmission with Steptronic
with the front wheels raised or on a special
transport vehicle; otherwise the transmis-
sion can be damaged.
Do not lift the vehicle by the towing eyelet,
nor by parts of the body or chassis. Other-
wise damage could result.<
Tow-starting
Do not tow-start vehicles featuring
automatic transmission with Step-
tronic.
Jump-starting, refer to page140.<
Only tow-start vehicles with catalytic con-
verters if the engine is cold. It is better to
have the engine jump-started, refer to
page140.
1. Turn on the hazard warning flashers;
comply with national regulations
2. Turn the ignition key to position 2
3. Engage the 3rd gear
4. Have the vehicle towed with the clutch
completely depressed and then slowly
release the clutch. After the engine has
started, immediately depress the clutch
again completely
5. Pull over at a suitable location, remove
the tow bar or tow rope, and turn off the
hazard warning flashers
6. Have the vehicle checked.

EVERYTHING FROM A TO Z
154
A
ABS Antilock Brake System71
indicator lamp17,18
Accessories, refer to Your
individual vehicle6
Activated-charcoal filter83
Adjusting interior
temperature79,82
Air circulation, refer to
Recirculated air mode79,82
Air conditioning system78
Air distribution
air conditioning system79
automatic climate control82
Air outlets, refer to
Ventilation80,83
Air pressure, refer to Tire
inflation pressure101
Air volume
air conditioning system79
automatic climate control82
Airbags75
passenger airbag status
lamp76
safe seating position42
warning lamp18
AKI, refer to Fuel quality99
All Season traction Control
(ASC)71
indicator lamps17,18 All-season tires, refer to Winter
tires110
Antenna120
Antifreeze
coolant115
washer fluid63
Antilock Brake System (ABS)71
indicator lamp17,
18
Anti-theft system24
Approved axle load, refer to
Weights149,150
Approved engine oils115
Approved gross vehicle weight,
refer to Weights149,150
ASC All Season traction
Control71
indicator lamps17,18
Ashtray85
Assistant systems, refer to
All Season traction Control
(ASC)71
Dynamic Stability Control
(DSC)71
AUTO program, refer to
Automatic air distribution82
Automatic
air distribution82
air volume82
cruise control64
Automatic car washes119
Automatic climate control81 Automatic transmission with
Steptronic
ignition53
indicator lamp57
interlock53
selector lever lock56
shiftlock56
towing142
tow-starting143
Average consumption70
setting units70
Average speed70
setting units70
Axle loads, refer to
Weights149,150
B
Backrests, refer to
Adjusting seats44
Backup lamp
bulb replacement129
Bar, towing142
Base plate for telephone or
mobile phone84
Battery138
charging138
disposal138
indicator lamp16
jump-starting140
power failure138
Battery care68,118 Belts, refer to Safety belts46
Beverage holders85
Black ice, refer to Temperature
warning69
Blower
air conditioning system79
automatic climate control82
Blower, refer to Air volume79
Blowers, refer to Draft-free
ventilation80,83
Bonnet111
indicator lamp17
Bottle holders, refer to
Beverage holders85
Brake discs
brake system97
break-in procedures96
Brake fluid117
level117
warning lamp16
Brake lamps, bulb
replacement129
Brake pads117
break-in procedures96

warning lamp18
Brake system117
brake fluid117
brake pads117
break-in procedures96
disc brakes97
warning lamp17
