2006 Mercury Milan display

Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”).If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is
running or hot.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The FUEL icon and arrow indicates
which side of the vehicle the fuel
filler door is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Tachometer:Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Odometer:Registers the total miles
(kilometers) of the vehicle.
Refer toMessage Centerin the
Driver Controlschapter on how to
switch the display from Metric to
English.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

Trip odometer:Registers the miles
(kilometers) of individual journeys.
Press and release the message
center INFO button until “TRIP”
appears in the display (this
represents the trip mode). Press the
control again to select Trip A and Trip B features. Press and hold the
RESET button for two seconds to reset.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
15

Autoset:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use
/to set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
/to adjust the bass setting.
Treble:Press
/to adjust the treble setting.
Balance:Press
/to adjust the audio between the left and right
speakers.
Fade:Press
/to adjust the audio between the front and rear
speakers.
Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Press MENU
to access and use
/to adjust. The recommended level is 1–3.
Level 0 (SPEED OFF) turns the feature off and level 7 is the maximum
setting.
Track/folder mode:Available only on MP3 discs in CD mode.
Press
/to toggle between Track and Folder modes when in Menu
mode.
In Track mode, press
SEEKto scroll through all tracks on the
disc.
In Folder mode, press
SEEKto scroll through tracks within the
selected folder.
Compression:Brings soft and loud CD passages together for a more
consistent listening level when in CD mode. Press MENU until
compression status is displayed. Press
/to turn the feature on/off.
4.AUX:This control is not
operational.
5.SEEK
: Press to access the
next strong station or track.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
17

6.Play/Pause:Press to pause the
CD that is playing. PAUSE will
appear in the display. Press again to
return to playback mode.
7.SHUFFLE:Press to play all
tracks on the current CD/MP3 in
random order.
8.FOLDER
: In folder mode,
press to access next folder on MP3
discs, if available.
9.
FOLDER:In folder mode,
press to access the previous folder
on MP3 discs, if available.
10.FF (Fast forward):Press to
manually advance in a CD track.
11.REW (Rewind):Press to
manually reverse in a CD track.
12.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You can save a total
of 18 stations, six in AM, six in FM1 and six in FM2.
13.TEXT/SCAN:Press and hold
SCAN for a brief sampling of radio
stations or CD tracks. Press again to
stop.
In CD/MP3 mode, press TEXT to display track title, artist name, disc title
and file name (if available).
14.
SEEK:Press to access the
previous strong station or track.
15.AM/FM:Press to select
AM/FM1/FM2 frequency band.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
18

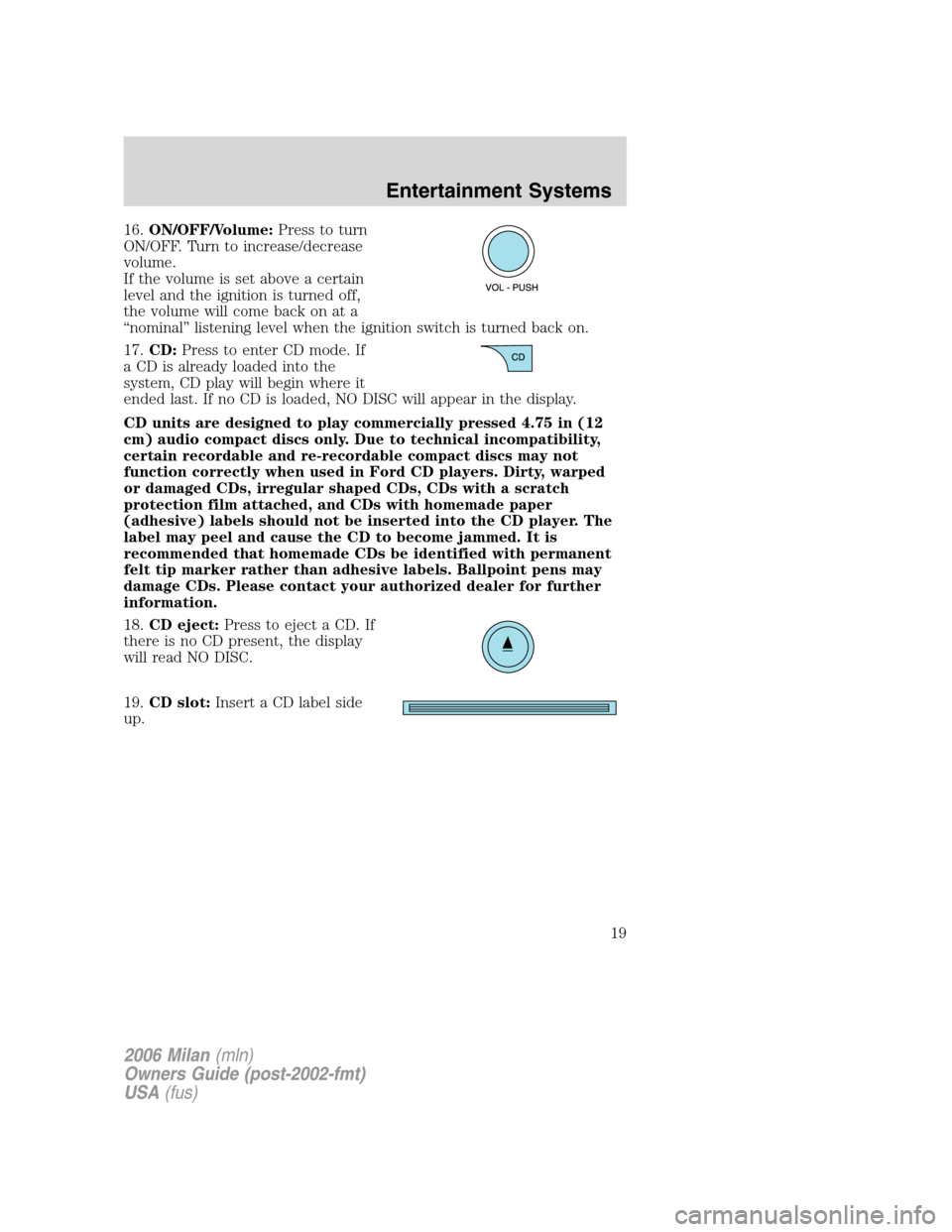

16.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17.CD:Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last. If no CD is loaded, NO DISC will appear in the display.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Dirty, warped
or damaged CDs, irregular shaped CDs, CDs with a scratch
protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the CD player. The
label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
felt tip marker rather than adhesive labels. Ballpoint pens may
damage CDs. Please contact your authorized dealer for further
information.
18.CD eject:Press to eject a CD. If
there is no CD present, the display
will read NO DISC.
19.CD slot:Insert a CD label side
up.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
19

3.MENU:Press to toggle through
the following modes:
Setting the clock:Your vehicle is equipped with an in-dash clock. Refer
toClockin theDriver Controlschapter for instructions on how to set
the time.
RBDS ON/OFF:Press
/to turn RBDS ON or OFF.
Program Type:If RBDS is ON, press
/to find the desired
program type, then use
SEEKor SCAN to search for FM radio
stations broadcasting the desired program type.
SHOW RBDS Info:If RBDS is ON, this allows you to display the name
of the FM radio station or program type. Press
/to show program
type, station name or none.
RBDS(Radio Broadcast Data Signal): Allows you to search
RBDS-equipped stations for the following music formats: Classical,
Country, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40 and Information
(Inform). RBDS is only available in FM mode.
Autoset:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 .
Use
/to turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
/to adjust the bass setting.
Treble:Press
/to adjust the treble setting.
Balance:Press
/to adjust the audio between the left and right
speakers.
Fade:Press
/to adjust the audio between the front and rear
speakers.
Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Use
/
to adjust. Recommended level is 1–3. Level 0 (SPEED OFF) turns the
feature off and level 7 is the maximum setting.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
21

Occupancy mode:(Available on Audiophile radios only) Use/to
select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR
SEATS.
Track/Folder Mode:Available only on MP3 discs in CD mode.
Press
/to toggle between Track and Folder mode.
In Track Mode, press
SEEKto scroll through all tracks on the
disc.
In Folder mode, press
SEEKto scroll through tracks in the
selected folder.
Compression:Brings soft and loud CD passages together for a more
consistent listening level when in CD mode. Press MENU until
compression status is displayed. Press
/to turn the feature on/off.
4.AUX:This control is not
operational.
5.Seek
: Press to access the
next strong station or track.
6.Play/Pause:Press to pause a CD
that is playing. PAUSE will appear in
the display. Press again to return to
playback mode.
7.SHUFFLE:In CD/MP3 mode,
press to play the tracks on the
current disc in random order.
8.FOLDER
: In folder mode,
press to access next folder on MP3
discs, if available.
9.
FOLDER:In folder mode,
press to access the previous folder
on MP3 discs, if available.
10.FF (Fast forward):Press to
manually advance in a CD track.
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22

11.REW (Rewind):Press to
manually reverse in a CD track.
12.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You can store up to
18 stations, six in AM, six in FM1 and six in FM2.
13.TEXT/SCAN:Press and hold
SCAN for a brief sampling of radio
stations or CD tracks. Press again to
stop.
In CD/MP3 mode, press TEXT to display track title, artist name, disc title
and file name (if available).
14.
SEEK:Press to access the
previous strong station or track.
15.AM/FM:Press to select
AM/FM1/FM2 frequency band.
16.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17.CD:Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last. If no CD is loaded, NO DISC will appear in the display.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Dirty, warped,
or damaged CDs, irregular shaped CDs, CDs with a scratch
protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the CD player. The
label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
2006 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
23
