59 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Parking brake lever
2Release button
Pull up parking brake lever1 firmly.
When the ignition is switched on or the
engine is running, the brake warning
lamp; (USA only) or3 (Canada
only) in the speedometer dial comes
on.
Warning!
G
Vehicles with manual transmission:
Wait until the vehicle is stationary before re-
moving the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Pull up the parking brake lever firmly.


Move the gear selector lever* to
position
P (manual transmission: first or
reverse gear).


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey in the starter switch
to position
0 and remove the SmartKey
from the starter switch.


Take the SmartKey and lock vehicle
when leaving.

211 Controls in detail
Audio system
Direct frequency input
Select desired waveband.

Press * button.

Enter desired frequency with
buttons1to R.Manual tuning

Select desired waveband.

PressGorHbutton for approx.
3 seconds.

Press button repeatedly until desired
frequency has been reached.
Step-by-step station tuning takes place
in ascending or descending order. Each
time the button is pressed, the radio
tunes further by 0.2 MHz. During
manual tuning, the radio is muted.
Automatic seek tuning

Select desired waveband.

PressGorHbutton briefly.
The radio will tune to the next highest
or next lowest receivable frequency.Scan search


Starting scan search
Select desired waveband.

Press
SC soft key.
SC will appear in the display. The
radio briefly (approximately
8 seconds) tunes in all receivable
stations on the waveband selected.


Ending scan search
Press
SC soft key orGorH.
The station last played will be
selected and
SC disappears from
the display.
iYou can only enter frequencies within
the respective waveband.
If a button is not pressed within
4 seconds, the radio will return to the
last station tuned.
iIf no station is received after two
consecutive scans of the complete
frequency range, then the scan stops
at the frequency from which it began.

213 Controls in detail
Audio system
Weather band
Press
WB soft key.
The weather band station last received
is tuned in.
Selecting a weather band station
directly

Select desired weather band station
with buttons 1 to 7.
If a station cannot be tuned in, a search
is automatically started.Search

PressGorHbutton to tune in
the next receivable weather band
station.Scan search


Starting scan search
Press
SC soft key.
SC will appear in the display. The
radio briefly (approximately
8 seconds) tunes in all receivable
weather band stations.


Ending scan search
Press
SC soft key orGorH.
The weather band station last
played will be selected and
SC
disappears from the display.
iIf no weather band station is received
after three consecutive scans of the
complete frequency range, then the
scan stops at the channel with which it
began and
NO WB FOUND
appears in the
display.
If this happens, switch back to
standard radio mode.

217 Controls in detail
Audio system


Selecting a category
Press
PTY
soft key.
The current PTY category of the
station is displayed.

Press
<<<
or
>>>
soft key.
This switches between the
individual categories.
When changing the category, the
channel selected last in the new
category becomes audible.The system will automatically switch to
a station of the selected category if the
currently selected station is not of the
selected category. Otherwise, the
currently selected station remains
tuned.


Tuning a station within the selected
category
The channels identified for the
currently selected category are
arranged numerically. Only one entry is
visible at a time.
PressGorHbutton briefly.
The next station within the category
is started.
or

Press and hold
GorHbutton for approx.
3 seconds until desired station has
been reached.Tuning via scan search
Scan search is characterized as follows:


Scan search plays a channel for
approx. 8 seconds and then skips to
the next channel within the current cat-
egory.


Scan search can be terminated
manually.

Press
SC soft key.
The search starts.
SC appears in the
display.

Press
SC soft key again.
The search stops.

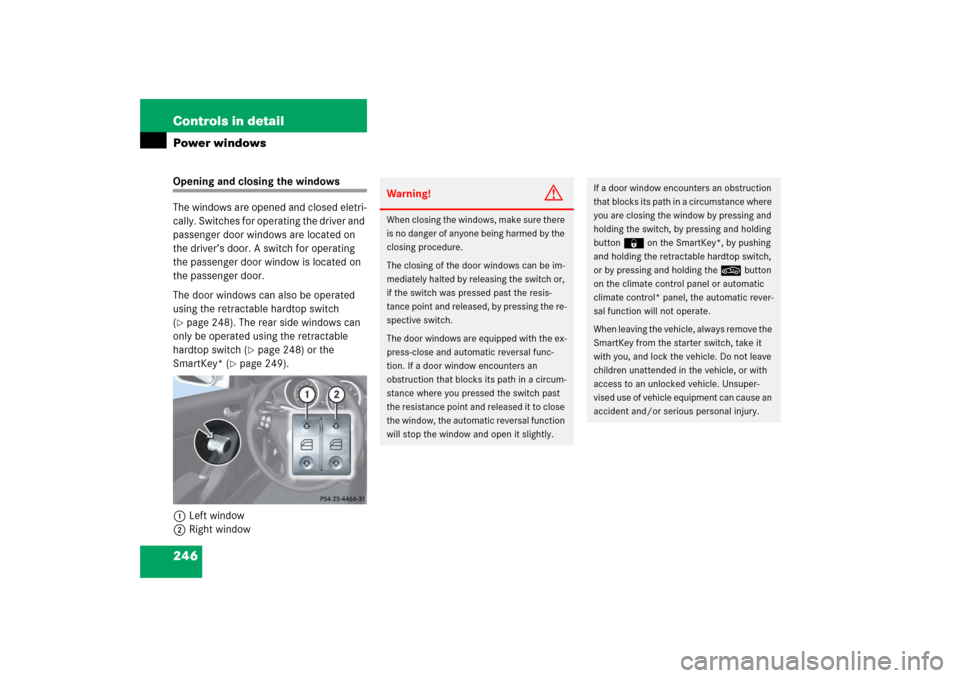

246 Controls in detailPower windowsOpening and closing the windows
The windows are opened and closed eletri-
cally. Switches for operating the driver and
passenger door windows are located on
the driver’s door. A switch for operating
the passenger door window is located on
the passenger door.
The door windows can also be operated
using the retractable hardtop switch
(page 248). The rear side windows can
only be operated using the retractable
hardtop switch (
page 248) or the
SmartKey* (
page 249).
1Left window
2Right window
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if the switch was pressed past the resis-
tance point and released, by pressing the re-
spective switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pressed the switch past
the resistance point and released it to close
the window, the automatic reversal function
will stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
button‹ on the SmartKey*, by pushing
and holding the retractable hardtop switch,
or by pressing and holding the ,button
on the climate control panel or automatic
climate control* panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.

394 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey, open the driver’s door and the
trunk using the mechanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 direction of arrow.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
iUnlocking and opening the driver’s
door and/or the trunk with the me-
chanical key will trigger the anti-theft
alarm system.
To cancel the alarm, do one of the
following:

Press buttonŒor‹on the
SmartKey.


Insert the SmartKey in the starter
switch.
