2006 MERCEDES-BENZ SL65AMG dimensions

Contents
Practical hints................................. 331
What to do if … .................................. 332
Lamps in the instrument cluster .. 332
AIRBAG OFF indicator lamp ......... 344
Vehicle status messages in the
multifunction display .................... 345
Where will I find ...? ........................... 383
First aid kit ................................... 383
Vehicle tool kit, jack, and
spare wheel.................................. 383
Locking/unlocking in an emergency . 385
Unlocking the vehicle ................... 385
Locking the vehicle ...................... 387
Lowering the load assist
manually ...................................... 388
Replacing SmartKey batteries ........... 389
SmartKey ..................................... 389
SmartKey with KEYLESS-GO* ...... 390
Replacing bulbs ................................. 391
Bulbs ............................................ 391
Replacing bulbs for front lamps ... 394
Replacing bulbs for rear lamps..... 396
Replacing wiper blades ...................... 397
Removing wiper blades ................ 397
Installing wiper blades................. 398Flat tire ............................................... 399
Preparing the vehicle .................... 399
Sealing tires with TIREFIT.............. 399
Mounting the spare wheel ............ 404
MOExtended system* ................... 411
Batteries ............................................. 413
Disconnecting the batteries .......... 415
Removing the batteries ................. 416
Charging and reinstalling
batteries ....................................... 417
Reconnecting the batteries ........... 418
Jump starting ...................................... 419
Towing the vehicle .............................. 421
Installing towing eye bolt .............. 423
Fuses .................................................. 425
Main fuse box ............................... 425
Emergency engine shut-down ....... 426
Technical data.................................. 427
Parts service ...................................... 428
Warranty coverage ............................. 429
Loss of Service and Warranty
Information Booklet ...................... 429
Identification labels ............................ 430
Layout of poly-V-belt drive.................. 431
SL 500 .......................................... 431
SL 55 AMG ................................... 431
SL 600, SL 65 AMG ...................... 431
Engine ................................................ 432
Rims and tires .................................... 434
Same size tires ............................. 436
Mixed size tires ............................. 438
MOExtended tires* ....................... 440
Spare wheel .................................. 441
Electrical system ................................ 442
Main dimensions ................................ 443
Weights .............................................. 444

313 Operation
Tires and wheels
Uniform Tire Quality Grading Standards
A tire information system that provides
consumers with ratings for a tire’s traction,
temperature and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The
ratings are molded into the sidewall of the
tire.
Vehicle capacity weight
Rated cargo and luggage load plus
68 kilograms (150 lbs) times the vehicle's
designated seating capacity.
Vehicle maximum load on the tire
Load on an individual tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle
weight and dividing it by two.
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a a
front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 284).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.If applicable to your vehicle’s tire configu-
ration, tires can be rotated according to
the tire manufacturer's recommended in-
tervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 284).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.
Warning!
G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.

404 Practical hintsFlat tireMounting the spare wheel Preparing the vehicle
Prepare the vehicle as described
(
page 399).

Turn spare wheel bracket counter-
clockwise to loosen.

Take the spare wheel out of the trunk.
Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level sur-
face:
Place one wheel chock or other
sizable object in front of and anoth-
er wheel chock or sizable object be-
hind the wheel that is diagonally
opposite to the wheel being
changed.Always try lifting the vehicle using the
jack on a level surface. However,
should circumstances require you to do
so on a hill, place a wheel chock or oth-
er sizable object and the other wheel
chock or sizeable object as follows:

Place wheel chocks or other sizable
objects on the downhill side block-
ing both wheels of the axle not be-
ing worked on.

Take the vehicle tool kit and the jack
out of the storage compartment under
the trunk floor (
page 383).

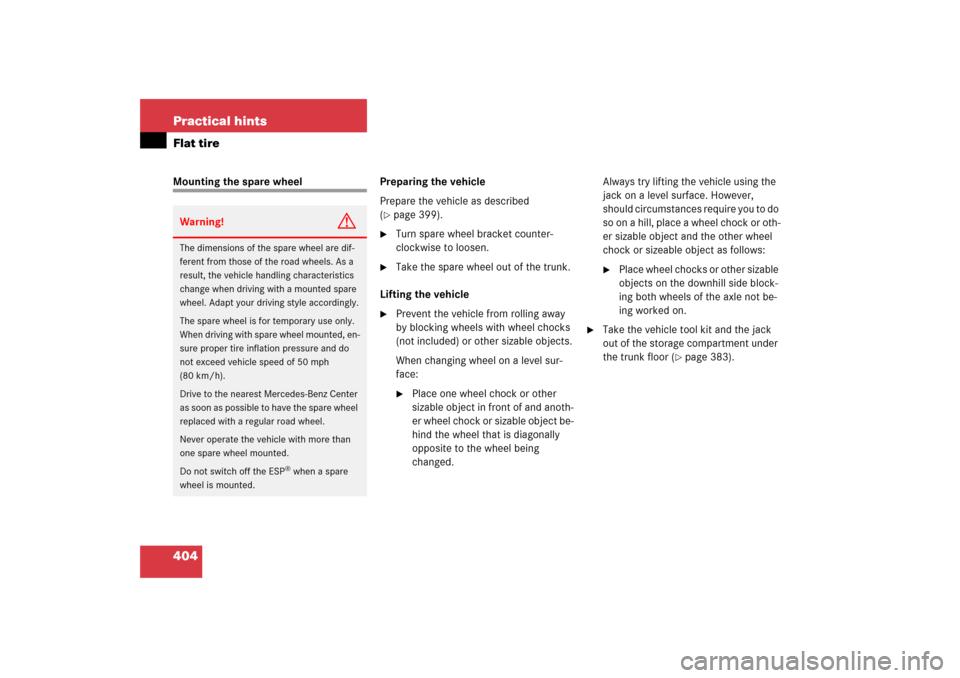

Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire inflation pressure and do
not exceed vehicle speed of 50 mph
(80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a spare
wheel is mounted.

427 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants, etc.

443 Technical data
Main dimensions
Main dimensions
Model
SL 500
SL 600
SL 55 AMG
SL 65 AMG
Overall vehicle length
178.5 in (4 535 mm)
178.5 in (4 535 mm)
178.5 in (4 535 mm)
178.5 in (4 535 mm)
Overall vehicle length when
opening/closing hardtop
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
185.6 in (4 713 mm)
Overall vehicle width
(exterior rear view mirrors folded out)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
80.5 in (2 045 mm)
Overall vehicle height
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
51.0 in (1 295 mm)
Overall vehicle height when
opening/closing hardtop
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
65.9 in (1 674 mm)
Wheelbase
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
100.8 in (2 560 mm)
Track, front
61.4 in (1 559 mm)
61.4 in (1 559 mm)
61.8 in (1 569 mm)
61.8 in (1 569 mm)
Track, rear
60.5 in (1 537 mm)
60.5 in (1 537 mm)
61.1 in (1 551 mm)
61.1 in (1 551 mm)

464 IndexCorner-illuminating front fog lamps* 127
Replacing bulbs 391
Courtesy lighting 131
Cruise control 204, 454
Messages in the multifunction
display 349, 350
Cup holder 232
Cup holders
Cleaning 329
Curb weight 310, 454
Customer Assistance Center see CAC
D
Daytime running lamp mode 125
Setting 152
Deep water see Standing water
Defogging, Windshield 187
Defrosting, Front 186
Defrosting, Rear 179
Delayed switch-off
Exterior lamps 154
Interior lighting 155
Department of Transportation see DOT
Difficulties
While driving 56
With starting the engine 50
Digital clock see ClockDigital speedometer 140
Dimensions, Vehicle 443
Direction of rotation (tires) 284
Displays
Digital speedometer 140
Distronic* 209
Maintenance service indicator 318
Multifunction display 135
Outside temperature 134, 140
Symbol messages 359
Text messages 347
Vehicle status message memory 144
Vehicle status messages 345
Distance to empty (range), Trip
computer 158
Distance warning function* 215
Activating 216
Deactivating 216
Intermittent warning sound 215
Symbol 143, 211
Distronic indicator lamp* 25Distronic* 207, 454
“Resume” function 214
Activating 212
Cleaning system sensor cover 325
Control system 143, 211
Distance warning function 215
Driving hints 216
System sensor cover 325
Warning and indicator lamps 209,
215, 338
Door
Control panel 32
Handle, Inside 32
Locking/unlocking,
KEYLESS-GO* 35, 62
Locking/unlocking, Mechanical
key 385, 387
Locking/unlocking, SmartKey 34, 62
Messages in the multifunction
display 369
Opening from inside 107
Storage compartment 228
Door control panel 32
Door handle 32
DOT 311, 454
Drinking and driving 257

475 Index
Storage compartments 228
Armrest 229
Cup holder 232
Glove box 228
In door 228
In rear 229
Locking compartments
separately 230
Locking storage compartments 230
Parcel net 231
Rear 229
Storage tray 229
Unlocking compartments
separately 230
Unlocking storage
compartments 230, 386
Ventilated compartments 191
Storing tires 283
Submenus 139
Convenience 156
Instrument cluster 149, 150
Lighting 152
Resetting functions 147
Selecting 147
Settings menus 147
Time 150Vehicle 155
Submenus see Control system submenus
Summer opening feature 199
Sun blind see Sunshade
Sun visors 178
Sunshade 203
Closing 203
Opening 203
Suspension tuning
For regular driving style 219
For sporty driving style 219
Suspension tuning (ABC) 219
Switching on
Front fog lamps 127
Rear fog lamp 127
Switching on headlamps 53
Symbol
Distance warning function* 143, 211
Synchronizing
ESP
®
354
Power windows 194
Synchronizing time with head unit 150
T
Tachometer 27, 133
Tail lamps 392, 396
Cleaning lenses 325Technical data
Electrical system 442
Main dimensions 443
Rims and tires 434
Weights 444
Windshield and headlamp washer
system 452
Tele Aid 238
Emergency calls 240
Information 243
Initiating an emergency call
manually 241
Messages in display 379
Roadside Assistance 241
SOS button 31, 241
Tele Aid system 238
Tele Aid System 458
Telephone* 28, 237
Answering a call 160
Dialing 160
Ending a call 160
Hands-free microphone 31
Loading phone book* 160
Messages in display 379
Operating 159
Redialing 161
