2006 MERCEDES-BENZ S430 set clock

25 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
141
2
Fuel gauge with fuel tank
reserve warning lamp
343
3
LLeft turn signal
indicator lamp
51
KRight turn signal
indicator lamp
51
4
Speedometer with:vElectronic Stability
Program (ESP
®)
warning lamp
345
lDistance warning
lamp
Vehicles without Distronic*:
Distance warning lamp with-
out function. It illuminates
when the ignition is on. It
should go out when the en-
gine is running.
344
5
Tachometer
142
Item
Page
6
Right display with: 345
AHigh beam headlamp
indicator lamp
50
-Antilock Brake
System (ABS)
indicator lamp
340
7
JReset button
140
8
Display with:

Gear selector lever
position
174


Program mode
174


Digital clock
(see COMAND operating
instructions)
9
Multifunction display with:

Trip odometer
141


Main odometer
141
Item
Page
a
Outside temperature
indicator
142
b
Left display with:1Supplemental
Restraint System
(SRS) indicator lamp
347
;Brake warning lamp,
USA only
341
3Brake warning lamp,
Canada only
341
?Engine malfunction in-
dicator lamp,
USA only
342
±Engine malfunction in-
dicator lamp, Canada
only
342
HTire inflation pressure
warning lamp
346
c
Knob for instrument cluster il-
lumination
140

140 Controls in detailInstrument clusterA full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 24).
1Reset buttonJ
The instrument cluster is activated when
you:


open a door


switch on the ignition (
page 34)


press the reset buttonJ1


switch on the exterior lamps
You can change the instrument cluster set-
tings in the instrument cluster submenu of
the control system (
page 163).

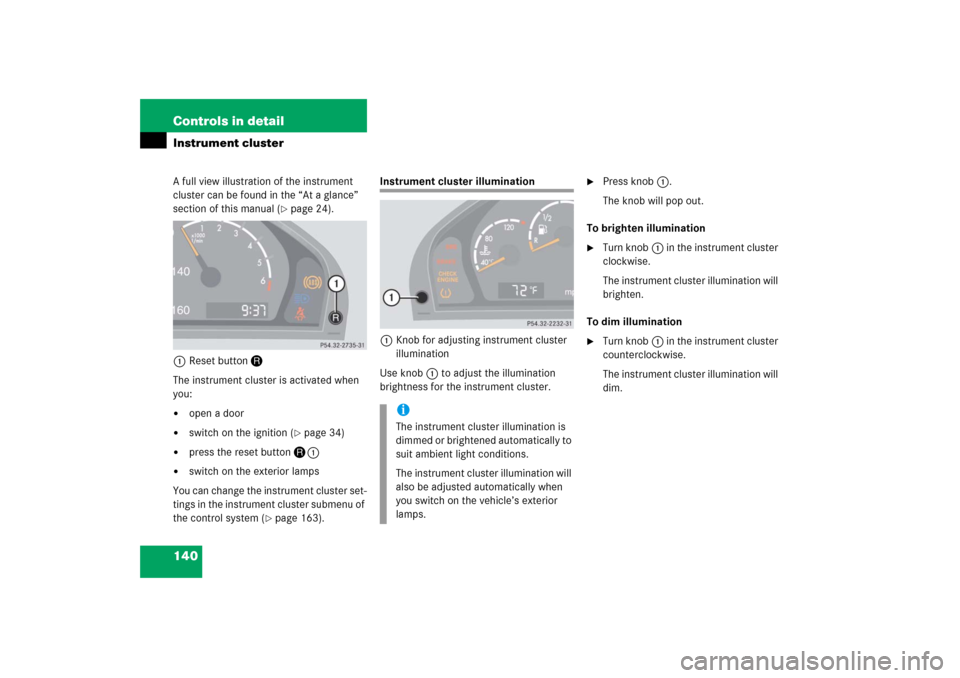

Instrument cluster illumination
1Knob for adjusting instrument cluster
illumination
Use knob1 to adjust the illumination
brightness for the instrument cluster.

Press knob1.
The knob will pop out.
To brighten illumination

Turn knob1 in the instrument cluster
clockwise.
The instrument cluster illumination will
brighten.
To dim illumination

Turn knob1 in the instrument cluster
counterclockwise.
The instrument cluster illumination will
dim.
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.

386 Practical hintsWhere will I find ...?
Spare wheel
Removing the spare wheel
Take out the vehicle tool kit tray2.

Loosen the luggage bowl3. To do so,
turn the luggage bowl counterclock-
wise.

Remove the spare wheel4.
Storing the spare wheel

Place spare wheel4 in wheel well.

Secure the spare wheel. To do so, turn
the luggage bowl3 clockwise to its
stop.

Place vehicle tool kit tray2 in luggage
bowl.
Spare wheel S350, S430, S500 and
S 600 (except Sport Package*)
The spare wheel rim is mounted with a full
sized tire of the same type as on the vehi-
cle, and it is fully functional.However, that spare wheel rim is weight
optimized and has a limited service life of
12 000 miles (20 000 km) use before a
standard wheel rim must replace it.
In case of flat tire, you may temporarily use
the spare wheel.
Do not operate vehicle with more than one
spare wheel mounted.
For more information, see “Rims and tires”
(
page 426).

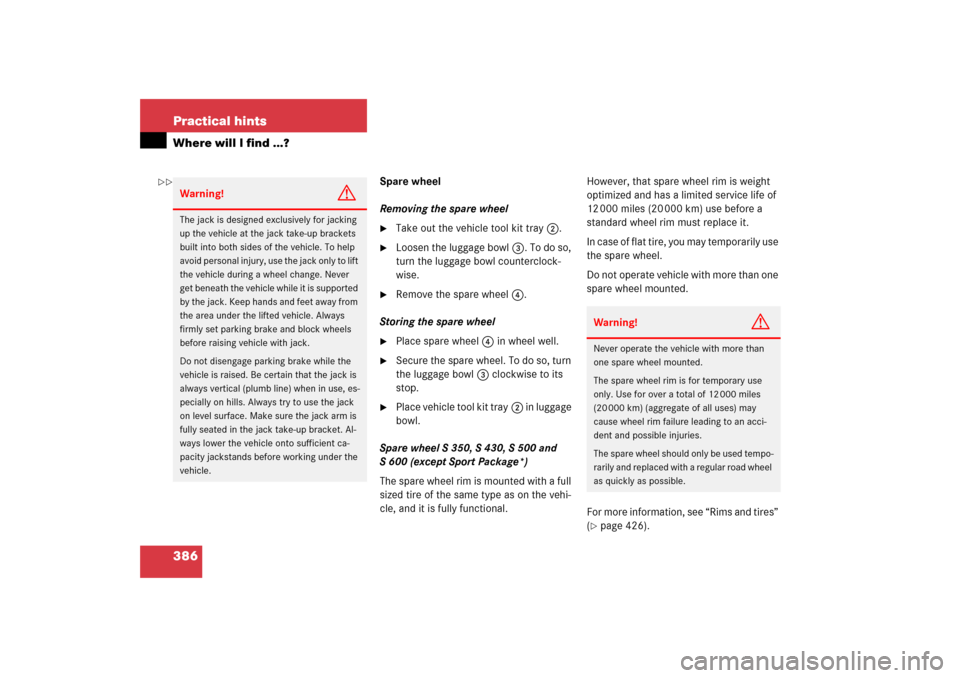

Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.
Warning!
G
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.


399 Practical hints
Replacing bulbs
Parking and standing lamp bulb
Press the tab on cover2 and remove
cover.

Pull out the bulb socket5 with the
bulb.

Pull the bulb out of the bulb socket5.

Insert a new bulb in the bulb socket5.

Reinstall the bulb socket5.

Press cover2 onto the housing until

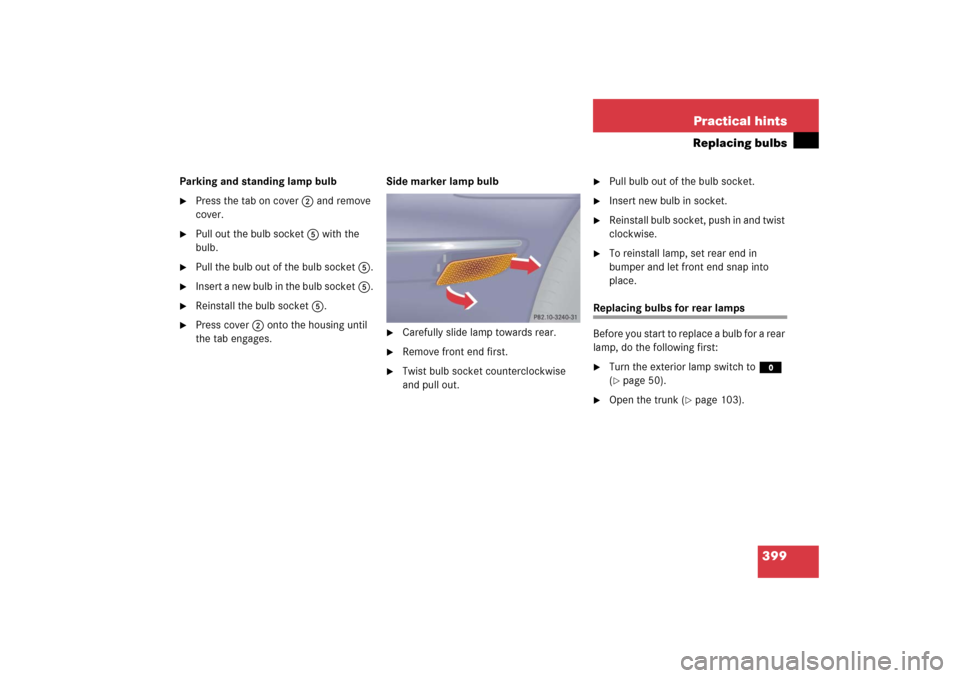

the tab engages.Side marker lamp bulb

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to M
(page 50).

Open the trunk (
page 103).

410 Practical hintsBatteryReconnecting the battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover2.

Connect negative lead3.Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.!Never invert the terminal connections.!The battery, its filler caps and the vent
tube must always be securely installed
when the vehicle is in operation.
iThe following procedures must be car-
ried out following any interruption of
battery power (e.g. due to reconnect-
ing):

Set the clock (see COMAND opera-
tor’s manual).


Synchronize the ESP
®
(
page 356).


Synchronize side windows
(page 210).


Synchronize tilt/sliding sunroof
(page 214).
