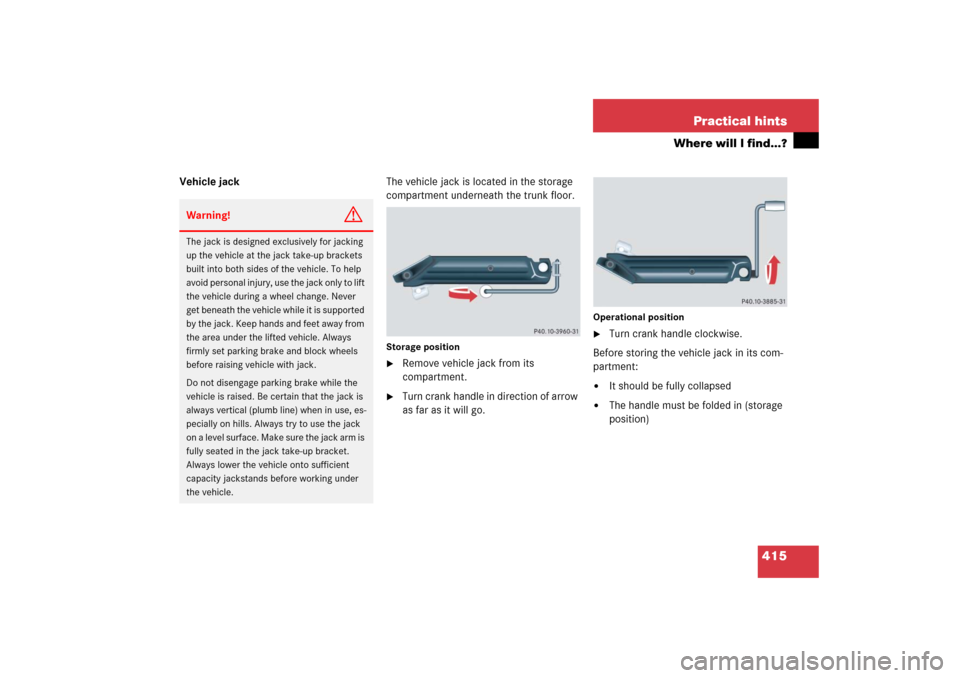

Page 416 of 514
415 Practical hints
Where will I find...?
Vehicle jackThe vehicle jack is located in the storage
compartment underneath the trunk floor.
Storage position
Remove vehicle jack from its
compartment.
Turn crank handle in direction of arrow
as far as it will go.
Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its com-
partment:
It should be fully collapsed
The handle must be folded in (storage
position)
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Page 448 of 514
447 Practical hints
Flat tire
Mounting the Minispare wheel
Preparing the vehicle
Prepare the vehicle as described on
(page 446).
Take the wheel wrench and the jack
out of the trunk (
page 416).
Take the Minispare wheel and wheel
bolts out of the trunk (
page 416).Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 413).
When changing wheel on a level surface:
Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should cir-
cumstances require you to do so on a hill,
place the wheel chock and the other size-
able object as follows:
Place the wheel chock and another
sizeable object on the downhill side
blocking both wheels of the axle not
being worked on.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Page 499 of 514
498 IndexEngine coolant see Coolant
Engine oil 322, 481
Adding 325, 481
Additives 481
Changing 325, 481
Checking level 320
Checking level (Dipstick) 324
Consumption 322
Filler cap 326
Filler neck 326
Messages in display 323, 401
Viscosity 488
Engine oil level 320, 323
ESP
®
25, 89, 488
Messages in display 387–388
Warning lamp 378
ETD 72, 488
Safety guidelines 66
Exterior rear view mirrors 43, 181
Parking position 161, 183F
Filler cap, Engine oil 326
Filler neck, Engine oil 326
First aid kit 413
Flat tire 446
Jacking up the vehicle 447
Lowering the vehicle 451
Minispare wheel 416
Mounting the spare wheel 447
Preparing the vehicle 446
Flexible Service System see FSS
(Canada vehicles)
Floormats* 287
Fluids
Brake fluid 320, 481
Engine coolant 327, 484
Engine oil 322, 481
Transmission fluid 326
Windshield washer and headlamp
cleaning* system 329, 486
Fog lamps 131, 439
Messages in display 405
Replacing bulbs 438, 439, 443
Front air bags 67
Front lamps see HeadlampsFront passenger front air bag 63, 67
Messages in display 389–392
Front passenger front
air bag off indicator lamp 27, 81, 381
FSS (Canada vehicles) 361, 488
Fuel 319, 479
Additives 483
Automatic transmission fluid 479
Brake fluid 479
Capacities 479
Capacities, Fuel tank 480
Engine coolant 480
Engine oil 479
Filling the tank 318
Fuel display 25
Fuel filler flap and cap 318, 421
Fuel filler flap and cap, Multifunction
display messages 400
Fuel reserve warning lamp 379
Power steering fluid 479
Premium
unleaded gasoline 319, 480, 482
Requirements, Octane rating 482
Technical data 479
Fuel cap
Message in display 376
Page 501 of 514
500 Index
Lamp sensor 405
Locator lighting 129
Low beam see Low beam headlamps
Manual headlamp mode 128
Messages in display 404–408
Night security illumination 129
Replacing bulbs 440, 443
Switch 52, 127
Headliner and shelf below rear window,
Cleaning and care of 371
Head-thorax air bag 68, 489
Heated seats* 122
High beam flasher 52, 131
Replacing bulbs
(Bi-Xenon*) 438, 442
Replacing bulbs
(Halogen) 438, 440
High beam headlamps 52, 131
Indicator lamp 25
Messages in display 405
Replacing bulbs
(Bi-Xenon*) 438, 439
Replacing bulbs
(Halogen) 438, 440
Replacing bulbs for high beam flasher
(Bi-Xenon*) 442Switching on 52, 131
High mounted brake lamp 439
Hood 321
Message in display 403
Horn 23
Hydroplaning 311
I
Identification labels 468
Identification number, Vehicle (VIN) 468
Ignition
with KEYLESS-GO* 36
with SmartKey 34
Immobilizer 92
Indicator lamps see
Lamps, indicator and warning
Infant and child restraint systems see
Children in the vehicle 75
Inflation pressure see
Tires, Inflation pressure
Inside door handle 30, 107
Instrument cluster 24, 136, 489
Cleaning 371
Illumination brightness 136
Lamps in 374–380
Messages in display see
Multifunction display messagesMultifunction display 140
Instrument lighting see Instrument cluster,
Illumination brightness
Instrument panel see Instrument cluster
Instruments and controls see Cockpit
Interior lighting 134
Delayed shut-off 159
Interior rear view mirror 43, 181
Antiglare position 181
Auto-dimming 182
Interior storage spaces see
Storage compartments
J
Jack 415
Jacking up the vehicle 447
Jump starting 456
