Contents
Maximum tire inflation pressure .. 352
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 353
Tire ply material ........................... 354
Tire and loading terminology ........ 355
Rotating tires ............................... 358
Winter driving .................................... 359
Winter tires .................................. 359
Block heater (Canada only) .......... 360
Snow chains................................. 360
Maintenance ...................................... 361
Maintenance
service indicator message............ 361
Clearing the maintenance
service indicator message............ 362
Maintenance
service term exceeded ................. 362
Calling up the maintenance
service indicator display............... 362
Resetting the maintenance
service indicator........................... 363
Vehicle care ....................................... 364
Cleaning and care of vehicle ........ 364
Practical hints.................................. 373
What to do if …? ................................. 374
Lamps in instrument cluster ......... 374
Lamp in center console................. 381
Vehicle status messages in the
multifunction display..................... 383
Where will I find...? ............................. 413
First aid kit .................................... 413
Vehicle tool kit .............................. 413
Minispare wheel............................ 416
Spare wheel bolts ......................... 418
Unlocking/locking in an emergency... 419
Unlocking the vehicle.................... 419
Locking the vehicle ....................... 420
Fuel filler flap ................................ 421
Manually unlocking
the gear selector lever .................. 422
Opening/closing in an emergency ..... 423
Operating roll bars manually ......... 423
Soft top emergency operation ...... 425
Resetting activated head restraints .... 434
Resetting
activated head restraints .............. 434Replacing SmartKey batteries ............ 435
SmartKey ...................................... 436
SmartKey with KEYLESS-GO* ....... 437
Replacing bulbs .................................. 438
Bulbs............................................. 438
Replacing bulbs for front lamps .... 440
Replacing bulbs for rear lamps ..... 443
Replacing wiper blades ...................... 444
Removing and installing
wiper blades ................................. 444
Flat tire............................................... 446
Preparing the vehicle .................... 446
Mounting the Minispare wheel...... 447
MOExtended system* ................... 452
Battery ............................................... 453
Disconnecting the battery ............ 454
Removing the battery ................... 454
Charging and
reinstalling the battery.................. 455
Reconnecting the battery ............. 455
Jump starting...................................... 456

52 Getting startedDrivingFor more information on driving, see “Driv-
ing instructions” (
page 307).

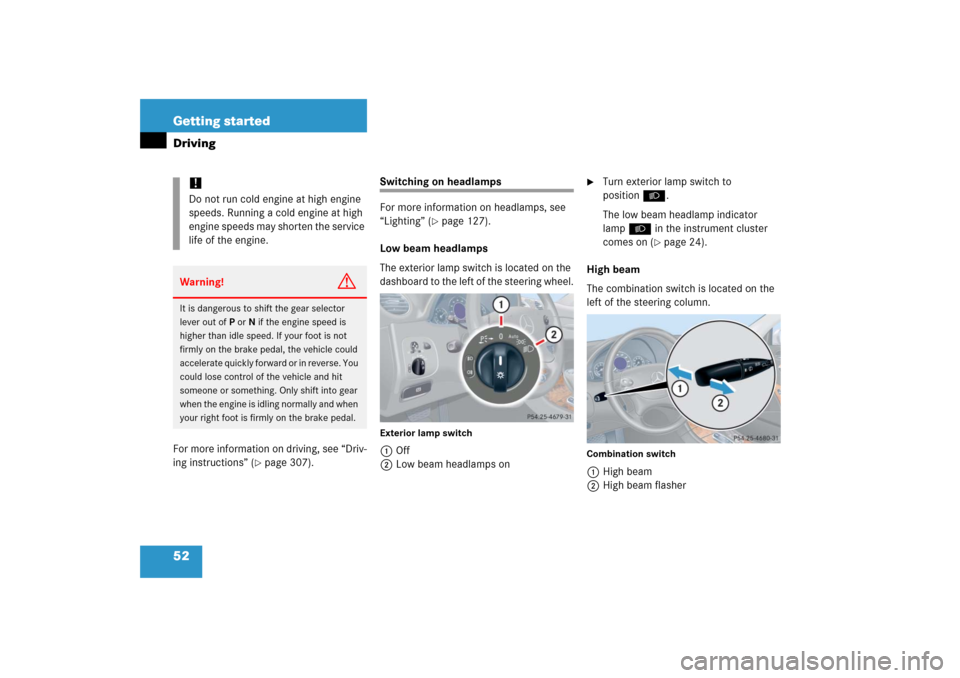

Switching on headlamps
For more information on headlamps, see
“Lighting” (
page 127).
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch1Off
2Low beam headlamps on

Turn exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 24).
High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
!Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.Warning!
G
It is dangerous to shift the gear selector
lever out ofPorN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

78 Safety and SecurityOccupant safetyOccupant Classification System
The O
ccupant C
lassification S
ystem (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the
occupant's weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category.
Both driver and the front passenger should
always use the 56 indicator lamp
as an indication of whether or not the front
passenger is properly positioned.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of
an accident.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system. Unsupervised
children in a child restraint system may use
vehicle equipment and may cause an
accident and/or serious personal injury.iThe system does not deactivate the
head-thorax air bag and the emergency
tensioning device.
iIf your seat, including your trim cover
and cushion needs to be serviced in
any way, take the vehicle to an
authorized Mercedes-Benz Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!
G
If the 56 indicator lamp illuminates
when an adult or someone larger than a
small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
56 indicator lamp goes out.
More information about air bag display
messages (
page 389).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child
restraint or if the front passenger seat is
sensed as being empty.


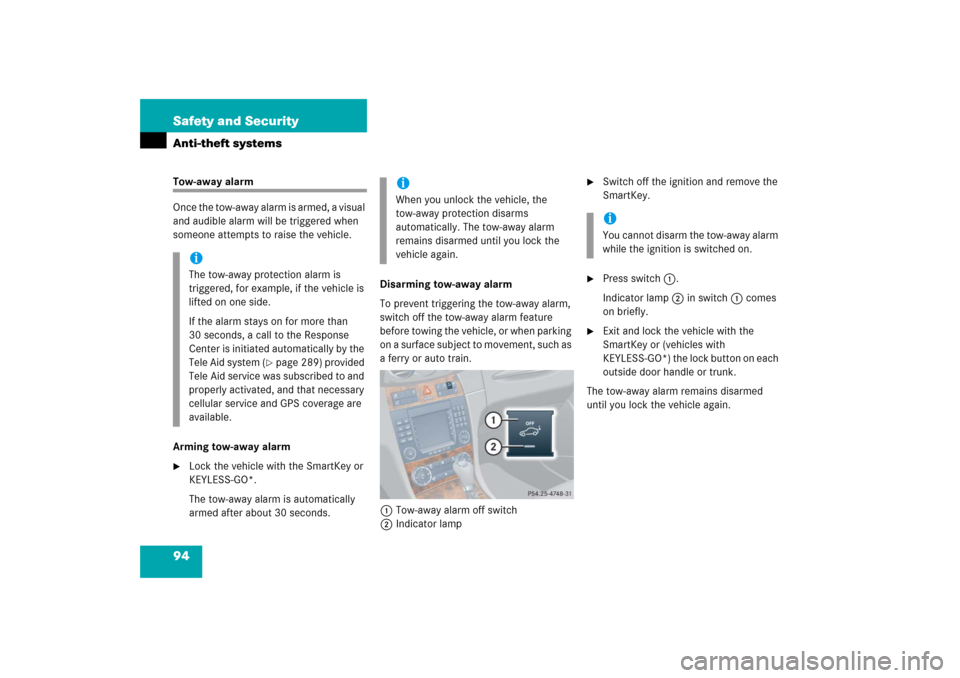

94 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The tow-away alarm is automatically
armed after about 30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
1Tow-away alarm off switch
2Indicator lamp

Switch off the ignition and remove the
SmartKey.

Press switch1.
Indicator lamp2 in switch1 comes
on briefly.

Exit and lock the vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) the lock button on each
outside door handle or trunk.
The tow-away alarm remains disarmed
until you lock the vehicle again.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 289) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iWhen you unlock the vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.

143 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Commands/submenusStandard display
AUDIO
NAV*
Vehicle status
message memory
1
1The vehicle status message memory menu is only displayed if there is a message stored.
Settings
Trip computer
Telephone*
(page 144)
(page 145)
(page 146)
(page 146)
(page 148)
(page 161)
(page 163)
Run Flat Indicator*
Select radio
station
Show route
guidance in-
structions, cur-
rent direction
traveled
Calling up vehicle
malfunction, warning
and system status
messages stored in
memory
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Digital speedometer
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Call up maintenance
service display
Operate CD
player
Time/Date sub-
menu
Call up range
Check engine oil lev-
el (except CLK 350)
Lighting
submenuVehicle submenuConvenience
submenu

144 Controls in detailControl systemStandard display menu
In the standard display, the outside tem-
perature and the trip odometer are shown
in the multifunction display.1Outside temperature
2Trip odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.

Press buttonk orjto select
the functions in the standard display
menu.
The following functions are available:Display digital speedometer

Press buttonj ork until the
digital speedometer appears in the
multifunction display.
The current vehicle speed is shown in
the multifunction display and the sta-
tus line appears.
1Digital Speedometer
2Status line with outside temperature
3Trip odometer
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the standard display. You
can select the setting in the submenu Instr. cluster
via the function
Basic
display
(page 152).
Function
Page
Run Flat Indicator
342
Call up digital speedometer
144
Call up maintenance service
display
362
Check engine oil level
323
iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the status line. You can se-
lect the setting in the submenu
Instr.
cluster
via the function
Status line
display
(page 152).

291 Controls in detail
Useful features

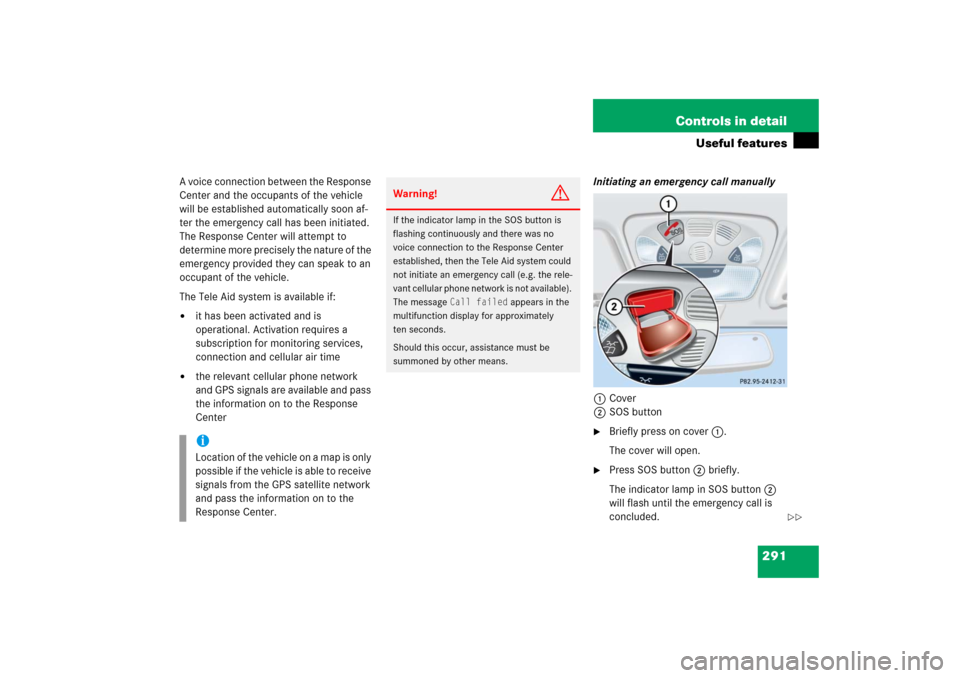

A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if:

it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
CenterInitiating an emergency call manually
1Cover
2SOS button

Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the
Response Center.
Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed
appears in the
multifunction display for approximately
ten seconds.
Should this occur, assistance must be
summoned by other means.


292 Controls in detailUseful features
Wait for a voice connection to the
Response Center.

Close cover1 after the emergency
call is concluded.Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.

Press and hold the •button (for
longer than two seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The •button will flash while the call
is in progress. The message Connecting call
will appear in the
multifunction display and the audio
system is muted.
When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle
occupants.
iThe indicator lamp on the Roadside
Assistance button• remains illumi-
nated in red for approximately ten
seconds during the system self-check
after switching on the ignition (together
with the SOS button and the Informa-
tion button¡).
