2006 MERCEDES-BENZ CLK COUPE bulb

Contents
Maximum tire inflation pressure .. 339
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 340
Tire ply material ........................... 341
Tire and loading terminology ........ 342
Rotating tires ............................... 345
Winter driving .................................... 346
Winter tires .................................. 346
Block heater (Canada only) .......... 347
Snow chains................................. 347
Maintenance ...................................... 348
Maintenance
service indicator message............ 348
Clearing the maintenance
service indicator message............ 349
Maintenance
service term exceeded ................. 349
Calling up the maintenance
service indicator display............... 349
Resetting the maintenance
service indicator........................... 350
Vehicle care ....................................... 351
Cleaning and care of vehicle ........ 351
Practical hints.................................. 359
What to do if …? ................................. 360
Lamps in instrument cluster ......... 360
Lamp in center console................. 368
Vehicle status messages in the
multifunction display..................... 370
Where will I find...? ............................. 398
First aid kit .................................... 398
Vehicle tool kit .............................. 398
Minispare wheel............................ 401
Spare wheel bolts ......................... 403
Unlocking/locking in an emergency... 404
Unlocking the vehicle.................... 404
Locking the vehicle ....................... 405
Manually unlocking
the gear selector lever .................. 406
Opening/closing in an emergency ..... 407
Power tilt/sliding sunroof* ........... 407
Resetting activated head restraints .... 408
Resetting
activated head restraints .............. 408Replacing SmartKey batteries ............ 409
SmartKey ...................................... 410
SmartKey with KEYLESS-GO* ....... 411
Replacing bulbs .................................. 412
Bulbs............................................. 412
Replacing bulbs for front lamps .... 414
Replacing bulbs for rear lamps ..... 417
Replacing wiper blades ...................... 418
Removing and installing
wiper blades ................................. 418
Flat tire............................................... 420
Preparing the vehicle .................... 420
Mounting the Minispare wheel...... 421
MOExtended system* ................... 425
Battery ............................................... 426
Disconnecting the battery ............ 427
Removing the battery ................... 428
Charging and
reinstalling the battery.................. 428
Reconnecting the battery ............. 429
Jump starting...................................... 430

307 Operation
At the gas station
Check regularly and before a long tripEngine compartment (CLK 500, example)1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Coolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 314) and see “Fu-
els, coolants, lubricants, etc.”
(
page 452).
Brake fluid
Removing fuse box cover,
see (page 437).Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(
page 316).
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 309).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 412).
For more information, see “Exterior lamp
switch” (
page 52).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 328).
iOpening the hood, see (
page 308).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see also “Practi-
cal hints” (
page 361).

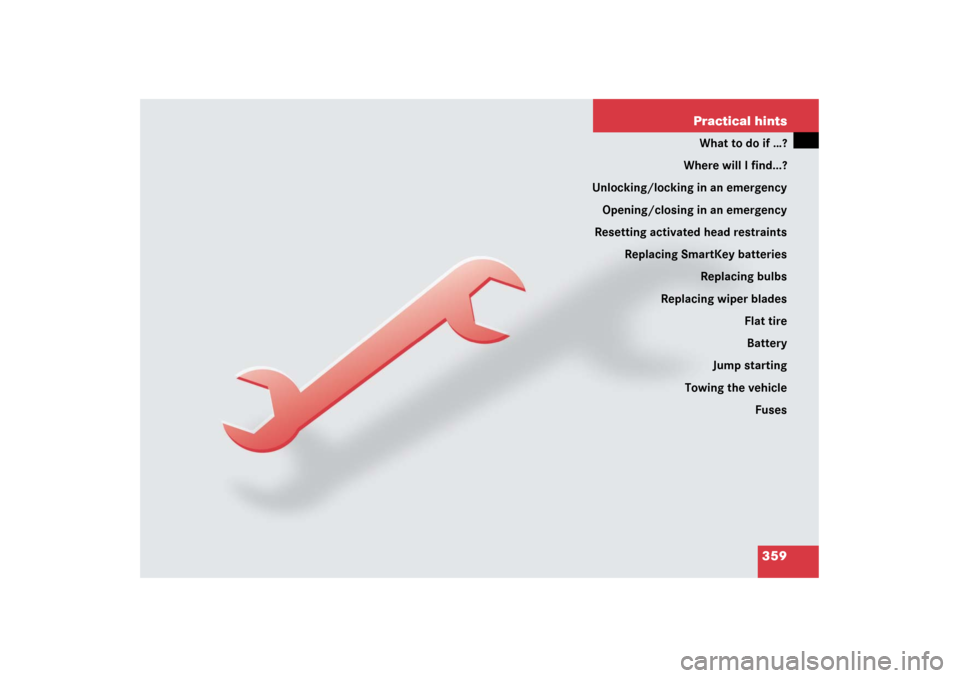

359 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Resetting activated head restraints
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

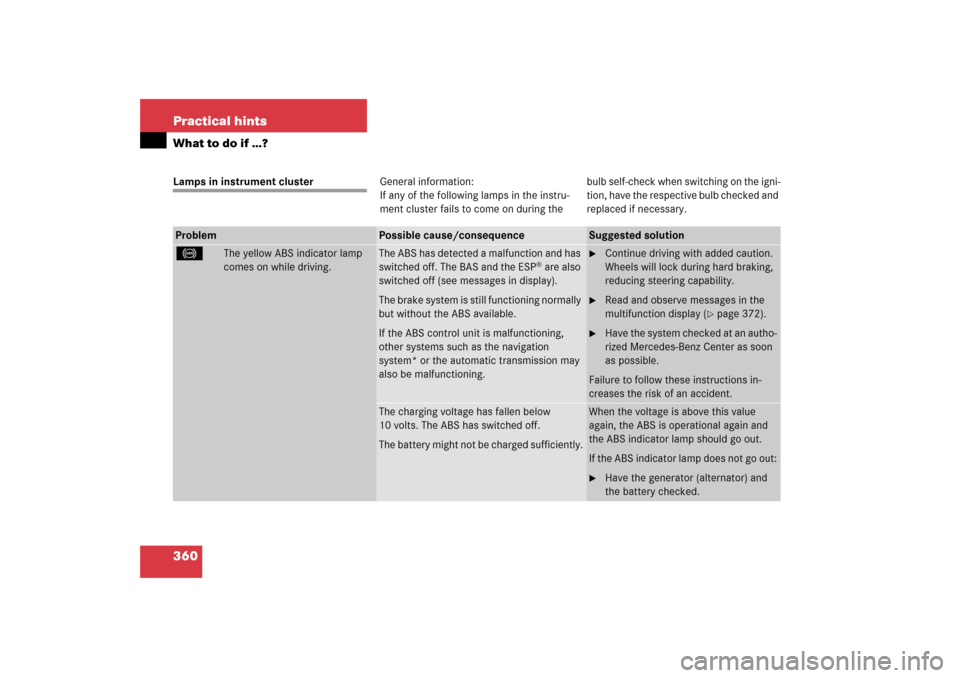

360 Practical hintsWhat to do if …?Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow ABS indicator lamp
comes on while driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP
® are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission may
also be malfunctioning.

Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.

Read and observe messages in the
multifunction display (
page 372).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged sufficiently.
When the voltage is above this value
again, the ABS is operational again and
the ABS indicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and
the battery checked.

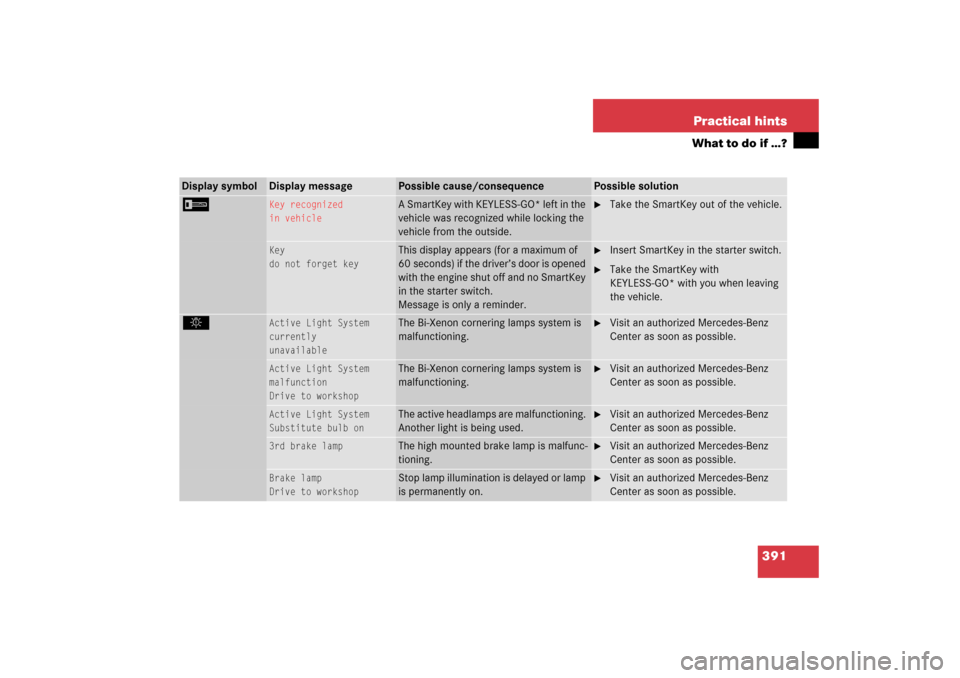

391 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
I
Key recognized
in vehicle
A SmartKey with KEYLESS-GO* left in the
vehicle was recognized while locking the
vehicle from the outside.

Take the SmartKey out of the vehicle.
Key
do not forget key
This display appears (for a maximum of
60 seconds) if the driver’s door is opened
with the engine shut off and no SmartKey
in the starter switch.
Message is only a reminder.

Insert SmartKey in the starter switch.

Take the SmartKey with
KEYLESS-GO* with you when leaving
the vehicle.
.
Active Light System
currently
unavailable
The Bi-Xenon cornering lamps system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Active Light System
malfunction
Drive to workshop
The Bi-Xenon cornering lamps system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Active Light System
Substitute bulb on
The active headlamps are malfunctioning.
Another light is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
3rd brake lamp
The high mounted brake lamp is malfunc-
tioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp
Drive to workshop
Stop lamp illumination is delayed or lamp
is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.

392 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause/consequence
Possible solution
.
Brake lamp, left
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, right
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display malfunction
Visit workshop
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp, left
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Front foglamp, right
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
High beam, left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
Light sensor
Drive to workshop
The light sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp opera-
tion to manual (
page 160).

Switch on headlamps using the exteri-
or lamp switch.

Visit an authorized Mercedes-Benz
Center as soon as possible.
License plate lamp,
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.

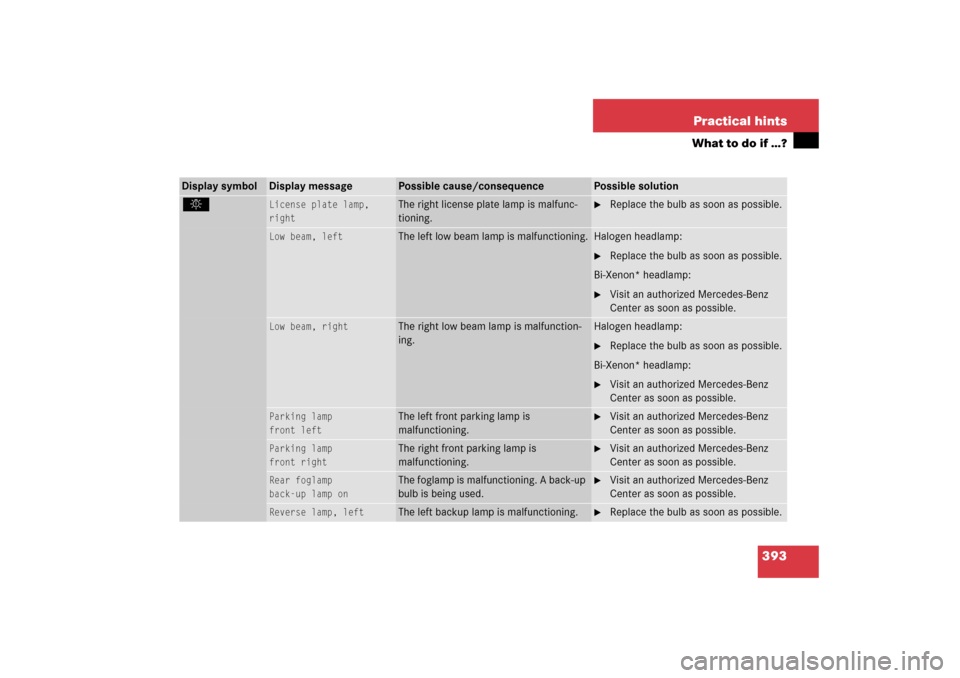

393 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Low beam, left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam, right
The right low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front left

The left front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front right

The right front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
back-up lamp on

The foglamp is malfunctioning. A back-up
bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Reverse lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.

394 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause/consequence
Possible solution
.
Reverse lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Side marker lamp
front left
The front left side marker lamp is malfunc-
tioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp left
back-up lamp on

The left tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp right
back-up lamp on

The right tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Turn off the headlamps.
Turn signal,
front left
The left front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
front right

The right front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
left mirror
The turn signal in the left exterior rear
view mirror is malfunctioning. This mes-
sage will only appear if all light emitting di-
odes have stopped working.

Have the LEDs replaced as soon as
possible.
