2006 MERCEDES-BENZ C55AMG engine

304 Operation
Engine compartment
Windshield washer system and
headlamp cleaning system*
The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system* is supplied
from the windshield washer reservoir. It
has a capacity of:

3.2 US qt (3.0 l) in vehicles without
headlamp cleaning system

6.4 US qt (6.0 l) in vehicles with
headlamp cleaning systemDuring all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed
windshield washer solvent/antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below the
freezing point. Failure to do so could
result in damage to the washer
system/reservoir.For more information, see “Windshield
washer and headlamp cleaning system*”
(
page 442).
Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!
Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.

336 Operation
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center. This service
includes:

Check of anticorrosion and antifreeze
concentration.

Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“MB SummerFit” to a premixed wind-
shield washer solvent/antifreeze
which is formulated for below freezing
temperatures (
page 442).

Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started,
even at low ambient temperatures.

Tire change.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
tires provide special winter performance.
Make sure the tires you use show M+S and
the mountain/snowflake.marking on
the tire sidewall. These tires meet specific
snow traction performance requirements
of the Rubber Manufacturers Association
(RMA) and the Rubber Association of Can-
ada (RAC) and have been designed specif-
ically for use in snow conditions. Use of
winter tires is the only way to achieve the
maximum effectiveness of the ABS and
ESP
® in winter operation.
For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available from your tire
dealer or from any authorized
Mercedes-Benz Center.
Warning!G
Winter tires with a tread depth of less than 1/6in (4 mm) must be replaced. They are no
longer suitable for winter operation.

337 Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block
heater.
The electrical cable may be installed at an
authorized Mercedes-Benz Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Please observe the following guidelines
when using snow chains:

Use of snow chains is not permissible
with all wheel/tire combinations.

Snow chains should only be used on
the rear wheels. Follow the manufac-
turer’s mounting instructions.

Only use snow chains that are
approved by Mercedes-Benz. Your
authorized Mercedes-Benz Center will
be glad to advise you on this subject.

Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
Warning!G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.
i
When driving with snow chains, you
may wish to deactivate the ESP®
(
page 84) before setting the vehicle
in motion. This will improve the
vehicle’s traction.
!
Some tire sizes do not leave adequate
clearance for snow chains. To help
avoid serious damage to your vehicle or
tires, use of snow chains is not permis-
sible with the following tire sizes:

225/40 ZR18 92Y XL

245/35 ZR18 92Y XL

145/70 - 17 92P (collapsible tire)

338 Operation
Maintenance
We strongly recommend that you have
your vehicle serviced by an authorized
Mercedes-Benz Center, in accordance with
the Maintenance Booklet at the times
called for by the maintenance service
indicator display.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times /mileage will result in
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.Maintenance service indicator
message
The maintenance service indicator will
notify you when your next maintenance
service is due.
Starting approximately 1 month before
your next maintenance service is due, one
of the following messages will appear in
the multifunction display while you are
driving or when you switch on the ignition
(example service A):
Service A in XXXXX Miles(Km)
Service A in XXX Days
Service A due now
The type of maintenance service due is
indicated in the multifunction display:
9Basic service (A)
½Extended service (B)
i
Vehicles equipped with FSS (Flexible
S
ervice System) only (Canada
vehicles): The interval between
maintenance services depends on your
driving habits. A gentle driving style,
moderate engine speeds and the
avoidance of short-distance trips will
lengthen the interval between services.

340 Operation
Maintenance
Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz.i
If the battery is disconnected, the days
of disconnection will not be included in
the count shown by the maintenance
service indicator. To arrive at the true
maintenance service deadline, you will
need to subtract these days from the
days shown in the maintenance service
indicator message or maintenance ser-
vice indicator display.
Do not confuse the maintenance
service indicator with the engine oil
level indicatorN.
i
If the maintenance service indicator
was inadvertently reset, have an
authorized Mercedes-Benz Center
correct it.
Only reset if the proper maintenance
service has been performed. Resetting
the system without performing the
proper service as called for by the
maintenance service indicator will
result in engine damage and/or other
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.

343 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical compo-
nents and connectors from the intrusion of
water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the en-
gine compartment after every engine
cleaning. Before applying, all control
linkage bushings and joints should be
lubricated. The poly-V-belt and all pulleys
should be protected from any wax.
Vehicle washing
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the vehicle underbody, do
not forget to clean the inner sides of the
wheels.Hand-wash
Do not use hot water or wash your vehicle
in direct sunlight.
Only use a mild car wash detergent,
such as Mercedes-Benz approved Car
Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water.
Direct only a very weak spray towards
the ventilation intake.
Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clean water and thoroughly
dry with a chamois.
Do not allow cleaning agents to dry on
the finish.Automatic car wash
You can have your car washed in an auto-
matic car wash from the start. Automatic
car washes without brushes are prefera-
ble.
If the vehicle is very dirty, prewash it be-
fore running it through the automatic car
wash.
!
Do not clean your vehicle in an auto-
matic touchless car wash which uses
caustic spray. Otherwise the caustic
spray will damage the paint or orna-
mental moldings.

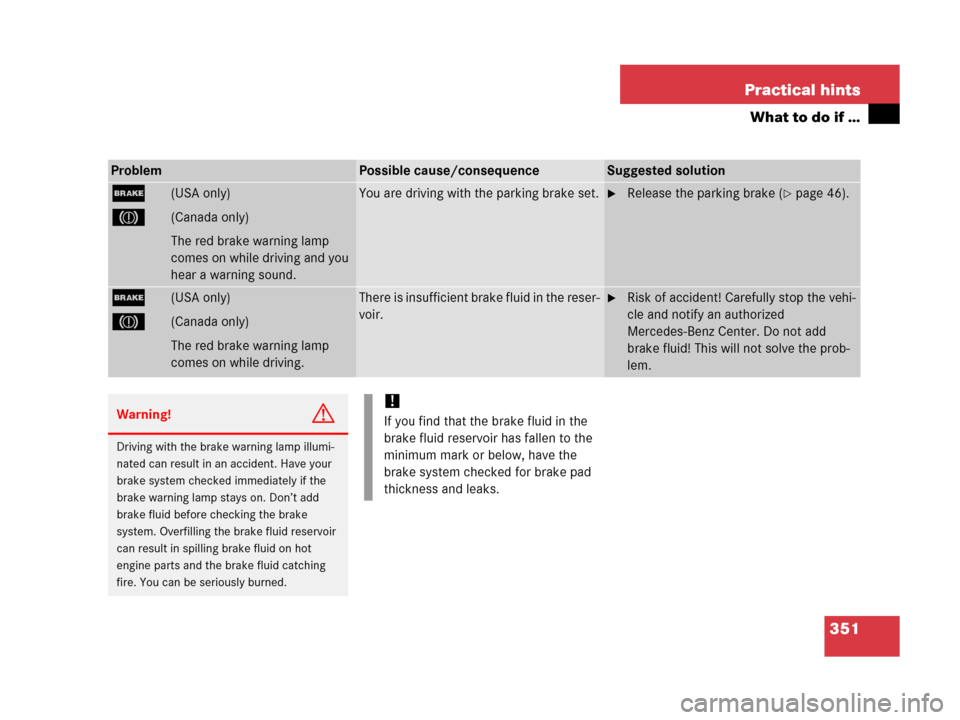

351 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
;(USA only)
3(Canada only)
The red brake warning lamp
comes on while driving and you
hear a warning sound.
You are driving with the parking brake set.Release the parking brake (page 46).
;(USA only)
3(Canada only)
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid in the reser-
voir.Risk of accident! Carefully stop the vehi-
cle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the prob-
lem.
Warning!G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!
If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

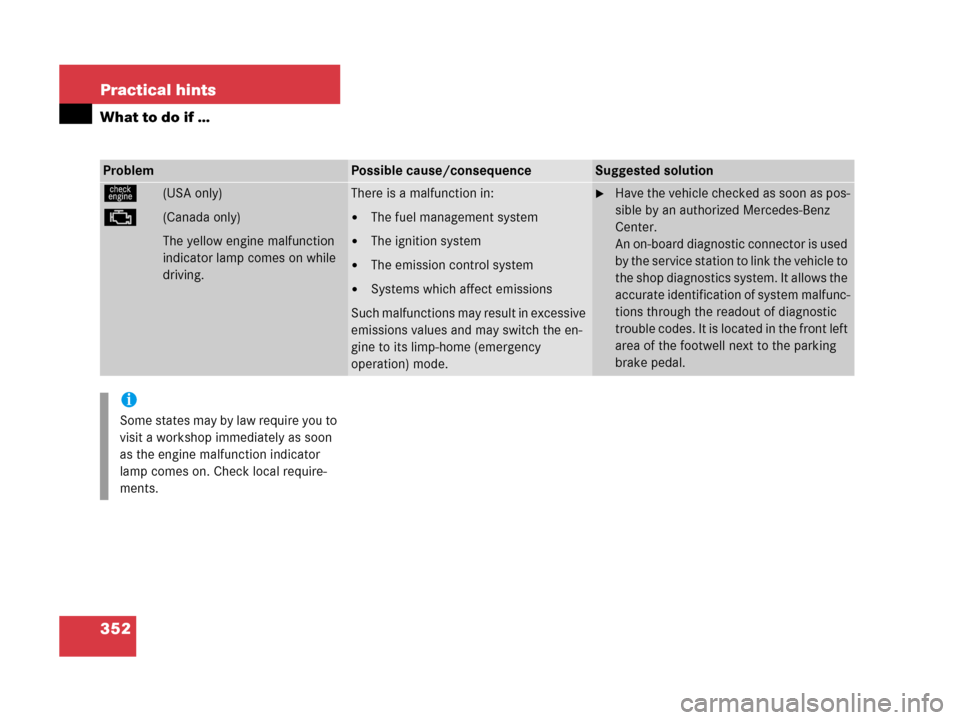

352 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
ú(USA only)
±(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
There is a malfunction in:

The fuel management system

The ignition system

The emission control system

Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency
operation) mode.
Have the vehicle checked as soon as pos-
sible by an authorized Mercedes-Benz
Center.
An on-board diagnostic connector is used
by the service station to link the vehicle to
the shop diagnostics system. It allows the
accurate identification of system malfunc-
tions through the readout of diagnostic
trouble codes. It is located in the front left
area of the footwell next to the parking
brake pedal.
i
Some states may by law require you to
visit a workshop immediately as soon
as the engine malfunction indicator
lamp comes on. Check local require-
ments.
