2006 MAZDA MODEL TRIBUTE headlamp

Function Number of
bulbsTrade number
Park/turn lamps (front) 2 3157 AK (amber)
Headlamps 2 9003 (HB2)
Rear stop/tail lamps 2 W21/5W
Rear turn lamps 2 WY21W (amber)
Rear license plate lamps 2 W5W
Backup lamp 2 W21W
Side repeater lamp 2 WY5W (amber)
Fog lamp (if equipped) 2 H1
Cargo lamp 1 211-2
Center high-mount stop
lamp5
W5W
Interior overhead lamp 1 912 (906)
Map lamps 2 168 (T10)
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized Mazda
dealer.
Replacing headlamp bulbs
NOTE:This procedure can be difficult. Your Mazda dealer has the
proper tools, training and parts to perform this task. If you have
difficulty with this procedure, visit your local Mazda dealer.
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its metal base
and do not touch the glass. The oil from your hand could cause
the bulb to break the next time the headlamps are operated.
Always wear safety glasses when handling halogen bulbs.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
40

1. Make sure that the headlamp control is in the OFF position.
2. Open the hood.
3. Disconnect the electrical
connector from the bulb by
pulling rearward.
4. Remove the rubber boot from
the lamp assembly by pulling on
one of the tabs.
5. Squeeze the retainer spring
together releasing it from bulb
hooks and rotate it away from
the bulb.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
41

6. Without turning, carefully pull
bulb out of headlamp assembly.
Note:The bulb’s metal base gets
very hot during headlamp operation.
Be sure the bulb base is cool before
handling.
If the bulb is accidentally touched,
it should be cleaned with rubbing
alcohol before being used.
7. Insert the glass end of the new
bulb into the headlamp assembly. When the bulb’s three metal tabs
are aligned with the grooves in the plastic base, push the bulb into
the lamp assembly until the bulb’s metal base contacts the plastic
base.
8. Rotate the retainer spring over the bulb’s metal base and secure it
on the bulb hooks.
9. Install rubber boot on the lamp assembly. Be sure to press firmly
around the perimeter of the boot and around the bulb to ensure the
proper seal of the bulb.
10. Connect the electrical connector into the rear of the bulb until it
“snaps.”
Replacing front parking lamp/turn signal bulbs
For bulb replacement, see your authorized Mazda dealer.
Replacing side repeater bulbs
1. Turn the headlamp switch to
off.
2. Carefully pry the lamp assembly
away from the fender.
3. Rotate the bulb socket
counterclockwise to remove it
from the lamp assembly.
4. Pull the bulb straight out.
Reverse steps to reinstall bulb(s).
Replacing foglamp bulbs
For bulb replacement, see your authorized Mazda dealer.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
42

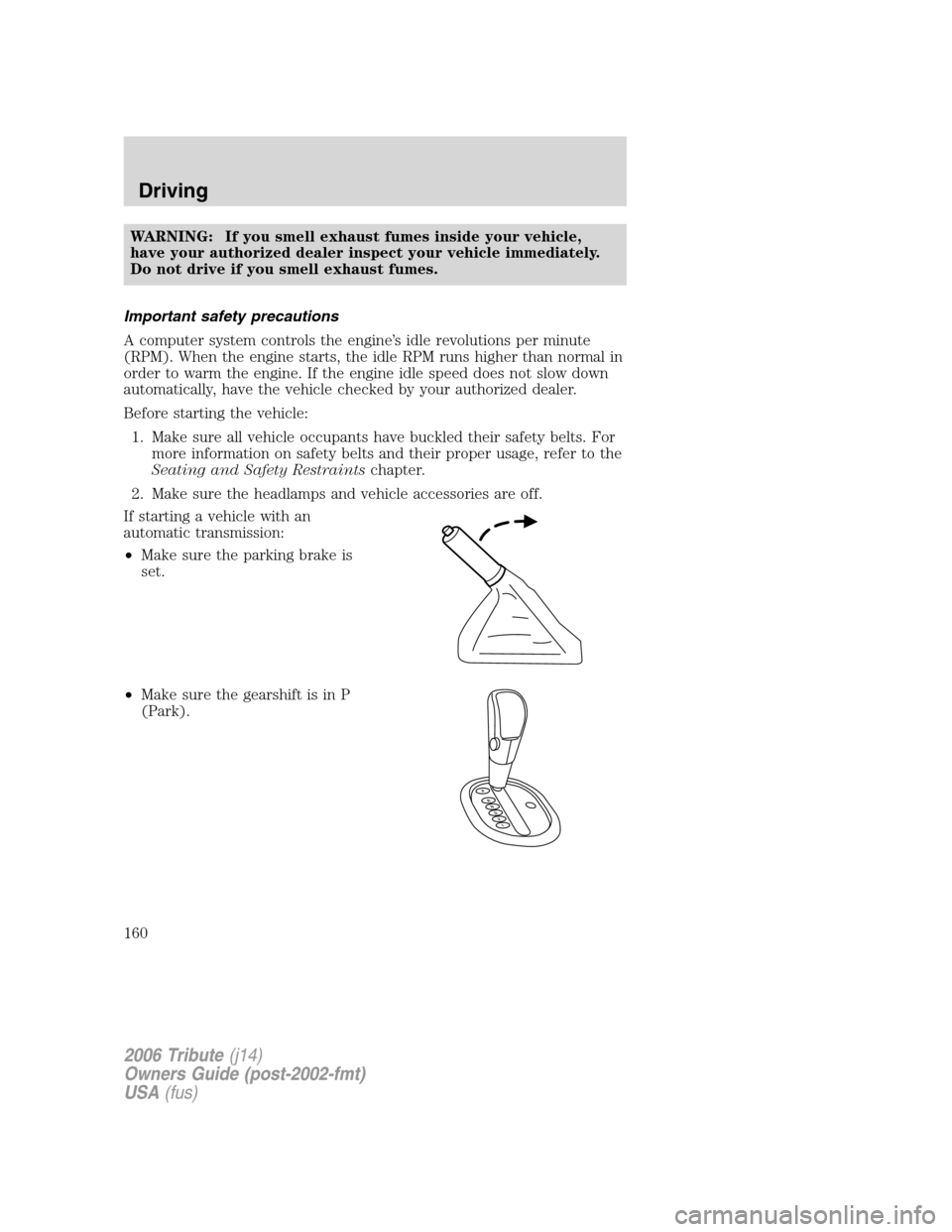

WARNING: If you smell exhaust fumes inside your vehicle,
have your authorized dealer inspect your vehicle immediately.
Do not drive if you smell exhaust fumes.
Important safety precautions
A computer system controls the engine’s idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs higher than normal in
order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked by your authorized dealer.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and Safety Restraintschapter.
2. Make sure the headlamps and vehicle accessories are off.
If starting a vehicle with an
automatic transmission:
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
P
R
N
D
2
1
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
160

WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting
the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay - Cigar lighter,
Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
189

running out of fuel .................258
safety information relating to
automotive fuels .....................253
Fuses ..................................185–186
G
Gas cap (see Fuel cap) ............256
Gas mileage
(see Fuel economy) .................258
Gauges .........................................19
engine coolant temperature
gauge .........................................21
fuel gauge ..................................21
odometer ...................................21
tachometer ................................21
trip odometer ............................21
H
Hazard flashers .........................184
Head restraints .....................70, 74
Headlamps ...................................34
aiming ........................................36
bulb specifications ....................39
daytime running lights .............35
flash to pass ..............................34
high beam .................................34
replacing bulbs .........................40
turning on and off ....................34
Heating
manual heating and air
conditioning system .................32
Hood ..........................................236
I
Ignition ...............................159, 271
Infant seats
(see Safety seats) .....................115Inspection/maintenance (I/M)
testing ........................................263
Instrument panel
cleaning ...................................226
cluster ........................................14
lighting up panel and
interior .......................................36
location of components ............14
J
Jump-starting your vehicle ......204
K
Keys .............................................66
positions of the ignition .........159
L
Lamps
bulb replacement
specifications chart ..................39
cargo lamps ...............................36
daytime running light ...............35
fog lamps ...................................35
headlamps .................................34
headlamps, flash to pass ..........34
instrument panel, dimming .....36
interior lamps .....................38–39
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................55
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........165
Load limits .................................146
Loading instructions .................153
Locks
childproof ..................................60
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Index
279
