2006 MAZDA MODEL MX-5 MIATA engine coolant

Black plate (274,1)
qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts (tension) I
Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy,
adjust
Engine oil Puerto Rico Replace every 5,000 km (3,000 miles) or 3 months
Others
RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, 96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter Puerto Rico
CRCR
Others C C R C
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs USA Replace every 96,000 km (60,000 miles)
Others Replace every 120,000 km (75,000 miles)
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
MX-5_8U35-EA-05F_Edition4 Page274
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

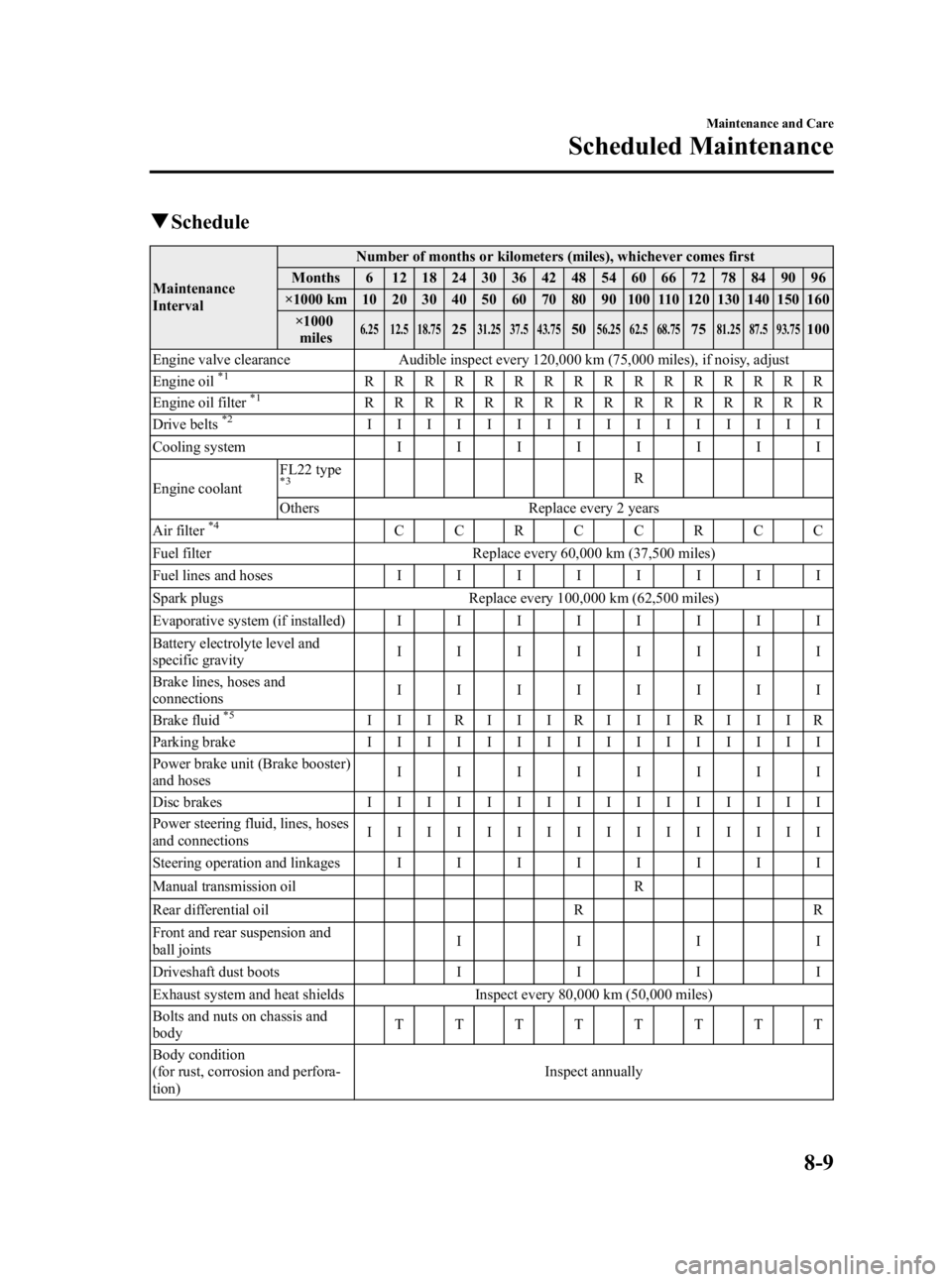

Black plate (277,1)
qSchedule
Maintenance
Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 ×1000miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy, adjust
Engine oil
*1RRRRRRRRRRRRRRRR
Engine oil filter*1RRRRRRRRRRRRRRRR
Drive belts*2IIIIIIIIIIIIIIII
Cooling system IIIIIIII
Engine coolant FL22 type
*3R
Others Replace every 2 years
Air filter
*4CCRCCRCC
Fuel filter Replace every 60,000 km (37,500 miles)
Fuel lines and hoses IIIIIIII
Spark plugs Replace every 100,000 km (62,500 miles)
Evaporative system (if installed) IIIIIIII
Battery electrolyte level and
specific gravity IIIIIIII
Brake lines, hoses and
connections IIIIIIII
Brake fluid
*5IIIRIIIRIIIRIIIR
Parking brake IIIIIIIIIIIIIIII
Power brake unit (Brake booster)
and hoses IIIIIIII
Disc brakes IIIIIIIIIIIIIIII
Power steering fluid, lines, hoses
and connections IIIIIIIIIIIIIIII
Steering operation and linkages IIIIIIII
Manual transmission oil R
Rear differential oil R R
Front and rear suspension and
ball joints IIII
Driveshaft dust boots IIII
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles)
Bolts and nuts on chassis and
body TTTTTTTT
Body condition
(for rust, corrosion and perfora-
tion) Inspect annually
Maintenance and Care
Scheduled Maintenance
8-9
MX-5_8U35-EA-05F_Edition4 Page277
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (278,1)
Maintenance
IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 ×1000miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
Tire
(with inflation pressure adjust-
ment) IIIIIIII
Flat tire repair kit (if installed)
*6Inspect annually
Chart symbols
I: Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
T: Tighten
C: Clean
Remarks
*1 If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often
than recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
*2 Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*3 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*4 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often than the recommended intervals.
*5 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle is operated in extremely humid climates, change the brake fluid annually.
*6 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
8-10
Maintenance and Care
Scheduled Maintenance
MX-5_8U35-EA-05F_Edition4 Page278
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (279,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-21)
lEngine coolant level (page 8-18)
lEngine oil level (page 8-16)
lWasher fluid level (page 8-22)
qAt Least Monthly
Tire inflation pressures (page 8-30)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lPower steering fluid level (page 8-22)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lAir filter (page 8-24)
lEngine coolant (page 8-18)
lEngine oil (page 8-16)
Maintenance and Care
Owner Maintenance
8-11
MX-5_8U35-EA-05F_Edition4 Page279
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

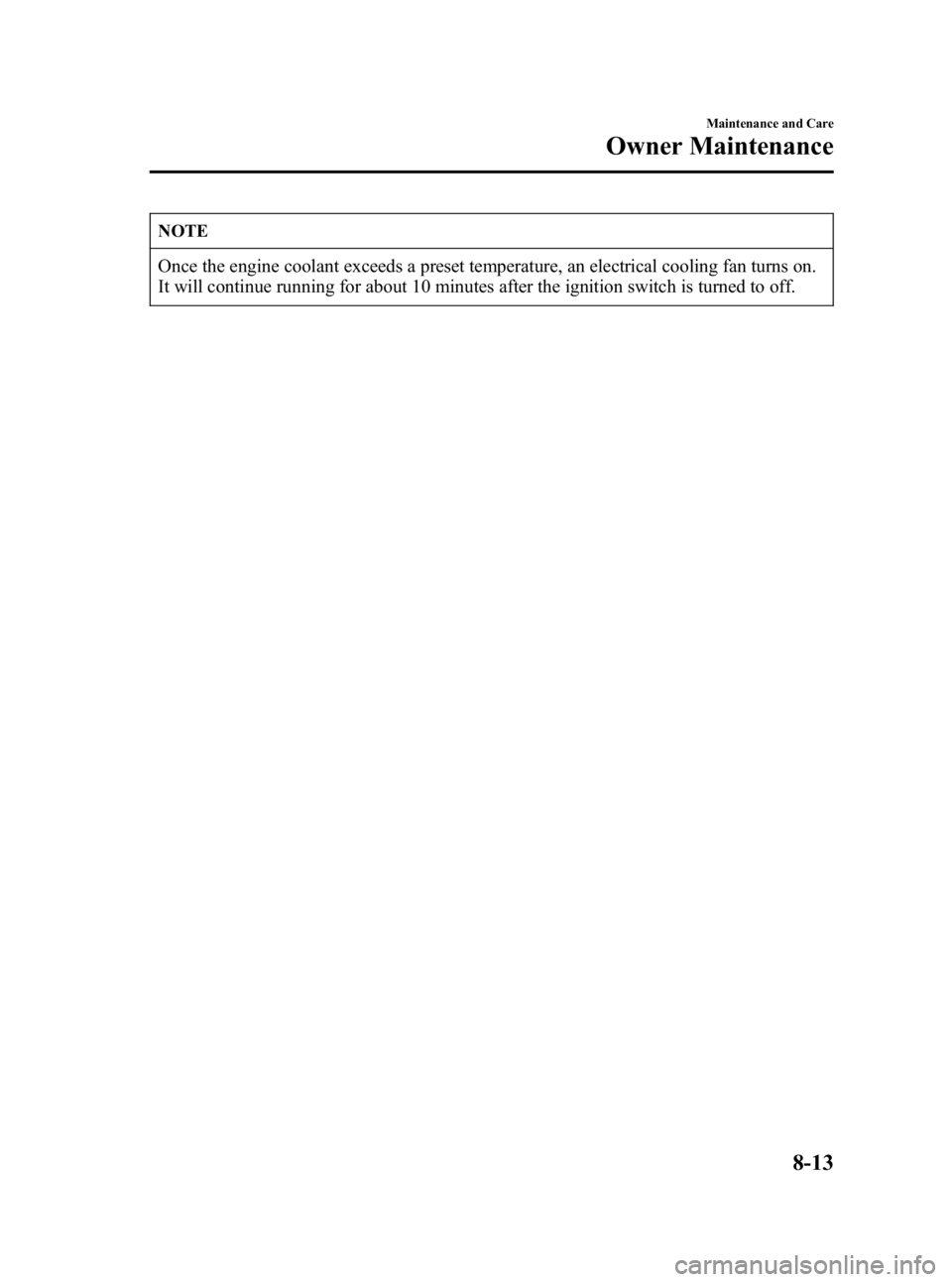

Black plate (281,1)
NOTE
Once the engine coolant exceeds a preset temperature, an electrical cooling fan turns on.
It will continue running for about 10 minutes after the ignition switch is turned to off.
Maintenance and Care
Owner Maintenance
8-13
MX-5_8U35-EA-05F_Edition4 Page281
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (282,1)
Engine Compartment Overview
Engine oil dipstick
Engine oil filler cap
Brake fluid reservoir / Clutch
fluid reservoir (only for manual
transmission model)
Washer fluid reservoir Cooling system capBattery
Engine coolant reservoir Power steering fluid cap
Air filter Fuse block
8-14
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition4 Page282
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (286,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS
HOT.
Electrical Fan and Engine
Inspection:
Working near the electrical cooling
fan when it is running is dangerous.
You could be hit by the fan and
seriously injured. Turn off the ignition
switch and make sure the fan is not
running before attempting to work
near the electrical cooling fan.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.
NOTE
Once the engine coolant exceeds a
preset temperature, an electrical cooling
fan turns on. It will continue running
for about 10 minutes after the ignition
switch is turned to off.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it's at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
8-18
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition4 Page286
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F

Black plate (287,1)
CAUTION
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
q Changing Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
CAUTION
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
lDO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.
lDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
NOTE
If the “FL22 ”mark is shown on or near
the cooling system cap, use FL22 type
engine coolant. If engine coolant other
than FL22 type is used, the engine
coolant must be replaced earlier than
the specified replacement interval
indicated in the scheduled maintenance
(page 8-3).
Except FL22 type
For mixture percentage:
Protection Volume
Antifreeze solution Deminera-
lized water
Above _
16°C (3°F) 35% 65%
Above _
26°C ( _
15°F) 45% 55%
Above _
40°C ( _
40°F) 55% 45%
FL22 type
FL22 type engine coolant concentration is
factory adjusted. Use the product as it is
without diluting it.
Maintenance and Care
Owner Maintenance
8-19
MX-5_8U35-EA-05F_Edition4 Page287
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F
