3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-41).
8-40
Maintenance and Care
Owner Maintenance
Mazda MPV_8U61-EA-05G_Edition1 Page300
Tuesday, June 21 2005 9:38 AM
Form No.8U61-EA-05G
Page 303 of 364
Black plate (303,1)

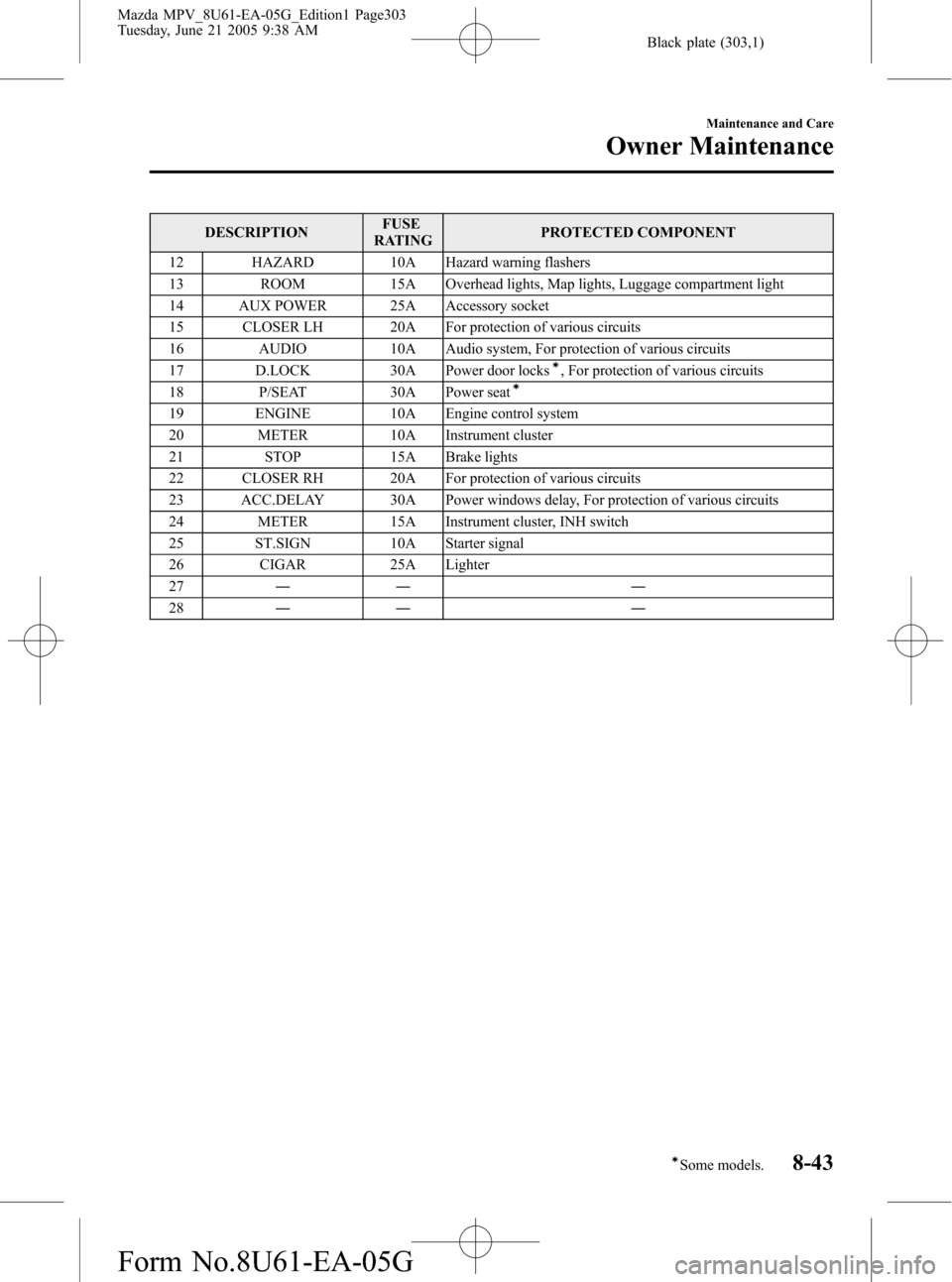

DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
12 HAZARD 10A Hazard warning flashers
13 ROOM 15A Overhead lights, Map lights, Luggage compartment light
14 AUX POWER 25A Accessory socket
15 CLOSER LH 20A For protection of various circuits
16 AUDIO 10A Audio system, For protection of various circuits
17 D.LOCK 30A Power door locks
í, For protection of various circuits
18 P/SEAT 30A Power seatí
19 ENGINE 10A Engine control system
20 METER 10A Instrument cluster
21 STOP 15A Brake lights
22 CLOSER RH 20A For protection of various circuits
23 ACC.DELAY 30A Power windows delay, For protection of various circuits
24 METER 15A Instrument cluster, INH switch
25 ST.SIGN 10A Starter signal
26 CIGAR 25A Lighter
27―― ―
28―― ―
Maintenance and Care
Owner Maintenance
8-43íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page303
Tuesday, June 21 2005 9:38 AM
Form No.8U61-EA-05G
