2006 MAZDA MODEL MAZDASPEED 6 tow

Black plate (31,1)
qUnfastening the Seat Belt
Depress the button on the buckle.
Button
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(B)
(A)
NOTE
To encourage rear seat passengers to
wear their seat belts, we suggest leaving
the center-rear lap position of the belt
fastened at all times.
qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make sure
the belt is locked securely into the
recess. If the seat belt is not locked
securely, it could fall down suddenly
and cause injury.
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess.
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
Essential Safety Equipment
Seat Belt Systems
2-19
Mazdaspeed6_8U01-EA-05H_Edition1 Page31
Thursday, July 7 2005 1:1 PM
Form No.8U01-EA-05H

Black plate (35,1)
Child Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated on the center seat.
Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system shouldNEVERbe used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger seat weight sensors work as a part of the supplemental restraint system.
This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the total seated weight on the front passenger
seat is less than approximately 30 kg (66 lb).
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to“Front passenger seat weight sensors”(page 2-46).
Essential Safety Equipment
Child Restraint
2-23
Mazdaspeed6_8U01-EA-05H_Edition1 Page35
Thursday, July 7 2005 1:1 PM
Form No.8U01-EA-05H

Black plate (94,1)
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
WARNING
Vehicles Left Unlocked:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders. Always close
all the windows, lock the doors and
take the key with you when leaving
your vehicle unattended.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
3-26
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page94
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (109,1)
2. Turn the key toward the front and hold
it. After the doors and the trunk lid are
unlocked, the windows fully open
automatically.
Open
To stop this operation, turn the key to the
center position, then turn it toward the
front again.
NOTE
The window opening operation also can
be stopped by turning the key toward
the back. However, the doors and the
trunk lid will lock.
qClosing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has
been activated, the doors and the trunk
lid automatically lock as you walk away
from vehicle, however, the power
windows cannot be closed. When
leaving the vehicle, close the windows
using the power window switch inside
the vehicle, the key, or a request switch.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the back and hold
it. After the doors and the trunk lid are
locked, the windows close while the
key is turned.
Close
With request switch on the driver's
door (with advanced key)
1. If the doors and the trunk lid are
locked, unlock them.
Knowing Your Mazda
Doors and Locks
3-41
Mazdaspeed6_8U01-EA-05H_Edition1 Page109
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (127,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Rocking the Vehicle .................................................................. 4-8
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-10
Overloading ............................................................................ 4-10
Turbocharger Information ....................................................... 4-11
Towing ......................................................................................... 4-12
Trailer Towing ......................................................................... 4-12
4-1
Mazdaspeed6_8U01-EA-05H_Edition1 Page127
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (138,1)

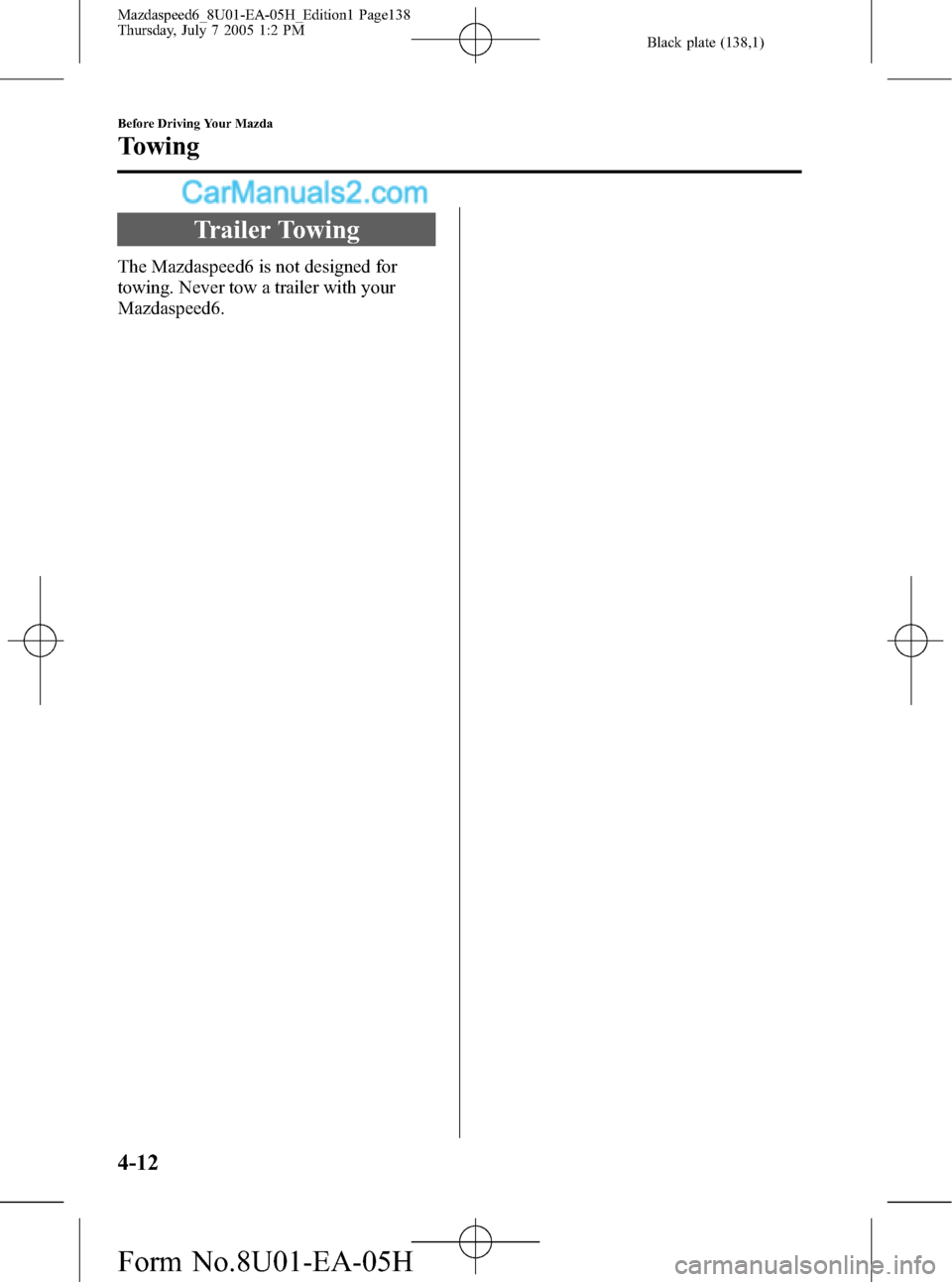

Trailer Towing
The Mazdaspeed6 is not designed for
towing. Never tow a trailer with your
Mazdaspeed6.
4-12
Before Driving Your Mazda
Towing
Mazdaspeed6_8U01-EA-05H_Edition1 Page138
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (144,1)
Setting the parking brake
Depress the brake pedal and then firmly
pull the parking brake lever fully upwards
with a greater amount of force than is
required so that the vehicle holds in the
stationary position.
Releasing the parking brake
Depress the brake pedal and pull the
parking brake lever upwards, then press
the release button. While holding the
button, lower the parking brake lever all
the way down to the released position.
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-18).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes out have your brake
system inspected as soon as possible by
an Authorized Mazda Dealer.
5-6
Driving Your Mazda
Starting and Driving
Mazdaspeed6_8U01-EA-05H_Edition1 Page144
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (145,1)
NOTE
Having to add brake fluid is sometimes
an indicator of leakage. Consult an
Authorized Mazda Dealer as soon as
possible even if the brake light is no
longer illuminated.
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, have the vehicle
towed to an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
qAnti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel's brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don't
pump the brakes, continue to press down
on the brake pedal.
WARNING
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident. So don't rely on
ABS as a substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
Driving Your Mazda
Starting and Driving
5-7
Mazdaspeed6_8U01-EA-05H_Edition1 Page145
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H
